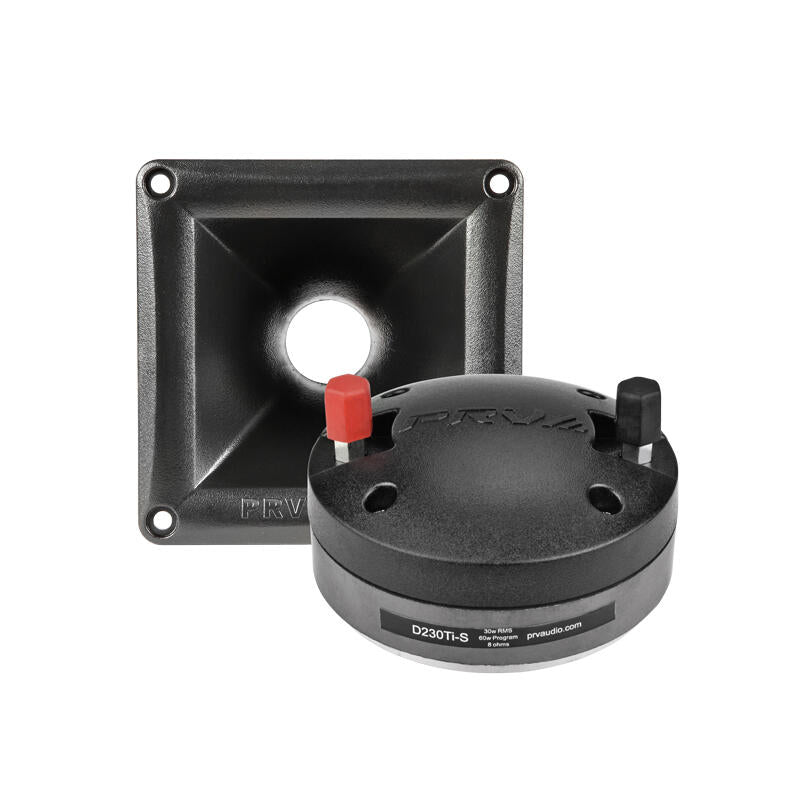

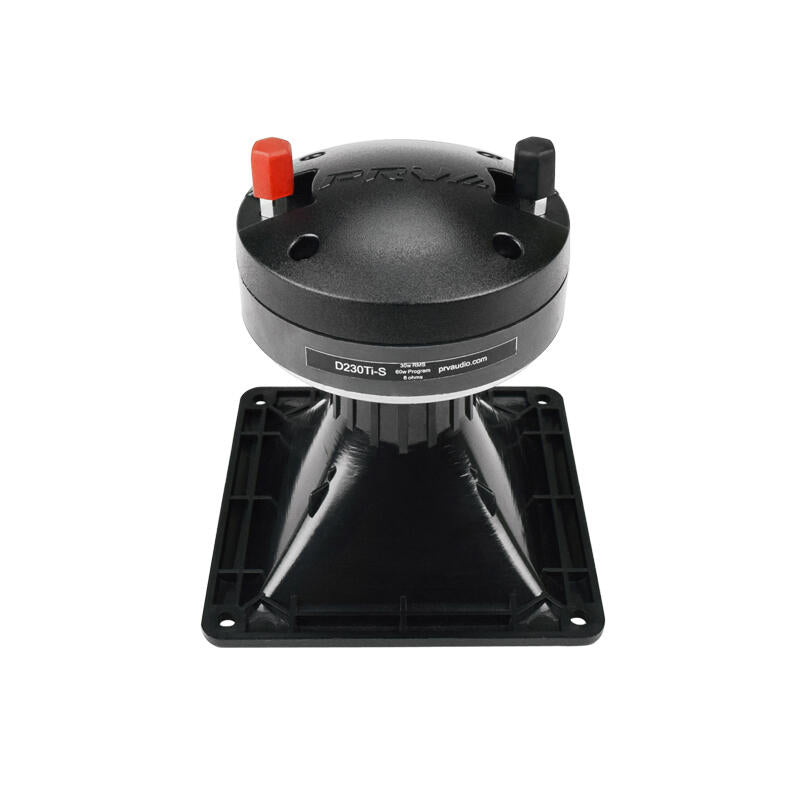

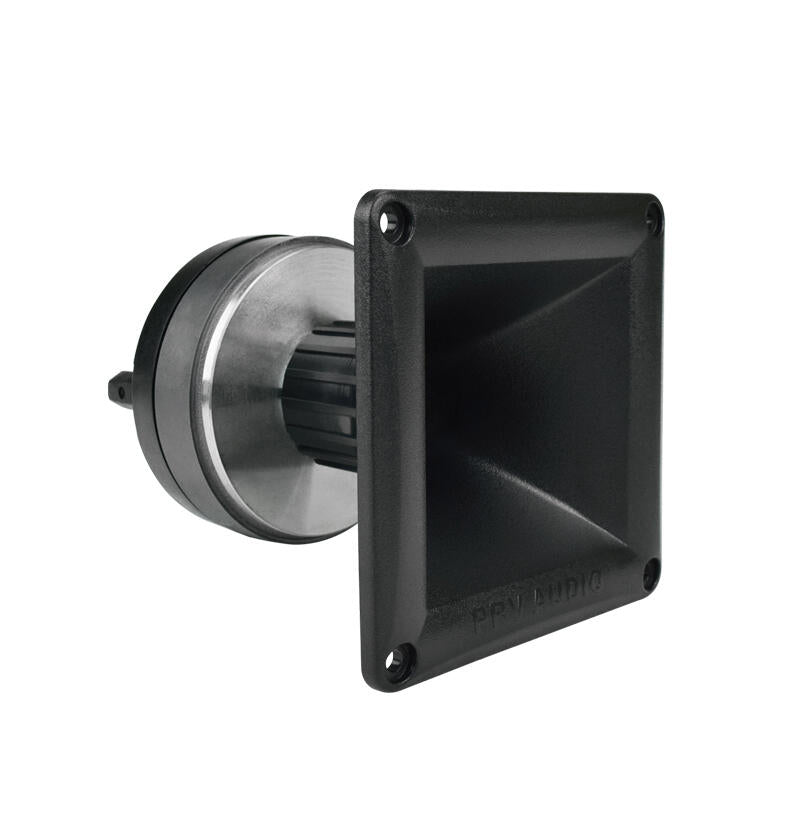

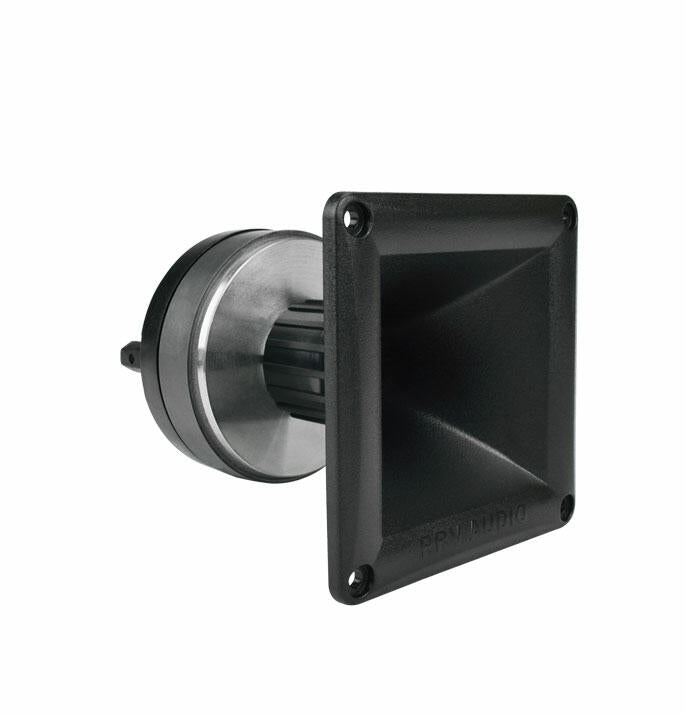

PRV Audio WG230Ti 1" EXIT TITANIUM COMPRESSION DRIVER + HORN - COMBO (Each)
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio WG230Ti 1" EXIT TITANIUM COMPRESSION DRIVER + HORN - COMBO (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
The WG230Ti compression driver combo is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8-18 TPI horn.
The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.
- Throat Diameter: 1
- Type: Combo
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 30 Watts
- Program Power: 60 Watts
The WG230Ti is a lightweight driver that weighs just 2.20lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.
The WG230Ti is designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1 screw-on design.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 30 Watts |
| Program Power | 60 Watts |
| Sensitivity 2.83V at 1m | 105 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 2000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,800 - 20,000 Hz |
| Voice Coil Diameter | 1.4" (35.5 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.65 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Depth | 5.11 (130 mm) |
| Mounting Depth | 4.86 (123.5 mm) |
| Overall Width | 4.54" (115.5 mm) |
| Overall Height | 4.54" (115.5 mm) |
| Baffle Cutout | 4.16" (102 mm) |
| Net Weight | 2.20 lbs (1.00 kg) |
| Shipping Weight | 2.41 lbs (1.10 kg) |
| Carton Dimensions W x L x H | 4.64 x 4.64 x 5.31 (118 x 118 x 135 mm) |
