PRV Audio WG2500Py SLIM 2" Exit Mids & Highs Compression Driver with Horn

PRV Audio WG2500Py SLIM 2" Exit Mids & Highs Compression Driver with Horn

Precio regular $103.99
Precio de venta $103.99 Precio regular
Precio unitario
FREE SHIPPING ON SELECT ORDERS
FINANCING OPTIONS AVAILABLE
Product Description
Shipping
Returns
Questions?

Features

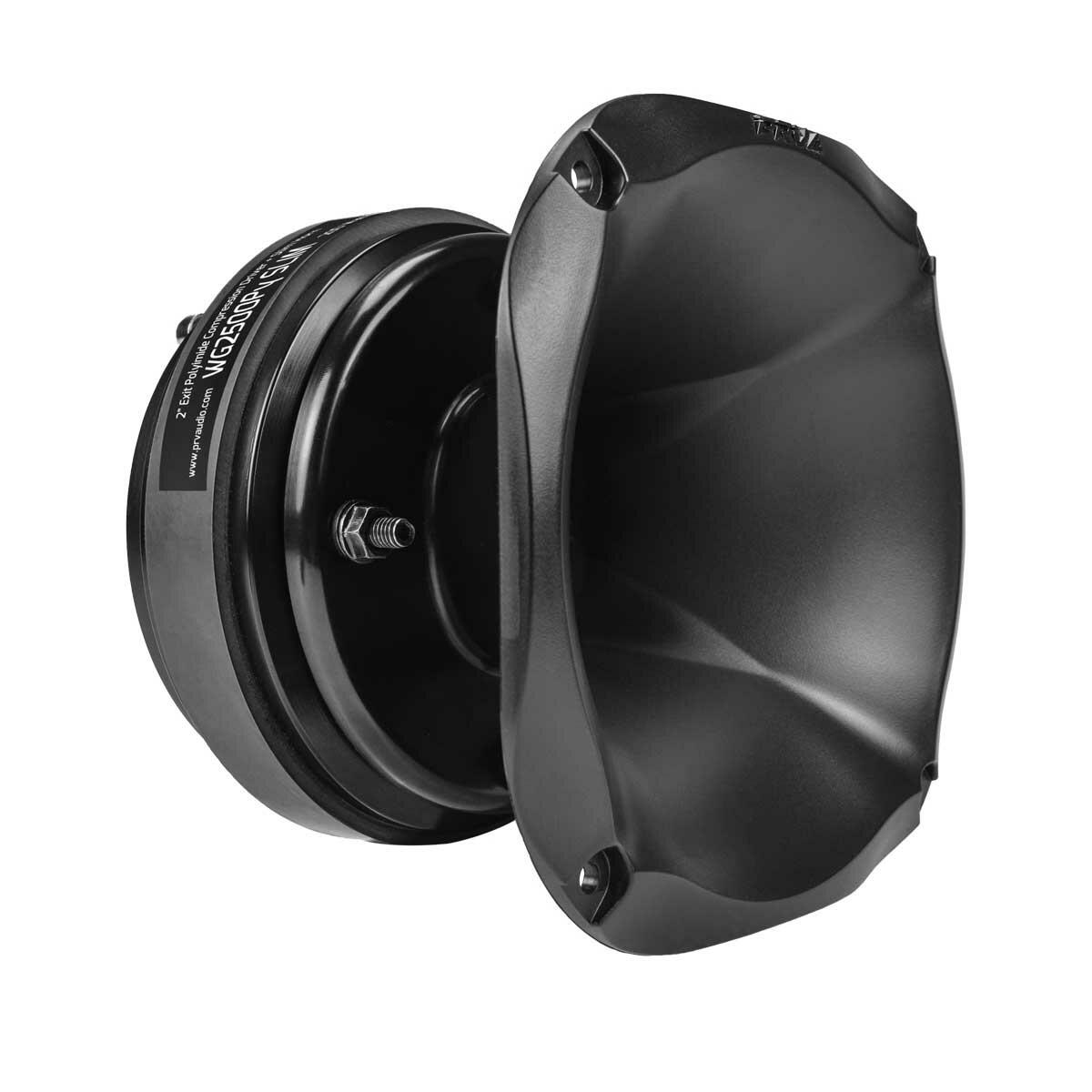

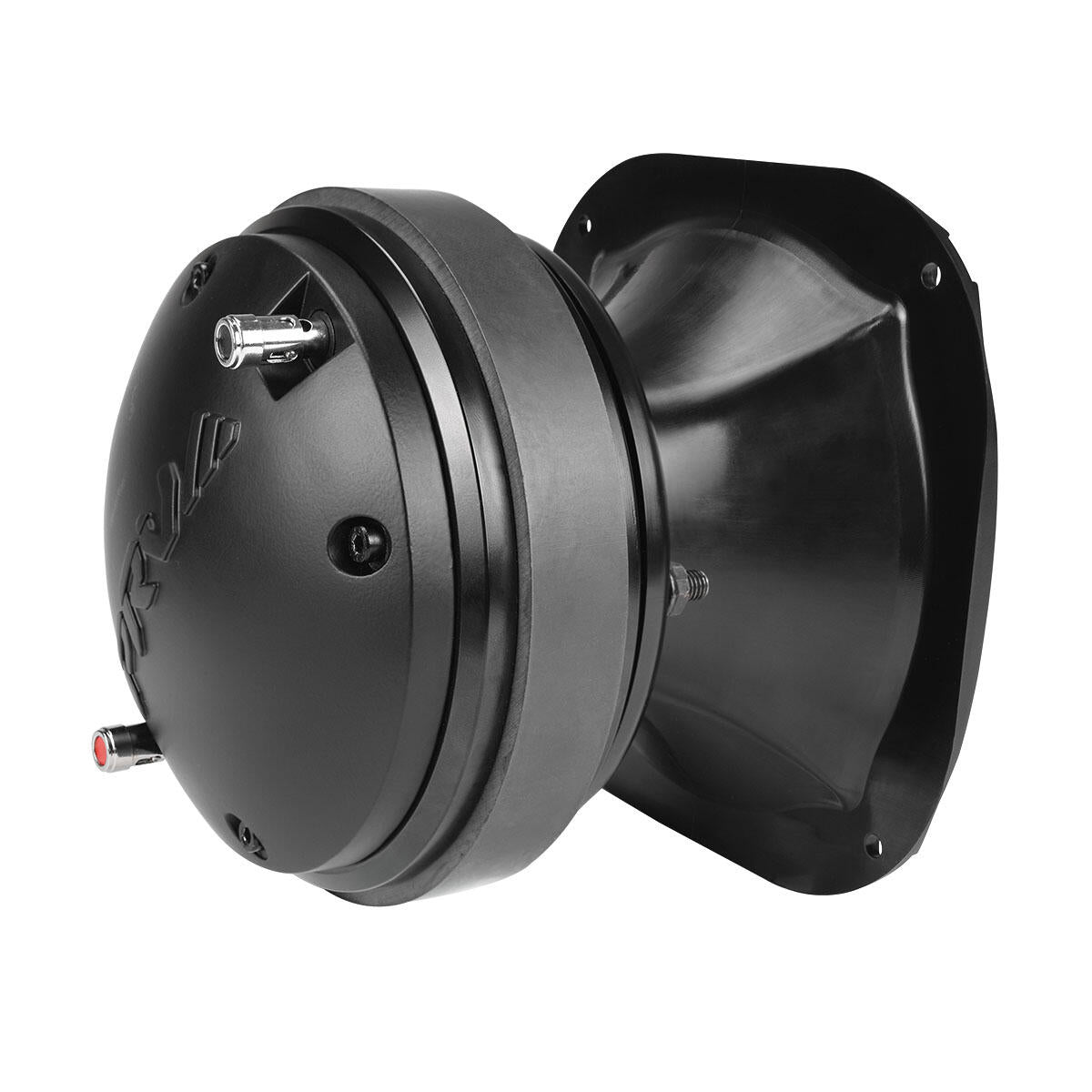

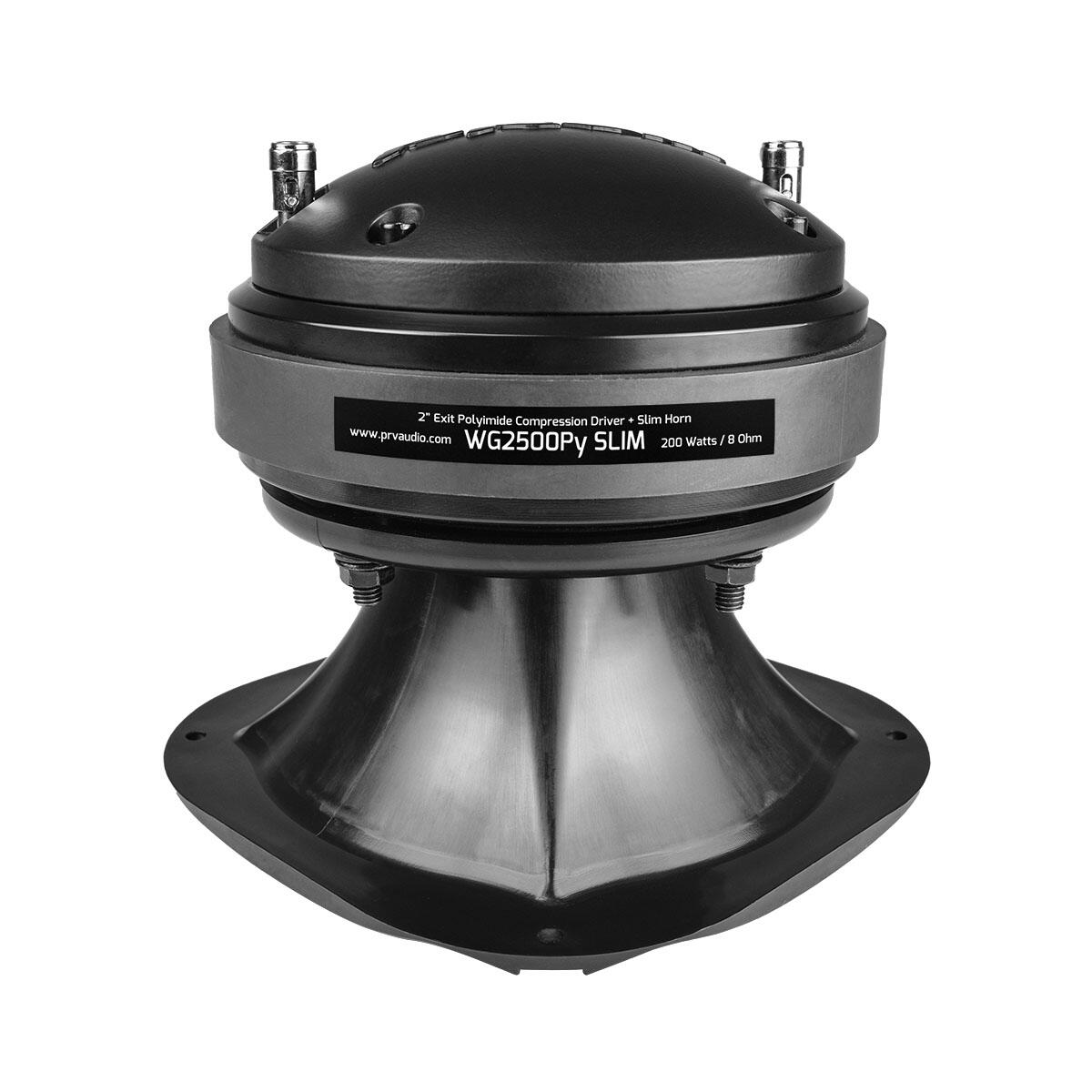

The WG2500Py SLIM is a compact 2 horn driver featuring a Polyimide D2500Py Pro Audio Compression Driver with a 2 exit WGP14-50X Slim Waveguide.

This is a top-of-the-line horn driver designed to offer unsurpassed natural upper midrange and high frequency response at high sensitivity, with crystal clear natural sound from the Polyimide diaphragm.

  • Polyimide diaphragm with large 2.5 Voice Coil, providing dynamic output along with excellent efficiency 107 dB Sensitivity
  • Mids & Highs 2 Exit Driver + Shallow Horn WGP14-50X Perfect as compression driver for car audio
  • Crystal clear natural sound with wider response from 800 to 17,000 Hz
  • PRO Audio horn driver, able to handle 200 Watts Continuous Program Power (RMS) with music
  • Compact driver mounted on slim horn, ideal for tight spaces, increases sound output on your system with this slim solution. Great choice for custom car audio door panels

The drivers small diameter allows front mounting, making it easy to install without detaching the driver from the WGP14-50X Horn.

Its design was developed to give custom doors a new solution for high power shallow horn driver, its 2.5 voice coil can handle 200 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP

  • 900 Hz at 12 dB per octave filter Crossover / BT12
  • 800 Hz at 18 dB per octave filter Crossover / BT18

The specially designed Polyimide diaphragm provides durability and additional damping for natural sound quality. This technology raises the bar for high frequency drivers by giving the driver wider usable bandwidth for smooth, dynamic output along with excellent efficiency.

The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.

PRV Shallow Mount 2 Horn Driver WG2500Py SLIM Mids & Highs 200 Watts 8 Ohm Polyimide Compression Horn driver for Car Audio



GENERAL SPECIFICATIONS

Exit Throat Diameter 2 (50 mm)
Nominal impedance 8 Ohm
Nominal Power Handling* 100 Watts
Continuous Program Power (RMS)** 200 Watts
Max Peak Power*** 400 Watts

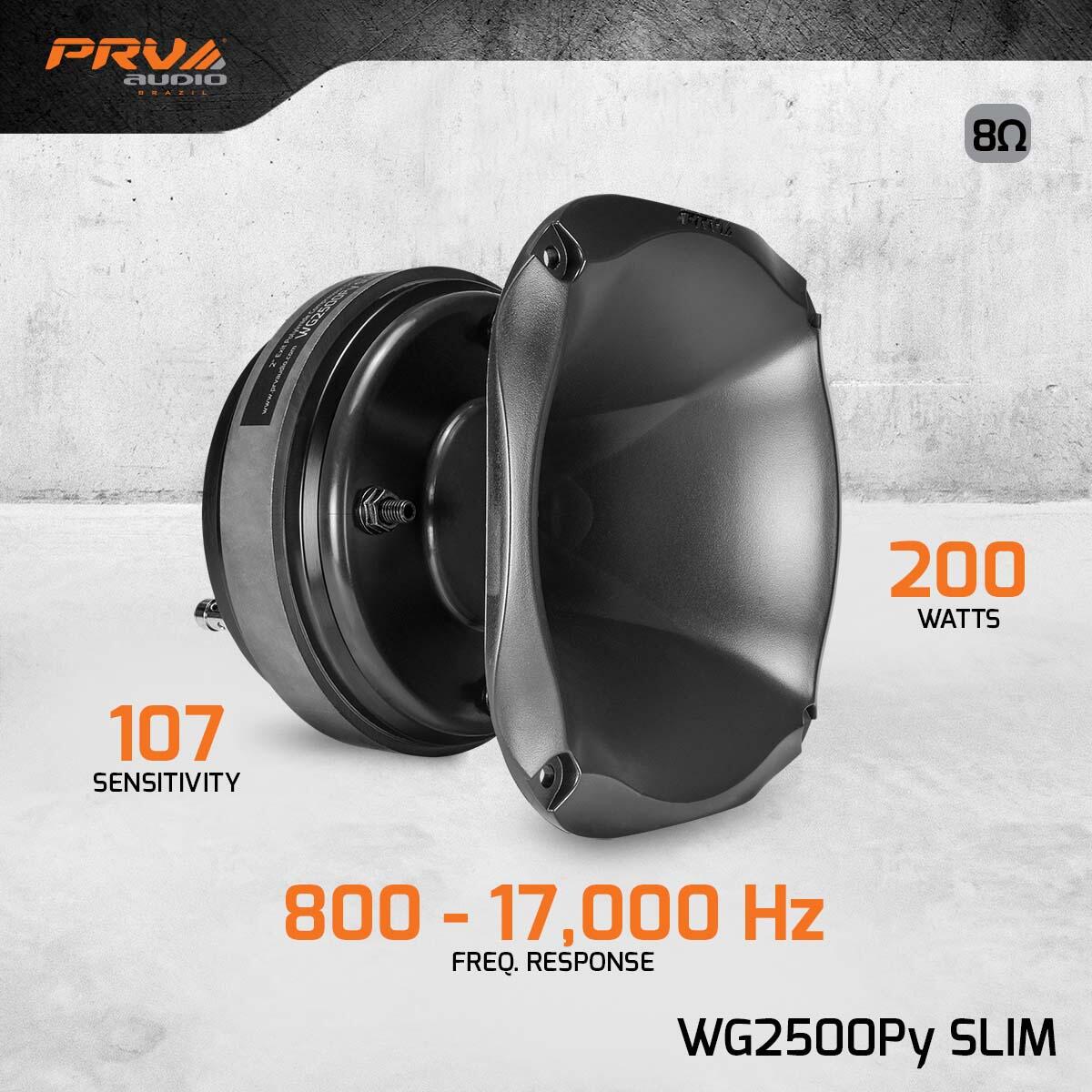

Sensitivity 2.83V at 1m 107 dB
Recommended Hi Pass Crossover For Full Power Handling 900 Hz 12db Per Octave Crossover
Frequency Response at -10dB 800- 17,000 Hz
Voice Coil Diameter 2.5(63.5 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Polyimide
Flux Density 1.87 T
Magnet Material Ferrite
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

EXTRA INFO

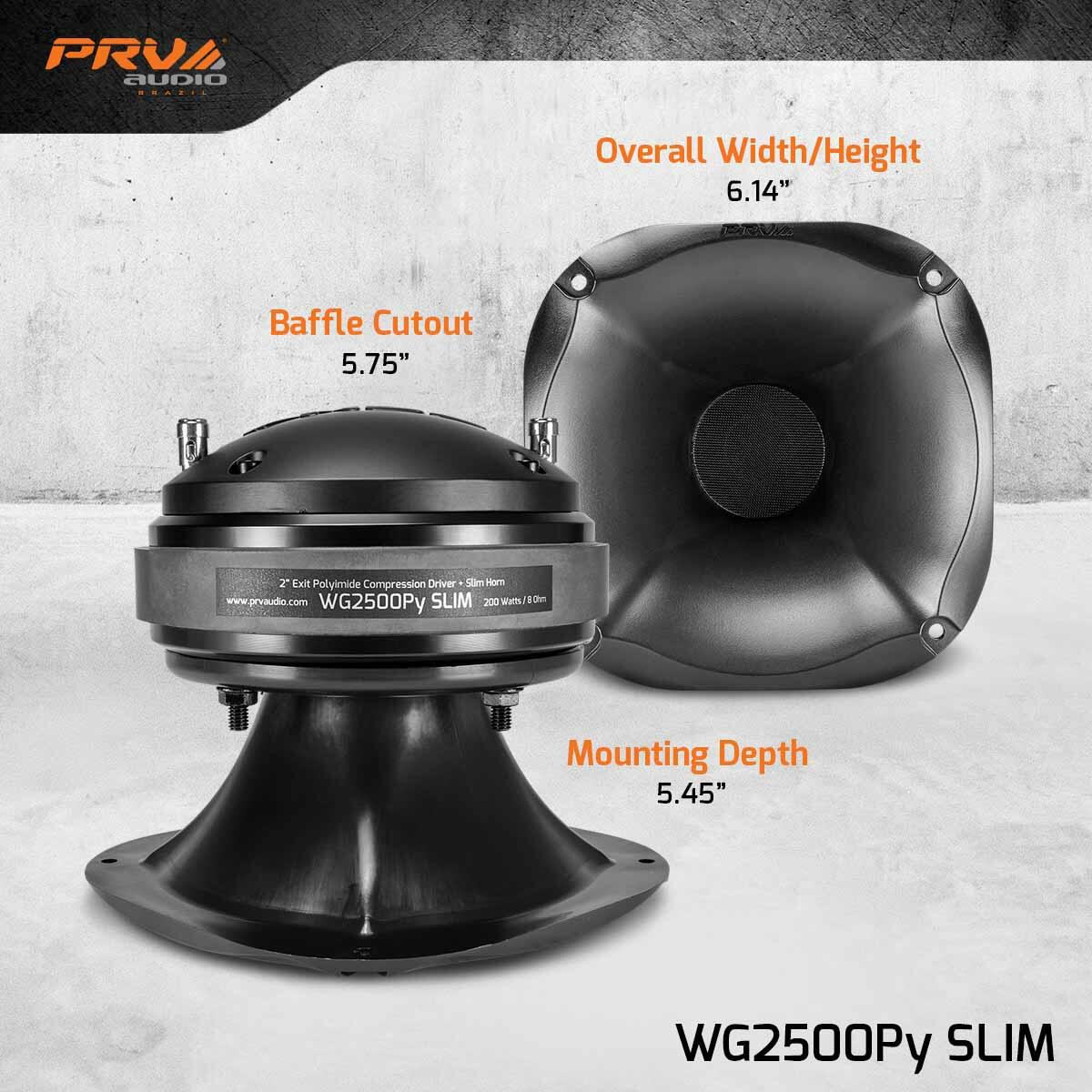

Overall Depth 5.77 (146.5 mm)
Mounting Depth 5.45 (138.5 mm)
Overall Width 6.14" (156 mm)
Overall Height 6.14" (156 mm)
Baffle Cutout 5.75"(146 mm)
Net Weight 7.72 lbs (3.50 kg)
Shipping Weight 8.38 lbs (3.80 kg)
Carton Dimensions W x L x H 6.50 x 6.70 x 7.10 (165x 170x 180mm)
