PRV Audio WG3220Ph-Nd 2" Exit Midrange Compression Driver with Horn (Each)
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT

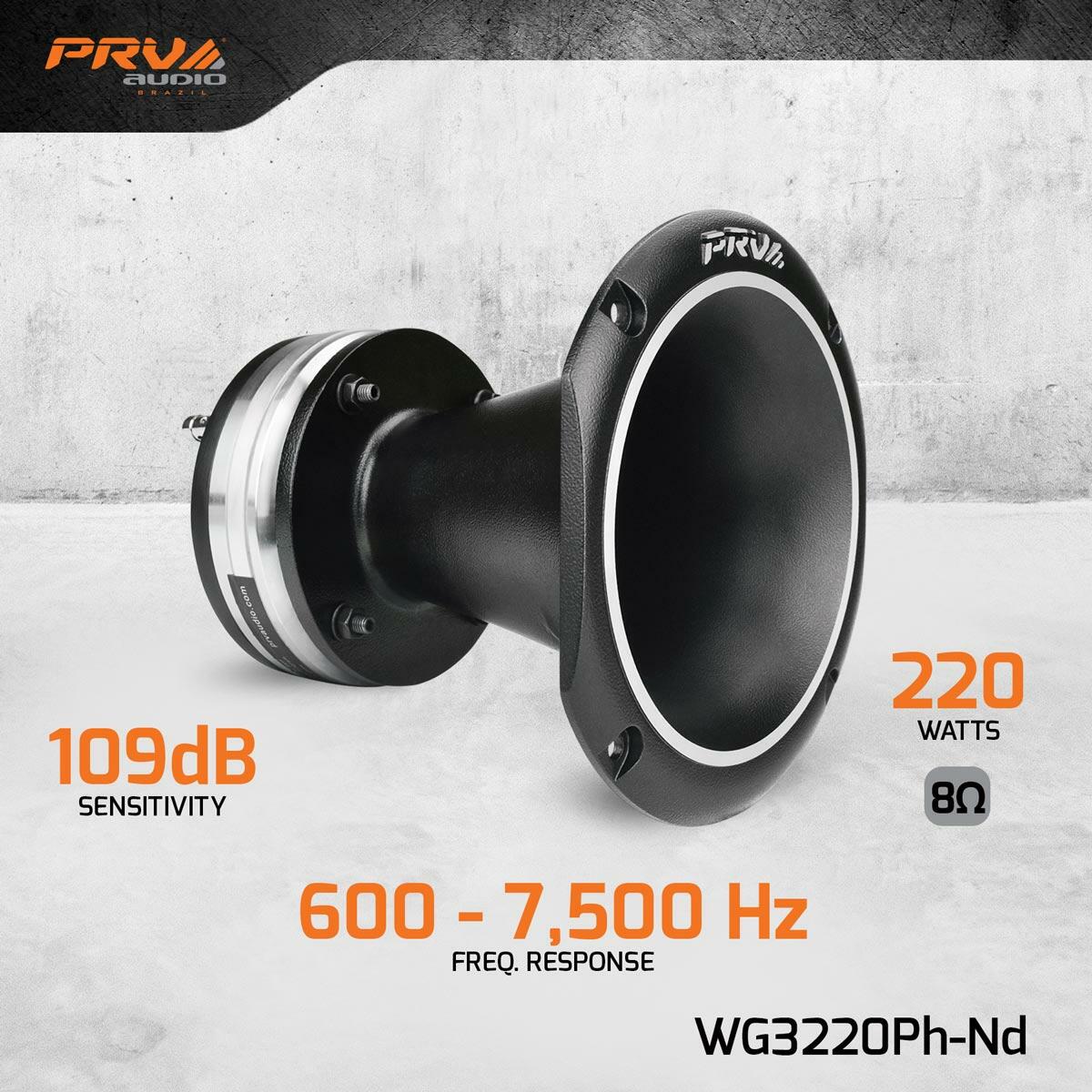

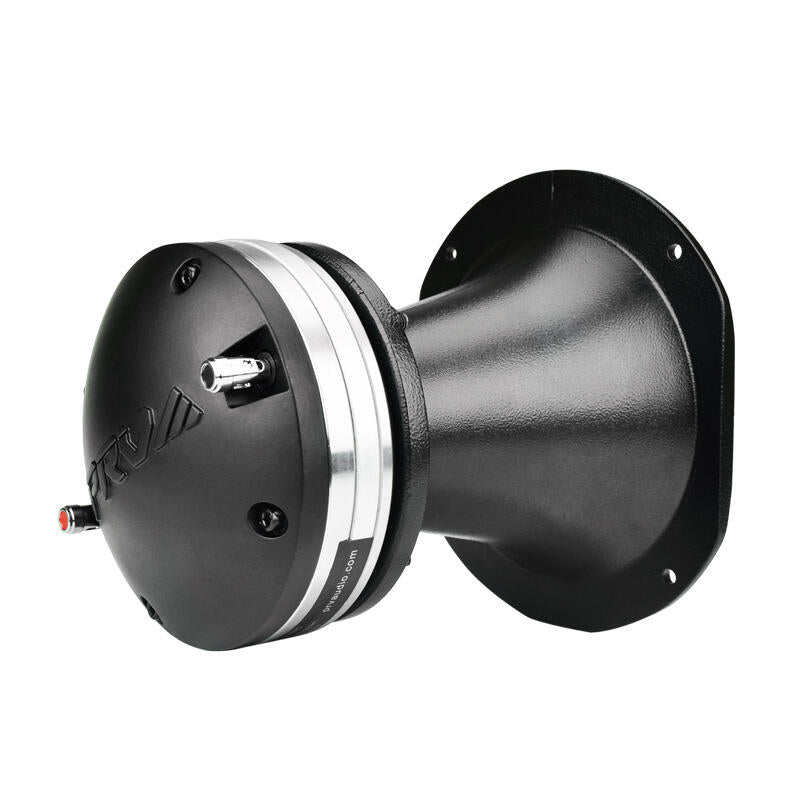

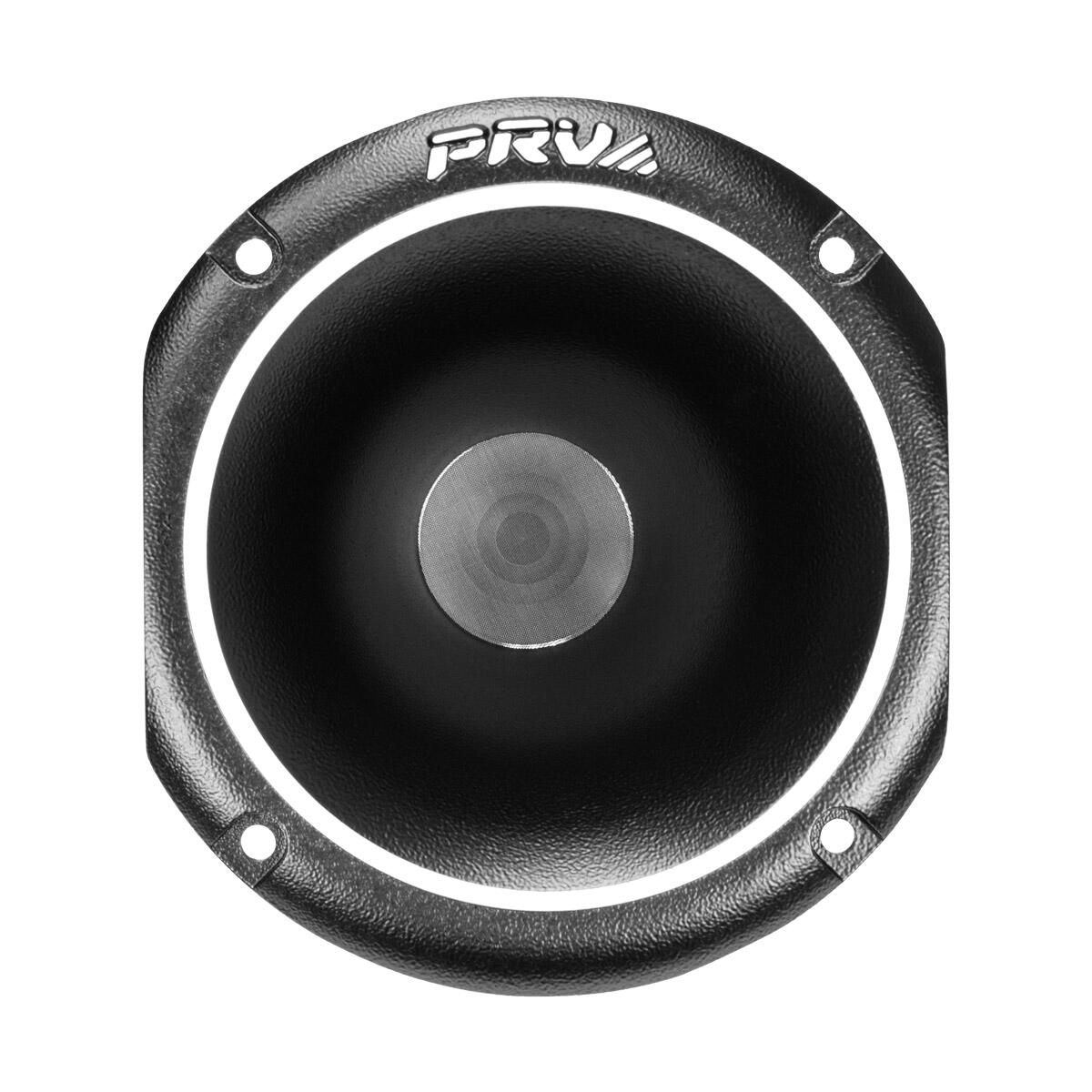

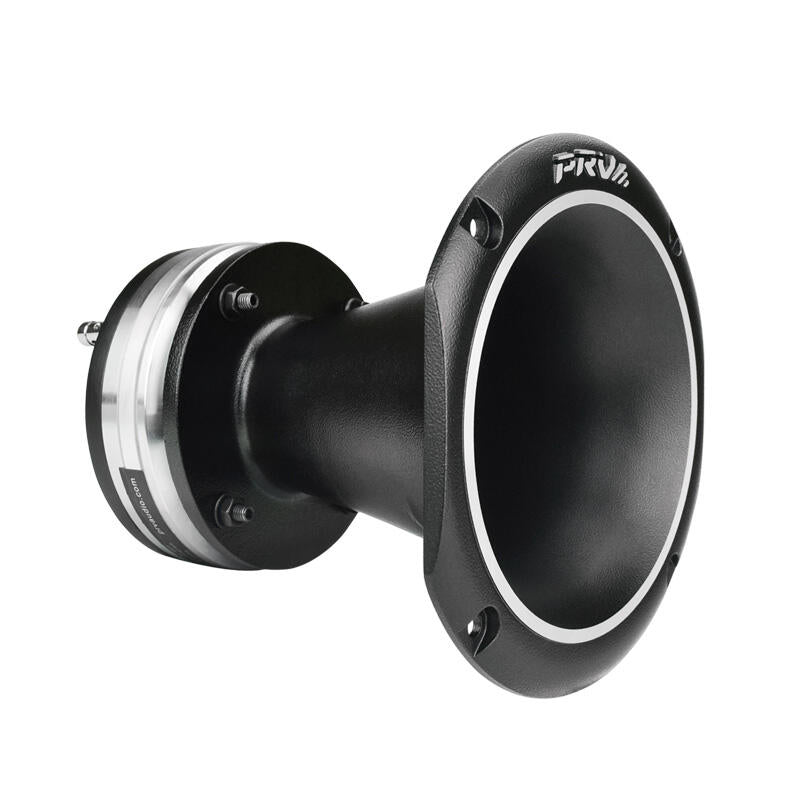

PRV Audio WG3220Ph-Nd 2" Exit Midrange Compression Driver with Horn (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
The WG3220Ph-Nd is the perfect solution for mid-high vocal reproduction, offering high sensitivity and a pleasant sound from the phenolic diaphragm. The small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from the horn.
The pro audio phenolic compression driver offers unsurpassed vocal and mid range reproduction. The specially designed phenolic diaphragm on a Kapton former offers a smooth sound required for proper voice production systems.
Highlights
- Throat Diameter: 2
- Type: Combo
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 110 Watts
- Program Power: 220 Watts
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2 (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 110 Watts |
| Program Power | 220Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 800 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 600 - 7,500 Hz |
| Voice Coil Diameter | 3(76.2 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic Resin |
| Flux Density | 1.80 T |
| Magnet Material | Neodymium |
EXTRA INFO

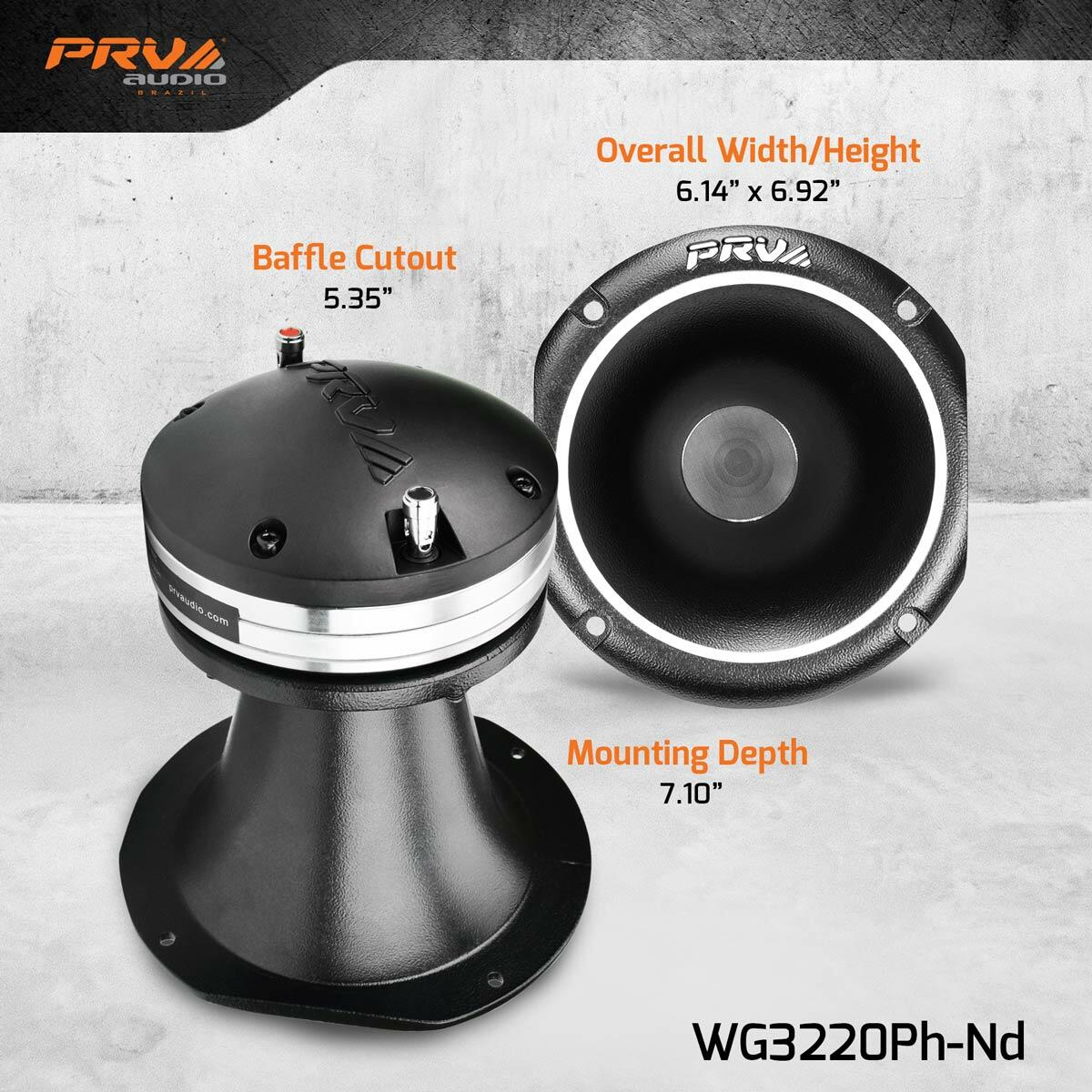

| Overall Depth | 7.44 (189 mm) |
| Mounting Depth | 7.10 (180 mm) |
| Overall Width | 6.14" (156.5 mm) |
| Overall Height | 6.92"(176 mm) |
| Baffle Cutout | 5.35"(136 mm) |
| Net Weight | 6.40lbs (2.90 kg) |
| Shipping Weight | 6.72 lbs (3.05 kg) |
| Carton Dimensions W x L x H | 10.2 x 9.5 x 7.5 (260 x 240 x 190 mm) |
