Samlex IDC360A-24 Idc360a24 360 Watt Fully Isolated DC To DC Converter (12 Volt To 24 Volts)
-
Estimated Delivery:Oct 17 - Oct 21
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT

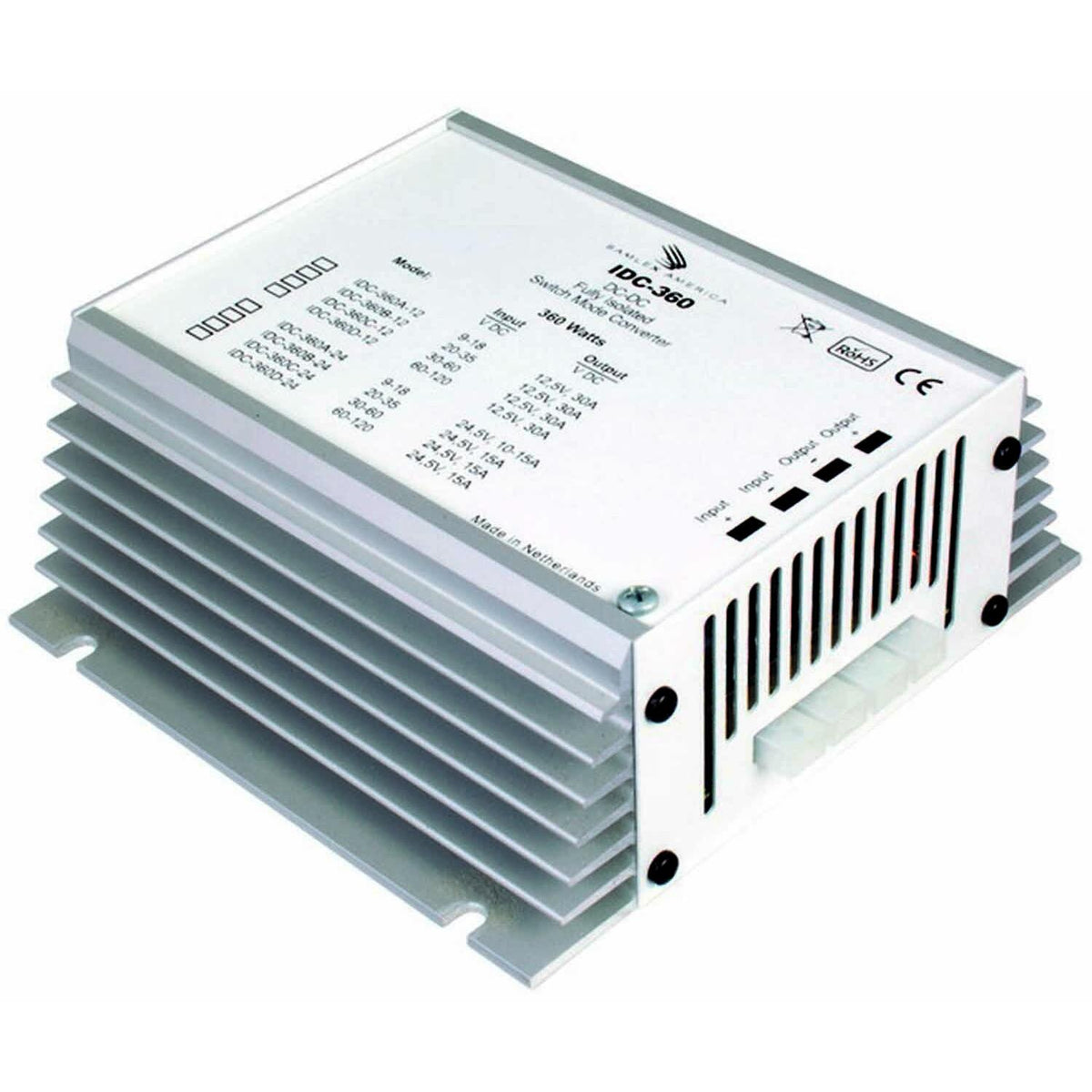

Samlex IDC360A-24 Idc360a24 360 Watt Fully Isolated DC To DC Converter (12 Volt To 24 Volts)
The DC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360A-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 15 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, over voltage and reverse polarity connection. The unit comes with ¼” push-on flat blade “quick disconnect” connectors.
IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360A-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 15 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with ¼” push-on flat blade “quick disconnect” connectors. IDC-360A-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/EC.
- Fully Isolated
- Short Circuit Protected
- Current Limited
Input: 9 – 18 VDC
Output: 24.5 VDC
Amps: 15 Amps
Weight: 3.1 (lbs)
Weight: 1.4 (kg)
Dimensions: 5.23 x 7.5 x 3.27 (in)
Dimensions: 132.8 x 190.5 x 83 (mm)
IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360A-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 15 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with ¼” push-on flat blade “quick disconnect” connectors. IDC-360A-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/EC.
- Fully Isolated
- Short Circuit Protected
- Current Limited
Input: 9 – 18 VDC
Output: 24.5 VDC
Amps: 15 Amps
Weight: 3.1 (lbs)
Weight: 1.4 (kg)
Dimensions: 5.23 x 7.5 x 3.27 (in)
Dimensions: 132.8 x 190.5 x 83 (mm)
