Product Info

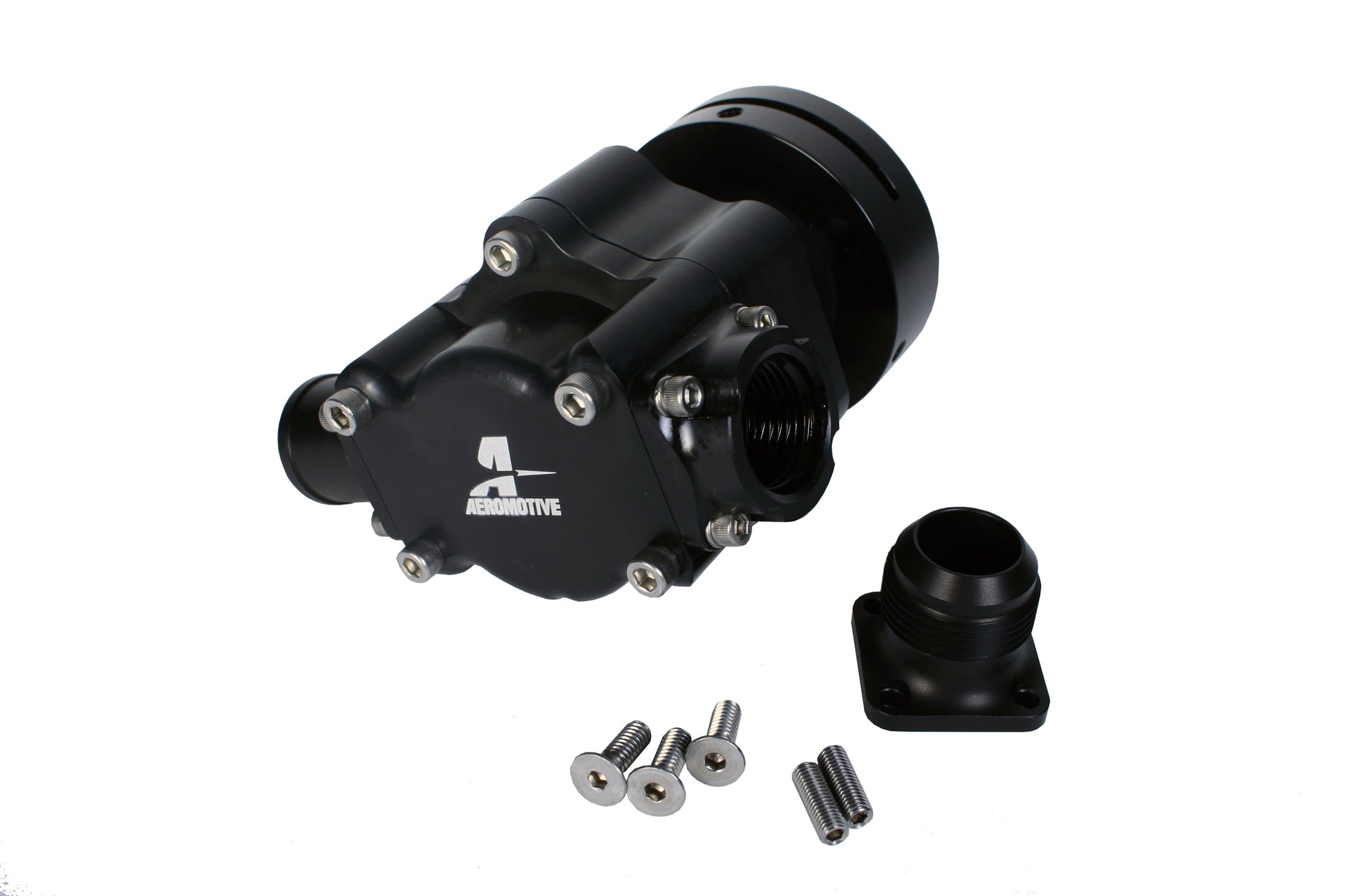

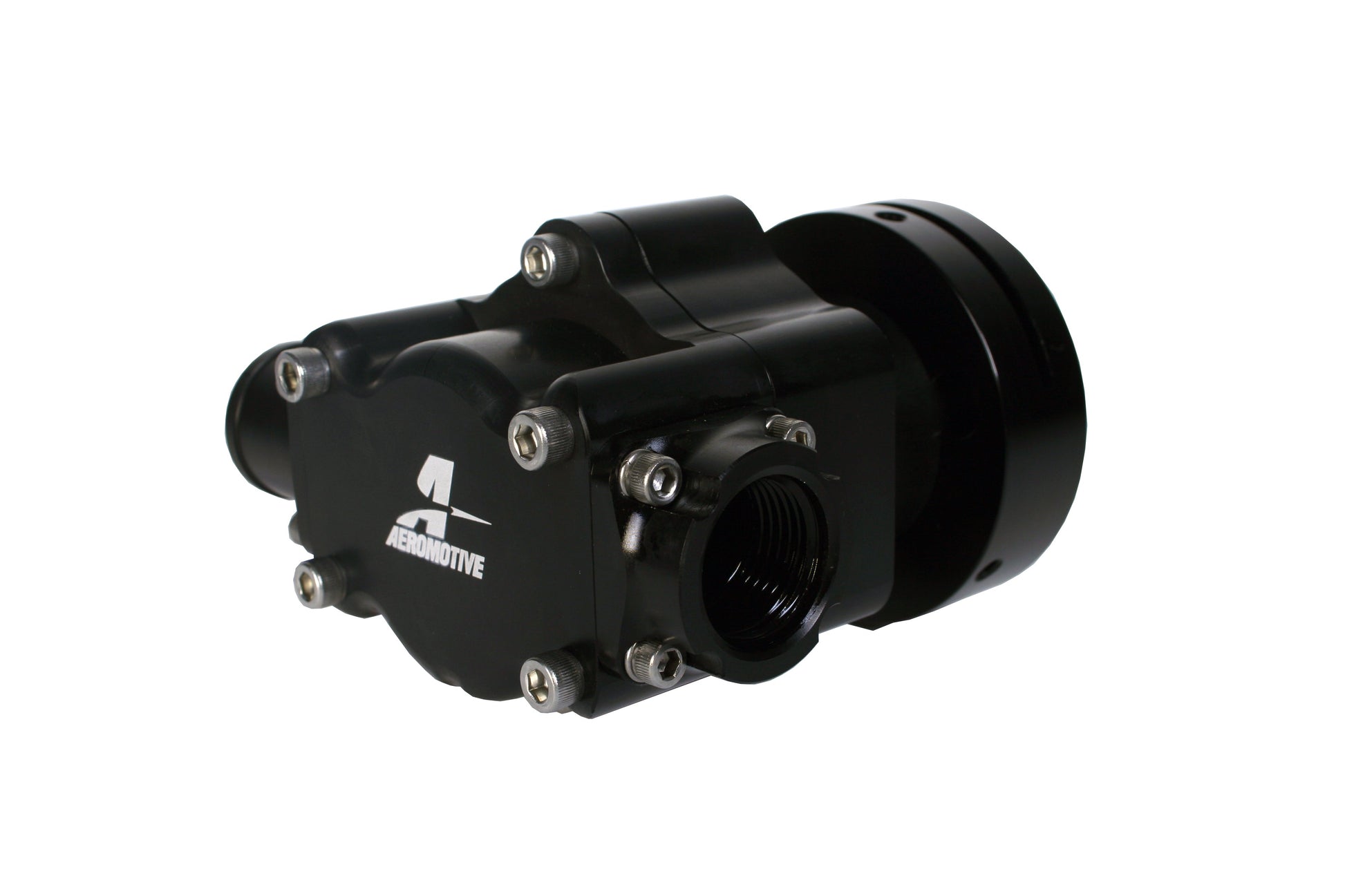

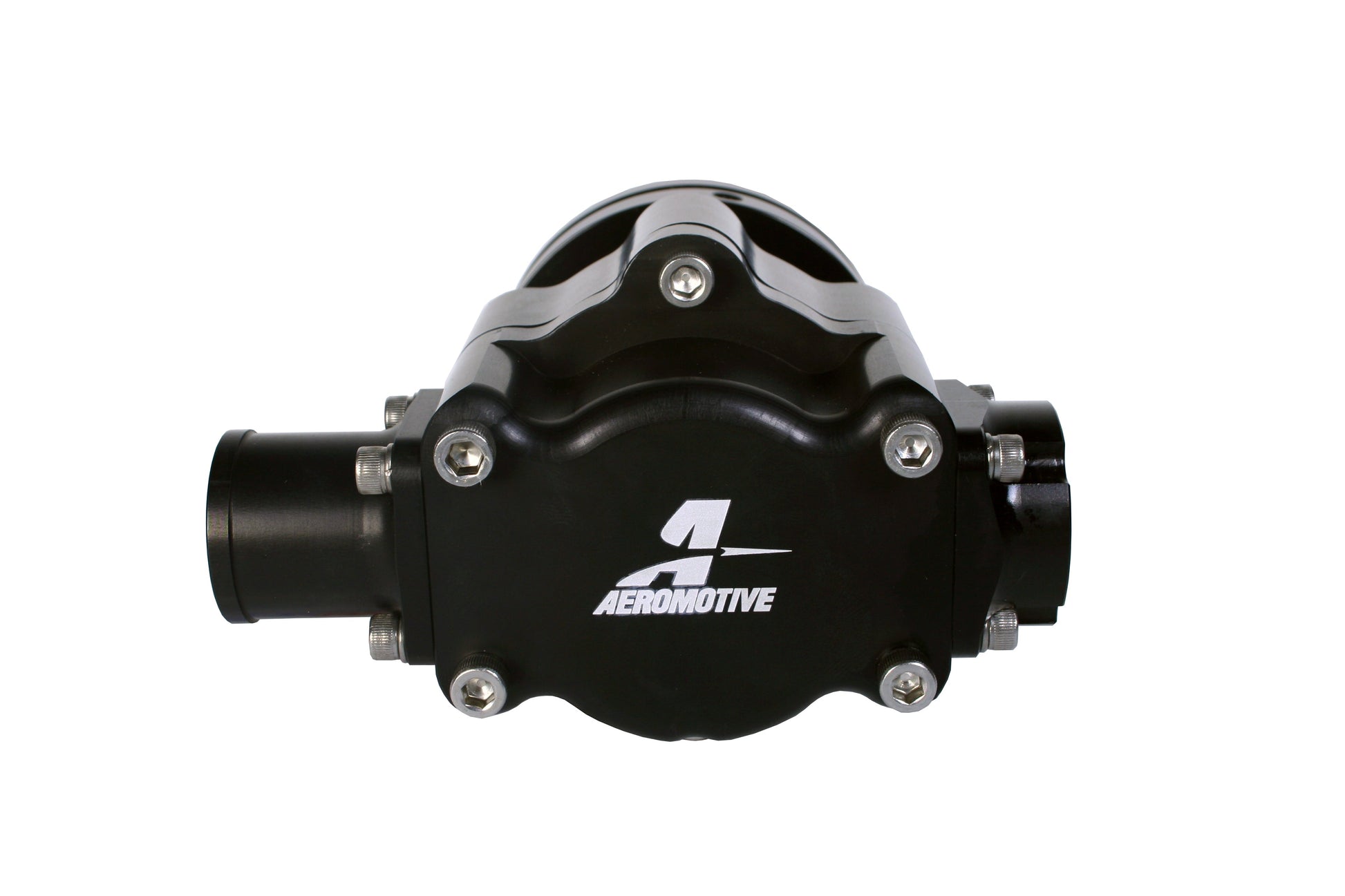

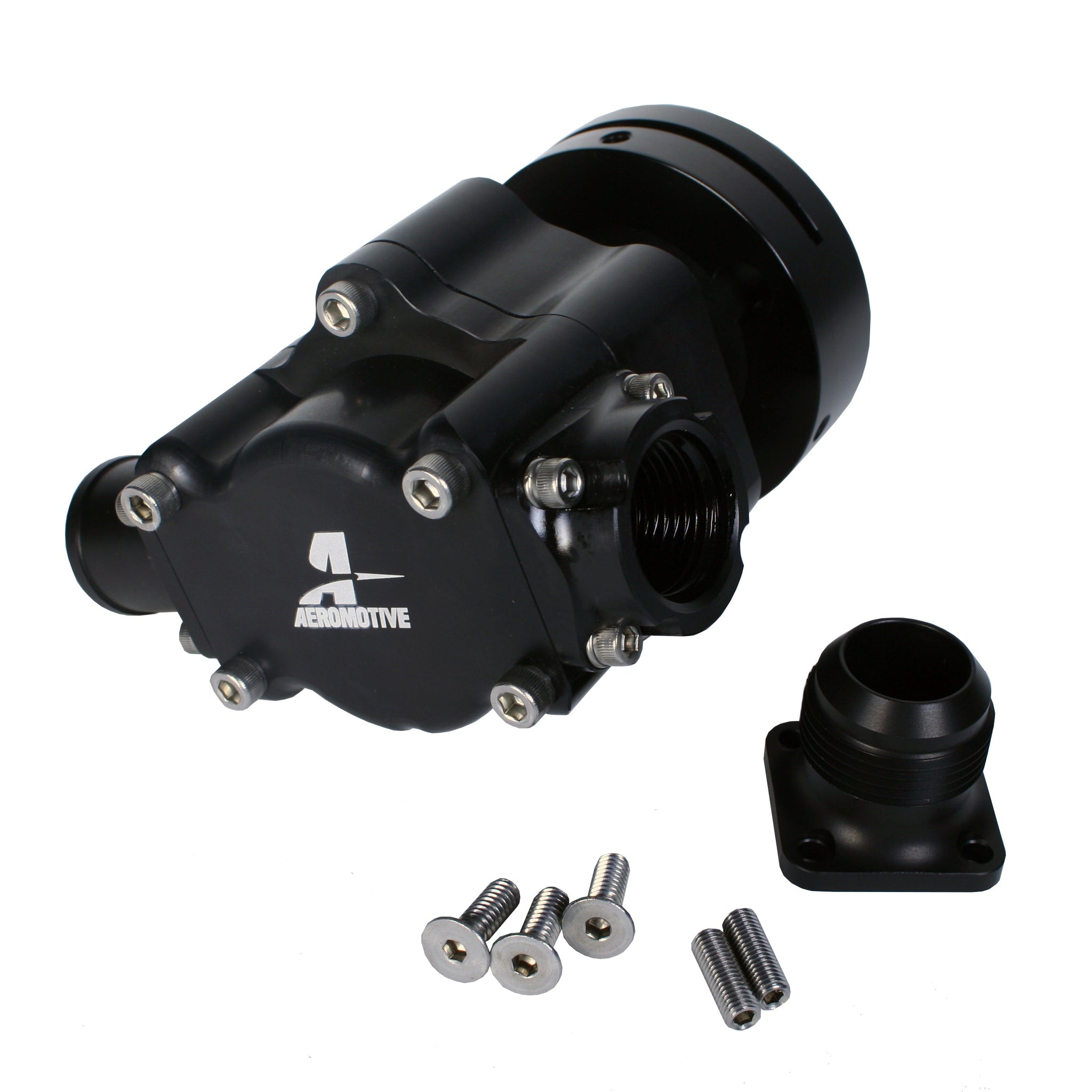

P/N 11117: 12 Series Hex Drive Fuel Pump
12-GPM Hex Drive Mechanical Fuel Pump

Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 Series Hex Drive Pump must be driven by a 3/8" female hex, allowing the pump to be driven from your camshaft or off the back of a properly prepared dry-sump oil pump.  It may also be mounted off the engine, or in the back of the vehicle, driven by a Heavy Duty Cable Drive like that from Waterman Racing.  It can be used in high or low pressure applications.

  • Flows up to 12 GPM

  • Naturally Aspirated EFI:

    • 6,000+ FWHP on gas

    • Up to 3,000 FWHP on methanol



  • Forced Induction EFI:

    • 5,000+ FWHP on gas

    • Up to 2,000 FWHP on methanol



  • High efficiency, Gerotor pumping mechanism.

  • Tough, Type III hard coat anodized body.

  • CNC Machined from 6061 T6 aircraft aluminum.

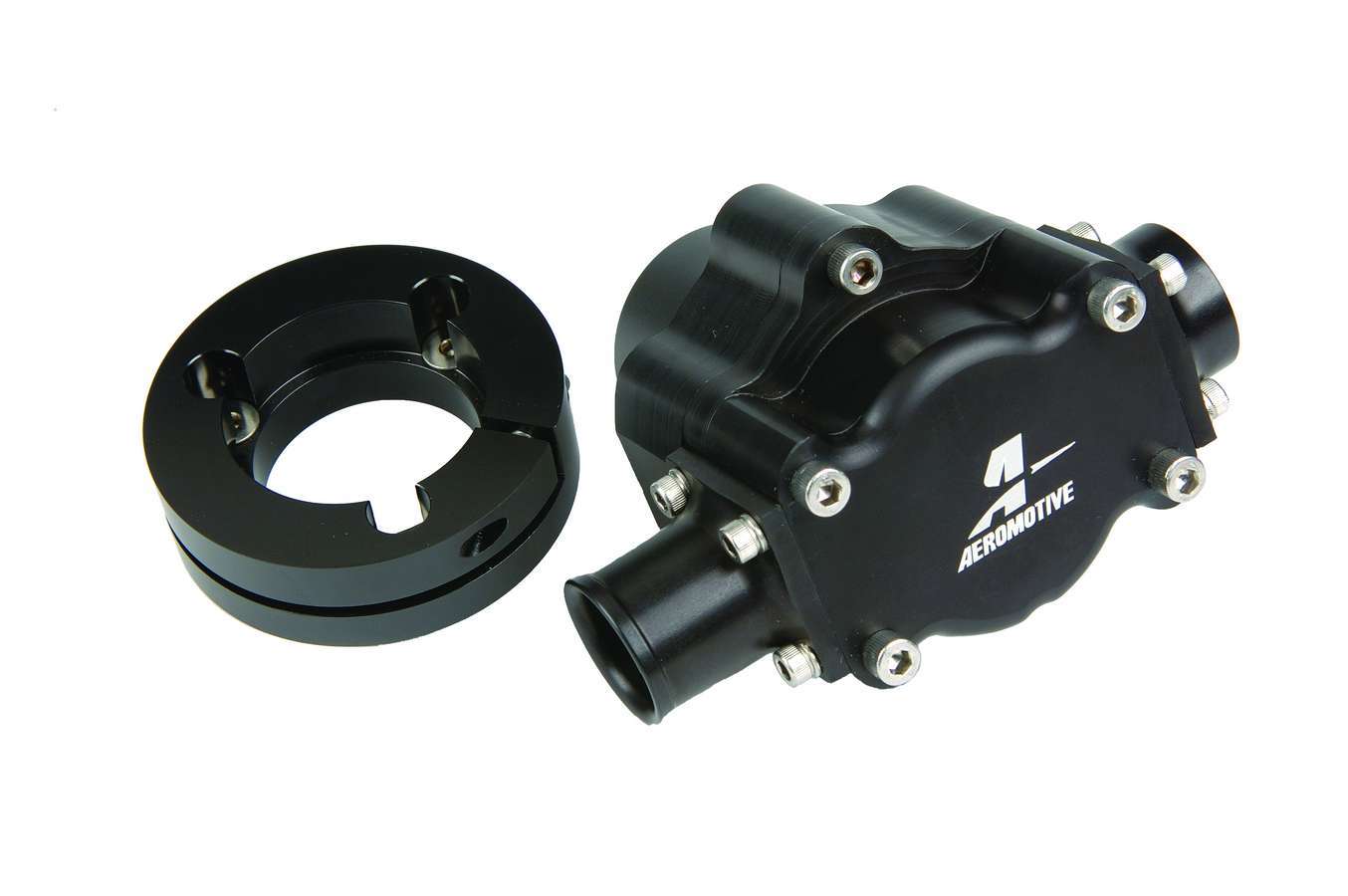

  • Hex Drive Collar with 3-bolt Enderle bolt pattern.

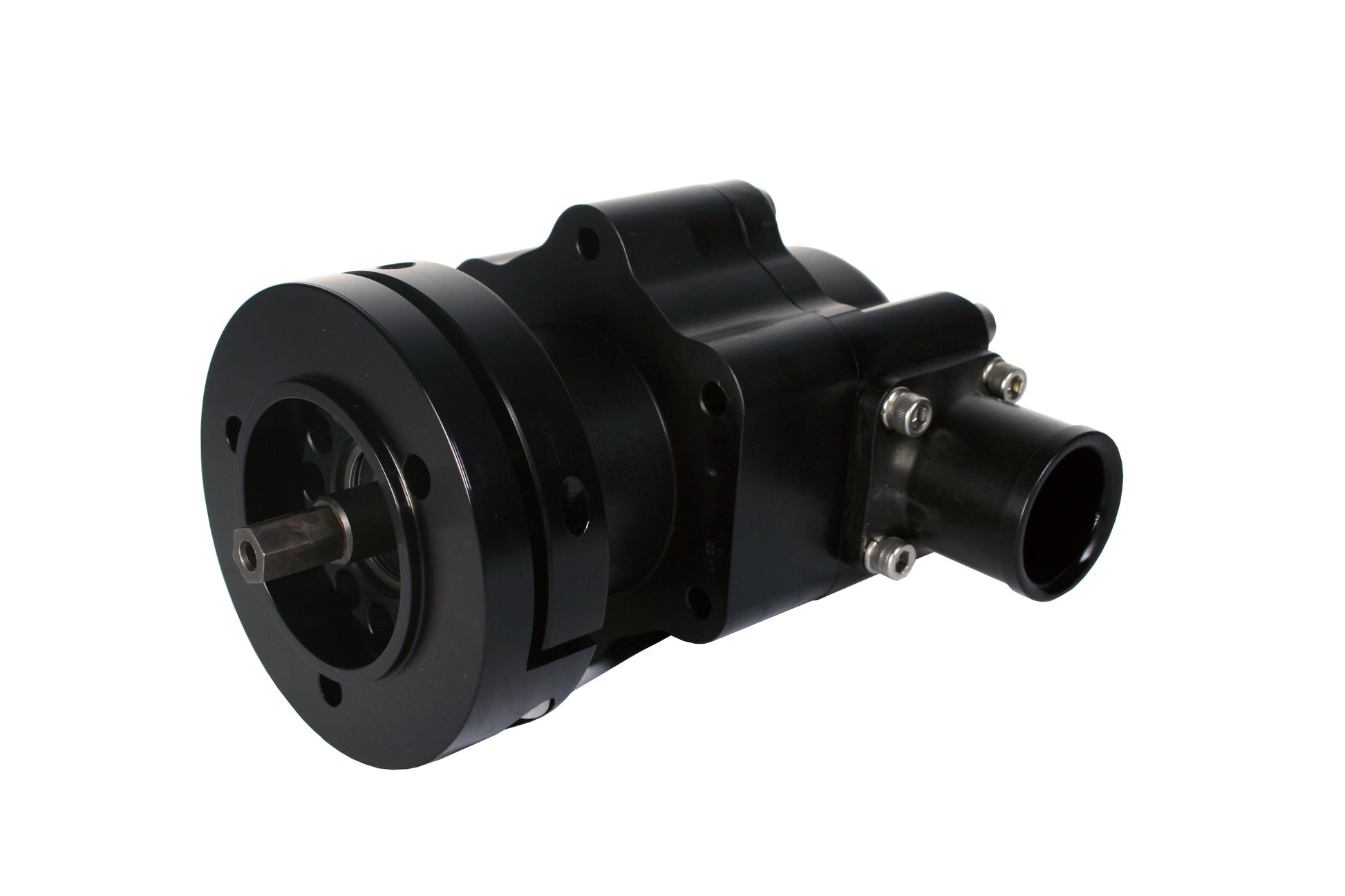

  • Standard male 3/8" hex driveshaft.

  • Includes both 1.25' barb and AN-16 Male inlet.

  • ORB-12 female outlet port.


EFI applications require high-flow return style regulators:
P/N ,  ,  or  .

Sold Separately:
Electric Priming/Starting Kit:  P/N


Pump Applications

Mounting: External
CARB or EFI Power Adder Fuel Min HP Max HP
Fuel Injected No - Naturally Aspirated Gas 3700 6000
Carbureted No - Naturally Aspirated E85 2600 4200
Carbureted No - Naturally Aspirated Gas 3700 6000
Carbureted Yes - Forced Induction E85 2000 3498
Fuel Injected No - Naturally Aspirated E85 2600 4200
Carbureted Yes - Forced Induction Gas 2800 4999
Fuel Injected Yes - Forced Induction Gas 2800 5000
Fuel Injected Yes - Forced Induction E85 2000 3500

FEATURES

  • Driven by camshaft or properly prepared dry-sump oil pump allows the pump matching the rate the engine needs fuel to prevent fuel starvation and maintains a constant flow of fuel for EFI and Carbureted apps; Supports up to 5000 HP gas, 2500 HP methanol
  • High efficiency, Gerotor pumping mechanism provides a flow up to 12 GPM
  • Includes both 1.25" barb and AN-16 Male inlet. ORB-12 female outlet port
  • Tough, Type III hard coat anodized body made from 6061 T6 CNC machined aircraft aluminum
  • EFI applications require high-flow return style regulators match the right P/N for your application: 13132, 13133, 13137 or 13113. Sold Separately is the Electric Priming/Starting Kit: P/N 17301
