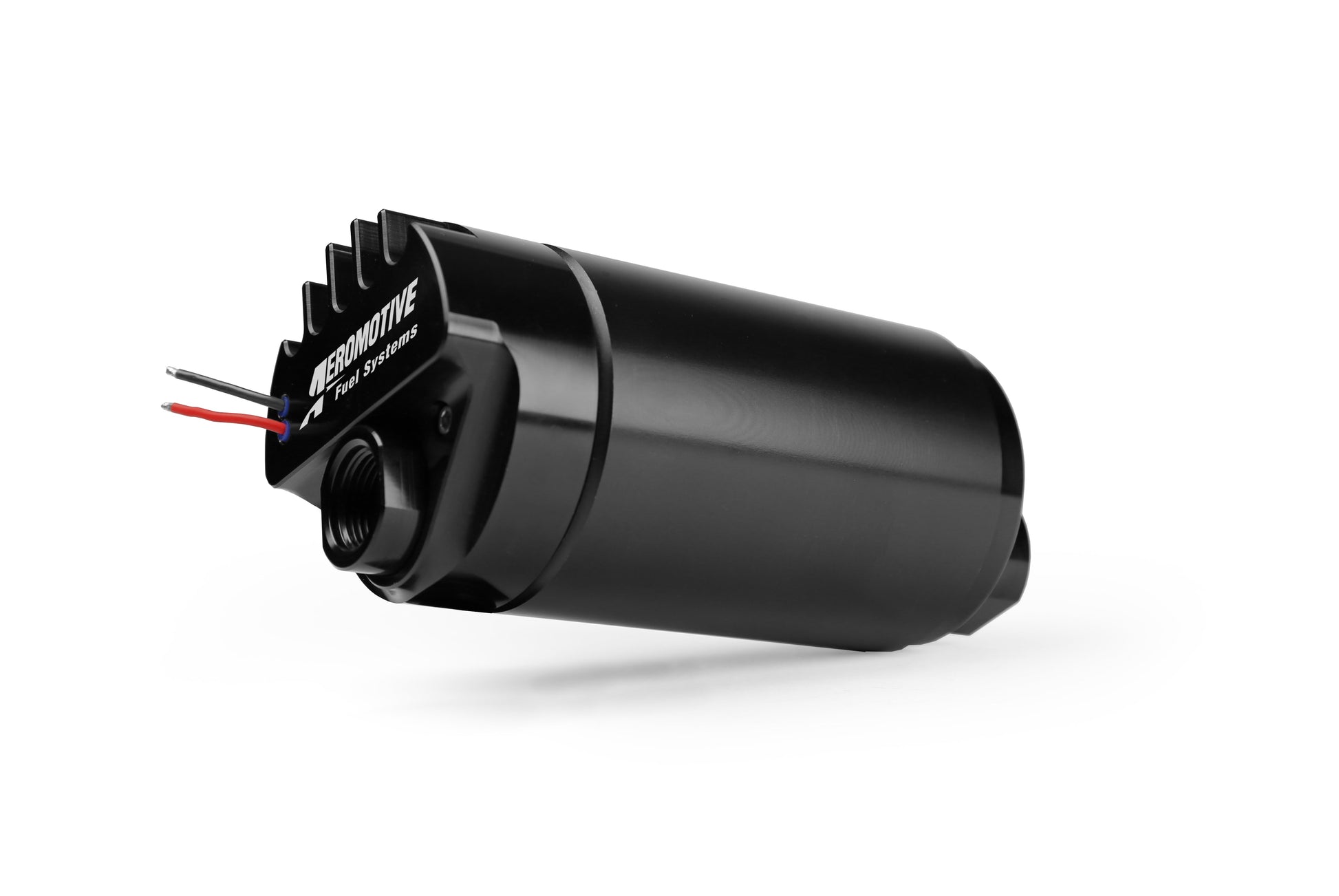

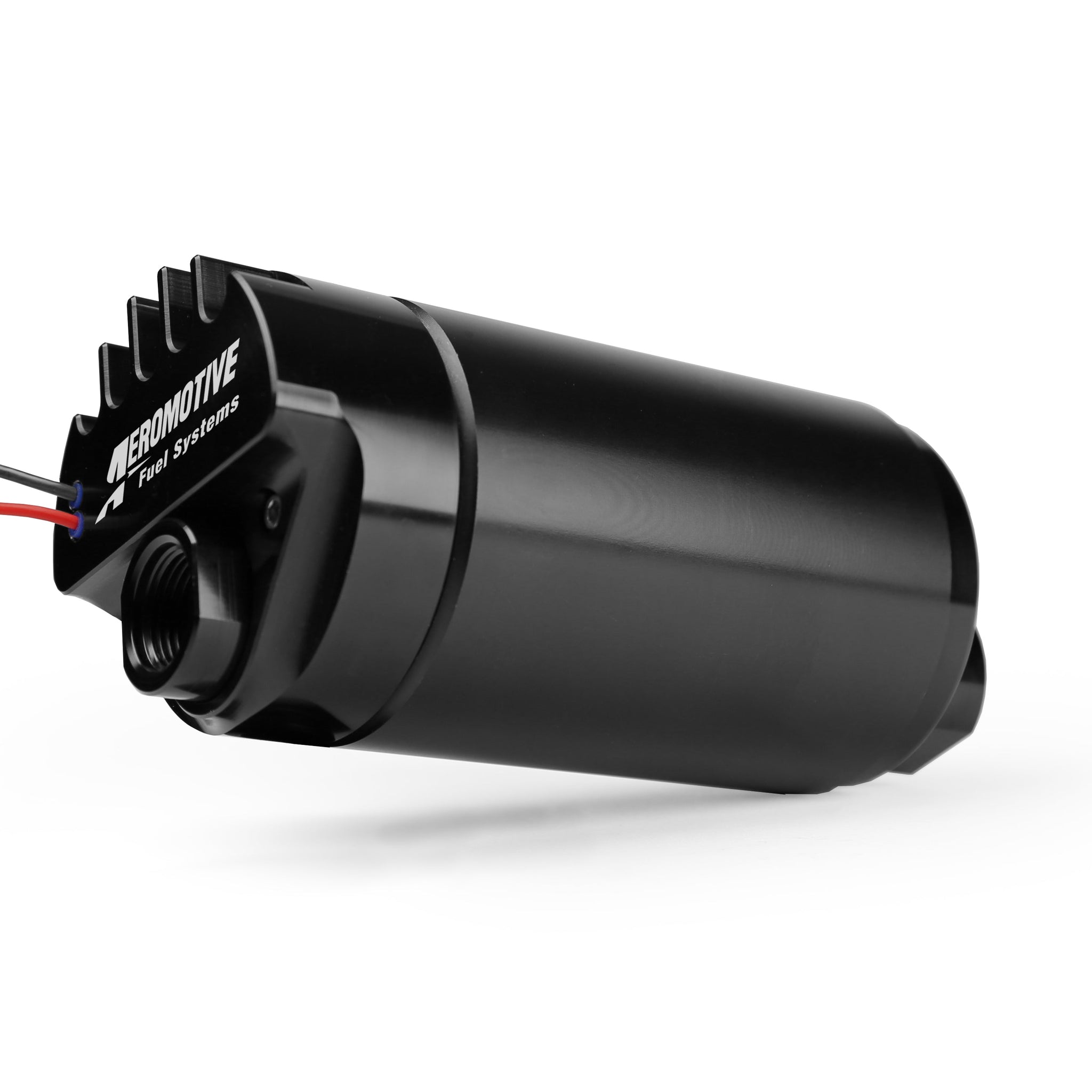

Aeromotive 11124 A1000 Brushless Pump External-Round
Product Info
A1000 Performance Plus Advanced Technology
- The A1000 performance you expect and more:
-
Fuel Injected Engines: GAS
up to 1300 FWHP - naturally aspirated
up to 1000 FWHP - forced air induction -
Carbureted Engines: GAS
up to 1500 FWHP - naturally aspirated
up to 1200 FWHP - forced air induction -
Fuel Injected Engines: E85
up to 910 FWHP – naturally aspirated
up to 700 FWHP – forced air induction -
Carbureted Engines: E85
up to 1050 FWHP – naturally aspirated
up to 840 FWHP – forced air induction
-
Fuel Injected Engines: GAS
- Lighter than the traditional A1000 pump.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- Quieter than the traditional A1000 pump.
- ORB-10 inlet and outlet ports.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
- Includes 2 ea. P/N 12703 stainless steel t-bolt clamps for mounting.
EFI rated flow of 700 lbs./hr. @ 45 psi, 13.5 volts
Carb rated flow of 900 lbs./hr. @ 9 psi, 13.5 volts
Also Available as a Drop-In Stealth Module and in Complete Stealth Fuel Cells.
Pump Applications
| CARB or EFI | Power Adder | Fuel | Min HP | Max HP |
|---|---|---|---|---|
| Fuel Injected | Yes - Forced Induction | Gas | 600 | 1000 |
| Carbureted | No - Naturally Aspirated | Gas | 800 | 1500 |
| Fuel Injected | No - Naturally Aspirated | E85 | 500 | 910 |
| Carbureted | No - Naturally Aspirated | E85 | 600 | 1050 |
| Fuel Injected | No - Naturally Aspirated | Gas | 720 | 1300 |
| Carbureted | Yes - Forced Induction | Gas | 700 | 1200 |
| Carbureted | Yes - Forced Induction | E85 | 500 | 840 |
| Fuel Injected | Yes - Forced Induction | E85 | 400 | 700 |
FEATURES
-
- Built for 70psi of sustained pressure
- Feature a roller vane design that reduces friction and improves efficiency
- Has a flow rate of 700 lbs./hr. at 45 psi, 13.5 volts with -10 AN inlet and outlet.

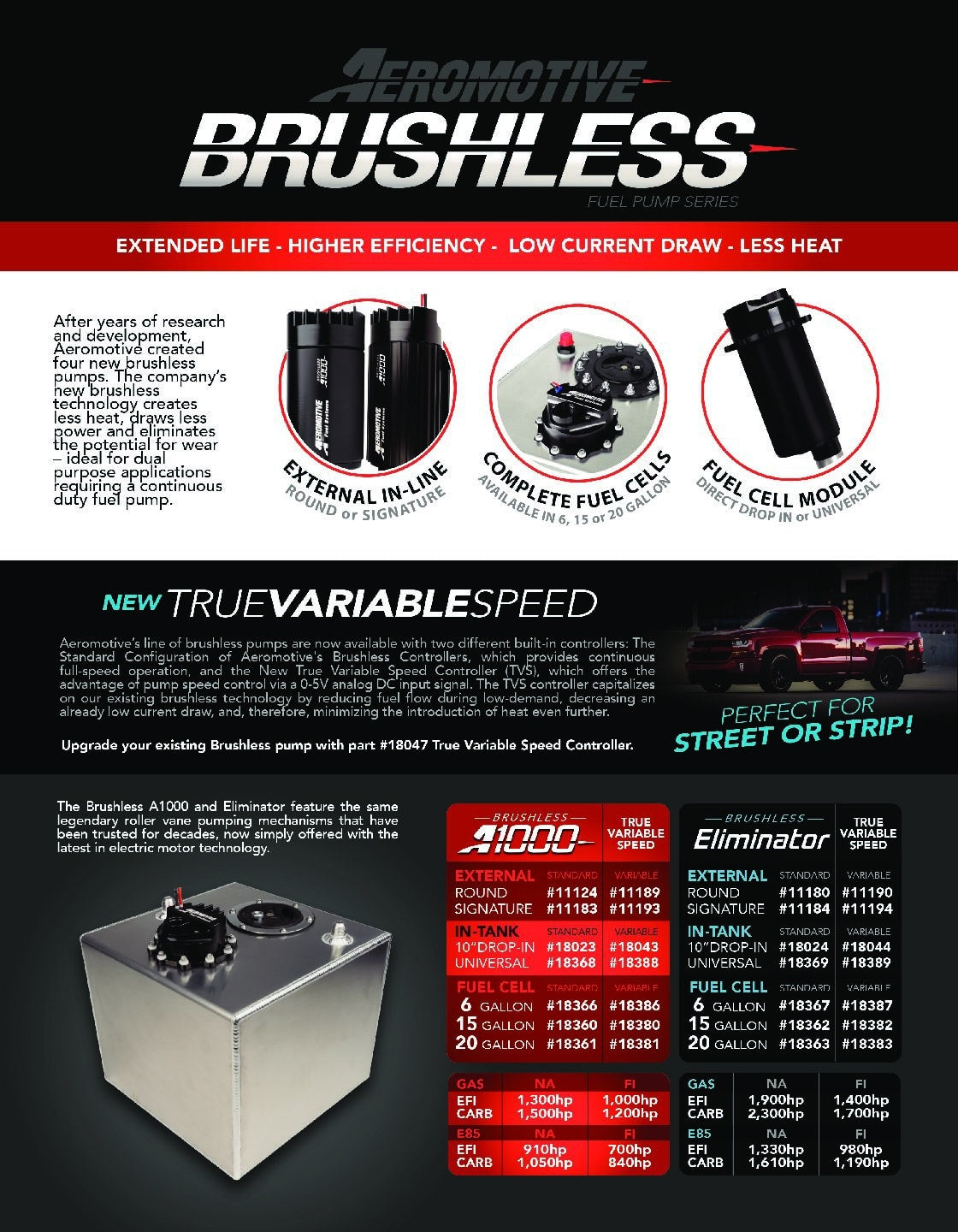

- Available as an external in-line option, #11124, or direct drop-in, #18023
- Also available as a complete fuel cell in either a 6 gallon #18366, 15 gallon #18360 or 20 gallon capacity, #18361
