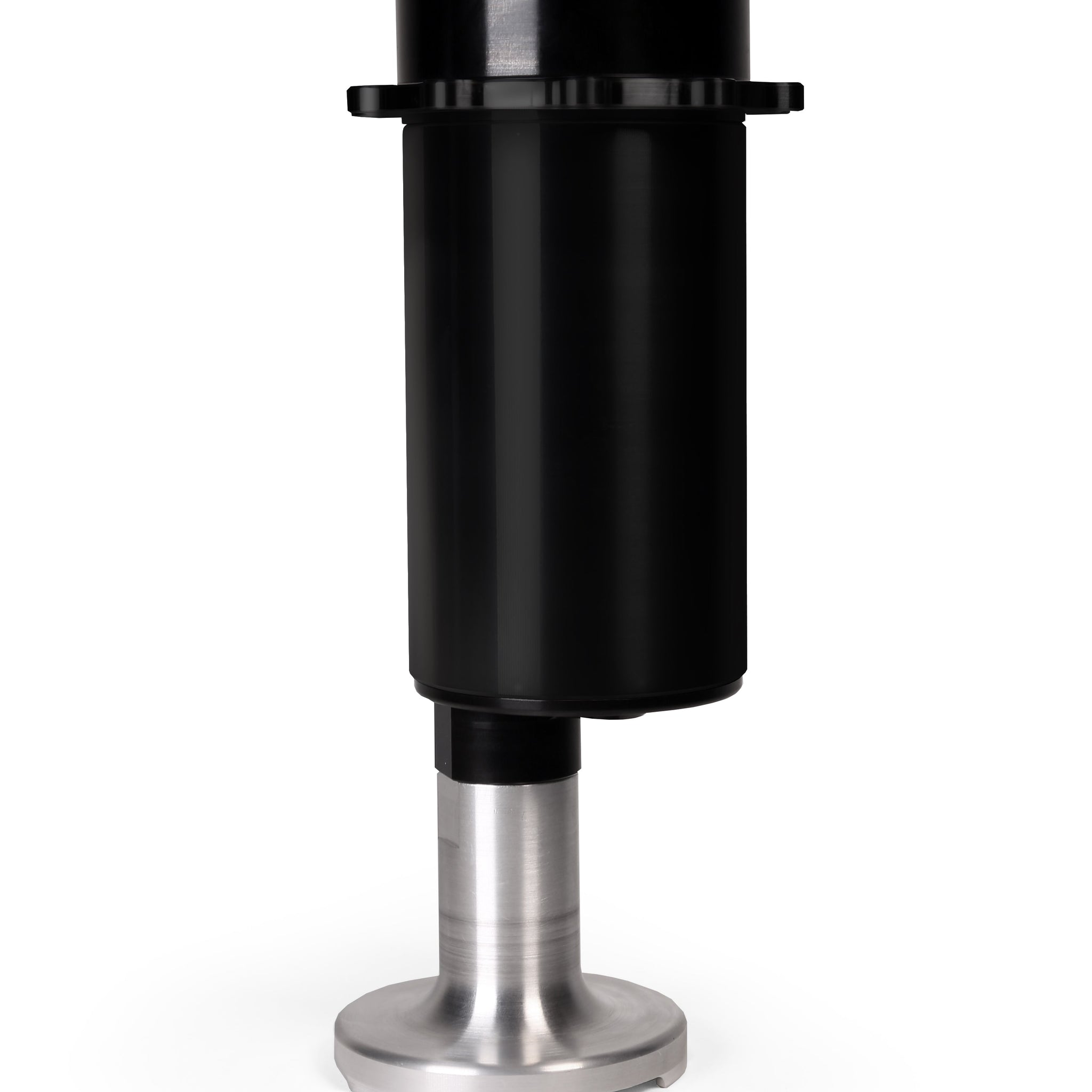

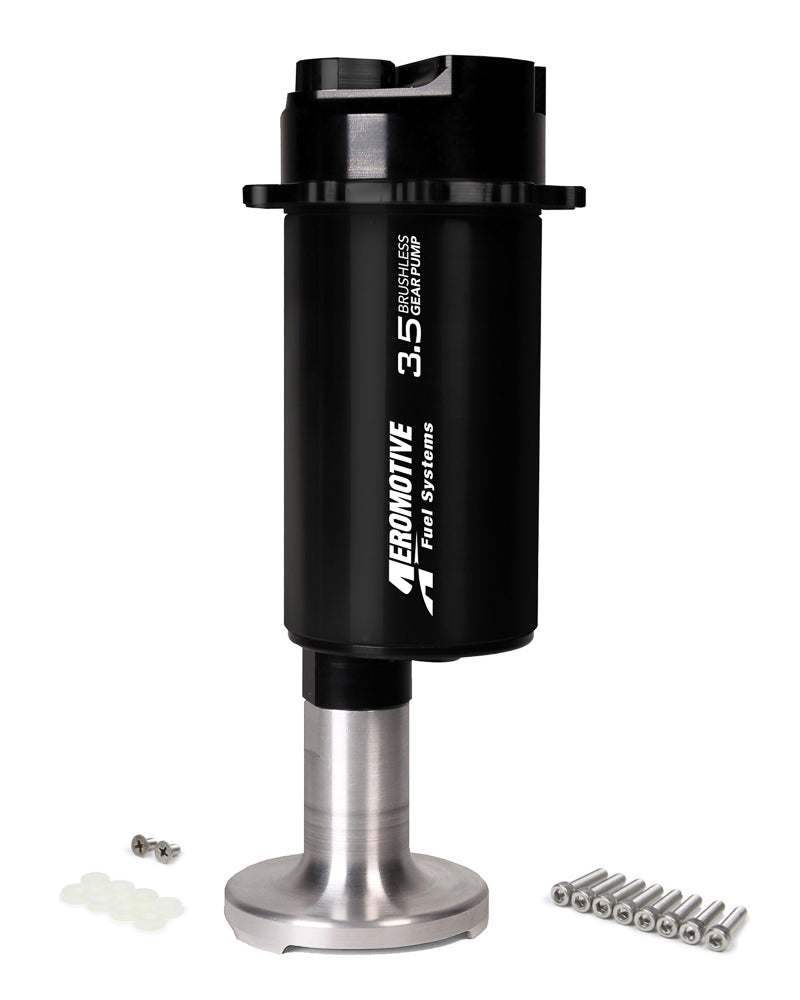

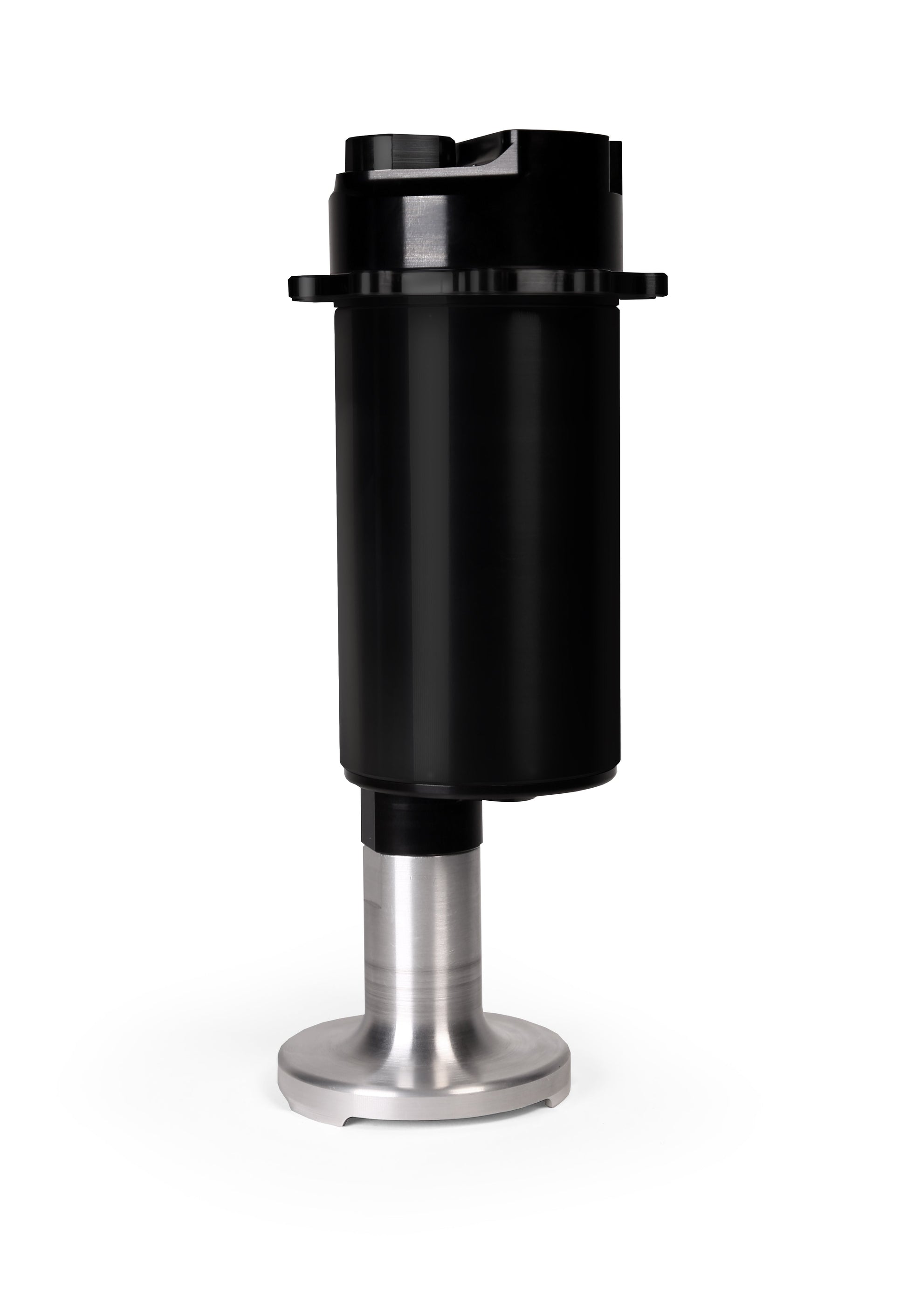

Aeromotive 18025 3.5 Brushless Gear Pump Stealth Module
Product Info
Pro-Series Performance Plus Advanced Technology
Designed as a direct drop-in replacement for the any Aeromotive Stealth Fuel Cell, including COPO, Cobra Jet or Drag Pak race cars. This configuration is also a great option when building a 10" deep custom fuel cell.
- The Pro-Series performance you expect and more:
-
Fuel injected engines: GAS
up to 2400 FWHP - naturally aspirated
up to 1800 FWHP - forced air induction -
Carbureted engines: GAS
Up to 2600 FWHP - naturally aspirated
Up to 2000 FWHP - forced air induction -
Fuel injected engines: E85
up to 1680 FWHP – naturally aspirated
up to 1260 FWHP – forced air induction -
Carbureted engines: E85
Up to 1820 FWHP – naturally aspirated
Up to 1400 FWHP – forced air induction -
Fuel injected engines: METHANOL
up to 840 FWHP – naturally aspirated
up to 630 FWHP – forced air induction -
Carbureted engines: METHANOL
Up to 910 FWHP – naturally aspirated
Up to 700 FWHP – forced air induction
-
Fuel injected engines: GAS
- Lighter than the traditional Pro-Series pump.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- ORB-10 outlet port.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts

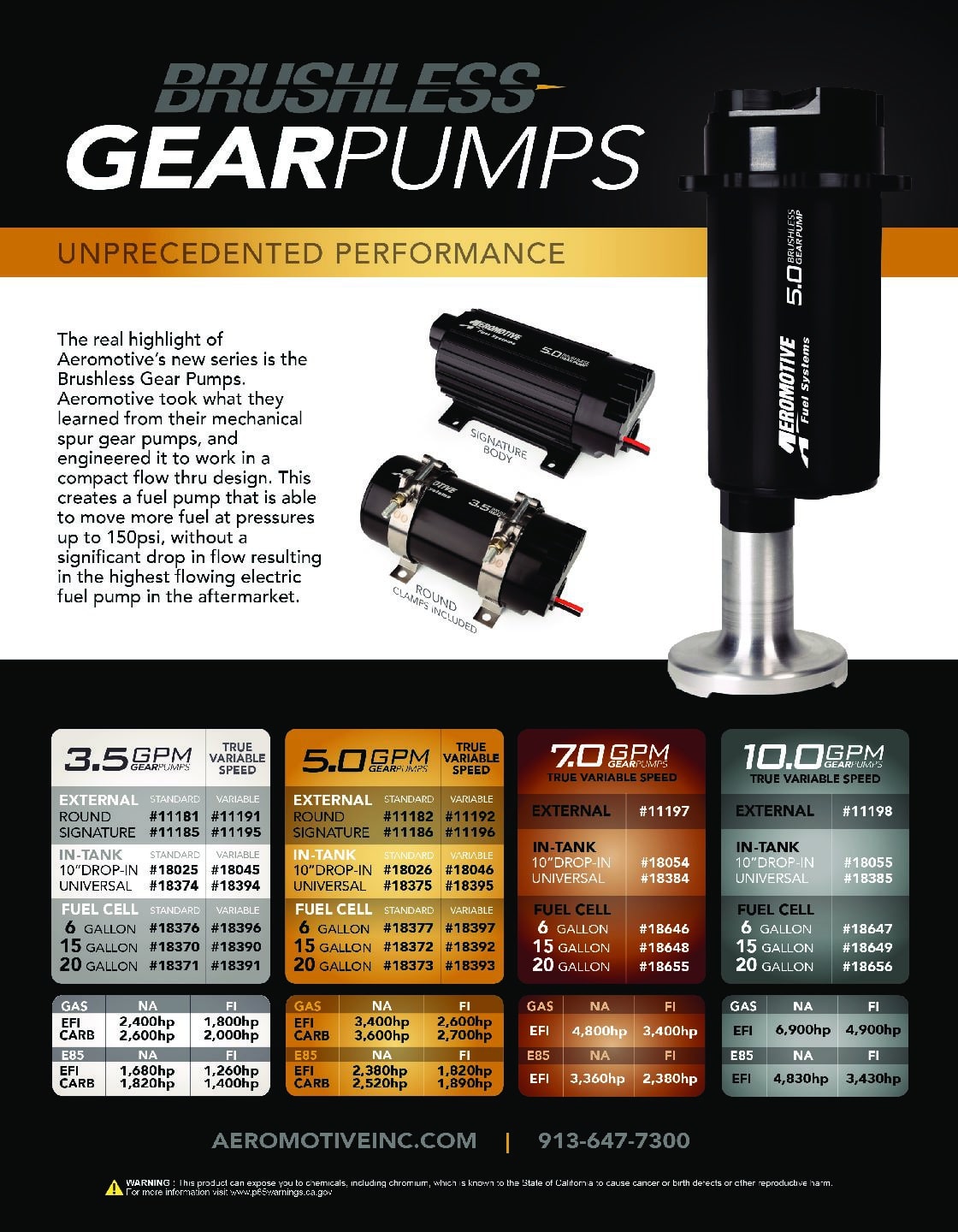

Also Available in an external in-line pump and installed in a Stealth Fuel Cell.

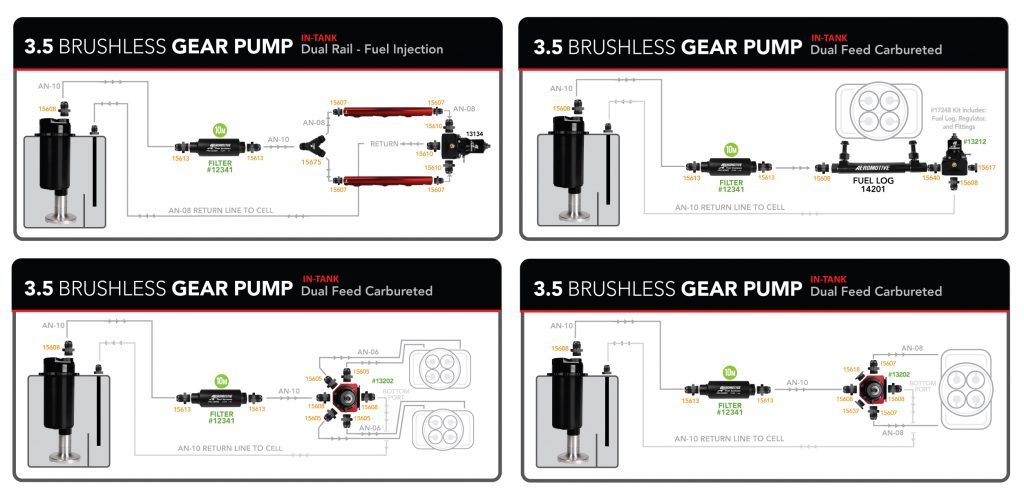

Pump Applications
| CARB or EFI | Power Adder | Fuel | Min HP | Max HP |
|---|---|---|---|---|
| Carbureted | Yes - Forced Induction | Gas | 1360 | 2000 |
| Fuel Injected | No - Naturally Aspirated | E85 | 1064 | 1680 |
| Fuel Injected | Yes - Forced Induction | E85 | 952 | 1260 |
| Carbureted | No - Naturally Aspirated | Gas | 1840 | 2600 |
| Fuel Injected | No - Naturally Aspirated | Gas | 1520 | 2400 |
| Carbureted | Yes - Forced Induction | E85 | 952 | 1400 |
| Fuel Injected | Yes - Forced Induction | Gas | 1120 | 1800 |
| Carbureted | No - Naturally Aspirated | E85 | 1288 | 1820 |
FEATURES
- External in-line
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional Pro-Series pump.
- Reduced current draw at higher, EFI pressures.
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
