Aeromotive 18046 Brushless 5.0 Spur Gear Pump with Fuel Cell Pickup and Variable Speed Controller

Aeromotive 18046 Brushless 5.0 Spur Gear Pump with Fuel Cell Pickup and Variable Speed Controller

Regular price $1,947.96
Sale price $1,947.96 Regular price
Unit price
FREE SHIPPING ON SELECT ORDERS
FINANCING OPTIONS AVAILABLE
Product Description
Shipping
Returns
Questions?

Product Info

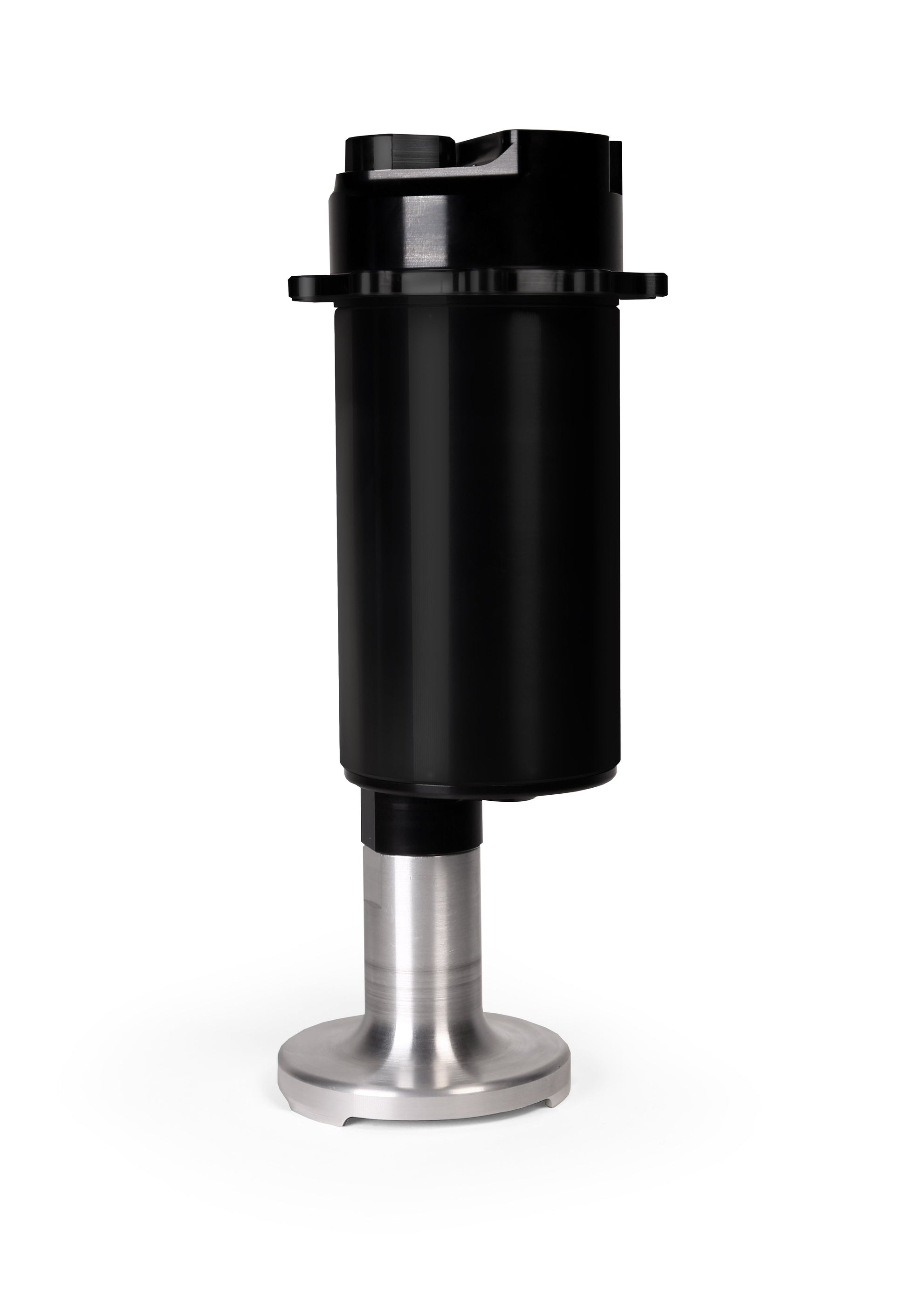

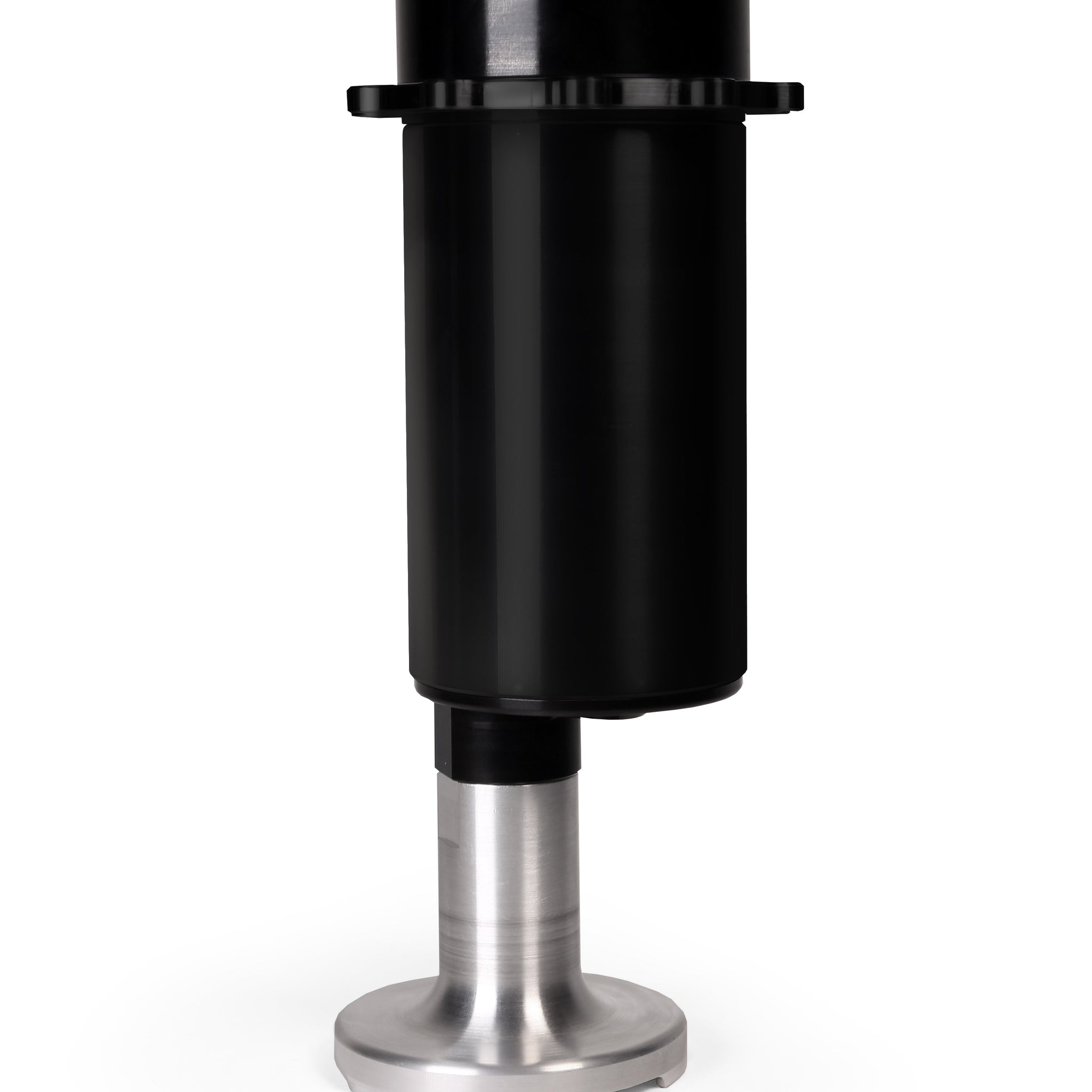

P/N 18046: Brushless 5.0 Spur Gear Pump with Fuel Cell Pickup and Variable Speed Controller

Designed as a direct drop-in replacement for the any Aeromotive Stealth Fuel Cell, including COPO, Cobra Jet or Drag Pak race cars. This configuration is also a great option when building a 10″ deep custom fuel cell.

Supports:

  • Fuel injected engines: GAS
    up to 3400 FWHP – naturally aspirated
    up to 2600 FWHP – forced air induction

  • Carbureted engines: GAS
    Up to 3600 FWHP – naturally aspirated
    Up to 2700 FWHP – forced air induction

  • Fuel injected engines: E85
    up to 2380 FWHP – naturally aspirated
    up to 1820 FWHP – forced air induction

  • Carbureted engines: E85
    Up to 2520 FWHP – naturally aspirated
    Up to 1890 FWHP – forced air induction

  • Fuel injected engines: METHANOL
    up to 1,190 FWHP – naturally aspirated
    up to 910 FWHP – forced air induction

  • Carbureted engines: METHANOL
    Up to 1,260 FWHP – naturally aspirated
    Up to 945 FWHP – forced air induction



  • E85 Compatible, reduce max FWHP by 30%

  • Lighter than the traditional Pro-Series pumps.

  • Reduced current draw at higher, EFI pressures.

  • Extended service life in methanol and ethanol.

  • New integral spur-gear pumping mechanism.

  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.

  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

  • ORB-10 outlet port.

  • Requires straight 12-VDC to 16-VDC power supply.

  • Not compatible with pulse modulated systems or fuel pump speed controllers.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.


Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts








Pump Applications

Mounting: In-Tank
CARB or EFI Power Adder Fuel Min HP Max HP
Carbureted Yes - Forced Induction Gas 1800 2700
Fuel Injected No - Naturally Aspirated E85 1512 2380
Carbureted No - Naturally Aspirated Gas 2340 3600
Carbureted Yes - Forced Induction E85 1260 1890
Fuel Injected Yes - Forced Induction Gas 1620 2600
Fuel Injected Yes - Forced Induction E85 1134 1820
Fuel Injected No - Naturally Aspirated Gas 2160 3400
Carbureted No - Naturally Aspirated E85 1638 2520

FEATURES

    • E85 Compatible, reduce max FWHP by 30%, Lighter than the traditional Pro-Series pumps, Reduced current draw at higher, EFI pressures, Extended service life in methanol and ethanol, New integral spur-gear pumping mechanism, 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost, Integral external brushless controller for clean installation, cooler fuel and enhanced reliability.
    • Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
    • EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts, Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts
    • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
    • Designed as a direct drop-in replacement for the any Aeromotive Stealth Fuel Cell, including COPO, Cobra Jet or Drag Pak race cars. This configuration is also a great option when building a 10″ deep custom fuel cell, ORB-10 outlet port, Requires straight 12-VDC to 16-VDC power supply, Not compatible with pulse modulated systems or fuel pump speed controllers.
