Aeromotive 18638 83-97 EFI Fox Body Mustang Stealth 340
-
Estimated Delivery:May 22 - May 26
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
Aeromotive 18638 83-97 EFI Fox Body Mustang Stealth 340
Product Info
Assembly Fits all 83-97 Mustang OEM - EFI Fuel Tanks

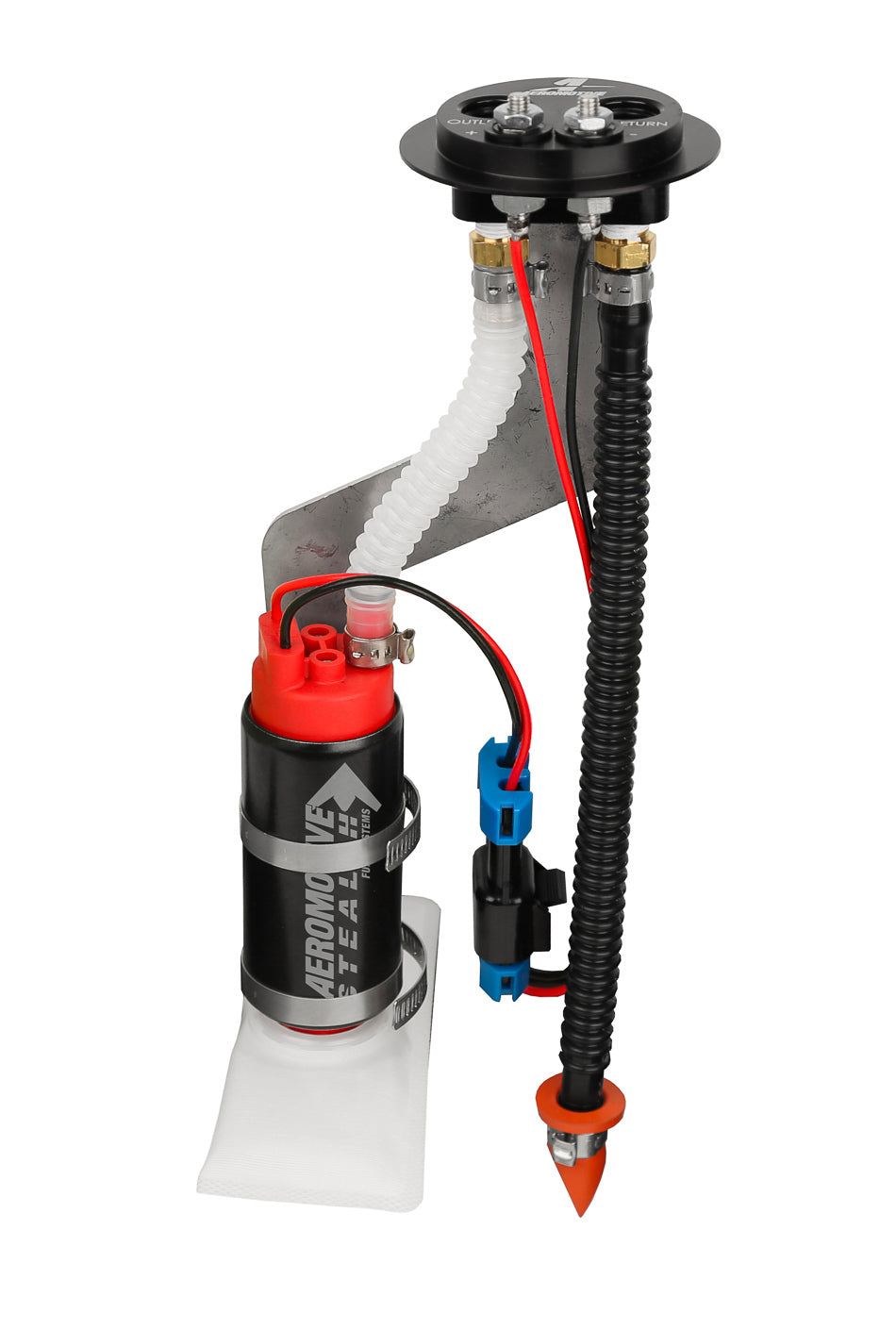

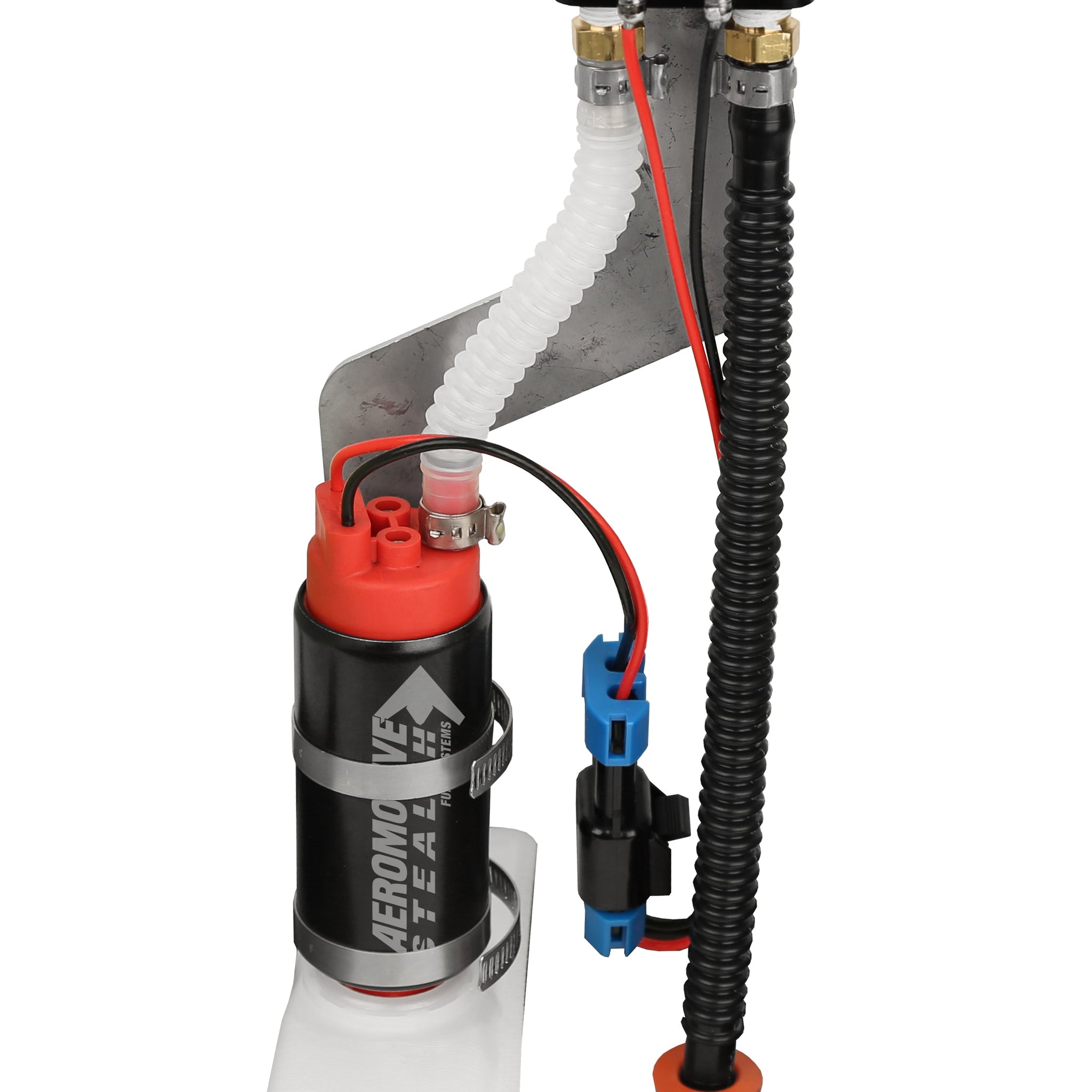

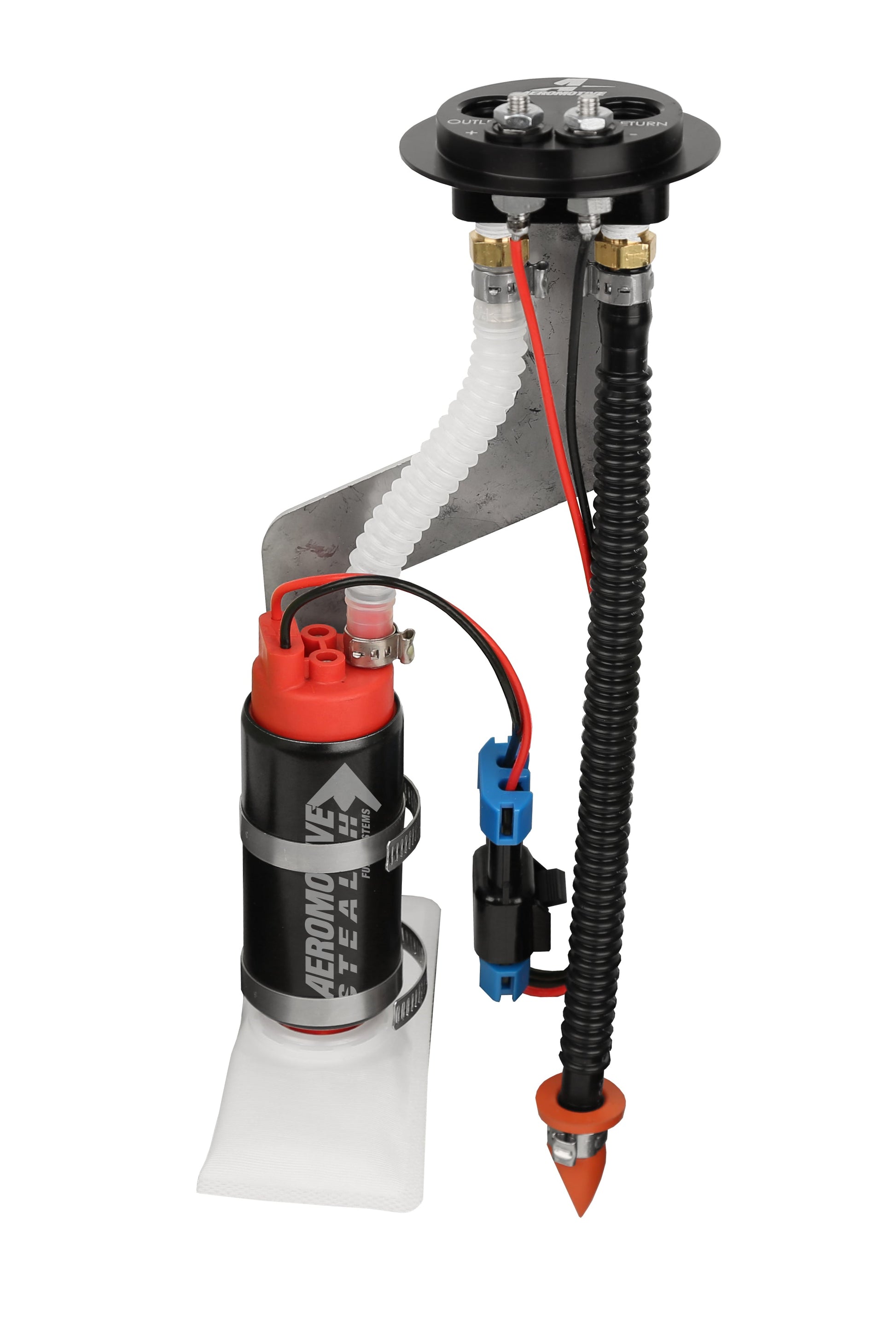

Billet Fuel Pump Hanger and High Flow 340 Stealth Pump assembly drops into stock tank. Supports high-flow, high horsepower combinations in stock 83-97 Mustang EFI fuel tanks. Eliminates fuel starvation and return aeration common to the factory Mustang hanger.
- CNC machined billet aluminum hat fits stock opening, with ORB-06 outlet and return ports.
- Supports AN-06 or AN-08 fuel lines with P/N 15606 or P/N 15649 port fittings respectively.
- 6065 aluminum hat is bright dip anodized black and laser engraved for good looks and durability.
- Stainless Steel pump mounting bracket.
- OEM grade convoluted tubing on supply and return for durability and high flow.
- Extended, high flow return with anti-siphon eliminates aeration and cavitation.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Fuel Injected Engines:
- Gasoline: up to 850 HP – naturally aspirated.
- Gasoline: up to 700 HP – forced air induction.
- E85: up to 595 HP – naturally aspirated.
- E85: up to 490 HP – forced air induction.
Carbureted Engines:
- Gasoline: up to 1000 HP – naturally aspirated.
- Gasoline: up to 850 HP – forced air induction.
- E85: up to 700 HP – naturally aspirated.
- E85: up to 595 HP – forced air induction.
Pump Applications
| CARB or EFI | Power Adder | Fuel | Min HP | Max HP |
|---|---|---|---|---|
| Fuel Injected | Yes - Forced Induction | E85 | 100 | 490 |
| Carbureted | Yes - Forced Induction | Gas | 400 | 850 |
| Fuel Injected | No - Naturally Aspirated | Gas | 400 | 850 |
| Fuel Injected | No - Naturally Aspirated | E85 | 220 | 595 |
| Carbureted | No - Naturally Aspirated | E85 | 325 | 700 |
| Carbureted | No - Naturally Aspirated | Gas | 500 | 1000 |
| Carbureted | Yes - Forced Induction | E85 | 220 | 595 |
| Fuel Injected | Yes - Forced Induction | Gas | 350 | 700 |
FEATURES
- Complete assembly provides a high-flow, high horsepower fuel pump installation for stock ’86–’98 Mustang fuel tanks, eliminating both fuel starvation and return aeration common to the factory Mustang hanger
- Direct fit for the OEM fuel pump opening, providing easy installation and a leak proof seal
- Stainless steel mounting bracket supports a preinstalled 340 Stealth Pump preset for the correct depth and connected to the hat by OEM style convoluted, submersible fuel hose for high flow and long life
- Features a CNC machined billet aluminum hat, anodized black and laser engraved; Features ORB-06 outlet and return ports, allowing the use of AN-06 or AN-08 supply and return lines
- Suitable for both EFI and carbureted engines
