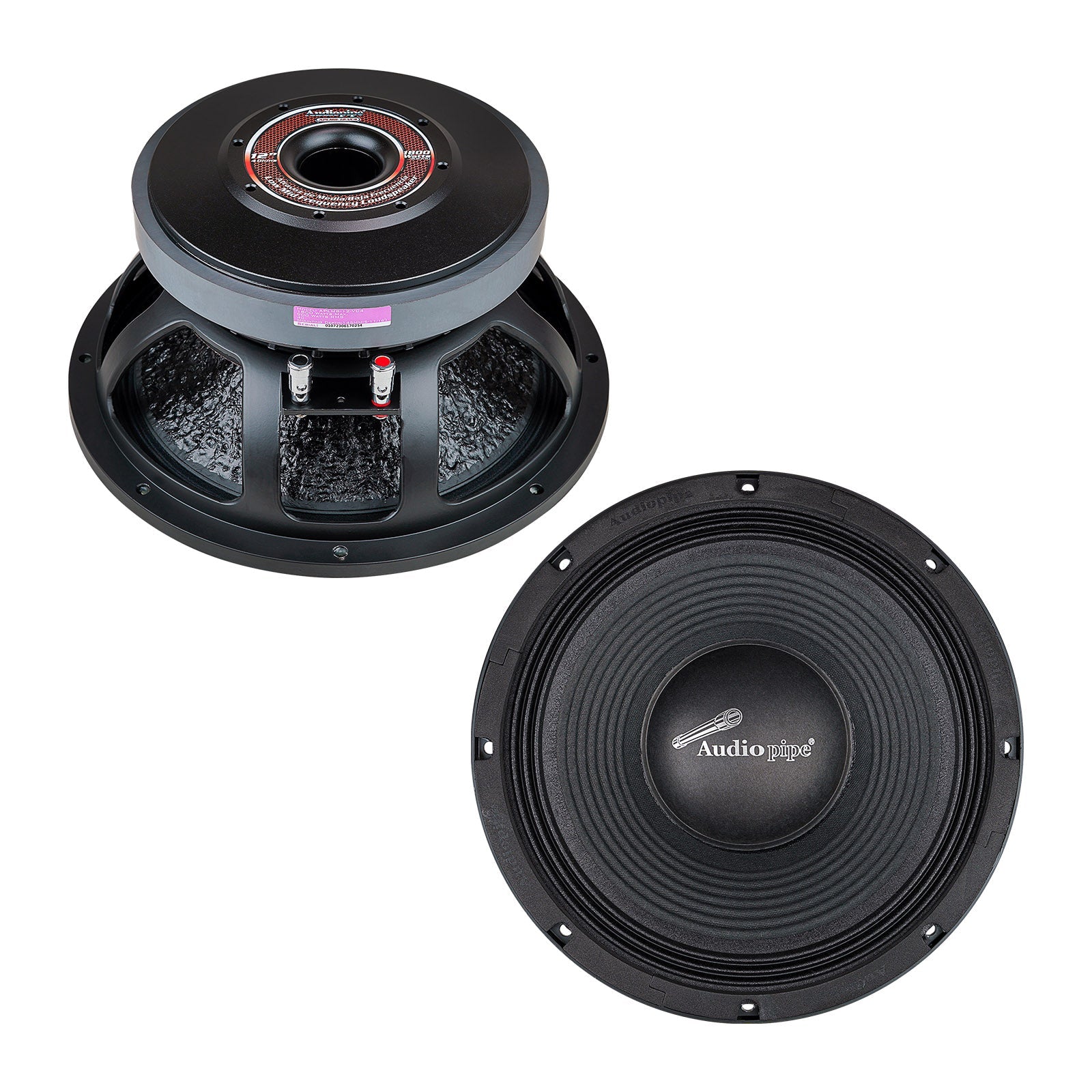

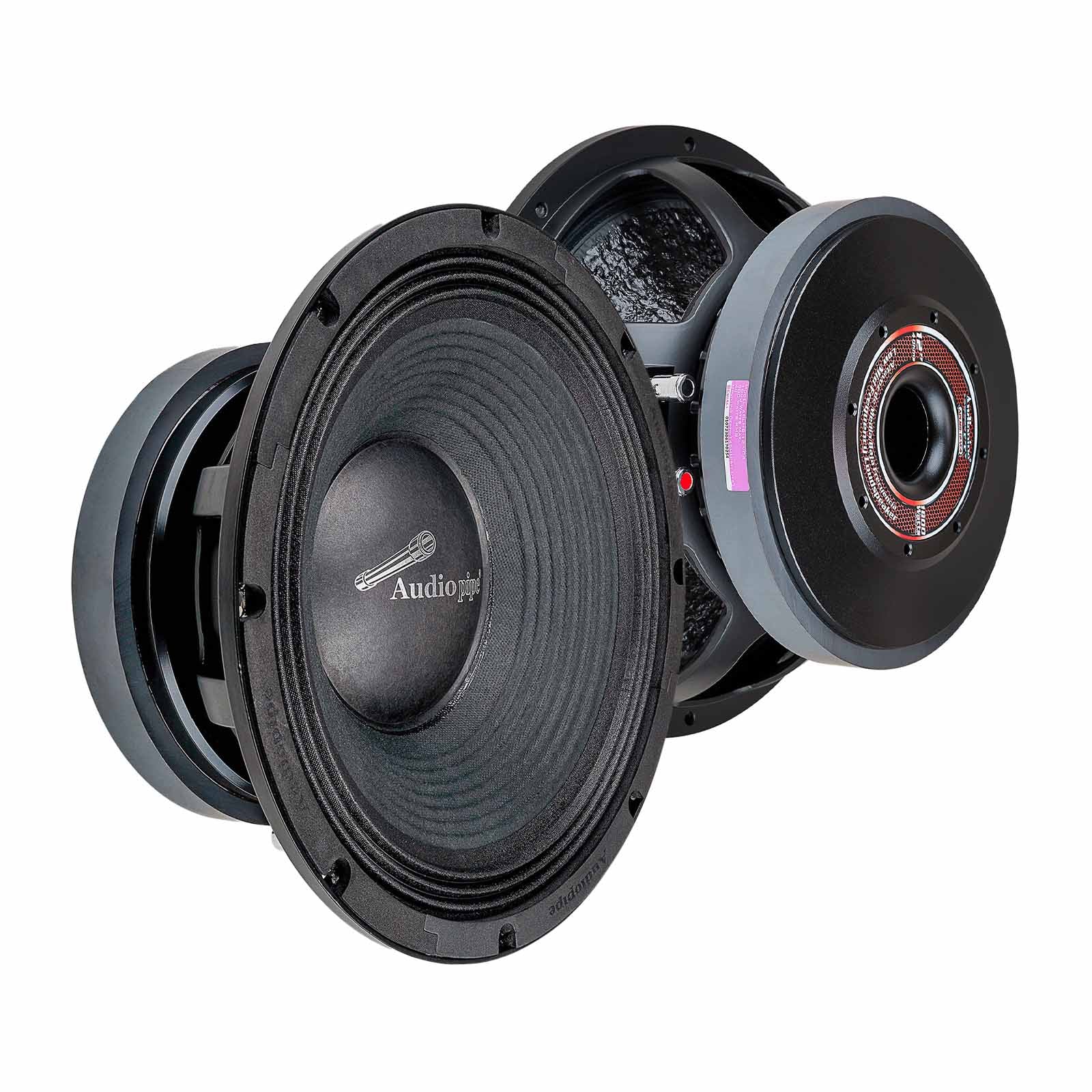

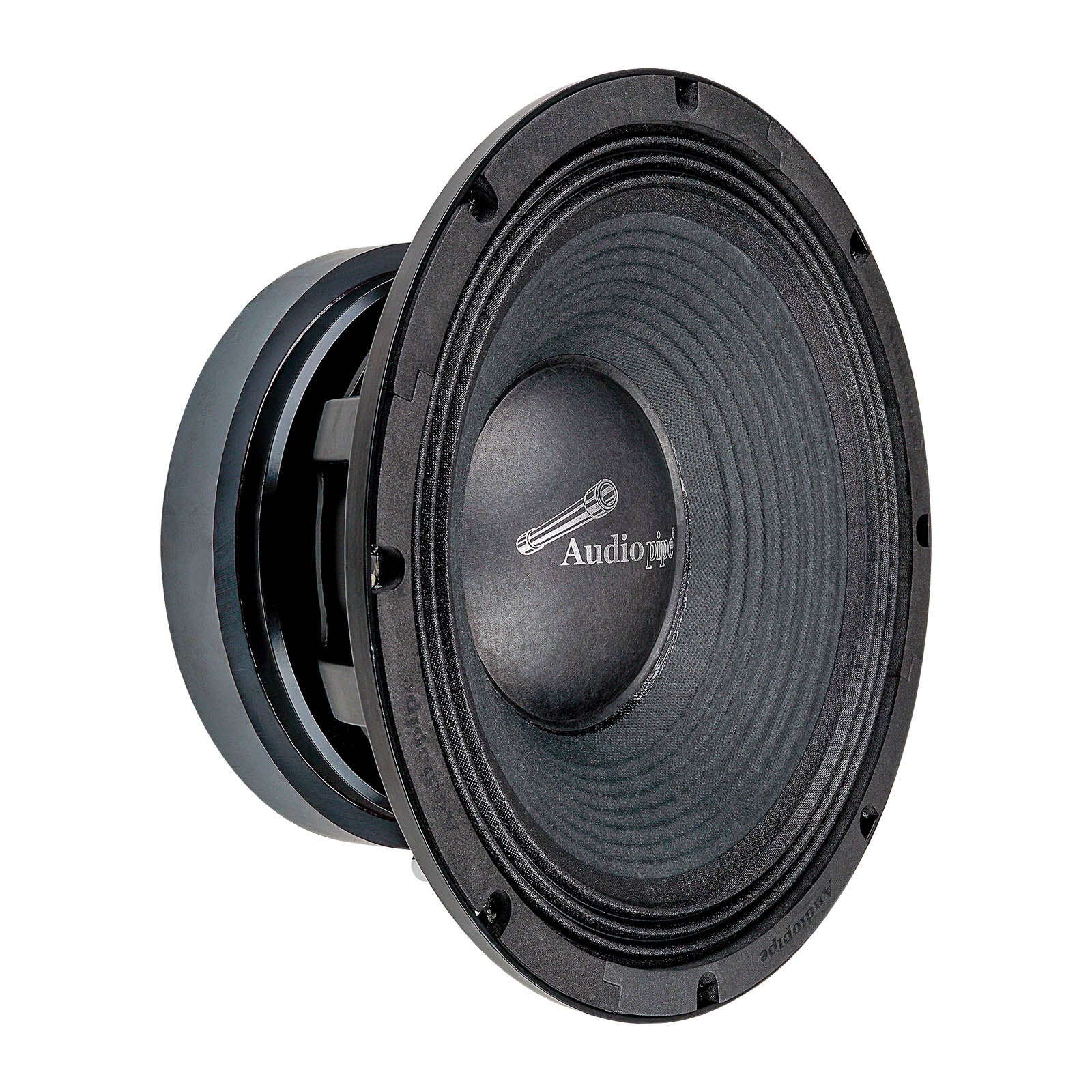

Audiopipe APLMB-12-VC4 12" Mid-Low Frequency Loudspeaker 4 Ohms (APLMB-12-VC4)

• LOW MID-RANGE SERIES: The APLMB-12-VC4 incorporates a cloth edge surround to improve low frequency performance. This novel design maximizes mid-range clarity, providing rich and powerful low tones
• HIGH PERFORMANCE: Boasting a powerful 1800 Watts peak power and 900 Watts continuous power, this loudspeaker elevates your listening experience like never before
• HIGH-QUALITY VOICE COIL: The APLMB-12-VC4 boasts a 4" high temperature TIL voice coil, engineered with improved voice coil ventilation for substantial performance and endurance
• DIE-CAST ALUMINUM BASKET: Constructed with a die-cast aluminum basket, the APLMB-12-VC4 ensures durability and superior sound quality. This design provides robust protection and isolates internal air from external frequencies, ensuring that the speaker operates efficiently without interference, delivering clean and precise sound reproduction for an immersive audio experience
• EASY TO INSTALL: The APLMB-12-VC4 features reserved installation holes for easy installation. Its compact size and mid-range frequency make it ideal for enhancing audio quality in smaller spaces.
• MAGNET: The APLMB-12-VC4 includes a 125 Oz magnet for strong power handling and superior performance.
• PEAK POWER: 1800 Watts Power [P.M.P.O.]
• CONTINUOUS POWER: 900 Watts Power [R.M.S.]
• FREQUENCY RESPONSE: 45-5,000Hz
• SENSITIVITY: 94dB
• MOUNTING DEPTH: 145mm [5-11/16”]
• IMPEDANCE: 4 Ohms
• MAGNET: 125 Oz

Description

Our Brand New APLMB-12-VC4 mid-bass has 1800 watts peak power and 900 watts continuous power. This is made possible by the 4” TIL Voice Coil, Die-cast Aluminum Basket, 125 Oz Magnet, and Kevlar Fiber Embedded paper cone. Finally, the color coded terminals allow for an easy install!

APLMB-12-VC4-English/Spanish Product Manual
