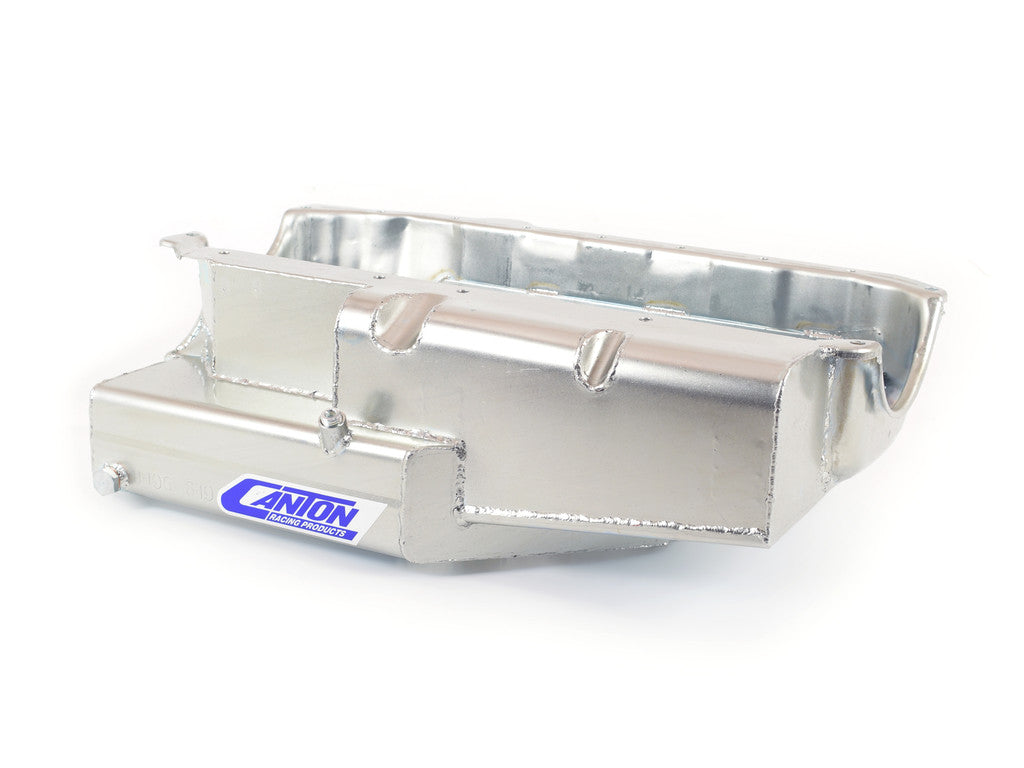

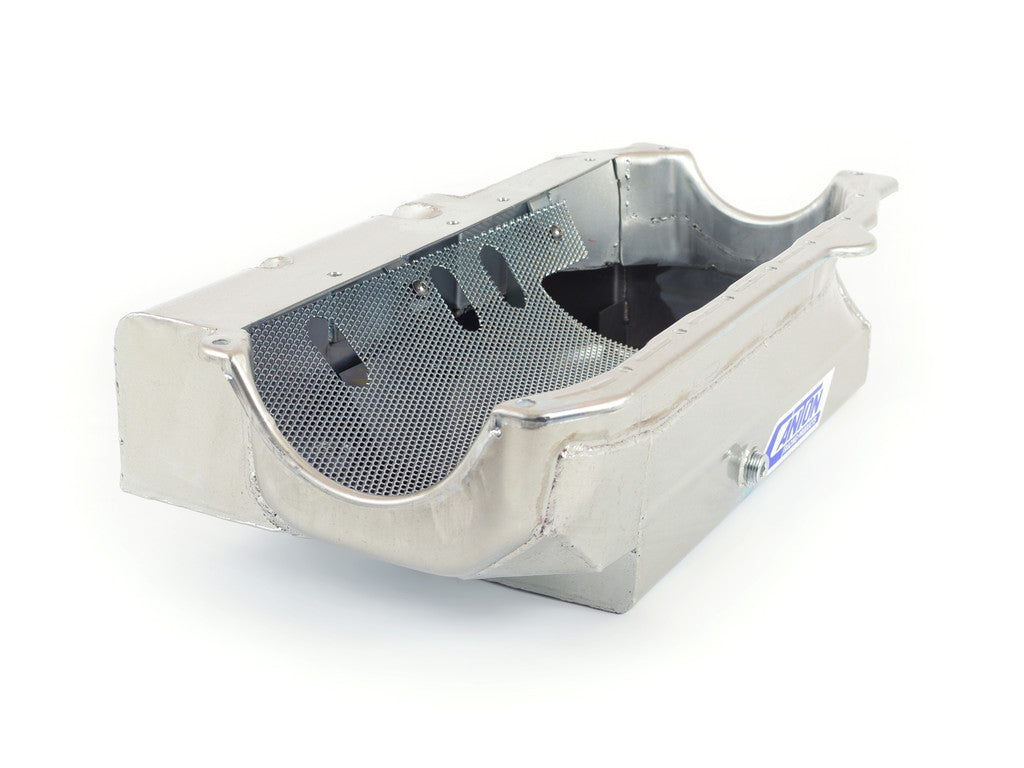

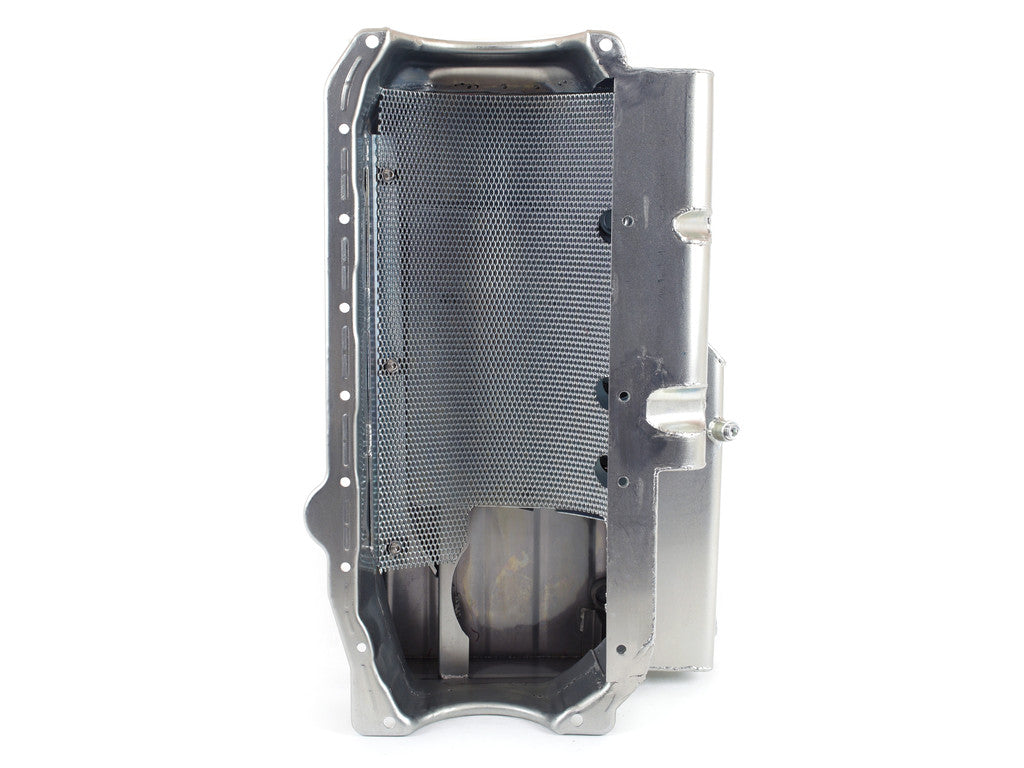

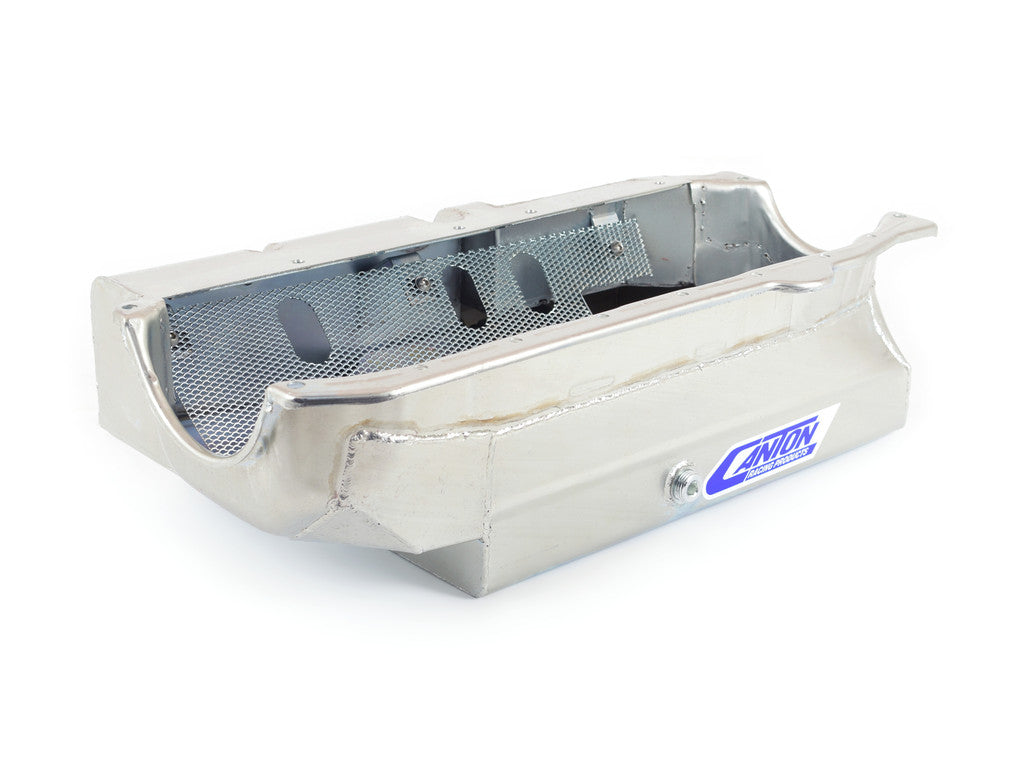

Canton Racing Products 11-196 Small Block Chevy Shallow Open Chassis Circle Track Pan
-
Estimated Delivery:Oct 05 - Oct 09
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
Canton Racing Products 11-196 Small Block Chevy Shallow Open Chassis Circle Track Pan
Description
This open chassis shallow "L" style steel wet sump is for pre-85 Small Block Chevys. The pan is designed for applications requiring extra ground clearance and with chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has a 16" long, 6-1/2" deep L sump with an 8 quart system capacity. Requires one of our pickups. Also an available option for this pan is #20-914 Pro Louvered Windage Tray, designed to replace the standard screen tray in this pan.
NOTES: Requires offset aftermarket starter and a 153 or 168 tooth flywheel. 20-914 Pro Louvered Windage Tray Upgrade Required for Dirt Racing.
Oil Pan Features
* 8 qt System Capacity
* Six Trap Door Baffles & Directional Oil Runners
* Pro Style Oil Recovery Pouch
* Bolt in Slosh Baffle
* Built in Screen Windage Tray
* 1/2” NPT Temperature Bung
* Provison for our Pan Mounted Dipstick
* Magnetic Drain Plug
- SKU:
- 11-196
- Condition:
- New
- Availability:
- 2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
- Capacity:
- 8 Quart System Capacity
- Finish:
- Clear Zinc Chromate (Silver)
- Material:
- 16 Gauge Steel
- Application Type:
- Circle Track Racing
- Sump Style:
- L-Sump
- Engine Type:
- Small Block Chevy
- Stroke:
- 3.875
FEATURES
- Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
- Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
- Baffled with 6 Trap Doors/3 Directional Runners
- Bolt On Slosh Baffle For Oil Control, Removable Screen Wind age Tray

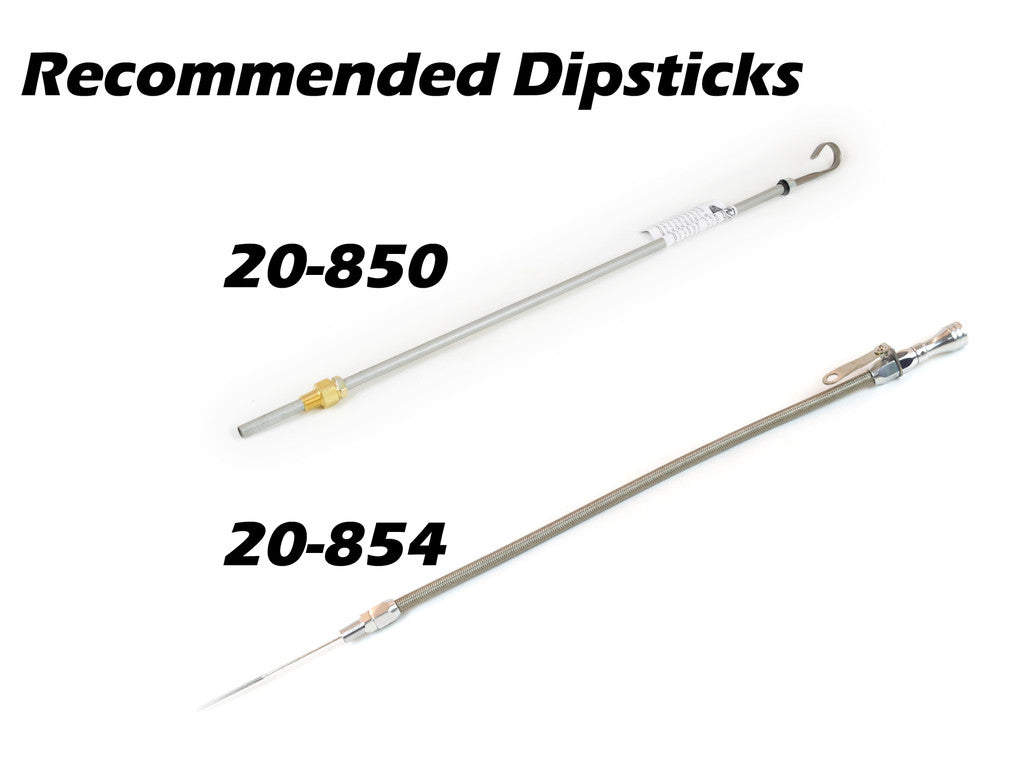

- Recommended Accessories: Canton Part Numbers 20-030, 20-031, 20-032, 20-850, 20-854, 88-100
