Canton Racing Products 15-240T Small Block Chevy 1986 and Up Corvette Road Race Pan
-
Estimated Delivery:Jul 25 - Jul 29
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
Canton Racing Products 15-240T Small Block Chevy 1986 and Up Corvette Road Race Pan
Description

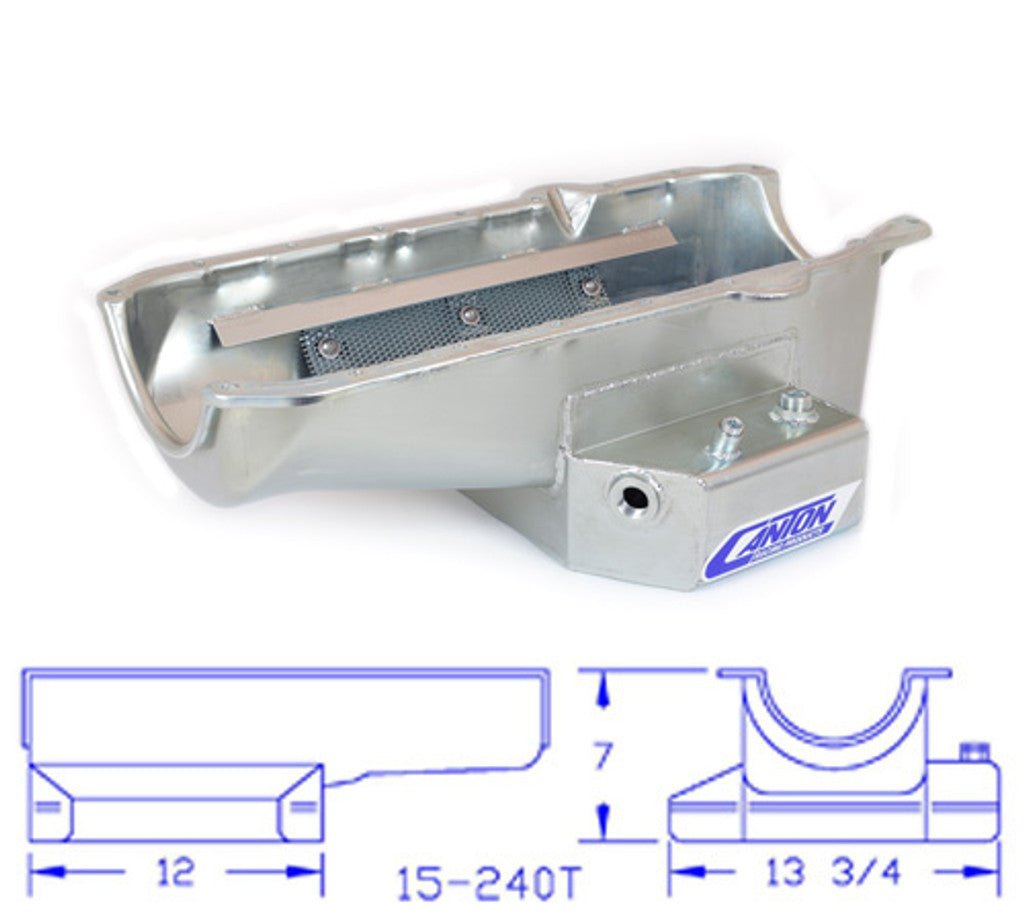

This SBC late Corvette road race pan is for 86 and newer blocks with one piece seal. It is designed for 84-96 Corvettes, but will fit in early Corvettes as well. It has a 7" deep, 13-3/4" wide, 12" long sump, with a 7 quart system capacity. Will work with stock starter. This pan requires one of our pickups.
Oil Pan Features
* Five Trap Door Baffles
* Crank Scraper
* Built In Screen Windage Tray
* 1/2" NPT Temperature Bung
* Provision For Our Pan Mounted Dipstick
* Magnetic Drain Plug
* Includes a 20MM fitting For Low Oil Sensor (22-405 required if not using sender)
- Condition:
- New
- Availability:
- 2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
- Capacity:
- 7 Quart System Capacity
- Finish:
- Clear Zinc Chromate (Silver)
- Material:
- 16 Gauge Steel
- Application Type:
- Road Racing
- Sump Style:
- T-Sump
- Engine Type:
- Small Block Chevy
- Stroke:
- 3.75
FEATURES
- Trap Door Baffle for Oil Control
- Crank Scraper
- Bolt in Wind age Tray, Provision for Pan Mounted Dipstick
- 1/2" NPT Temperature Bung
- Recommended Accessories: Canton Part Numbers 20-044, 20-049, 20-074, 20-079, 20-850, 20-854, 22-405, 88-100T
