Canton Racing Products 15-276 GM LS1-LS6 5-5/8" Deep Front Sump Road Race and Drift Pan
Description

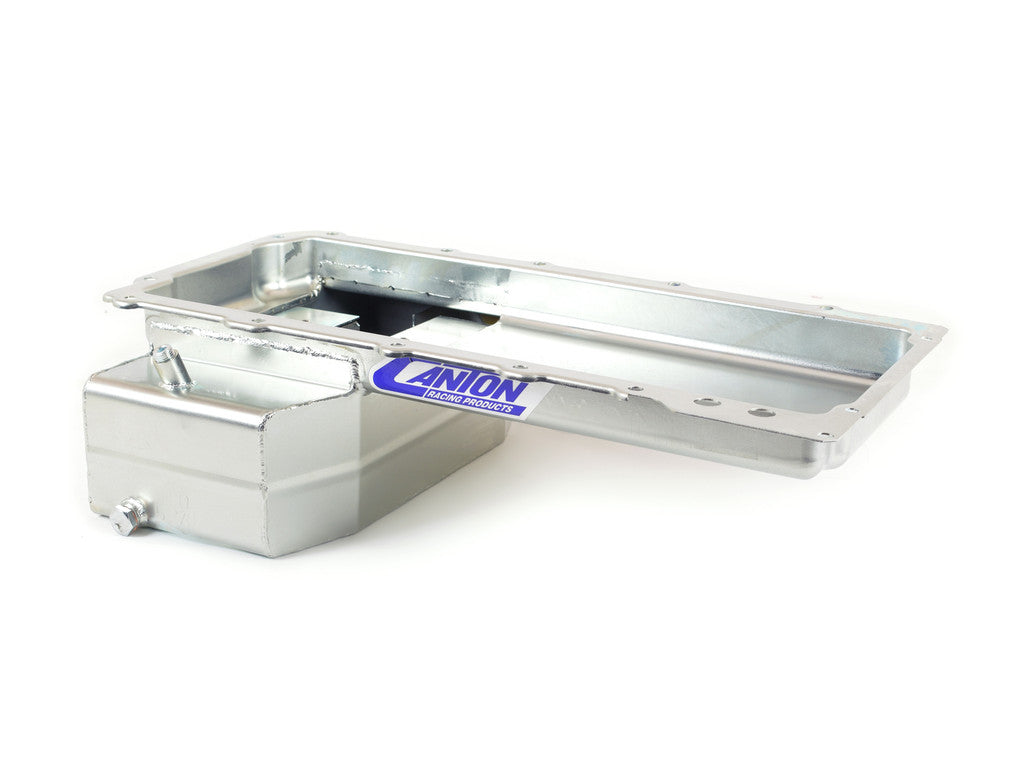

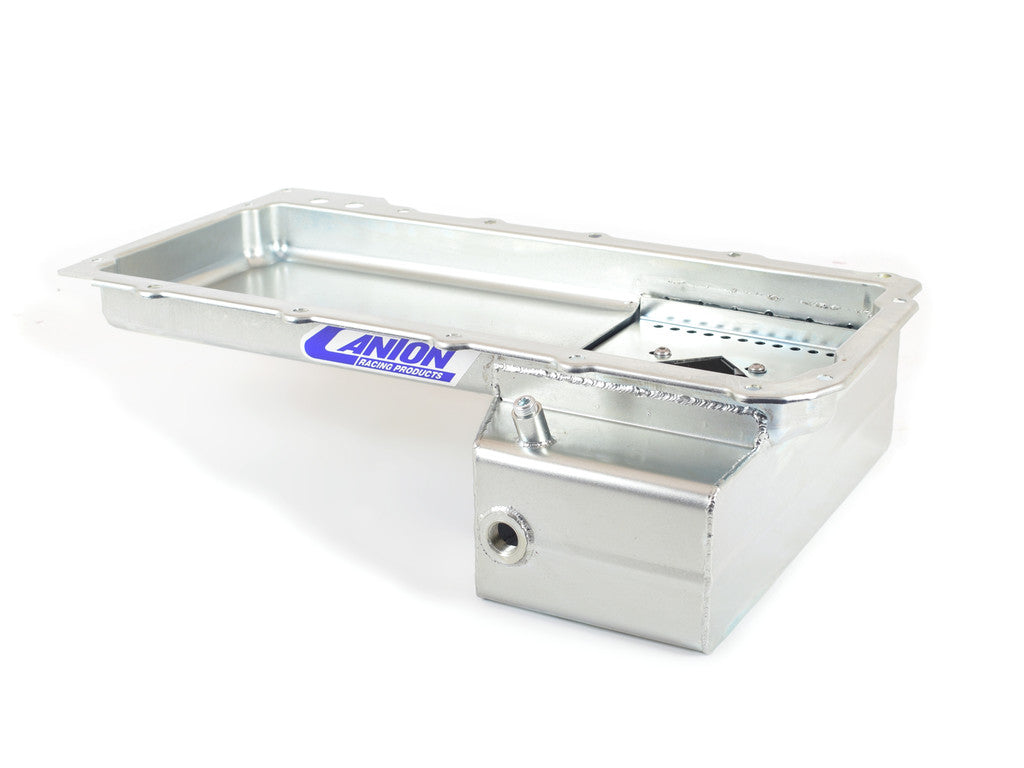

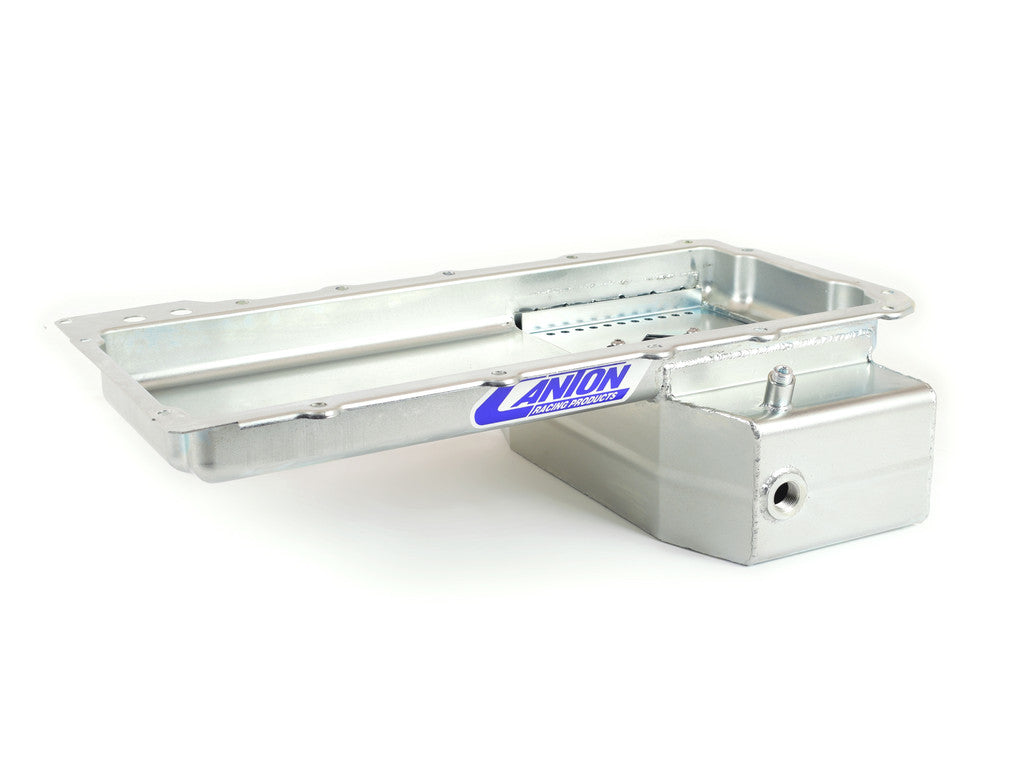

Canton's new 15-276 front sump road race/drift car oil pan is designed for GM LS1/LS6 powered cars that require a shallow front sump oil pan. This pan is designed to use our part #15-277. It's diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. With provisions for a pan mounted dipstick and 20 mm oil level sensor along with a 6.5 quart system oil capacity. Will not fit on LS Next 2 blocks. Use Stock Gasket
Works with OEM windage tray #12558189
The Pan Features
* 6.5 qt System Capacity
* 4.25" Stroke Clearance

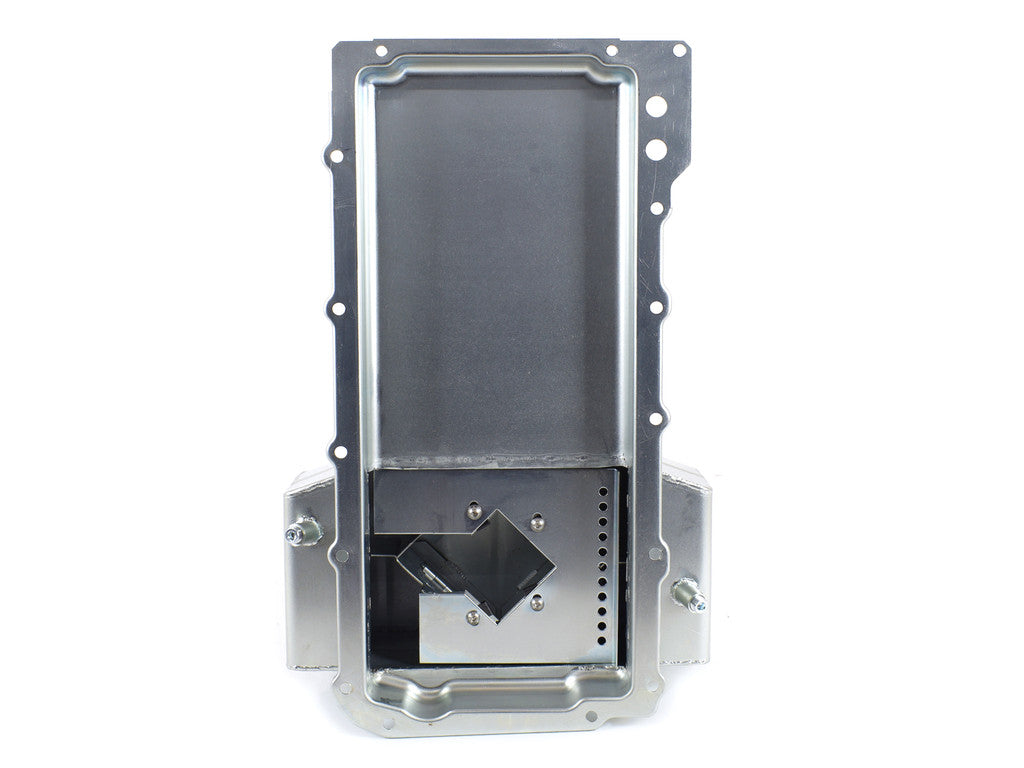

* Diamond Shape Trap Door Baffle
* Bolt in Slosh Baffle
* 20 mm bung for low oil warning sensor (22-405 required if not used)
* Provision for our 1/4 NPT pan mounted dipstick
* Magnetic Drain Plug
- Condition:
- New
- Availability:
- 2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
- Capacity:
- 6.5 Quart System Capacity
- Finish:
- Clear Zinc Chromate (Silver)
- Material:
- 16 Gauge Steel
- Application Type:
- Road Racing
- Application Type:
- Drift
- Sump Style:
- T-Sump
- Engine Type:
- GM LS
FEATURES
- Canton 15-276 Oil Pan Road Race/Drift Front Sump 6-1/2 qt - 5-5/8 in Deep Steel
