8-Channel Full Range Class D Amplifier

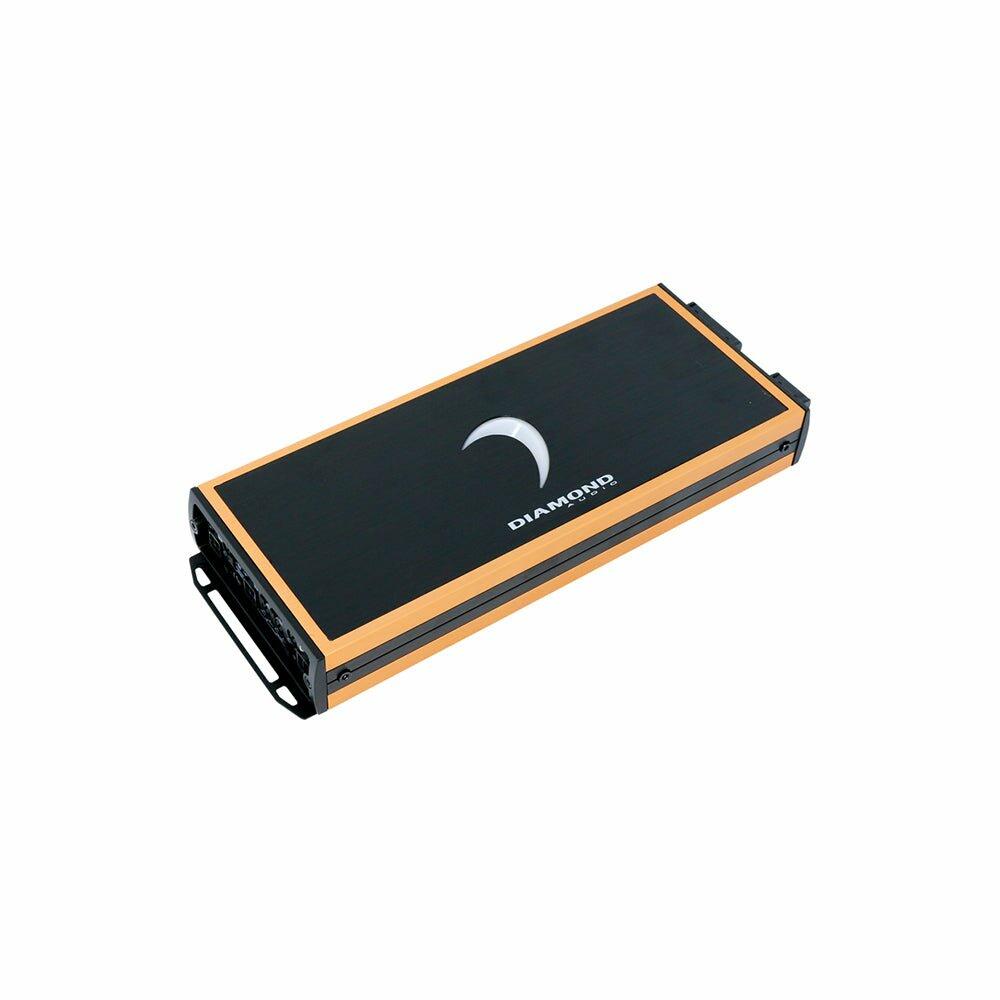

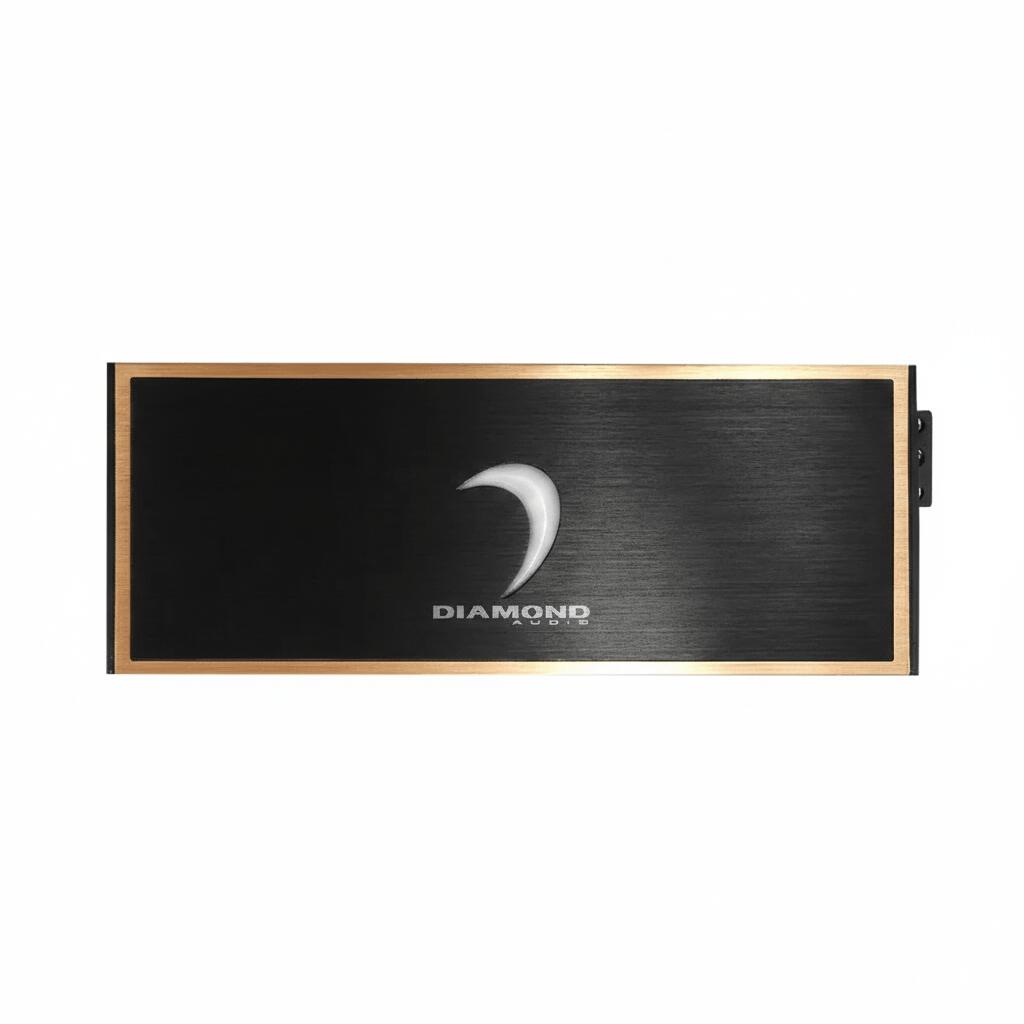

Take your system to the next level with the Diamond Audio MICRO8U 8-Channel Full Range Class D Amplifier, engineered for maximum control, efficiency, and all-weather performance. Designed for serious enthusiasts, this 8-channel car audio amplifier delivers clean, powerful output for multi-speaker systems in cars, boats, motorcycles, and powersports vehicles.

As part of the advanced Diamond Audio MICRO8U amplifier series, this full range Class D amplifier provides exceptional performance in a compact chassis. With 75W x 8 at 4 ohms, 100W x 8 at 2 ohms, and 200W x 2 bridged at 4 ohms, the MICRO8U 8-channel amplifier is ideal for powering full active systems, multi-zone audio setups, or complex custom installations requiring precise channel control.

Built for demanding environments, the Diamond Audio MICRO8U amplifier features a conformal-coated circuit board, making it a true all-weather amplifier for marine audio systems, motorcycles, UTVs, ATVs, and outdoor installations. This rugged design ensures long-lasting performance by protecting internal components from moisture, dust, and harsh conditions.

The compact amplifier design allows for flexible installation in tight spaces while maintaining a clean and uniform look across MICRO8U systems. With selectable 2-channel or 8-channel input modes, this versatile multi-channel amplifier integrates seamlessly into factory or aftermarket audio systems.

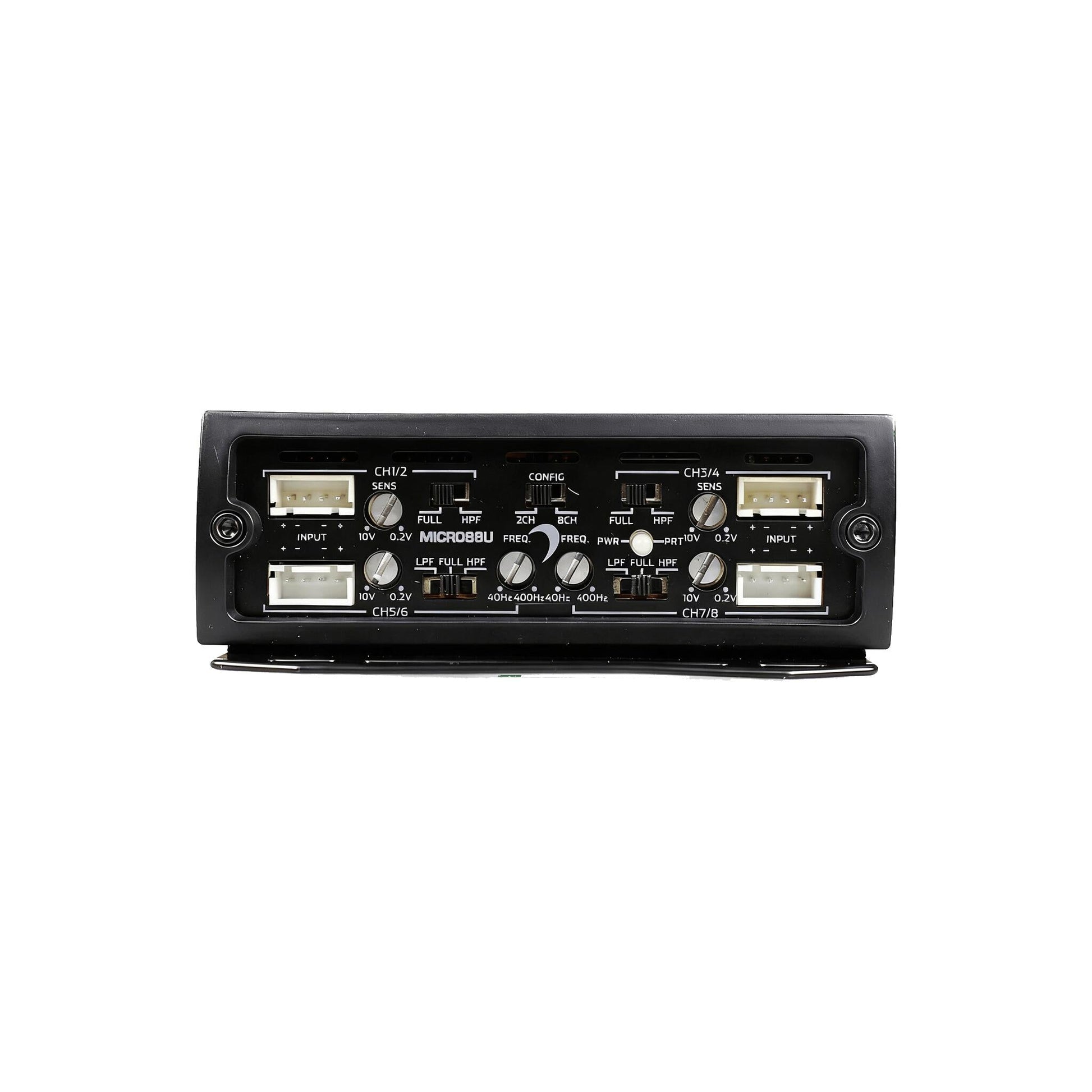

Advanced tuning features include a fixed 70Hz high-pass filter for channels 14 and a variable 40400Hz crossover for channels 58, along with a wide frequency response (10Hz33kHz) and adjustable input sensitivity (0.210V). These controls allow precise tuning for optimal sound clarity and system performance.

Key Features

8-channel full range Class D amplifier
75W x 8 @ 4 / 100W x 8 @ 2 / 200W x 2 bridged
Compact, high-efficiency amplifier design
Conformal-coated for all-weather durability
Selectable 2CH / 8CH input modes
Advanced crossover tuning options
Ideal for multi-speaker and active audio systems

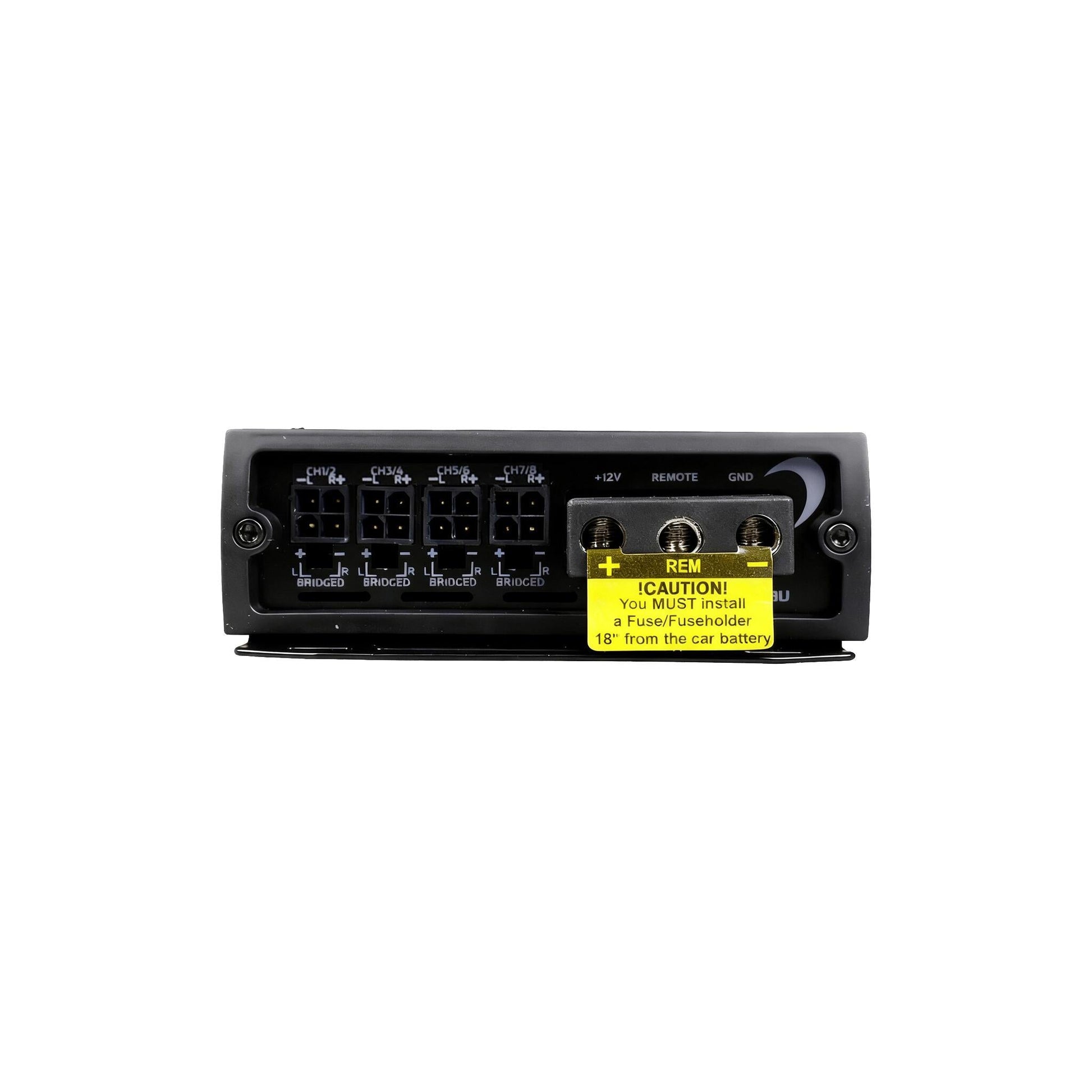

Includes RCA input & speaker output harness kits

The Diamond Audio MICRO8U 8-Channel Amplifier delivers powerful, precise, and reliable performance, making it the ultimate solution for high-end multi-channel car audio and outdoor sound systems.
