Heise HE-AMB-CAR Chasing Interior Ambient Lighting Kit

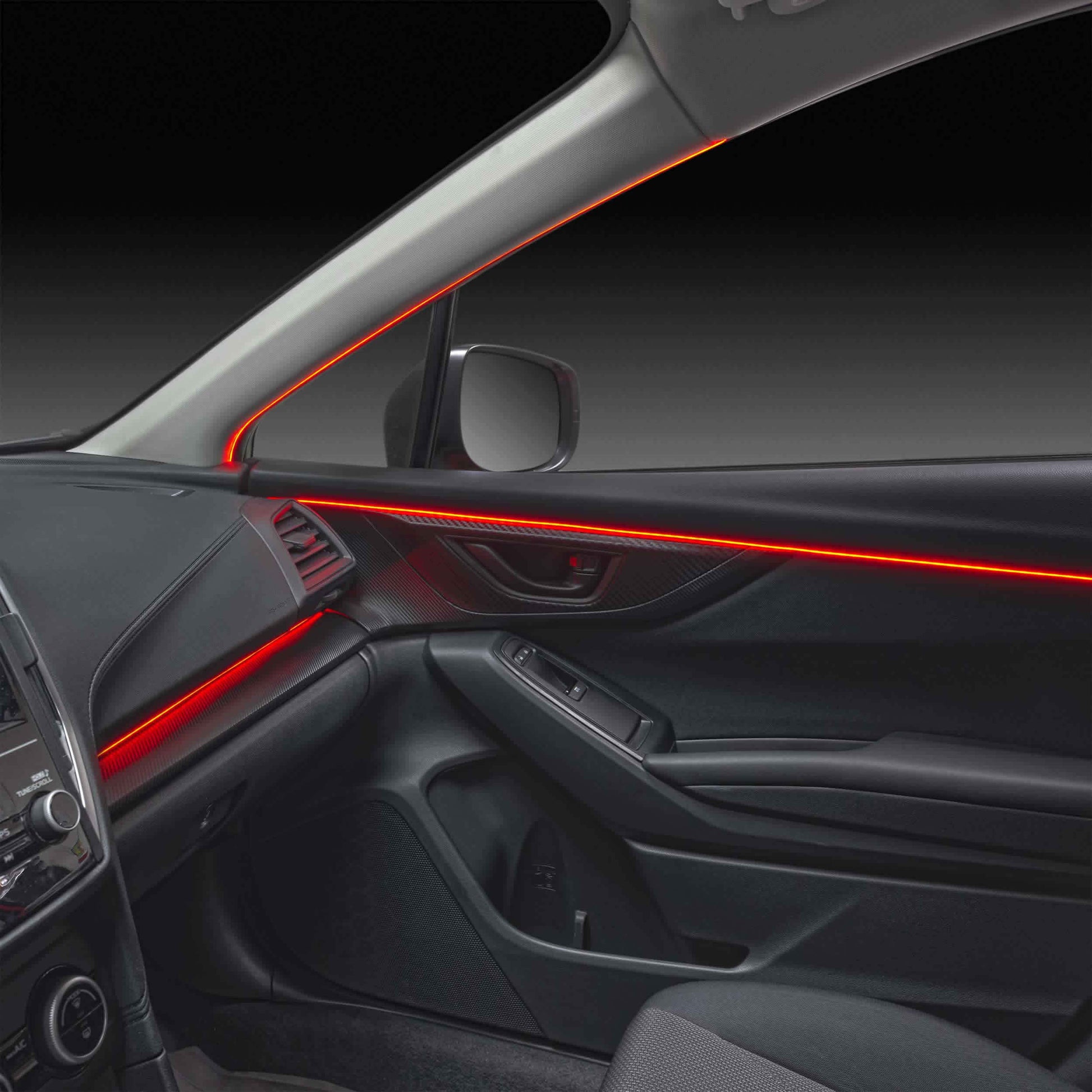

This 18-piece complete chasing ambient lighting kit includes everything installers need to transform the interior of any car from ordinary to extraordinary. This kit includes ambient LED lighting for the dash, footwells, door handles, door pockets, and doors. The ambient LED lighting provided by this sizeable kit surpasses that of luxury cars on the market, and the chasing patterns create a fun sci-fi effect. Additionally, a new reverse/door trigger function is activated by connecting the trigger to the door circuit. This option switches the entire kit to a solid white display when one of the vehicle’s doors is opened and resumes a chasing display once the door closes.

Included in this kit are five Heise Connect chasing controllers that can easily be grouped within the free downloadable Heise Connect app for smartphones and tablets. One controller is installed in the dash and connects to the two dash strips and the four footwell lights. The remaining four controllers are installed within each of the vehicle’s doors and connect to the door’s LED strip, handle accent light, and pocket light. Using five controllers makes installation easier and faster than running multiple extension cables through the door boots.

• Addressable LEDs
• For interior use only
• Universal applications
• 1-year warranty

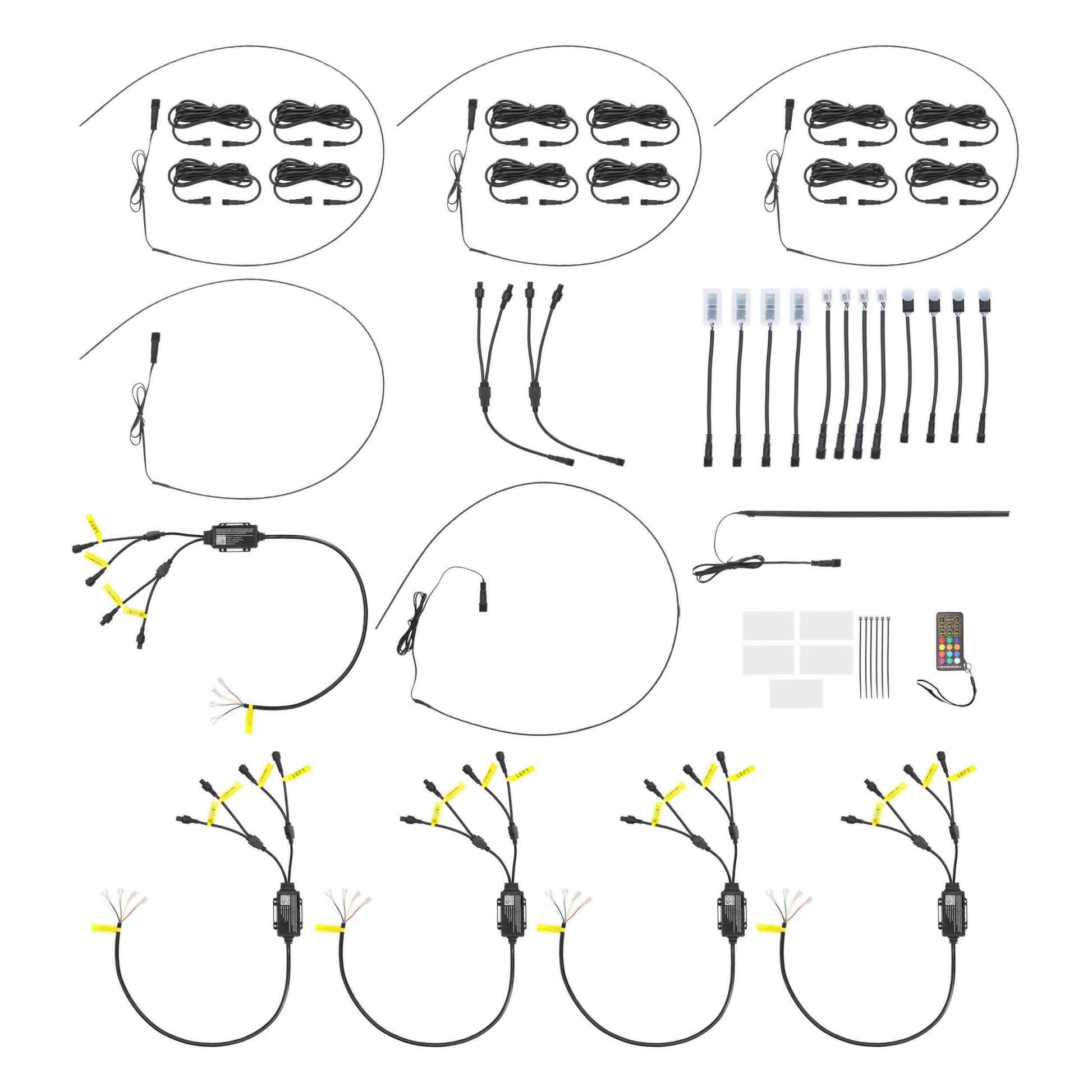

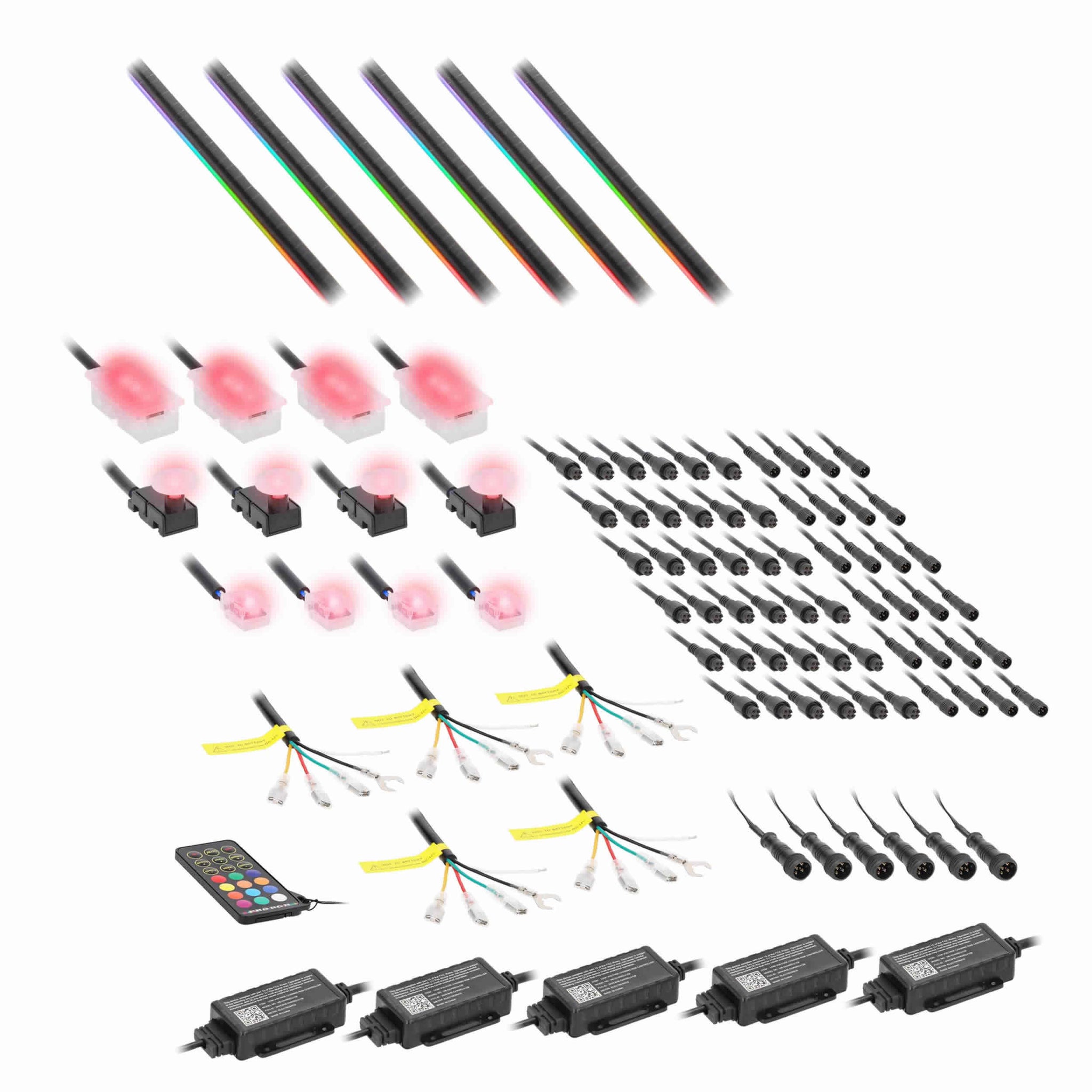

• (1) 3’ chasing ambient strip
• (1) 1’ chasing ambient strip
• (4) 2.5’ ambient strips
• (4) Door handle accent lights
• (4) Door pocket accent lights
• (4) Footwell accent lights
• (2) Y adapters
• (12) 6.5’ extension cables
• RF remote
• (5) HE-CHASE-CB Heise Connect chasing controllers

Heise Connect Chasing Controller

HE-CHASE-CB

This controller is specifically designed to work with Heise Chasing LEDs, making customization and control of these products easy. It features two wireless control options; an included remote control or the Heise Connect downloadable app for smartphones or tablets. Users can easily group multiple controllers through the app, and every controller has left and right zones for independent turn signal control wires and a dedicated brake light trigger wire. This product works with all Heise LED Chasing products.

• Addressable LED controller
• 170+ color-changing patterns
• Turn signal function (both left and right)
• Reverse/door trigger function
• Brake function
• DIY pattern function
• Music sync function
• App controlled (Heise Connect app) or via the included RF card remote
• Max load 10A
• Water-resistant Heise connector

Heise Connect App

The Heise Connect app allows users to remotely control Heise LED lighting products from the palm of their hand. The app automatically connects via Bluetooth® wireless technology and detects the type of control box connected to the app, RGB, RGBW, or Chasing, allowing groups of all products to be used and controlled within the same mobile app. A selectable color wheel lets users choose from 16 million RGB color options and a true white light color option available with RGBW products. Users can also select from 24 pre-programmed patterns for RGB and RGBW and 170+ pre-programmed moving patterns for Chasing. There is also a DIY pattern option for Chasing products that allows for selecting up to 16 colors and 3 motion effects. The app also features independent left and right turn signal triggers, a brake trigger, and a music sync function.
