Hornblasters HK-STEALTH Stealth Spare Tire Delete® Kit
-
Estimated Delivery:Oct 06 - Oct 10
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
Hornblasters HK-STEALTH Stealth Spare Tire Delete® Kit
BE HEARD AND NOT SEEN
You asked, we answered! The Stealth Spare Tire Delete kit is now available! After many hours of engineering and design, we've developed a train horn kit that not only fits more full size trucks and SUV's, but when installed has a lower profile than any other system before. With the bells tucked away, this new sleek configuration gives you the ability to be heard and not seen.
New features include:
- Multidirectional horn mounting pattern; sound projecting from both sides creates a 360-degree wall of sound.
- Fits more vehicles than before. New design allows for multiple mounting configurations.
- New component layout gives 5" of extra ground clearance compared to the previous Spare Tire Delete kit by moving the bells up into the spare tire well.
Important Notes:
- Fits most full-size pickups and SUV's.

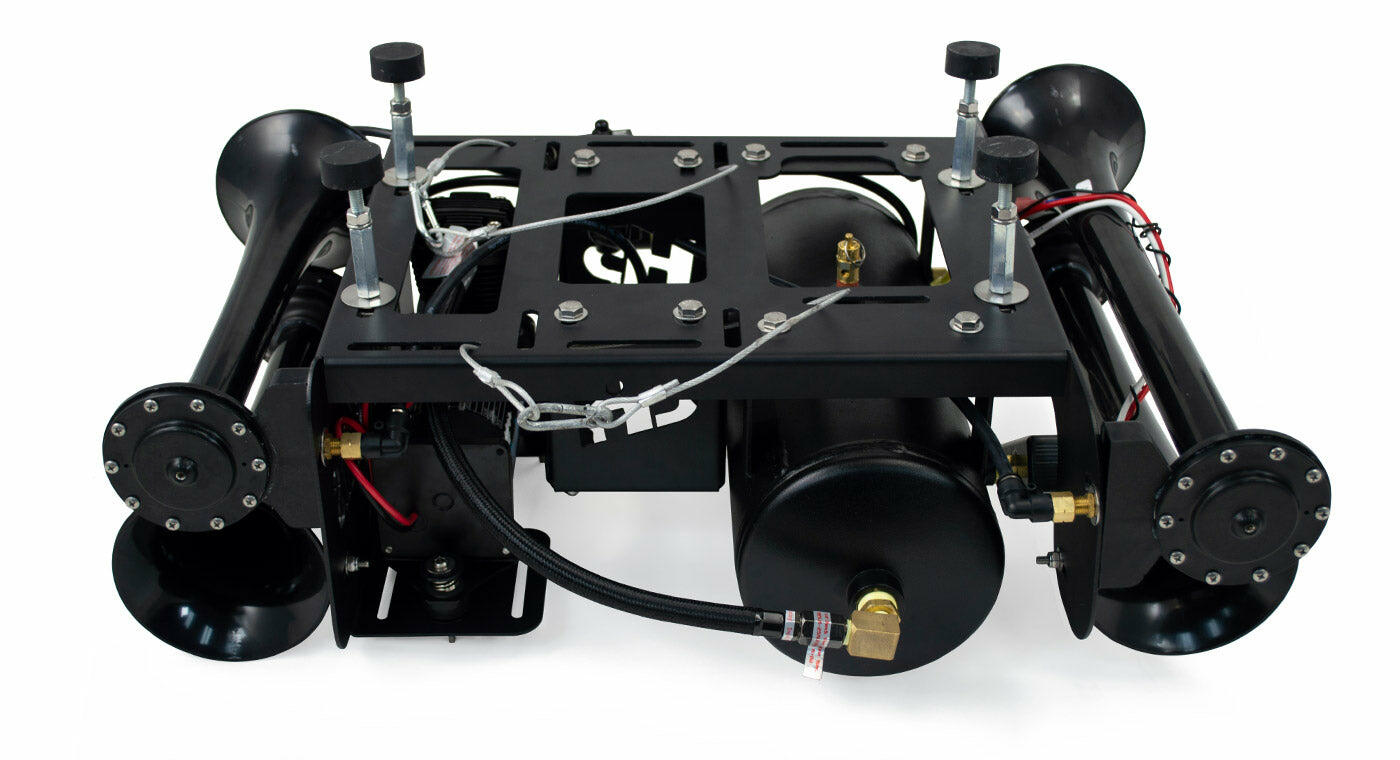

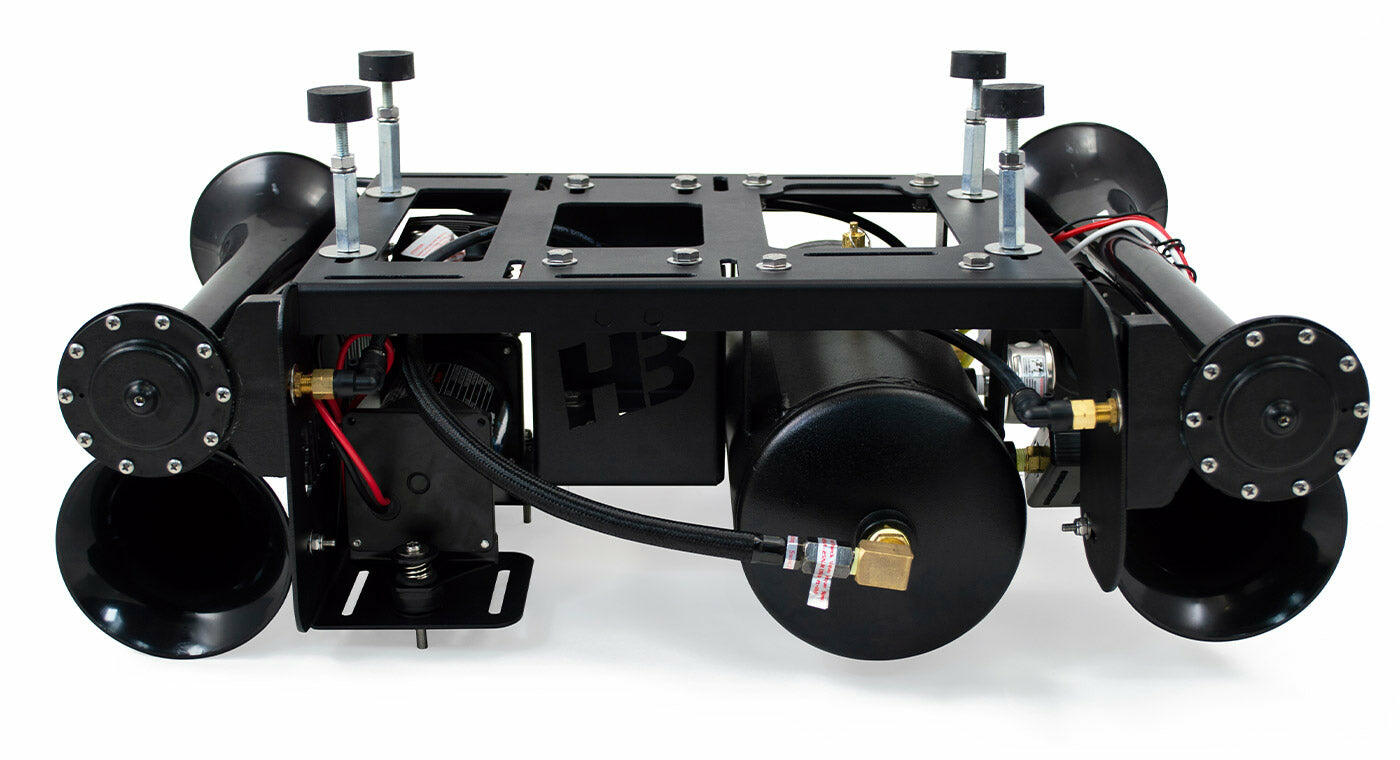

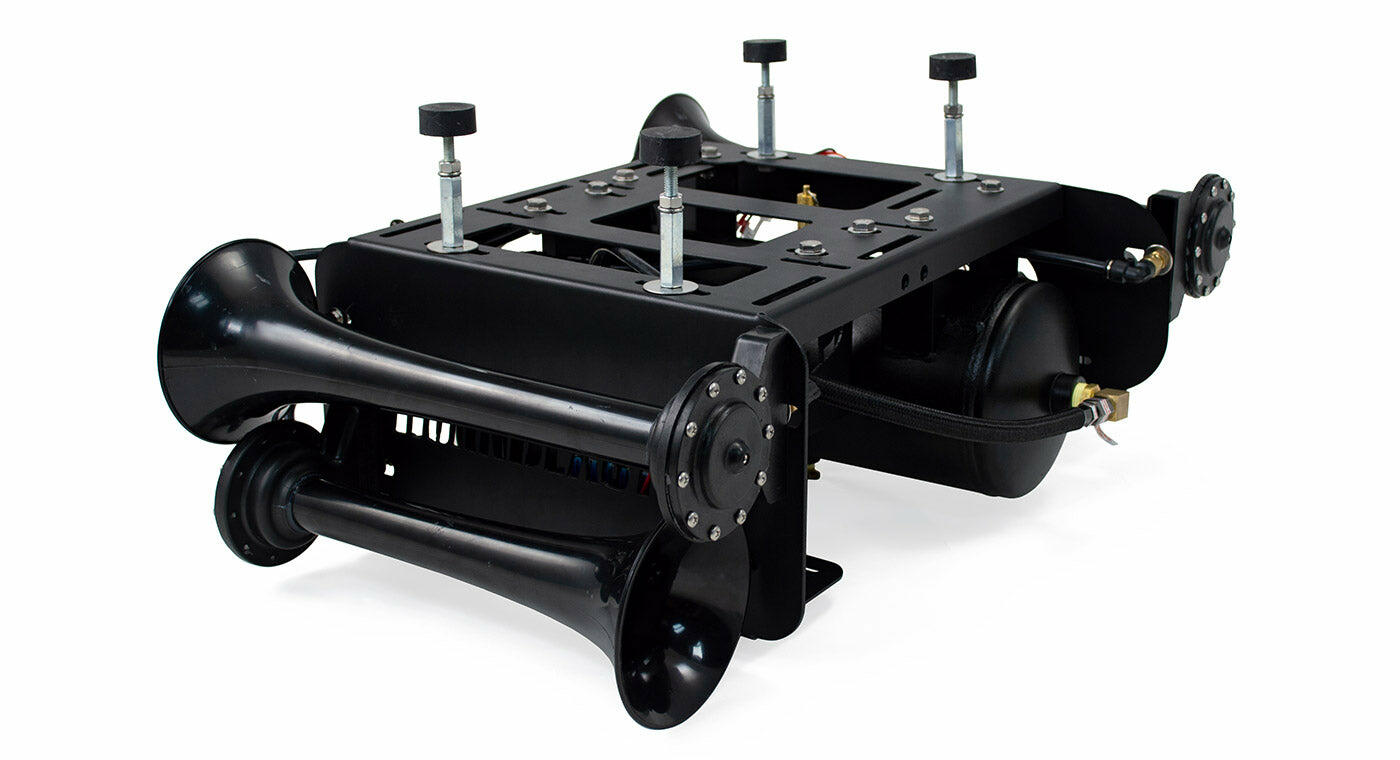

- The spare tire delete kit is shown assembled above for illustration purposes only. The kit will arrive as individual components and assembly will be required. Please check the install instructions in the section below.
- This bracket is NOT compatible with the S6 mounting extensions. The additional bells must be mounted individually.
Includes
- Shocker XL train horns
- Stealth Spare tire delete bracket
- 2-gallon 6 port air tank
- HornBlasters 1/2" Black Widow electric air valve
- HornBlasters 3Q stealth black air compressor
- 110/150 PSI pressure switch w/ 40 amp relay
- Remote mountable intake filter assembly
- Spare air filter elements
- 12ft of 5/16" D.O.T. approved air line
- 2ft of 1/2" D.O.T. approved air line
- 6ft of 3/8" air line (for air compressors air intake)
- 22ft of 10-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire
- HornBlasters 200 PSI stainless steel liquid-filled air gauge
- Brass NPT fittings kit including a safety blow-off & drain cock
- Complete wiring kit with fuse holder & fuses
- Mounting hardware
- Detailed instructions
| SPECIFICATION | |
|---|---|
| Part Number | HK-STEALTH |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12-Volt DC |
| Max Amp Draw | 20-22 Amps |
| Horn | Shocker 4 train horn kit |
| Horn Material | High-impact fiberglass reinforced ABS |
| Horn Measurements | № 1 19.50″ (495.30 mm) № 2 16.25″ (412.75 mm) № 3 14.75″ (374.65 mm) № 4 12.75″ (323.85 mm) |
| Air Tank | HornAir 2-gallon 6 port air tank |
| Average Fill Time | 60-70 seconds |
| Air Flow | 1.41 CFM |
| Assembled Length | 27" (685.8 mm) |
| Assembled Width | 21" (533.4 mm) |
| Assembled Height | 8" (203.2 mm) |
| Assembled Weight | 50 lbs |
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 2 min. 47 sec. (± 10 sec.) |
| 110 to 150 PSI | 57 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
FEATURES
-
- Enhanced Sound Projection: The multidirectional horn mounting pattern projects sound from both sides, creating a powerful 360-degree wall of sound. Dominate the streets with an unparalleled audio experience.
- Versatile Mounting Configurations: Our new design offers multiple mounting options, ensuring compatibility with a broader range of vehicles. Achieve the perfect setup that suits your unique preferences and vehicle specifications.
- Increased Ground Clearance: With its innovative component layout, this kit offers up to 5 inches of extra ground clearance compared to traditional spare tire setups. This added clearance allows you to navigate rough terrains and obstacles with ease.
- Versatile Compatibility: The Stealth Spare Tire Delete kit is designed to fit a wide range of full-size trucks and SUVs, providing compatibility and versatility for various vehicle models.
- Easy Installation: With a user-friendly design and comprehensive installation instructions, the Stealth Spare Tire Delete kit can be easily installed without the need for extensive modifications or professional assistance.
