Hornblasters MC-228H 145 PSI 2 Gallon Air Source Kit

Looking for a 2-gallon air source unit that you don’t have to spend half the day putting together? Our 145 PSI 2-Gallon Air Source Unit is simple and easy to install air source unit that takes all the guesswork out of installation and gives you more time to do what matters most: Honking your HornBlasters Horns! Optimized for our horns, our 145 PSI 2-Gallon Air Source Unit is one of the fastest and cost-effective ways to get your horns a constant supply of air.

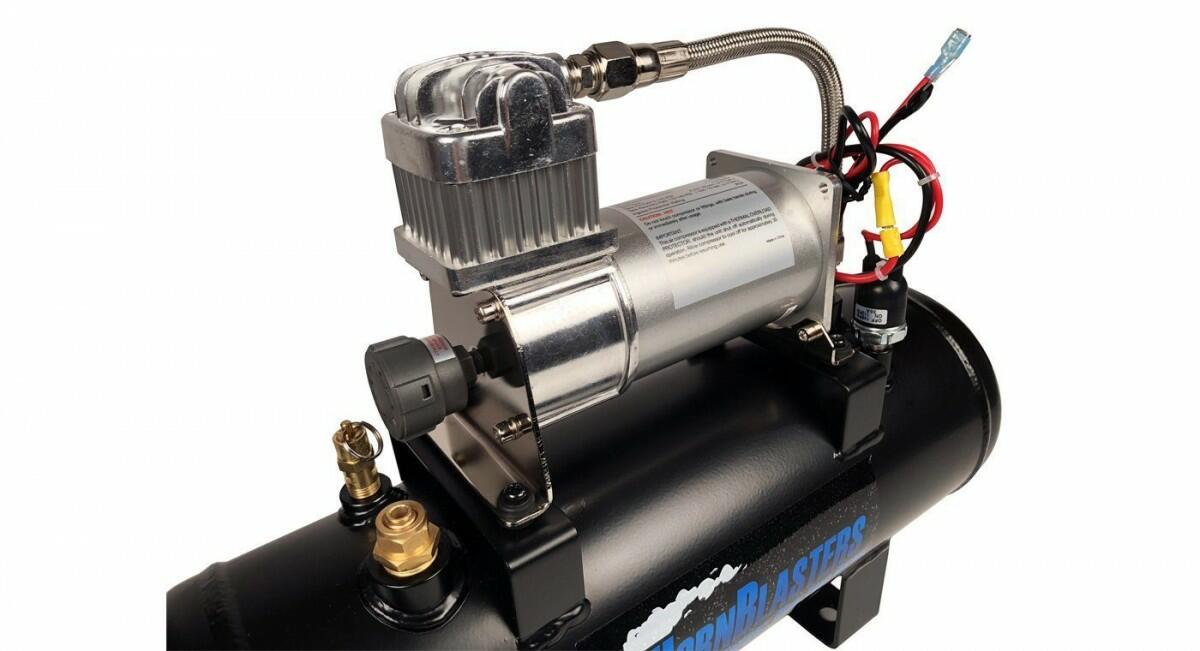

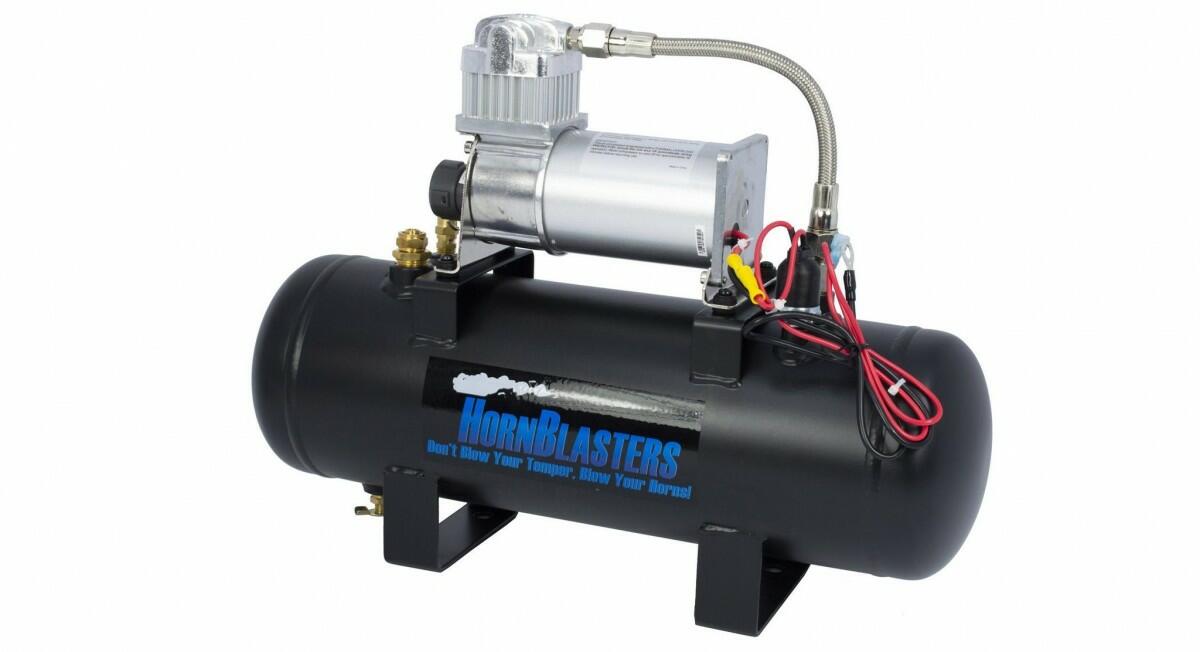

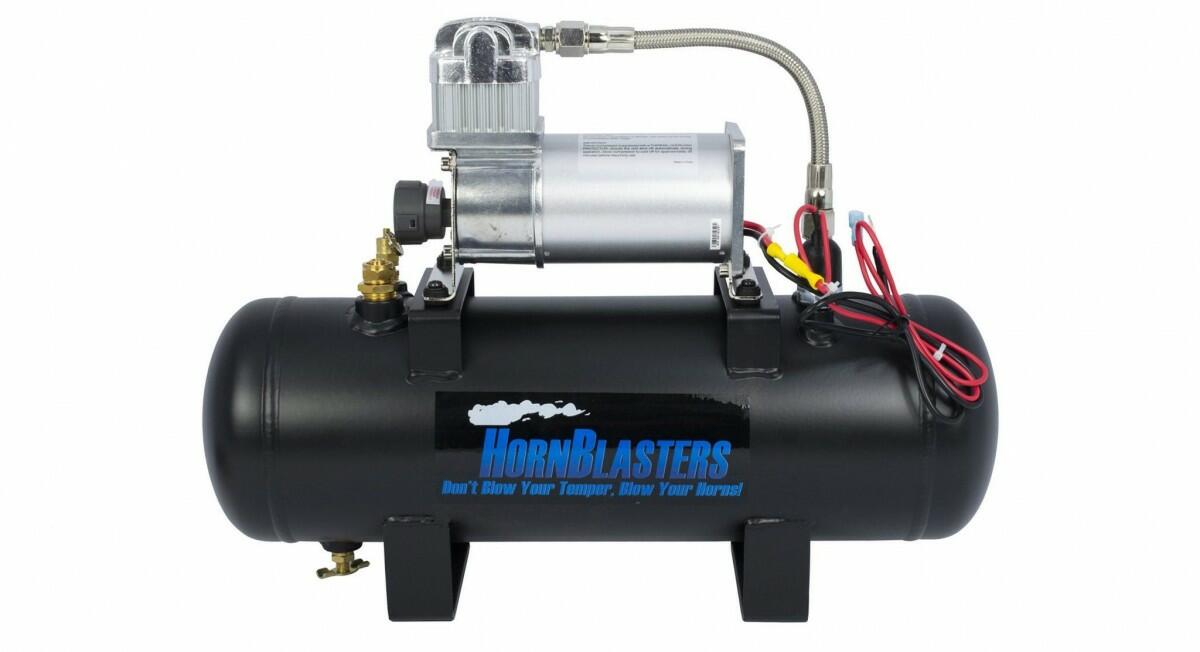

Our 145 PSI 2-Gallon Air Source Unit includes the powerful Viair 280C Air Compressor mounted directly to the tank. This speedy little compressor features a 30% duty cycle and an incredibly fast recharge time, able to fill the tank from 110-145 PSI is just over a minute! With our 145 PSI 2-Gallon Air Source Unit you get plenty of air for your horns, with the 2-gallon tank providing up to 5 seconds of blast time with most of our air horns and even some train horns!

Designed with the beginner in mind, our 145 PSI 2-Gallon Air Source Unit comes pre-wired and pre-plummed, making the 145 PSI 2-Gallon Air Source Unit one of the easiest air-source units to install. All you need to do for installation is connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting and that's it! If you are wanting to get some horns on your ride without having to spend hours installing a complicated onboard air system, this is the kit for you!

(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc...)

PERFORMANCE DATA & FILL RATES

* Supply Voltage: 13.8 Volts

FILL RATES

 * Supply Voltage: 13.8 Volts

FEATURES

• Pre-Installed Pressure Switch
• 1/4" NPT 175 PSI Safety Blow-Off
• 1/4" Drain Cock
• 1/2" NPT Compression Fitting
• Insulated Wiring with Connectors
• Installation Instructions

INCLUDES

• HornBlasters 280c Air Compressor
• 2 Gallon Viair Air Tank
• 110/145 PSI Pressure Switch
• 145 PSI Safety Valve & Drain Cock
• 1/2" Compression Fitting

SPECIFICATIONS

• Part Number: MC-228H
• Manufacturer: HornBlasters
• Model: 228H
• Air Source Kit
• Operating Pressure: 145 PSI
• Length: 19.0″ (482.6 mm)
• Width: 6.0″ (152.4 mm)
• Height: 13.75″ (349.25 mm)
• Air Source Tank
• Volume: 2.0 gal (8.8 L)
• 1/4" NPT Ports: 5
• Length: 19″ (482.6 mm)
• Width: 6″ (152.4 mm)
• Height: 7.4″ (187.96 mm)
• Weight: 10.5 lb (4.76 Kg)
• Air Source Compressor: HornBlasters 280c
• Voltage: 12 Volts
• Max Amperage: 16 Amps
• Max Output: 1.31 CFM
• Maximum Duty Cycle: 30% @ 100 PSI
• Maximum Working Pressure: 150 PSI
• Length: 7.8″ (198.12 mm)
• Width: 3.95″ (100.33 mm)
• Height: 6.35″ (161.29 mm)
• Weight: 5.1 lb (2.31 Kg)

FEATURES

• Extended Honking Capacity with 2-Gallon Tank: The unit's 2-gallon tank is ingeniously designed to provide you with at least 5 seconds of continuous honking. This extended capacity allows for longer and more impactful sound blasts, making sure your presence is noticed wherever you go.
• Quick Recovery for Continuous Performance: With a recovery time of approximately 60 seconds, this unit is always ready for action. This quick recovery rate minimizes downtime, ensuring that you can consistently rely on the air source unit for repeated honking whenever necessary.
• User-Friendly Installation: The unit boasts a plug-and-play design, coming pre-wired and pre-plumbed for your convenience. All necessary fittings and a pressure switch are included, making the installation process straightforward and hassle-free.
• Enhanced Durability & Weather-Resistant: Included with the unit is a Snorkel Kit, which significantly enhances its weather resistance. This addition ensures that the air source unit is capable of performing reliably in various outdoor conditions, making it an excellent choice for use in different environments.
• Versatile Functionality for Multiple Applications: The air source unit is not limited to powering horns. It includes two additional 1/4" NPT ports, providing the flexibility to connect other air accessories. This versatility means the unit can also be used for inflating tires or operating small air tools, adding practical value to its primary function.
