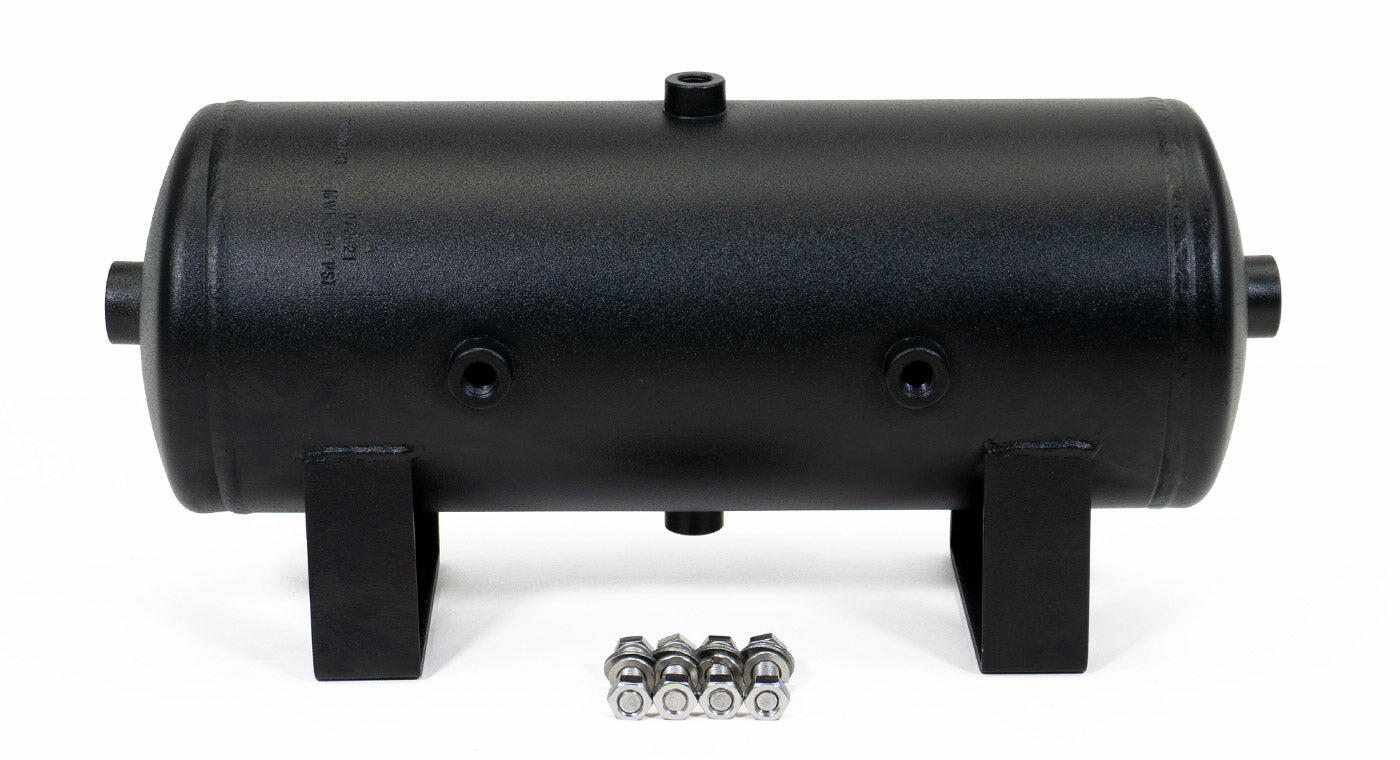

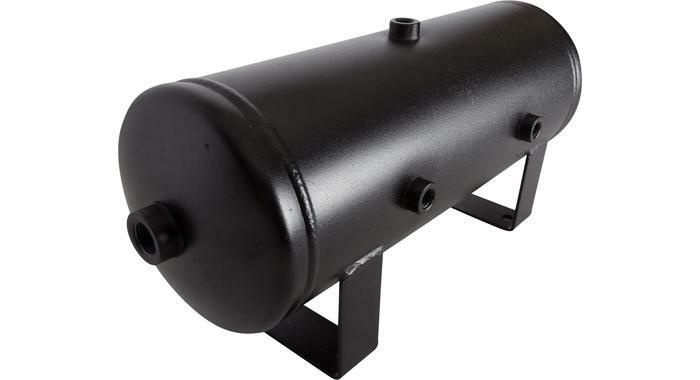

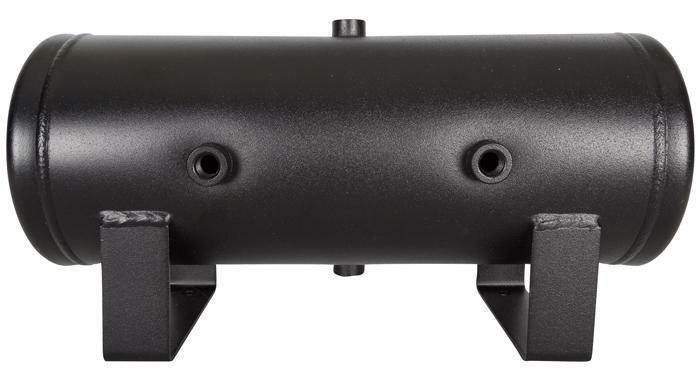

Hornblasters TA-206H 2 Gallon 6 Port Steel Air Tank

PRODUCT DESCRIPTION:
TANKS A LOT. SERIOUSLY.

Step up your pneumatic game with the HornBlasters 2 Gallon 6 Port Steel Air Tank, a stellar embodiment of functionality and adherence to top-notch safety standards. This rugged steel air tank is your go-to solution for a myriad of pneumatic applications including air horns, air suspensions, and onboard air systems. Coated with a sleek black powder coat finish, the tank doesn't just score high on durability but also boasts a professional aesthetic appeal while offering extra protection against rust and corrosion.

Engineered with precision, this tank features a six-port configuration with two 1/2" NPT ports and four 1/4" NPT ports, offering versatile connectivity options to meet your system's demands. It proudly adheres to the stringent SAE J10 & FMVSS 121 specifications, ensuring you're investing in a product that meets industry safety standards. With a maximum working pressure of 150 PSI and an impressive burst rating of 300 PSI, this tank is built to handle the demands of your pneumatic systems while ensuring safety and reliability

• Corrosion-Resistant Finish: The black powder coat finish adds a layer of protection against rust, extending the tank's lifespan.
• Versatile Six-Port Configuration: Equipped with two 1/2" NPT ports and four 1/4" NPT ports, allowing for a flexible setup to accommodate your system’s requirements.
• Industry Safety Standards Compliant: Adheres to SAE J10 & FMVSS 121 specifications, showcasing the commitment to safety and quality.

• Warranty Assured: Our commitment to quality is unyielding. As a testament to our confidence, we offer a 2-year manufacturer's defect warranty.

**This tank is a direct replacement for all of our 232-2485K horn kits and onboard air systems.**

As an important safety precaution,  a safety blowoff valve should be installed with any air system. A safety blowoff valve is designed to keep the system from over-pressurizing and to prevent damage to other components. It is suggested to use a safety blowoff valve with a PSI rating between 25-35 PSI higher than the maximum pressure of the pressure switch.

For example, 150 PSI systems require a  and 120 PSI systems require a .

SPECIFICATIONS:
Part Number
TA-206H
Volume
2 gals (7.57 L)
1/4" NPT Ports
4
1/2" NPT Ports
2
Burst Pressure
300 PSI
Working Pressure
150 PSI
Tank Length
17″ (431.8 mm)
Tank Diameter
6″ (152.4 mm)
Tank Height
8″ (203.2 mm)(With Legs)
Tank Weight
9.465 lb (4.29 Kg)

2-GALLON AIR TANK DIMENSIONAL DRAWING

FEATURES

• • Black Epoxy Enamel Finish
  • Red Oxidized Interior Coating Resists Corrosion! - Our 2-gallon tank utilizes an interior red oxidized coating to prevent premature rust and oxidation from destroying your tank!
  • 6 NPT Ports For Convenience - This tank has 6 ports. Two of these ports are 1/2" NPT, whereas the remaining 4 are 1/4" NPT.
  • Made In The USA. Quality Does Matter.
  • Meets SAE J10 & FMVSS 121 Specifications
