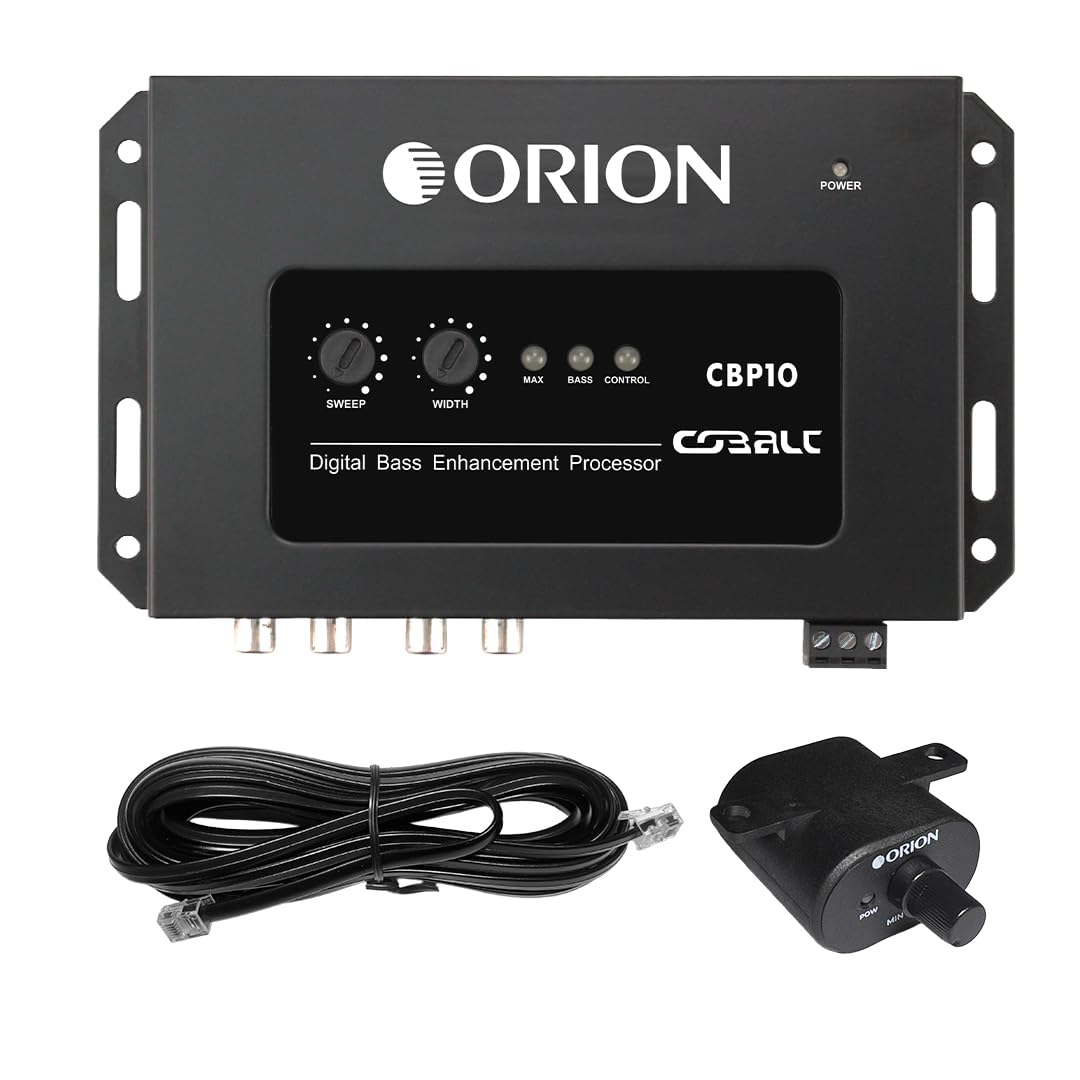

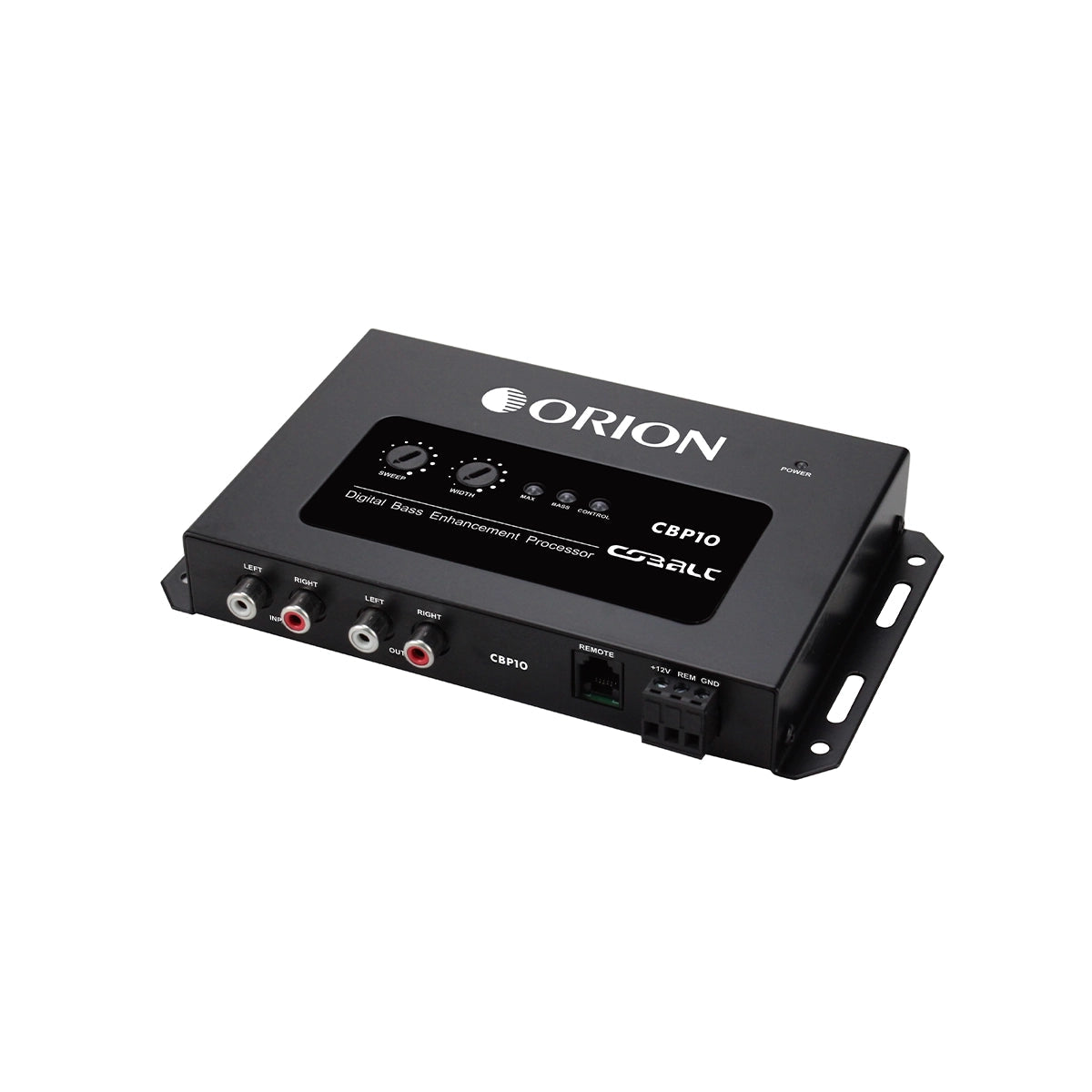

Orion CBP10 Digital Bass Processor with Bass Restoration & 10V Output

The CBP10 Digital Bass Enhancement Processor is designed to restore and enhance low-frequency performance in your car audio system, delivering deeper, tighter, and more controlled bass. Many factory and compressed audio sources reduce bass frequencies, causing your subwoofer system to lose impact. The CBP10 processes the incoming signal to recover these lost bass frequencies and restore the full depth of your music.

Featuring adjustable bass processing controls such as Sweep (frequency center control) and Width (bandwidth control), the CBP10 allows precise tuning of the bass restoration range. This enables users to fine-tune the bass response to match their subwoofer system and listening preferences, whether they want deep, rolling lows or punchy, tight bass.

The processor also includes a selectable bass output voltage (2.5V / 5V / 7.5V / 10V), making it compatible with a wide range of amplifiersfrom standard aftermarket systems to high-performance competition builds. With extremely low distortion (<0.02% THD), high signal-to-noise ratio (>110dB), and a wide frequency response (10Hz30kHz), the CBP10 ensures clean, powerful audio performance.

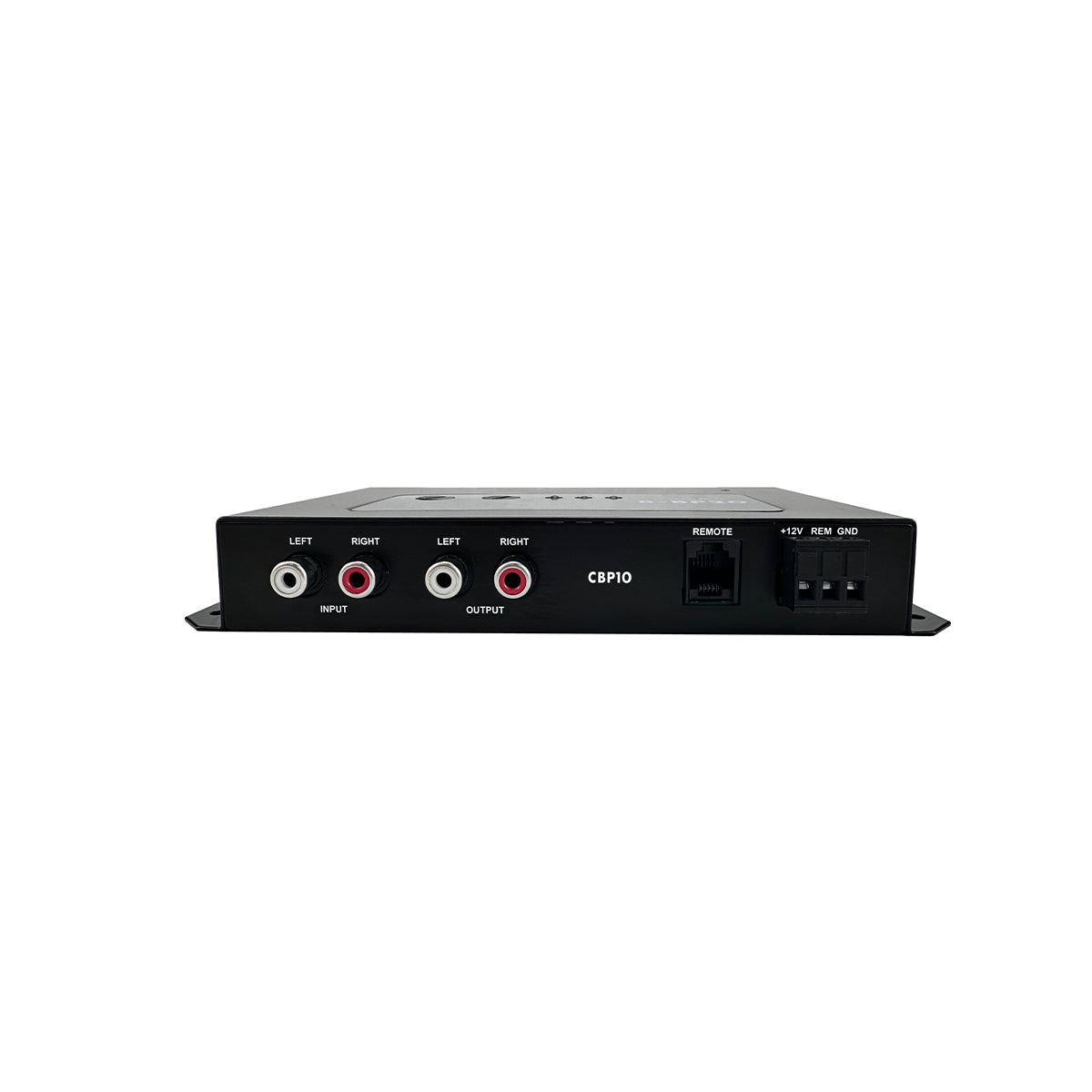

Built for flexible installation, the CBP10 features balanced or unbalanced input options, ground isolation settings, and RCA input and output connections, allowing seamless integration with both factory and aftermarket systems. Whether upgrading a stock radio or optimizing a high-power subwoofer setup, the CBP10 delivers enhanced bass performance and precise audio control.

• Digital Bass Enhancement Processor: Restores low-frequency information lost in compressed or factory audio signals, delivering deeper, tighter, and more impactful bass.
• Sweep Frequency Control: Adjusts the center frequency of the bass enhancement to target the exact bass range you want to restore or boost.
• Width Bandwidth Control: Allows precise adjustment of the bass processing range for either wide low-frequency enhancement or tighter, more focused bass response.
• Selectable Output Voltage: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match your amplifier's input sensitivity and system configuration.
• High Signal-to-Noise Performance: Provides a clean audio signal with a signal-to-noise ratio greater than 110dB for minimal background noise.
• Ultra-Low Distortion Processing: Maintains excellent audio clarity with less than 0.02% total harmonic distortion at 2V output.
• Balanced / Unbalanced Input Options: Allows compatibility with both aftermarket head units and factory audio systems.
• Ground Isolation Control: Helps eliminate alternator whine and system noise using selectable grounding modes.
• Remote Bass Control Support: Includes a remote port that allows real-time bass adjustment directly from the drivers seat.

• Power Supply: 6.5V 18V
• Maximum Input Level: 10V
• Maximum Output Level: 10.5V
• Input Sensitivity: 10.7V
• Input Impedance: >50K Ohms
• Output Impedance: 100 Ohms
• EQ Boost / Cut: 15 dB
• Signal-to-Noise Ratio: >110 dB
• THD @ 2V Output: <0.02%
• Channel Separation: >80 dB
• CMRR: -63 dB Balanced / -29 dB Unbalanced
• Frequency Response: 10 Hz 30 kHz
• Subsonic Filter: 31 Hz 71 Hz
• Current Draw: 180 mA
• Interchannel Gain Tracking: 0.1 dB
• Fuse Rating: 1A
• Dimensions: 7.28 x 4.13 x 1.02
