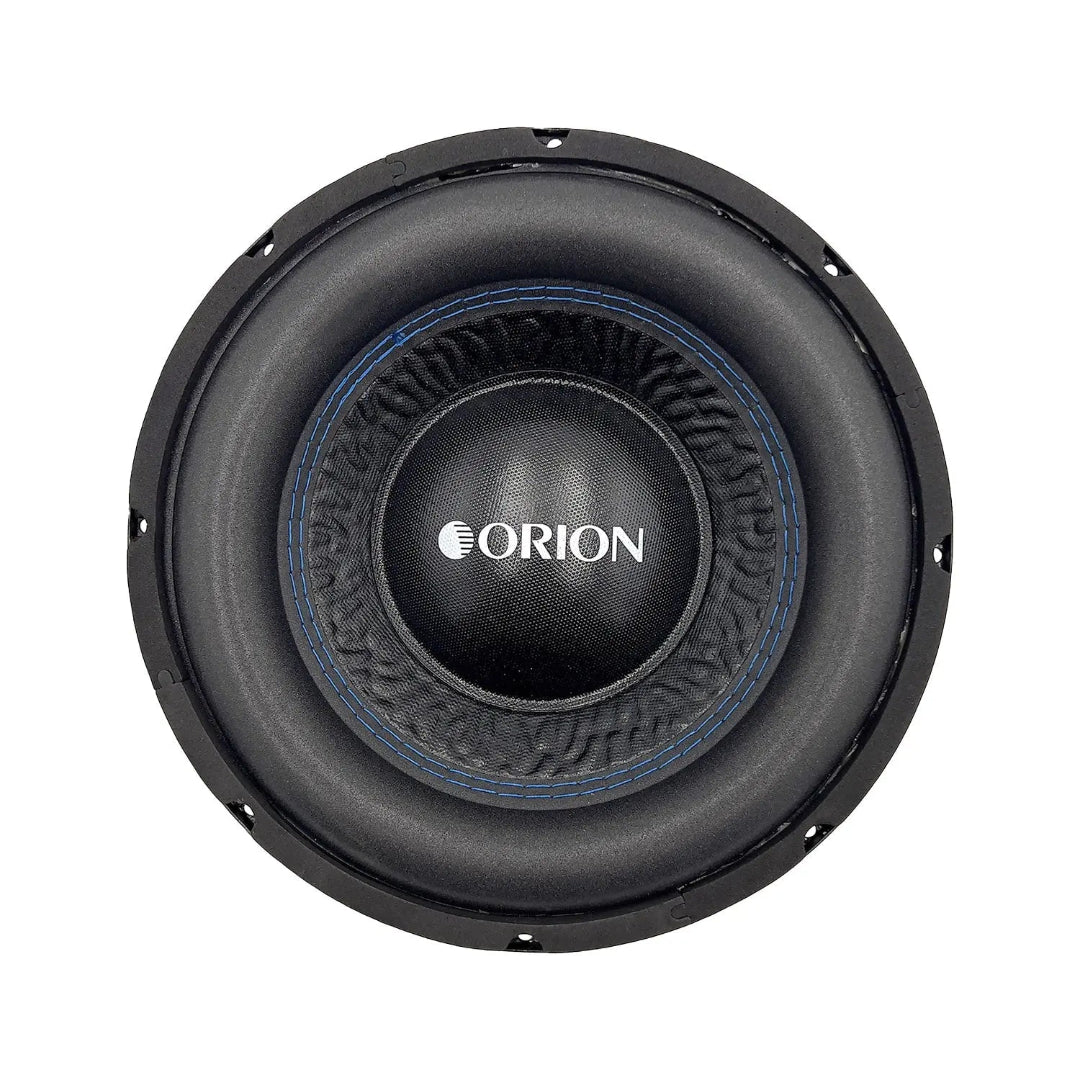

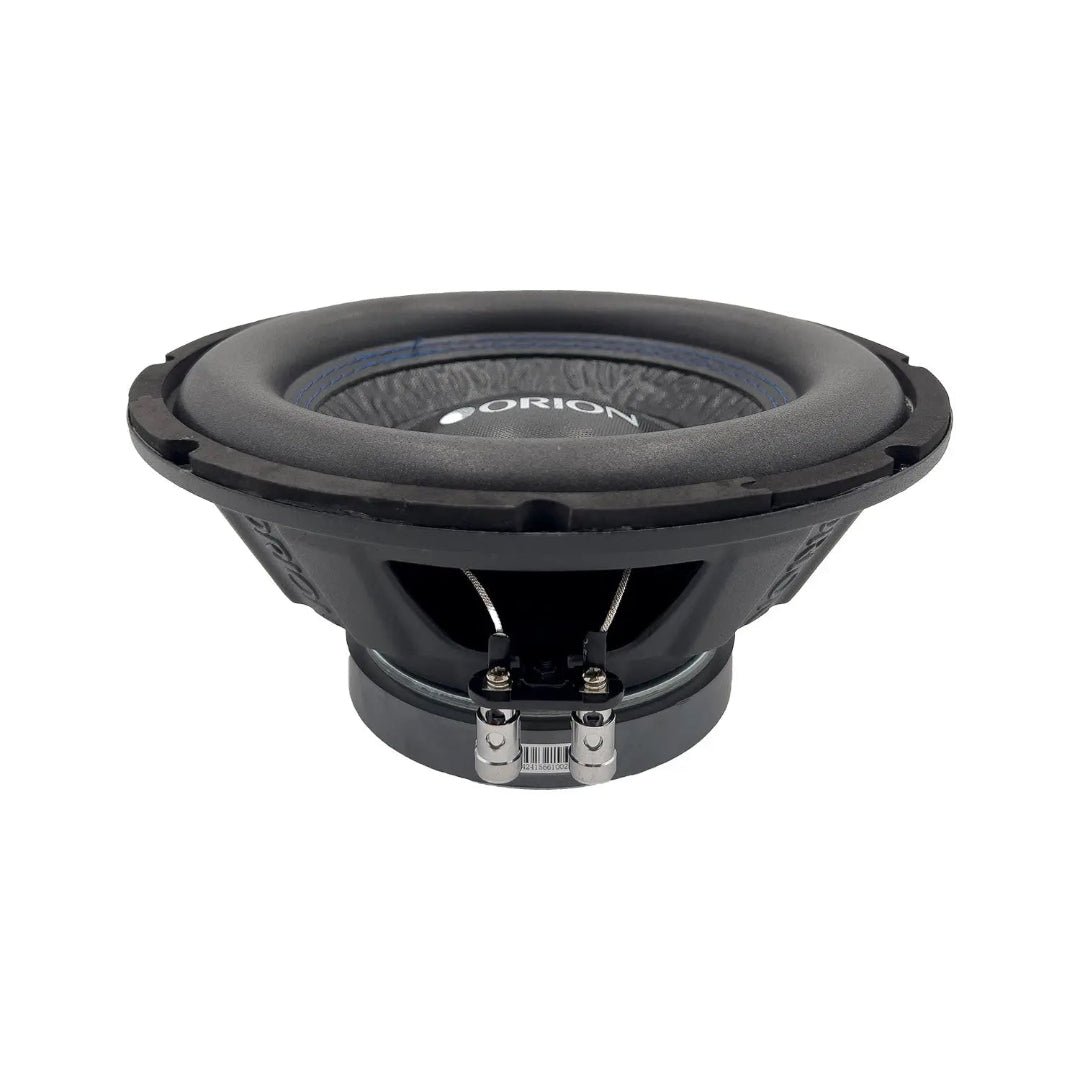

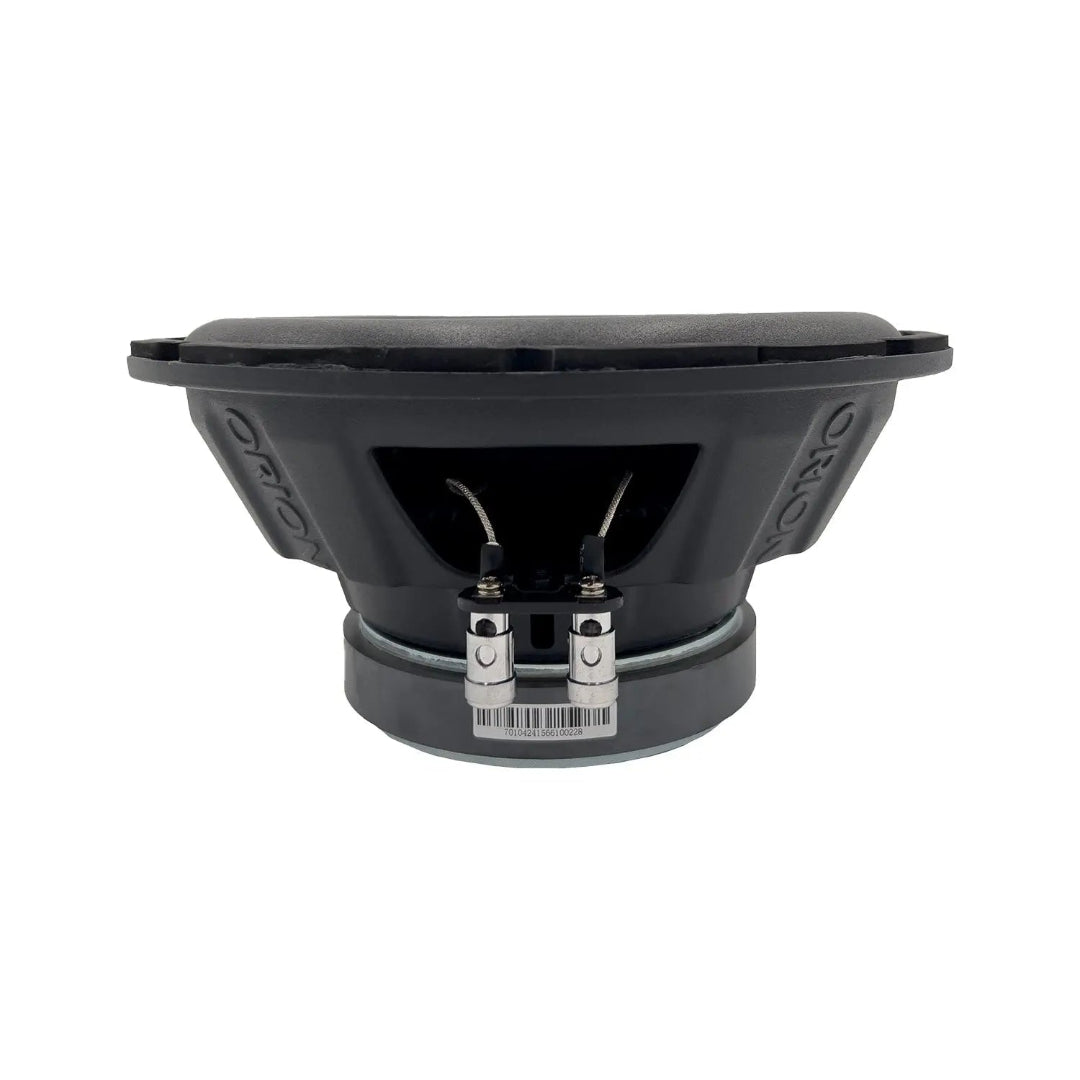

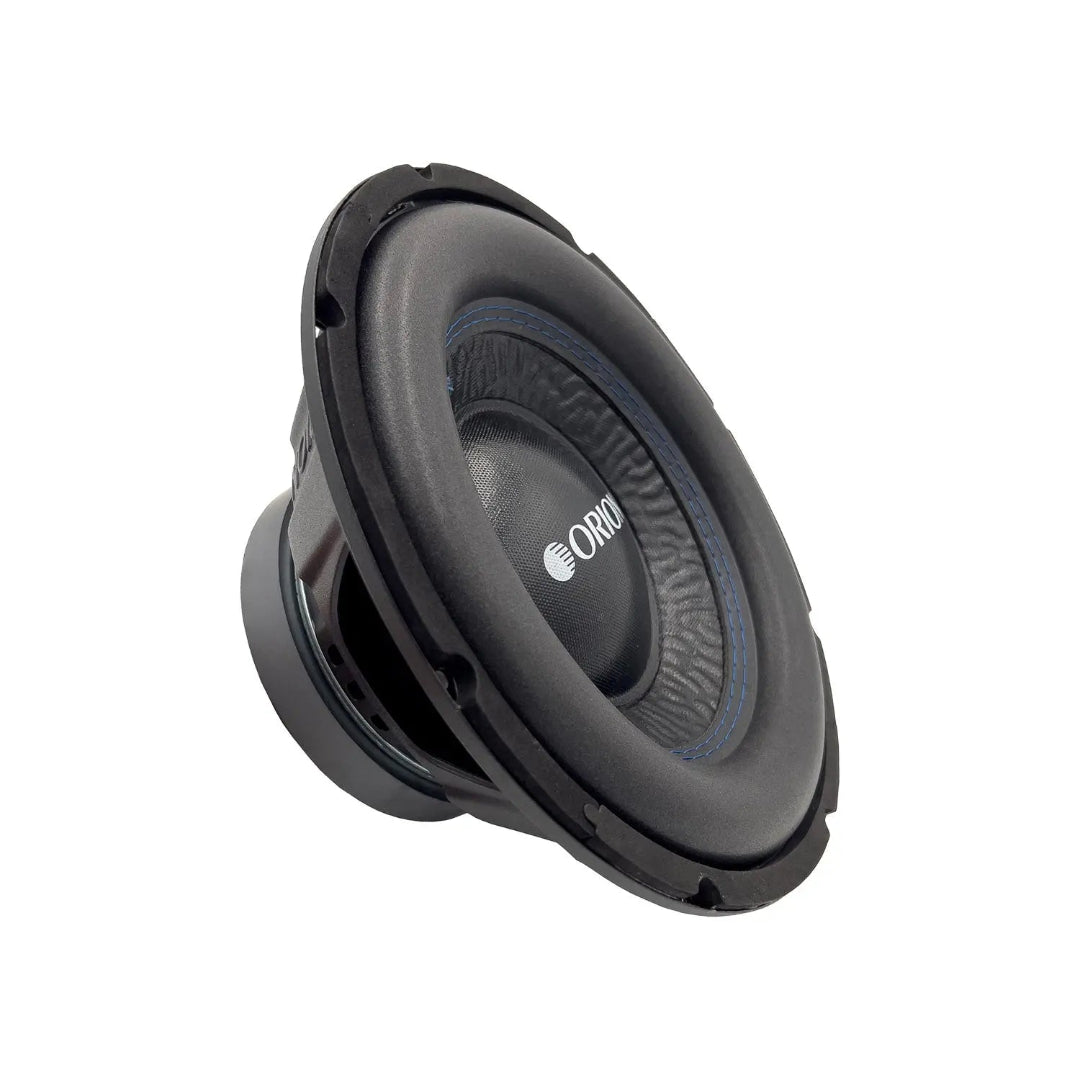

Orion CBW104D 10 Dual Voice Coil 4 Ohm Subwoofer | 1200W Max Cobalt Series Bass

Compact 10 Inch Dual Voice Coil Subwoofer with Flexible Wiring Options

Upgrade your car audio system with the Orion CBW104D 10 inch dual 4 ohm car subwoofer from the Cobalt Series. Designed for clean, controlled, and dependable low-frequency performance, this subwoofer delivers strong bass output while offering flexible wiring configurations for a wide range of system builds. With 300W RMS and 1200W peak power, it provides an excellent balance of output, durability, and everyday value.

Built for daily use, the CBW104D features a UV-coated paper and fiber blend cone paired with a high-quality foam surround. This construction produces responsive bass while maintaining long-term durability, helping the subwoofer withstand heat, vibration, and extended listening sessions.

At its core, the subwoofer uses a 2-inch copper-clad aluminum dual voice coil wound on a rugged Kapton former. This design improves heat dissipation and reliability, ensuring consistent performance even when driven near its rated limits. The dual 4-ohm configuration allows for multiple wiring options, making it easier to match amplifier loads and system goals.

A 40 oz ferrite magnet provides strong motor control and efficiency, contributing to tight, accurate bass response across its operating range from 20 Hz to 300 Hz.

With a 4.57-inch mounting depth, the CBW104D installs easily in both sealed and ported enclosures. As a result, its well suited for compact enclosures, factory system upgrades, and budget-conscious custom builds where flexibility and space efficiency matter.

Whether youre upgrading a daily driver or building a compact system with precise impedance control, the CBW104D delivers dependable low-end performance backed by Orion Car Audios proven engineering.

Key Features

• 10 inch dual 4 ohm car subwoofer
• 300W RMS / 1200W peak power handling
• Dual voice coil design for flexible wiring options
• UV-coated paper and fiber blend cone
• Durable foam surround for consistent performance
• 2 copper-clad aluminum voice coils
• Kapton former for improved heat management
• 40 oz ferrite magnet motor structure
• 4.57 mounting depth
• Optimized for sealed and ported enclosures

No features provided.

• Subwoofer Size: 10 (Inches)
• Voice Coil Configuration: Dual 4-ohm
• Power Handling (Peak): 1200 Watts
• Power Handling (RMS): 300 Watts
• Sensitivity: 85 dB
• Frequency Response: 20 Hz - 300 Hz
• Voice Coil Diameter: 2 (Inches)
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: Foam Surround
• Magnet Information: 50 Oz Ferrite
• Overall Depth: 135mm / 5.31
• Mounting Depth: 116mm / 4.57 (Inches)
• Overall Diameter: 257mm / 10.12 (Inches)
• Cutout Diameter: 246mm / 9.69 (Inches)
