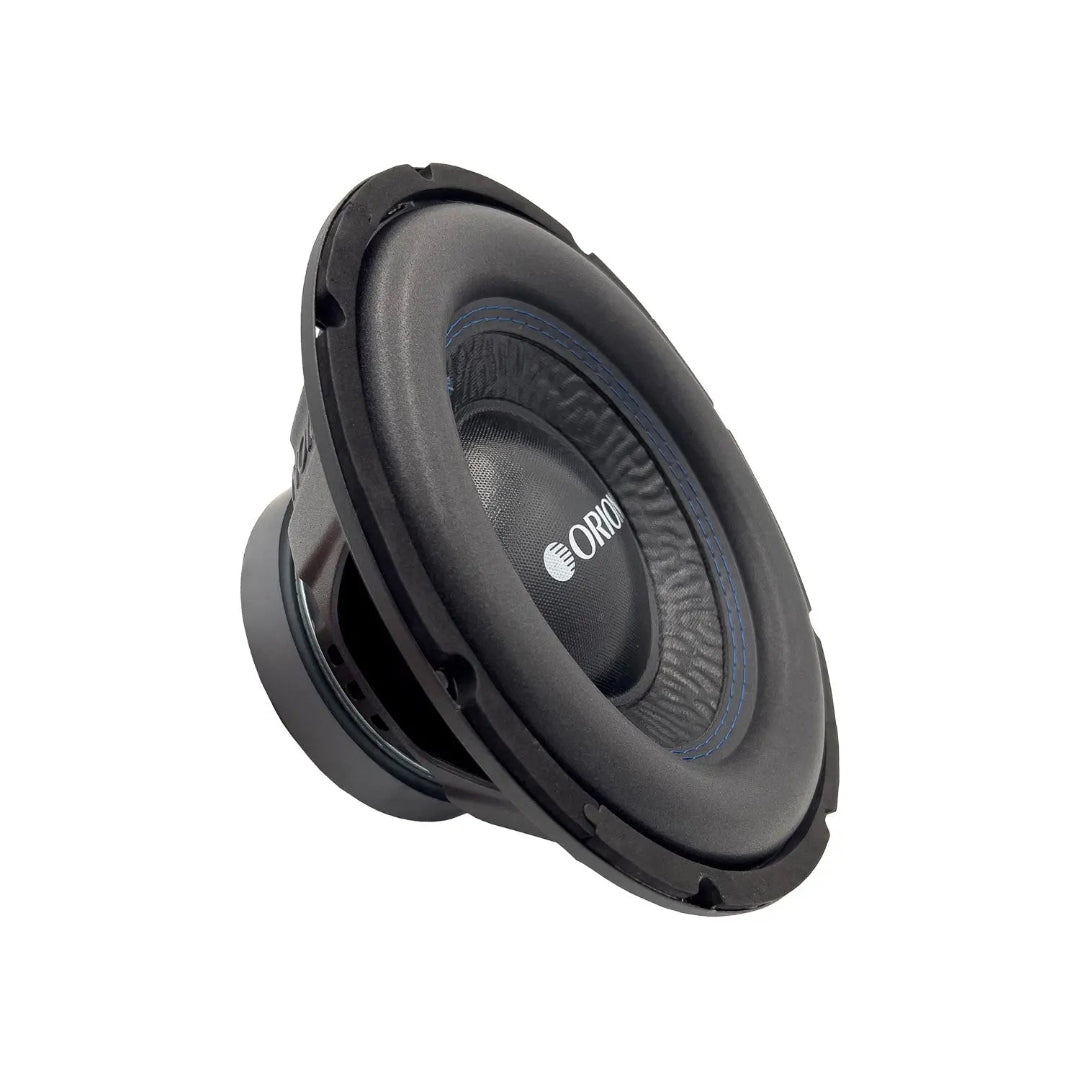

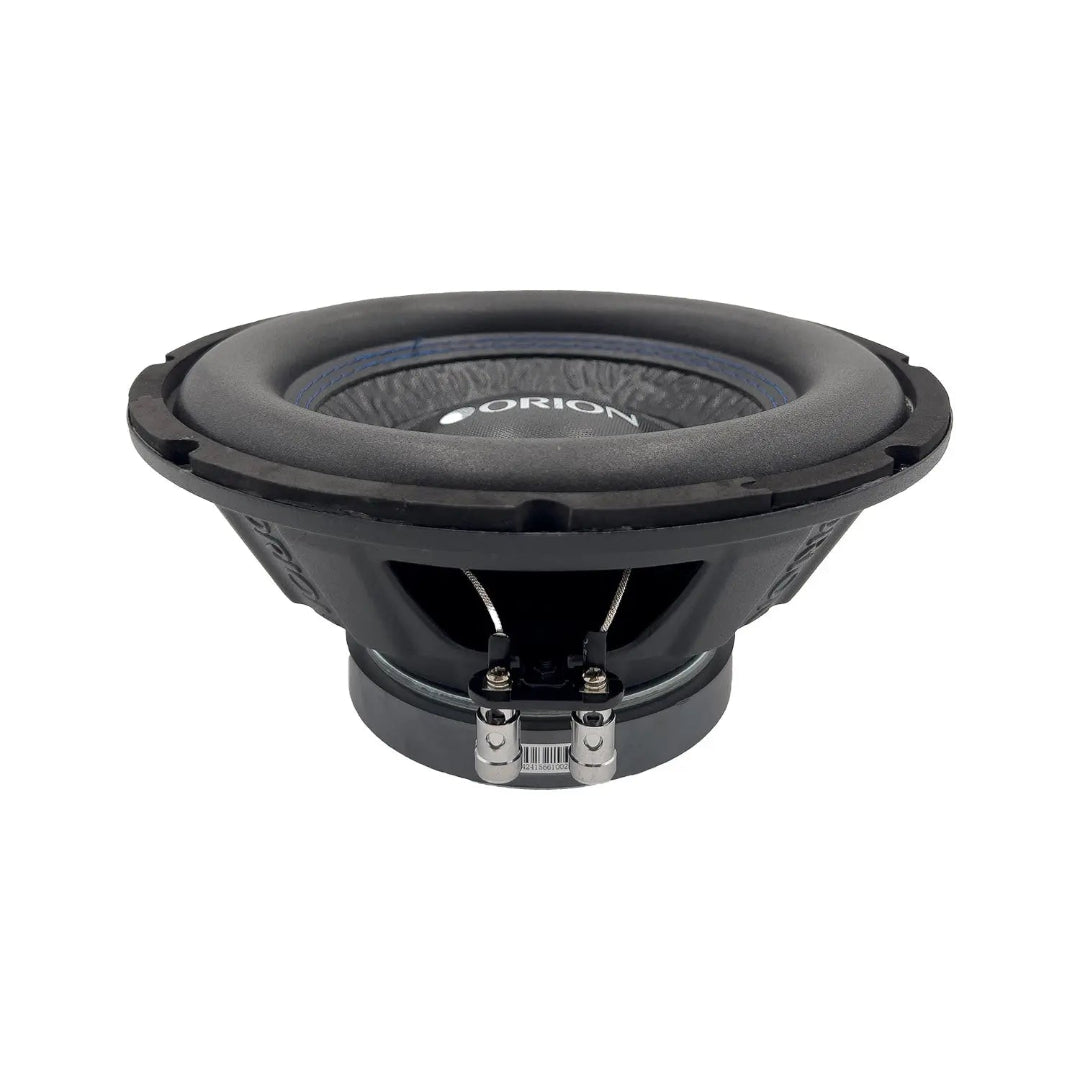

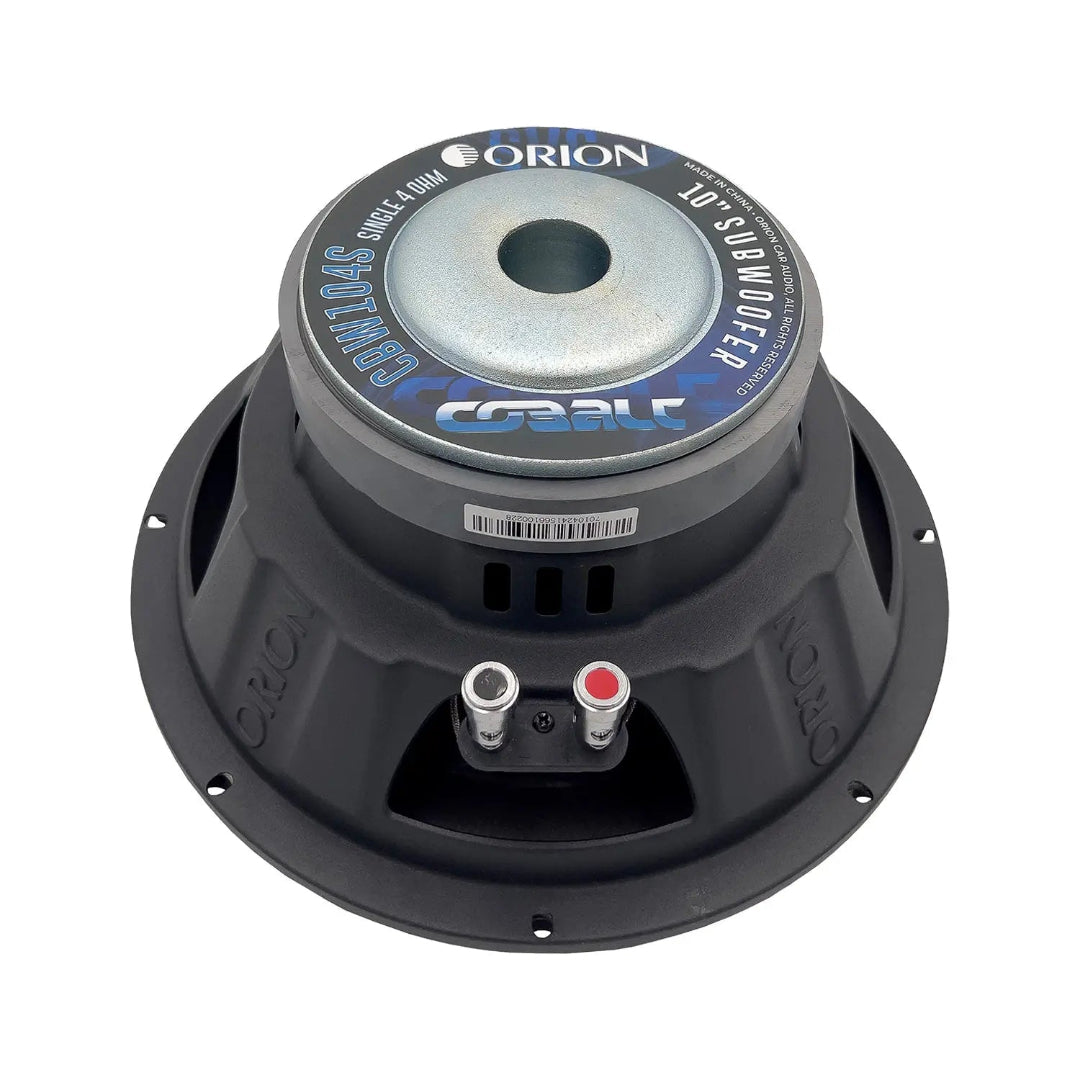

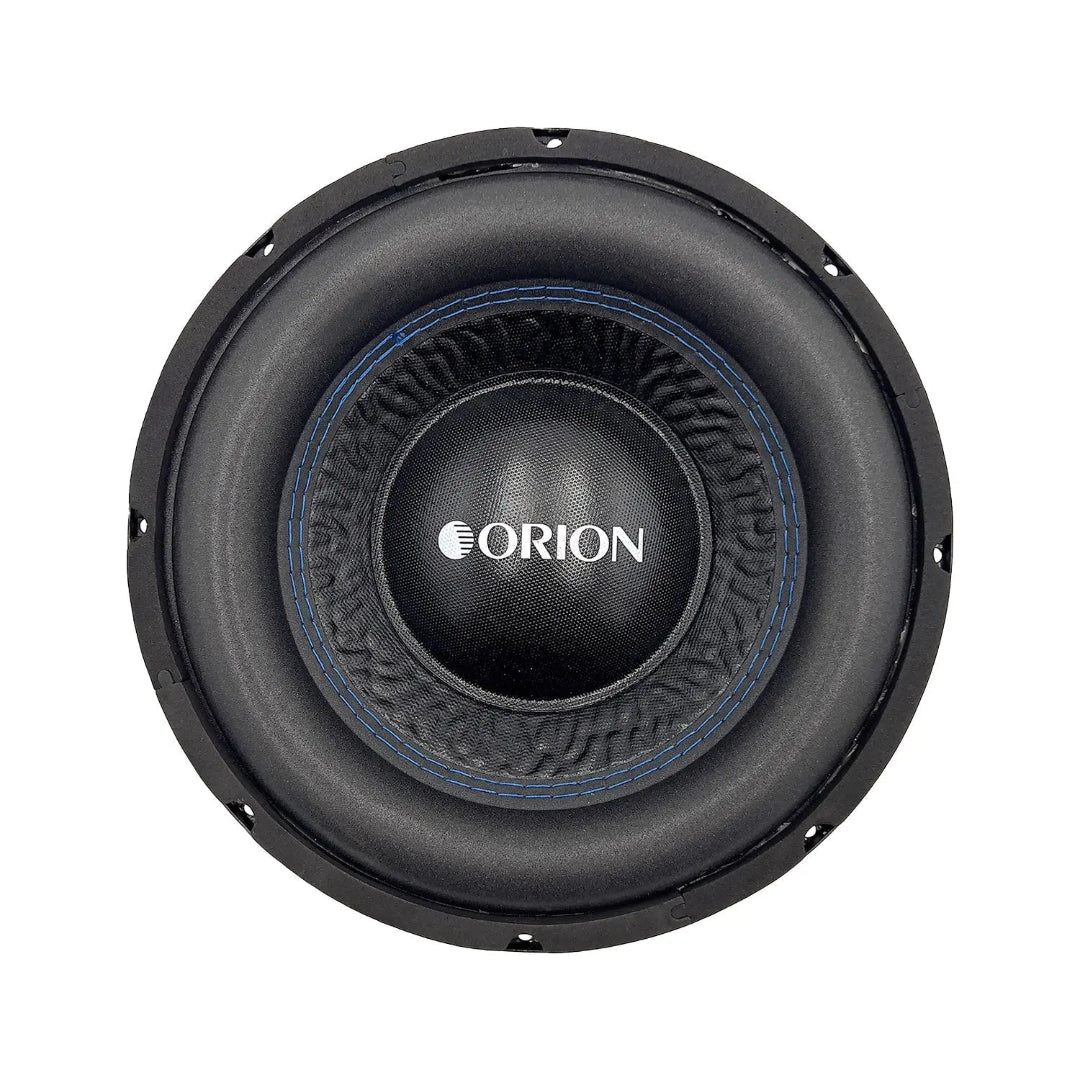

Orion CBW104S 10 Single Voice Coil 4 Ohm Subwoofer | 1200W Max Cobalt Series Bass

Compact 10 Inch Subwoofer with Clean, Reliable Low-End Performance

Upgrade your car audio system with the Orion CBW104S 10 inch single 4 ohm car subwoofer from the Cobalt Series. Designed for clean, controlled, and dependable bass, this subwoofer delivers solid low-frequency output in a compact and installer-friendly design. With 300W RMS and 1200W peak power, it offers an excellent balance of performance, durability, and everyday value.

Built for daily use, the CBW104S features a UV-coated paper and fiber blend cone paired with a high-quality foam surround. This combination produces responsive bass while maintaining durability over time, helping the subwoofer withstand heat, vibration, and extended listening sessions.

At its core, the subwoofer uses a 2-inch copper-clad aluminum voice coil wound on a rugged Kapton former. This design improves heat dissipation and long-term reliability, allowing the subwoofer to maintain consistent output even when driven near its limits.

Powered by a 40 oz ferrite magnet, the CBW104S delivers strong motor control and efficiency, contributing to tight, accurate bass response across its operating range.

With a 4.57-inch mounting depth, this subwoofer installs easily in both sealed and ported enclosures. As a result, its a great fit for compact enclosures, factory system upgrades, and budget-conscious custom builds where space and performance both matter.

Whether youre enhancing a daily driver or adding controlled low-end reinforcement to a simple system, the CBW104S delivers dependable bass performance backed by Orion Car Audios proven engineering.

Key Features:

• 10 inch single 4 ohm car subwoofer
• 300W RMS / 1200W peak power handling
• UV-coated paper and fiber blend cone
• Durable foam surround for consistent performance
• 2 copper-clad aluminum voice coil
• Kapton former for improved heat management
• 40 oz ferrite magnet motor structure
• 4.57 mounting depth
• Optimized for sealed and ported enclosures

No features provided.

• Subwoofer Size: 10 (Inches)
• Voice Coil Configuration: Single 4-ohm
• Power Handling (Peak): 1200 Watts
• Power Handling (RMS): 300 Watts
• Sensitivity: 85 dB
• Frequency Response: 2 0 Hz - 300 Hz
• Voice Coil Diameter: 2 (Inches)
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: Foam Surround
• Magnet Information: 50 Oz Ferrite
• Overall Depth: 135mm / 5.31
• Mounting Depth: 116mm / 4.57 (Inches)
• Overall Diameter: 257mm / 10.12 (Inches)
• Mounting Diameter: 246mm / 9.69 (Inches)
