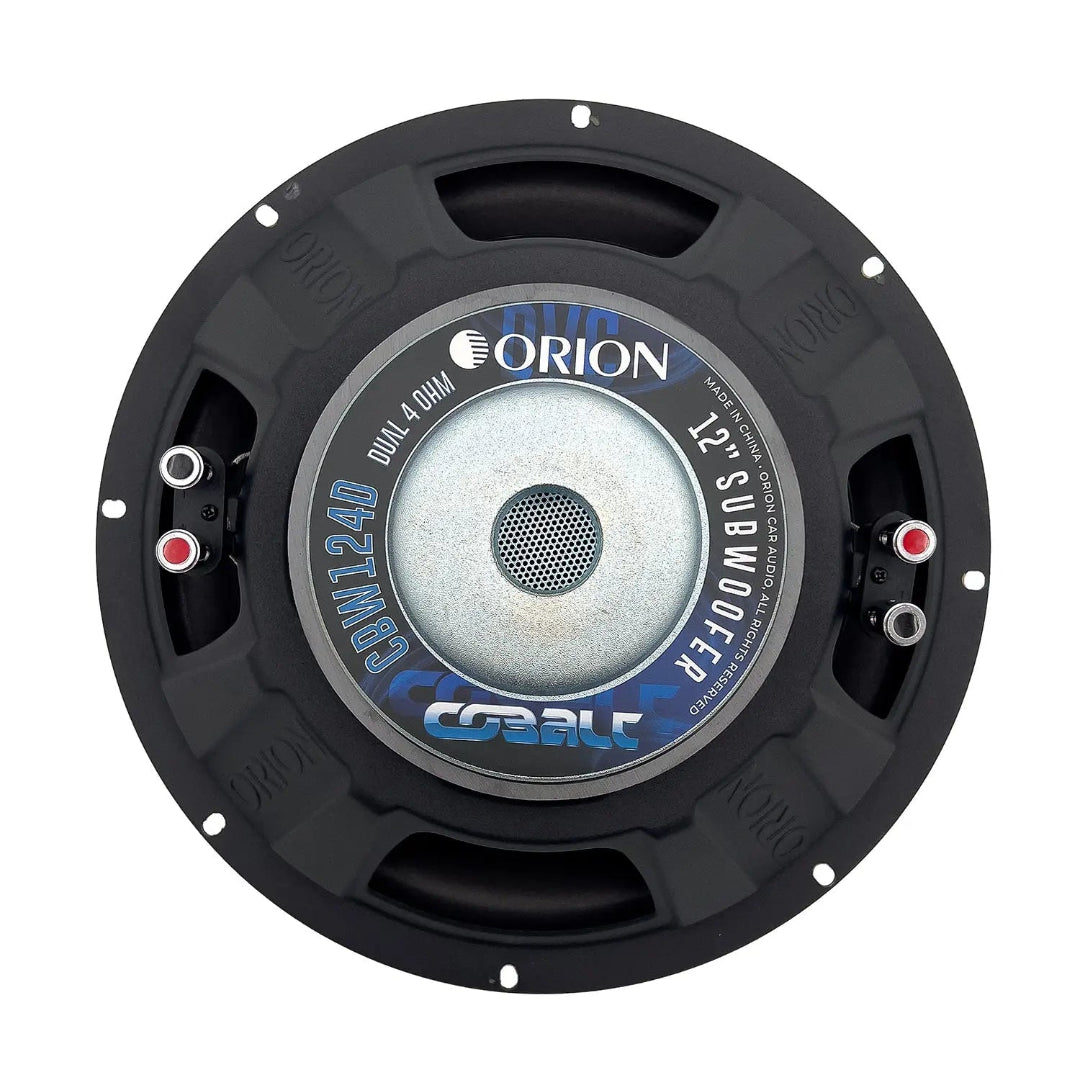

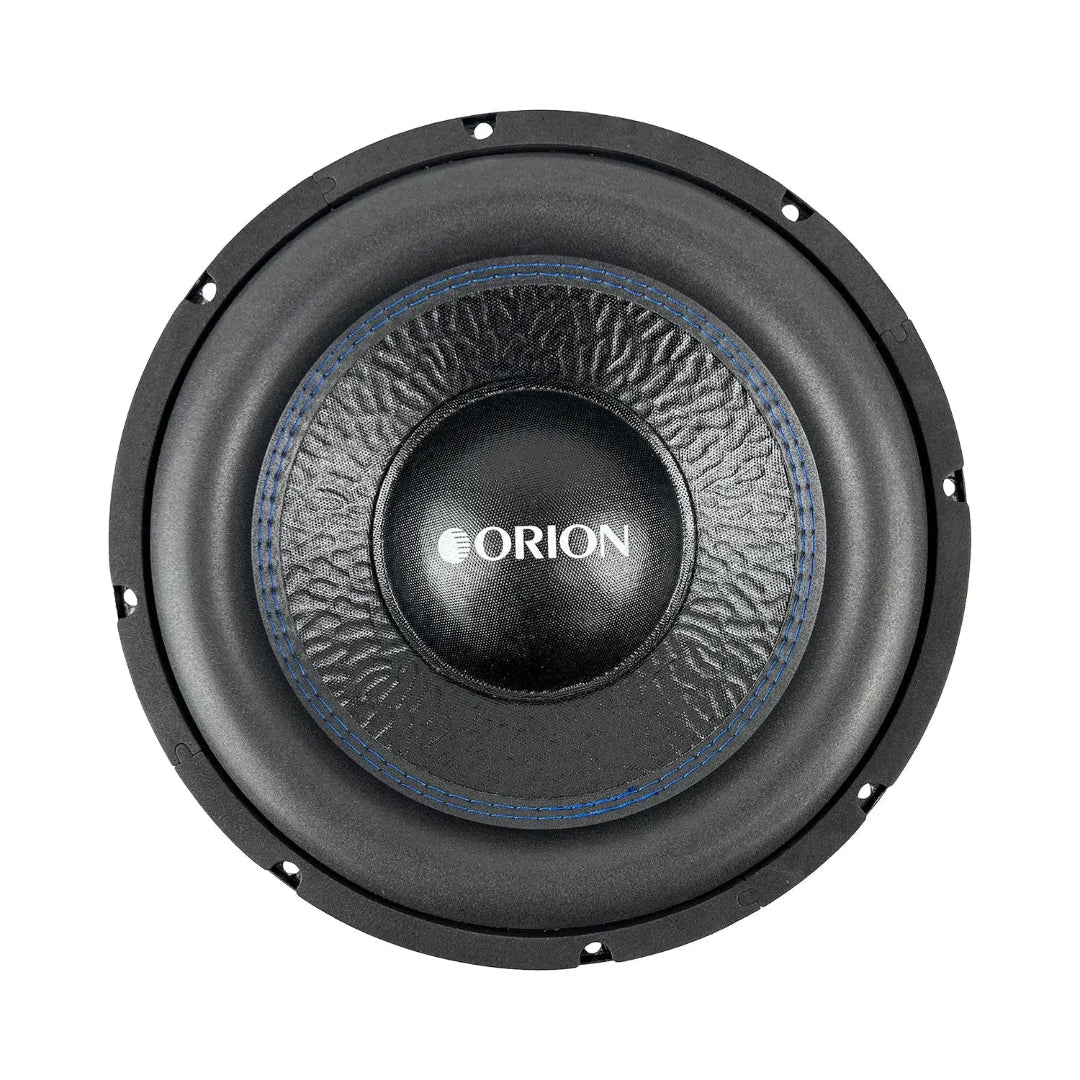

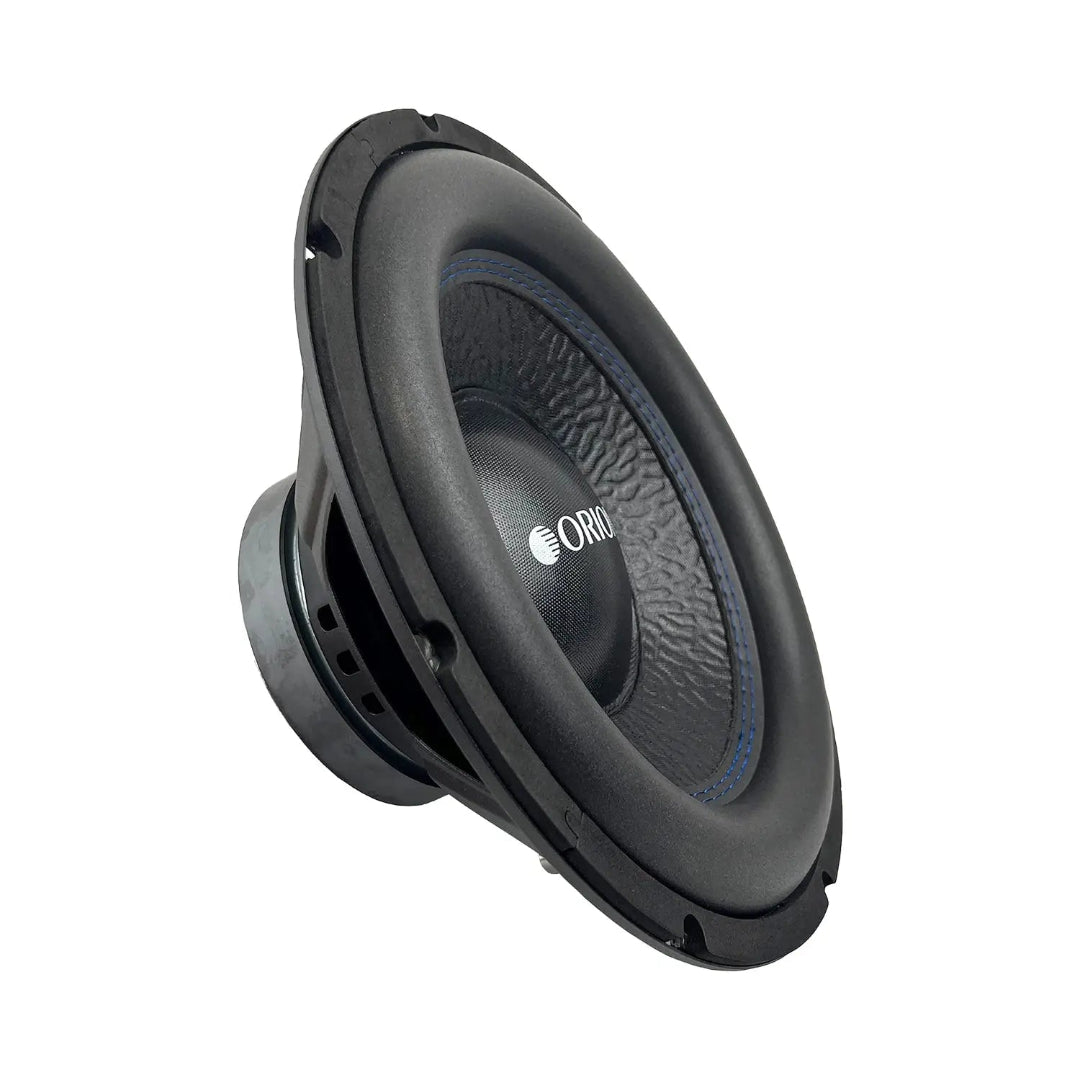

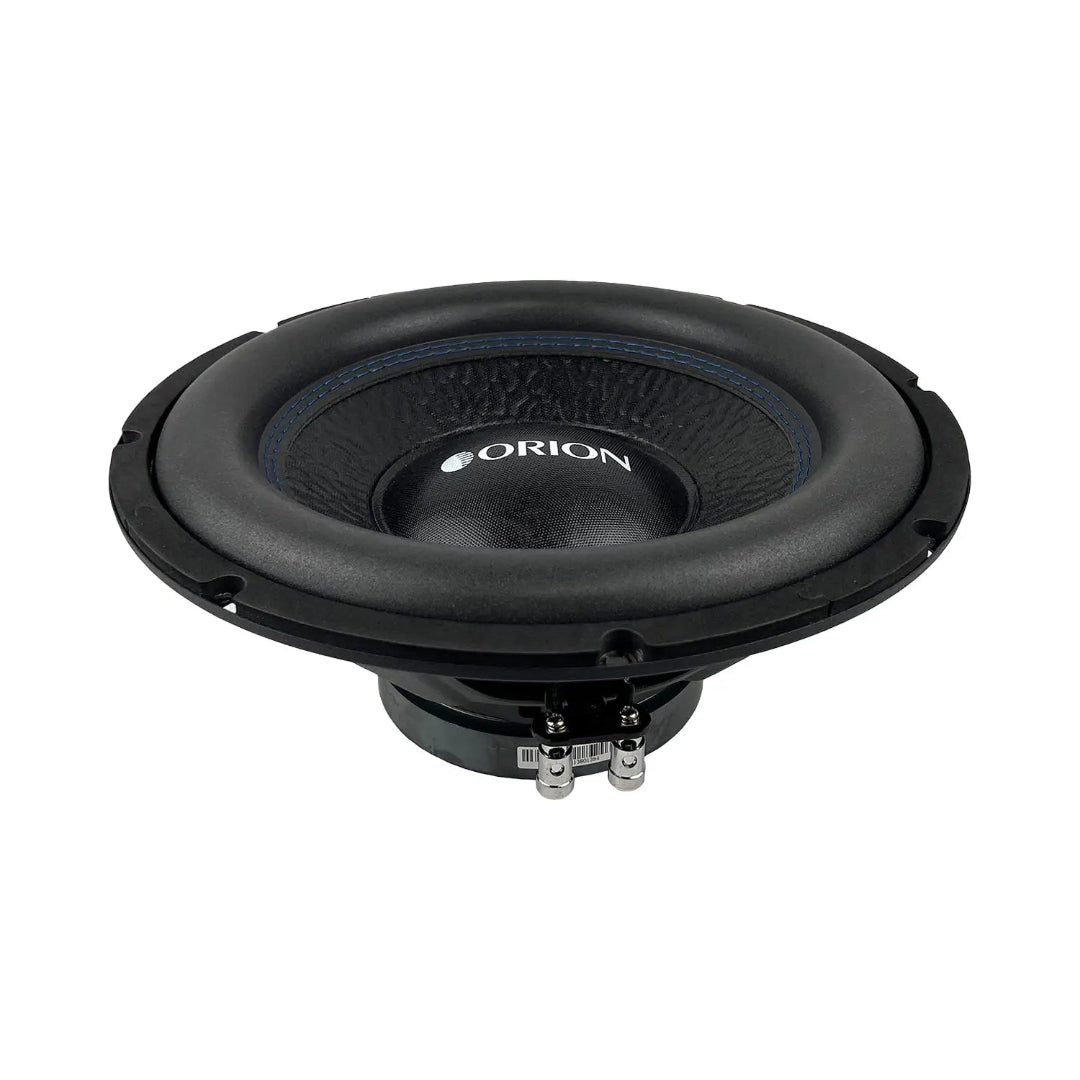

Orion CBW124D 12 Dual Voice Coil 4 Ohm Subwoofer | 1600W Max Cobalt Series Bass

Powerful 12 Inch Dual Voice Coil Subwoofer with Flexible Wiring Options

Upgrade your car audio system with the Orion CBW124D 12 inch dual 4 ohm car subwoofer from the Cobalt Series. It is engineered for strong, controlled, and dependable bass performance. As a result, it delivers deeper low-frequency output while remaining easy to install. With 400W RMS and 1600W peak power, it offers an ideal balance of output, durability, and everyday value.

Built for consistent daily use, the CBW124D features a UV-coated paper and fiber blend cone. Additionally, it uses a durable foam surround. Together, these materials produce smooth and responsive bass. At the same time, they help resist heat, vibration, and long-term wear.

At its core, the subwoofer utilizes a 2-inch copper-clad aluminum dual voice coil wound on a rugged Kapton former. Therefore, heat dissipation is improved during extended listening sessions. Moreover, the dual 4-ohm configuration provides flexible wiring options. This makes it easier to match amplifier loads and system designs.

A 40 oz ferrite magnet motor structure delivers strong control and efficiency. As a result, bass remains tight and accurate across a wide operating range from 20 Hz to 300 Hz.

With a 4.80-inch mounting depth, the CBW124D installs easily in sealed or ported enclosures. Because of this, it works well for trunk builds, factory upgrades, and budget-focused custom systems. Whether you need wiring flexibility or deeper bass output, the CBW124D delivers dependable low-end performance backed by Orion Car Audio engineering.

Key Features

• 12 inch dual 4 ohm car subwoofer
• 400W RMS / 1600W peak power handling
• Dual voice coil design for flexible wiring configurations
• UV-coated paper and fiber blend cone
• Durable foam surround for consistent bass response
• 2 copper-clad aluminum voice coils
• Kapton former for improved heat management
• 40 oz ferrite magnet motor structure
• 4.80 mounting depth
• Optimized for sealed and ported enclosures

No features provided.

• Subwoofer Size: 12 (Inches)
• Voice Coil Configuration: Dual 4-ohm
• Power Handling (Peak): 1600 Watts
• Power Handling (RMS): 400 Watts
• Sensitivity: 87 dB
• Frequency Response: 20 Hz - 300 Hz
• Voice Coil Diameter: 2 (Inches)
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: Foam Surround
• Magnet Information: 65 Oz Ferrite
• Overall Depth: 142mm / 5.59
• Mounting Depth: 122mm / 4.80 (Inches)
• Overall Diameter: 313mm / 12.32 (Inches)
• Cutout Diameter: 300mm / 11.81 (Inches)
