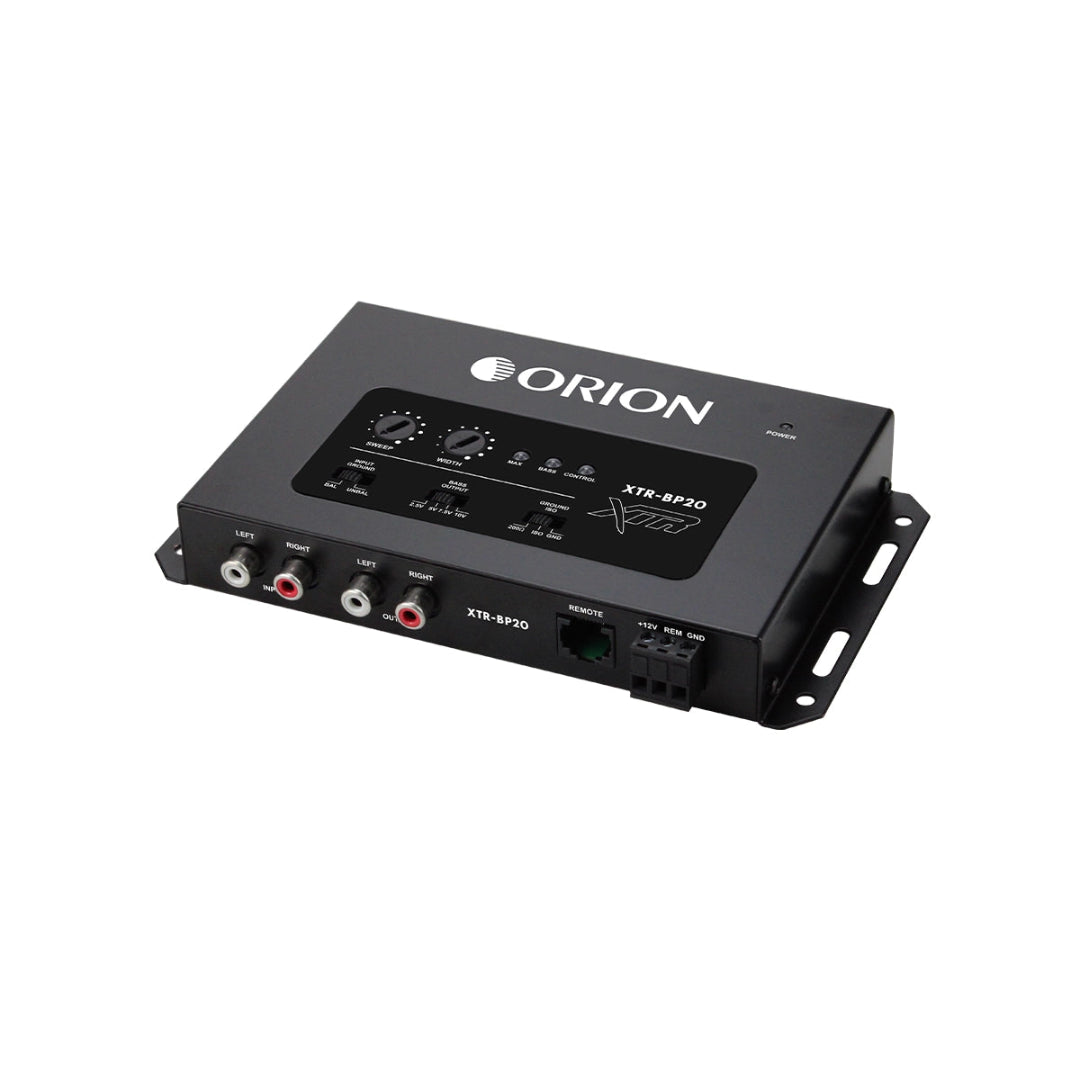

Orion XTR-BP20 Bass Processor with 10V Output & Precision Bass Control

The XTR-BP20 Bass Processor is designed to restore and enhance low-frequency performance in car audio systems, delivering deeper, tighter bass with improved control and clarity. Part of Orions XTR performance lineup, this processor recovers bass frequencies that are often lost in compressed music files or factory audio systems, allowing your subwoofer setup to perform at its full potential.

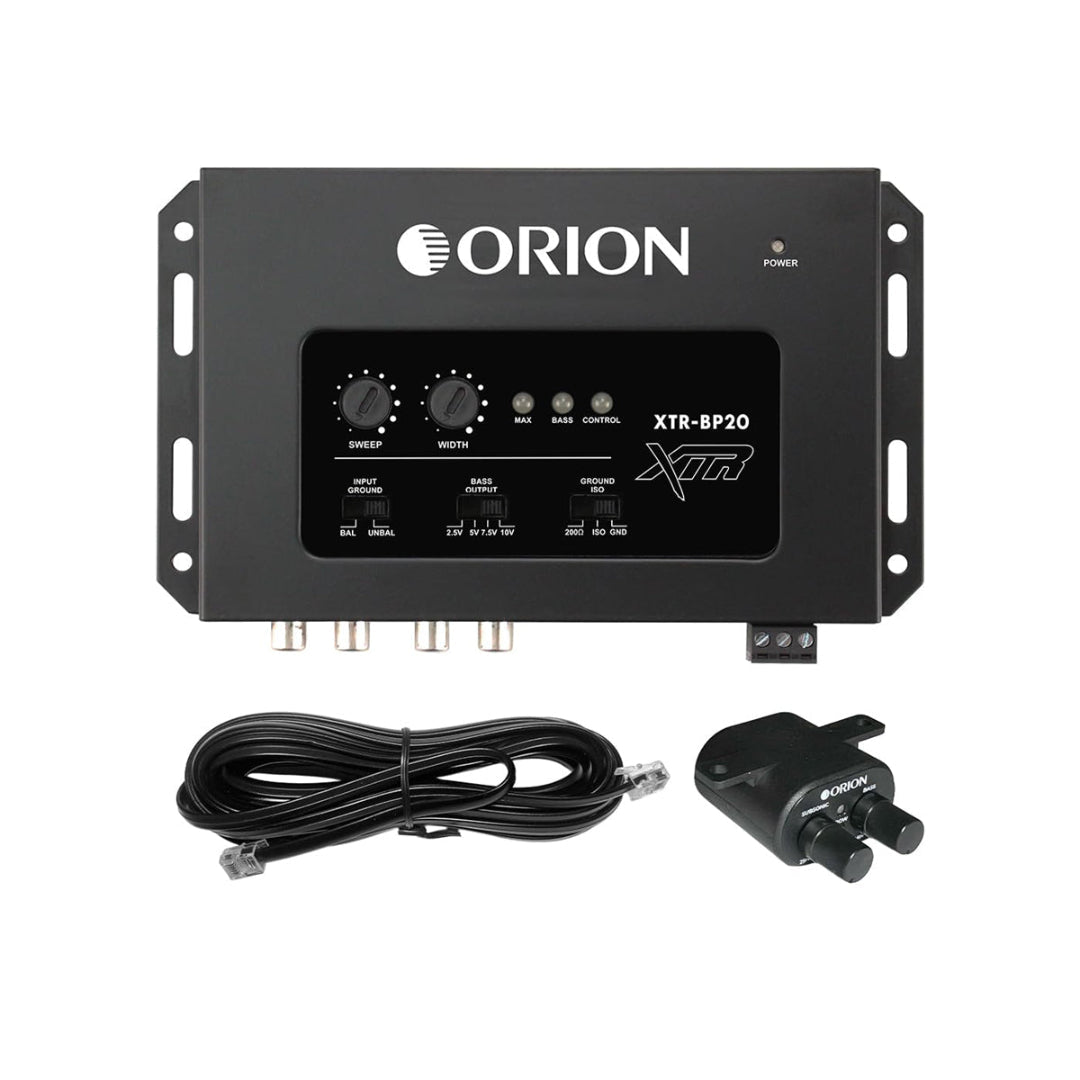

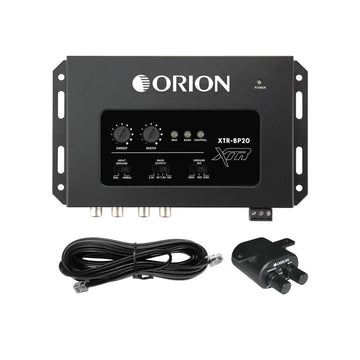

With adjustable tuning controls including Sweep (frequency center control) and Width (bandwidth control), the XTR-BP20 allows users to fine-tune the bass restoration range for their specific system. Whether you want deep, rolling bass or punchy, tight low-end response, the processor gives you precise control over how your subwoofer responds.

The processor includes a selectable output voltage (2.5V / 5V / 7.5V / 10V), ensuring compatibility with a wide range of amplifiers, from standard aftermarket systems to high-performance builds. With low distortion (<0.02% THD), high signal-to-noise performance (>110dB), and a wide frequency response (10Hz 30kHz), the XTR-BP20 maintains clean and powerful bass output without introducing unwanted noise.

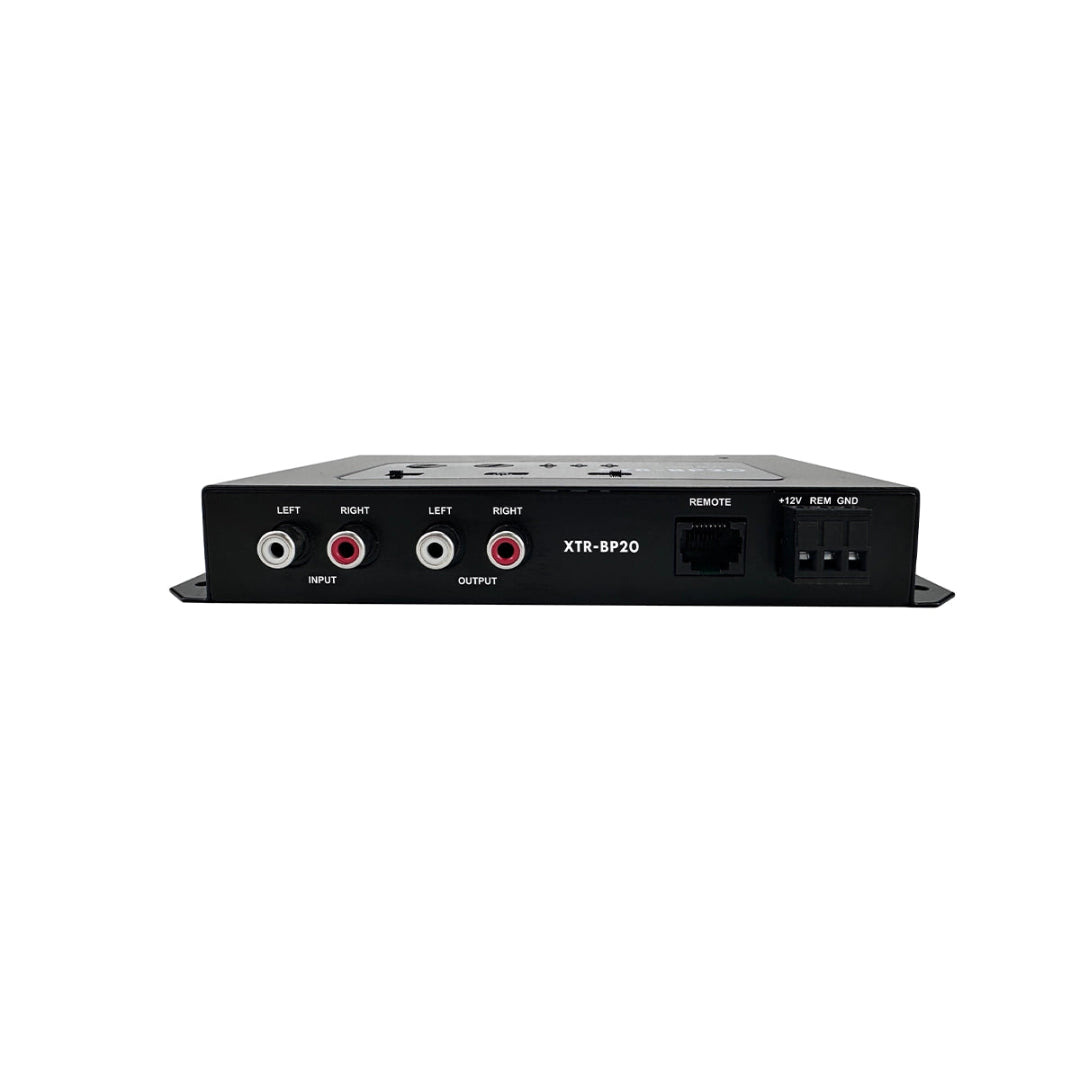

Built for flexible installation, the XTR-BP20 features balanced and unbalanced input options, ground isolation control, and RCA input/output connections, allowing seamless integration with factory or aftermarket audio systems. Whether upgrading a factory system or optimizing a dedicated subwoofer setup, the XTR-BP20 provides enhanced bass performance and precise signal control.

• XTR Performance Bass Processor: Designed to enhance low-frequency performance and deliver deeper, tighter bass for subwoofer systems.
• Bass Restoration Technology: Recovers bass frequencies lost in compressed music or factory audio systems.
• Sweep Frequency Control: Adjusts the center frequency of the bass enhancement for precise bass tuning.
• Width Bandwidth Control: Allows tuning of the bass restoration range for wider deep bass or tighter, punchy bass response.
• Selectable Output Voltage: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match amplifier sensitivity and maximize signal strength.
• High Signal-to-Noise Performance: Provides clean bass enhancement with a signal-to-noise ratio greater than 110dB.
• Ultra-Low Distortion Processing: Maintains excellent audio clarity with less than 0.02% total harmonic distortion.
• Balanced / Unbalanced Input Selection: Ensures compatibility with both factory radios and aftermarket head units.
• Ground Isolation Control: Helps eliminate alternator noise and electrical interference.
• Remote Bass Control Support: Allows real-time bass adjustment from the drivers seat using the remote bass knob.

• Power Supply: 6.5V 18V
• Maximum Input Level: 10V
• Maximum Output Level: 10.5V
• Input Sensitivity: 10.5V
• Input Impedance: >50K Ohms
• Output Impedance: 100 Ohms
• EQ Boost / Cut: 15 dB
• Signal-to-Noise Ratio: >110 dB
• THD @ 2V Output: <0.02%
• Channel Separation: >80 dB
• CMRR: -70 dB Balanced / -29 dB Unbalanced
• Frequency Response: 10 Hz 30 kHz
• Subsonic Filter: 31 Hz 71 Hz
• Current Draw: 180 mA
• Interchannel Gain Tracking: 0.1 dB
• Fuse Rating: 1A
• Dimensions: 7.28 x 4.13 x 1.02
