Orion XTR-BP25 Bass Processor with 10V Output & Precision Bass Restoration

The XTR-BP25 Bass Processor is designed to restore and enhance low-frequency performance in car audio systems, delivering deeper, more controlled bass for subwoofer setups. As part of Orions XTR performance lineup, this processor recovers bass frequencies often lost in compressed audio or factory radio systems, allowing your subwoofers to perform with greater impact and clarity.

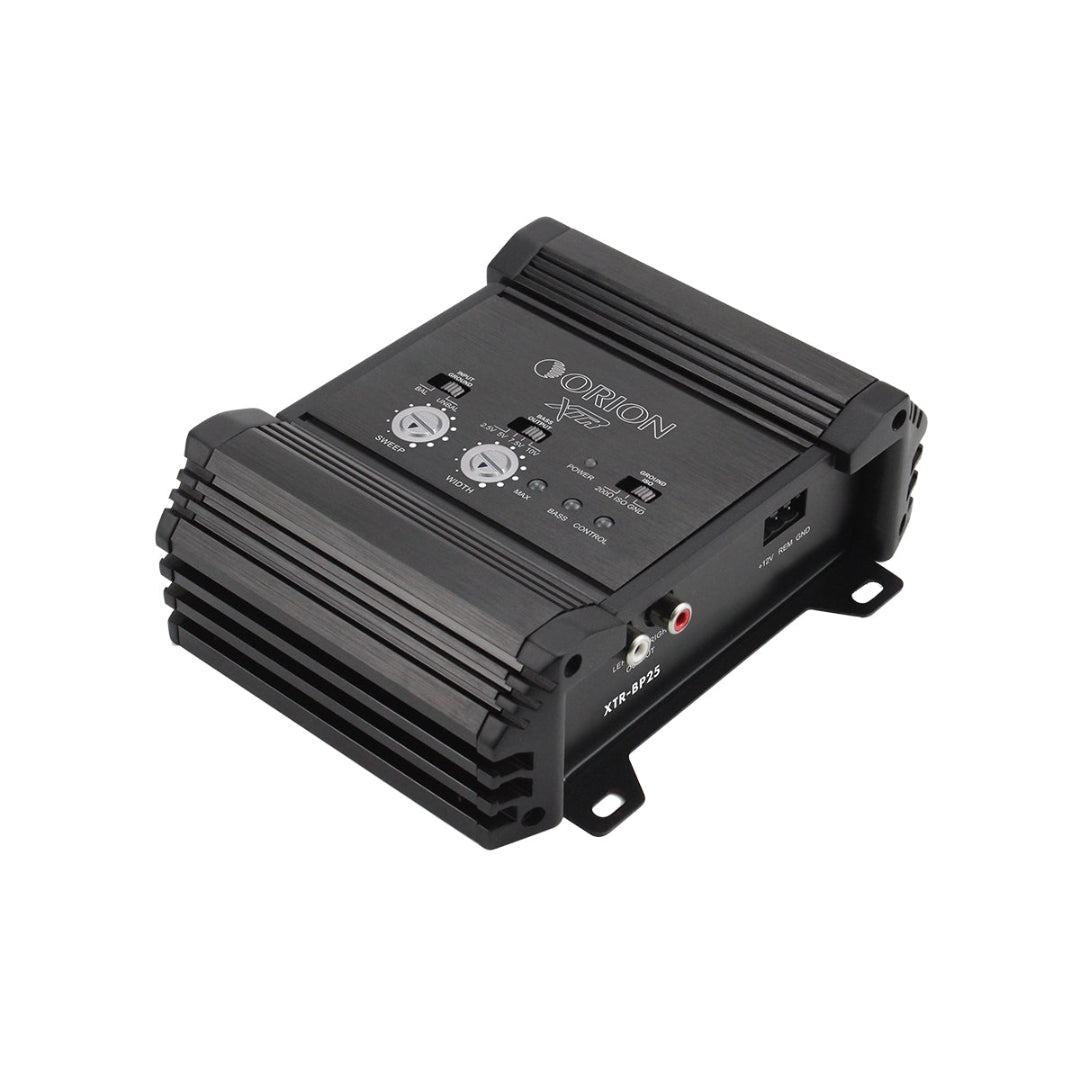

With adjustable tuning controls such as Sweep (frequency center control) and Width (bandwidth control), the XTR-BP25 allows precise tuning of the bass restoration range to match your systems subwoofers and enclosure design. Whether you're aiming for deep low-frequency extension or tight, punchy bass response, the processor provides flexible control over your systems bass characteristics.

The processor includes a selectable output voltage (2.5V / 5V / 7.5V / 10V) for compatibility with a wide range of amplifiersfrom standard aftermarket setups to high-performance systems. With ultra-low distortion (<0.02% THD), high signal-to-noise ratio (>110dB), and a wide frequency response (10Hz 30kHz), the XTR-BP25 maintains clean and powerful bass output even at higher listening levels.

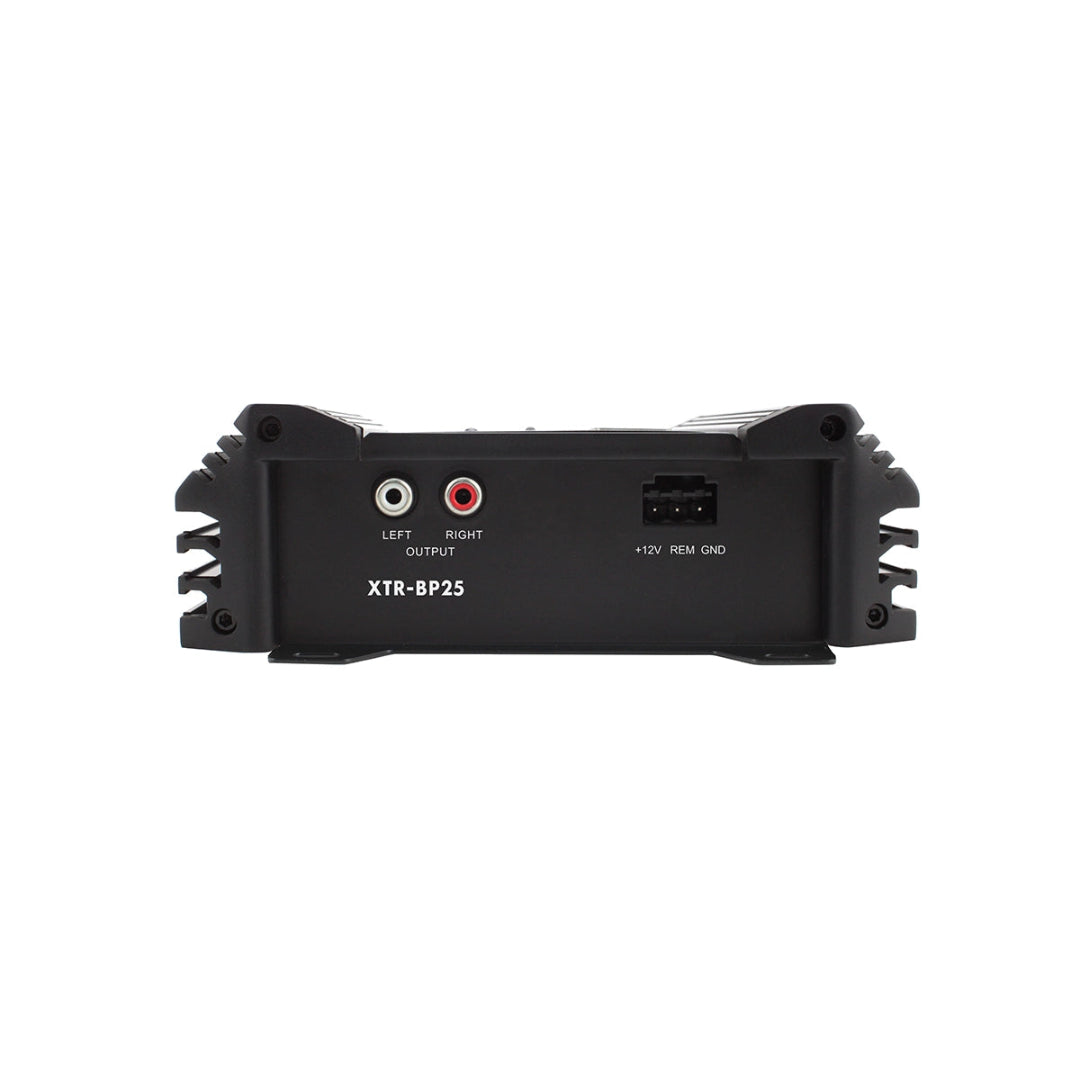

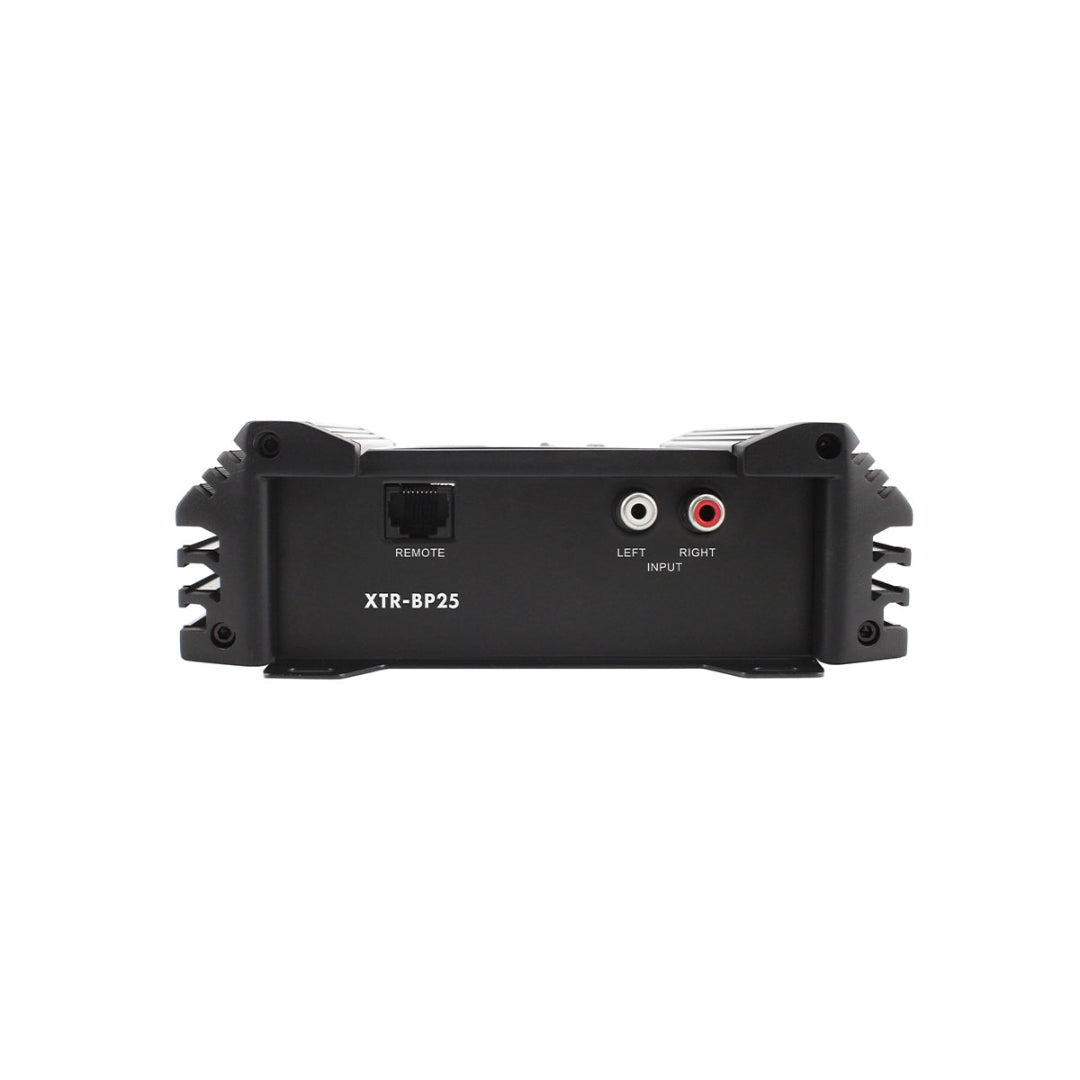

Designed for easy system integration, the XTR-BP25 features balanced and unbalanced input options, ground isolation control, and RCA input/output connections, allowing seamless installation with factory or aftermarket audio systems. Whether upgrading a stock audio system or optimizing a dedicated subwoofer setup, the XTR-BP25 provides precise bass control and enhanced audio performance.

• XTR Performance Bass Processor: Designed to enhance subwoofer performance by restoring and boosting low-frequency signals.
• Bass Restoration Technology: Recovers bass frequencies lost in compressed music or factory audio systems.
• Sweep Frequency Control: Adjusts the center frequency of the bass enhancement for precise bass tuning.
• Width Bandwidth Control: Allows adjustment of the bass restoration range for deeper bass or tighter punch.
• Selectable Output Voltage: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match amplifier sensitivity.
• High Signal-to-Noise Performance: Provides clean bass enhancement with a signal-to-noise ratio greater than 110dB.
• Ultra-Low Distortion Processing: Maintains high audio fidelity with less than 0.02% total harmonic distortion.
• Balanced / Unbalanced Input Selection: Ensures compatibility with factory radios and aftermarket head units.
• Ground Isolation Control: Helps eliminate alternator noise and system interference.

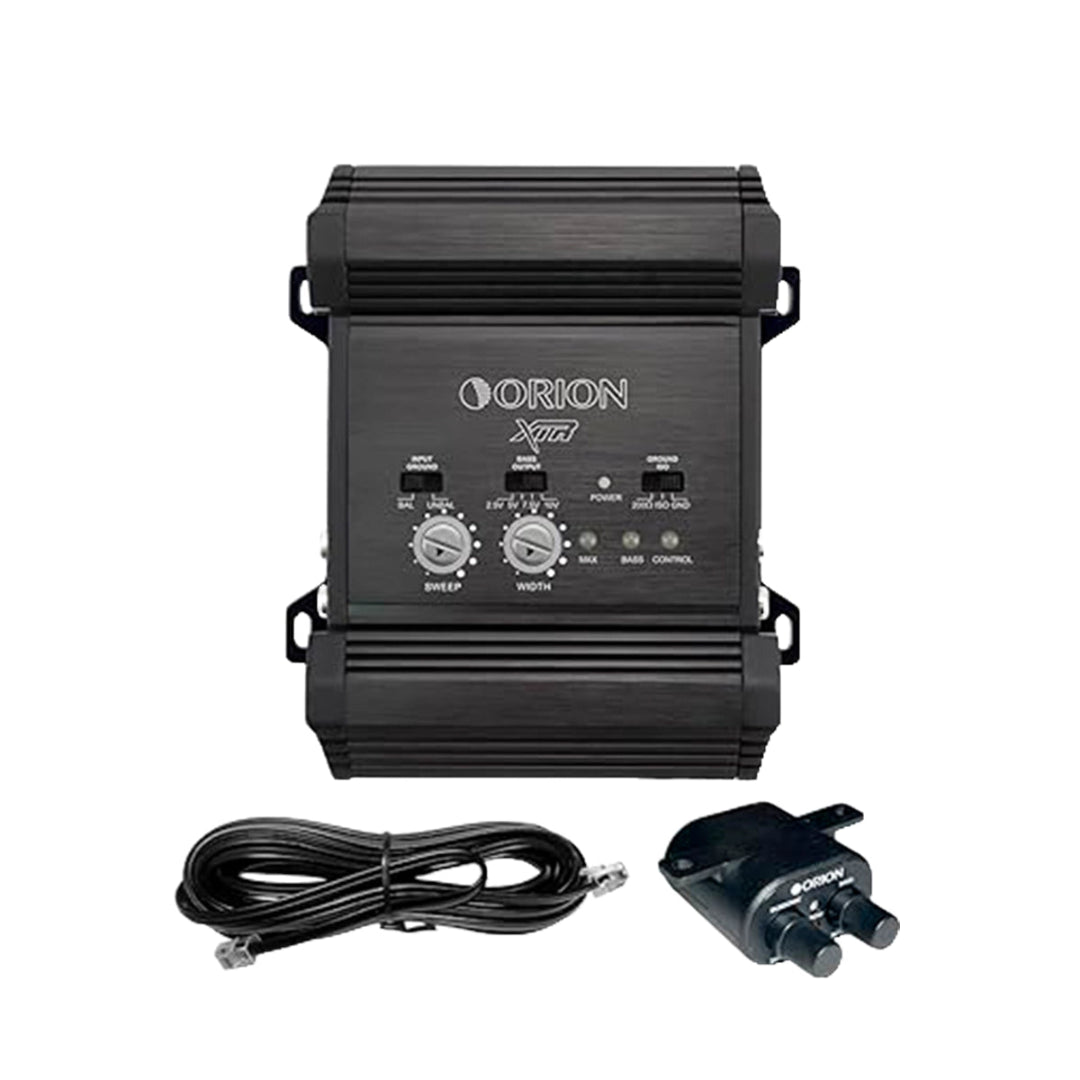

• Remote Bass Control Support: Allows real-time bass adjustment from the drivers seat.

• Power Supply: 6.5V 18V
• Maximum Input Level: 10V
• Maximum Output Level: 10.5V
• Input Sensitivity: 10.5V
• Input Impedance: >50K Ohms
• Output Impedance: 100 Ohms
• EQ Boost / Cut: 15 dB
• Signal-to-Noise Ratio: >110 dB
• THD @ 2V Output: <0.02%
• Channel Separation: >80 dB
• CMRR: -63 dB Balanced / -29 dB Unbalanced
• Frequency Response: 10 Hz 30 kHz
• Subsonic Filter: 27 Hz 72 Hz
• Current Draw: 230 mA
• Interchannel Gain Tracking: 0.1 dB
• Fuse Rating: 1A
• Dimensions: 3.98 x 6.42 x 2.09
