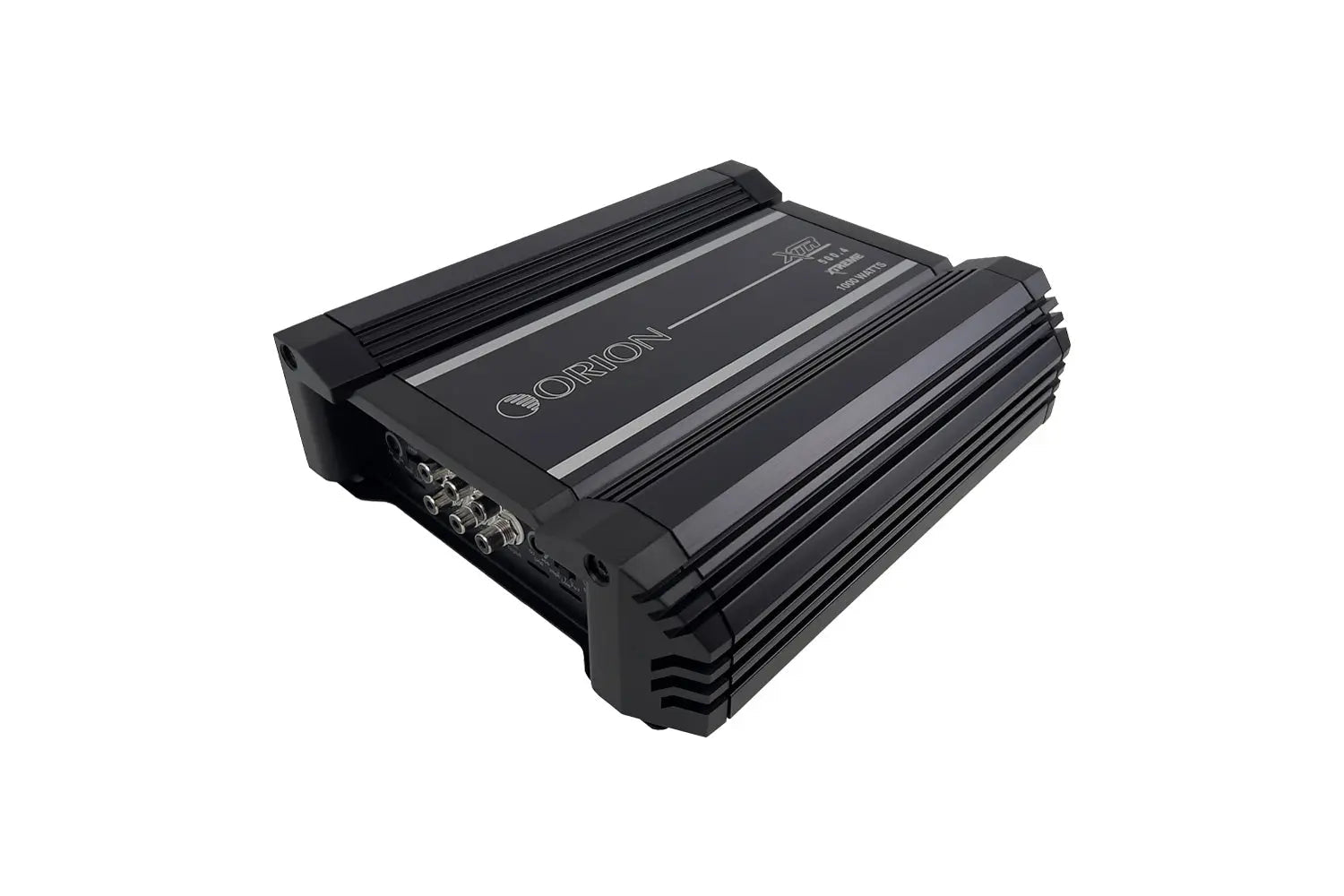

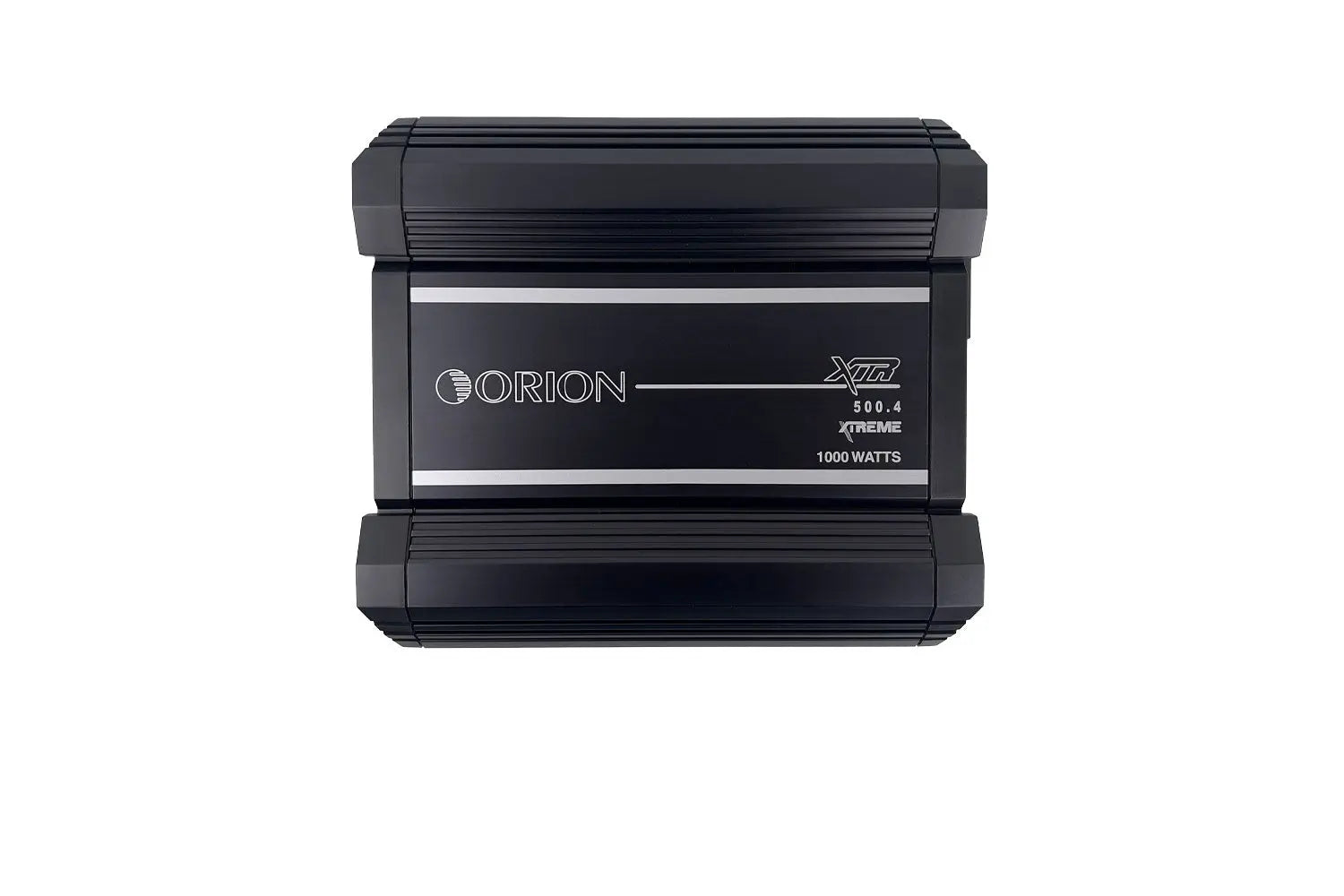

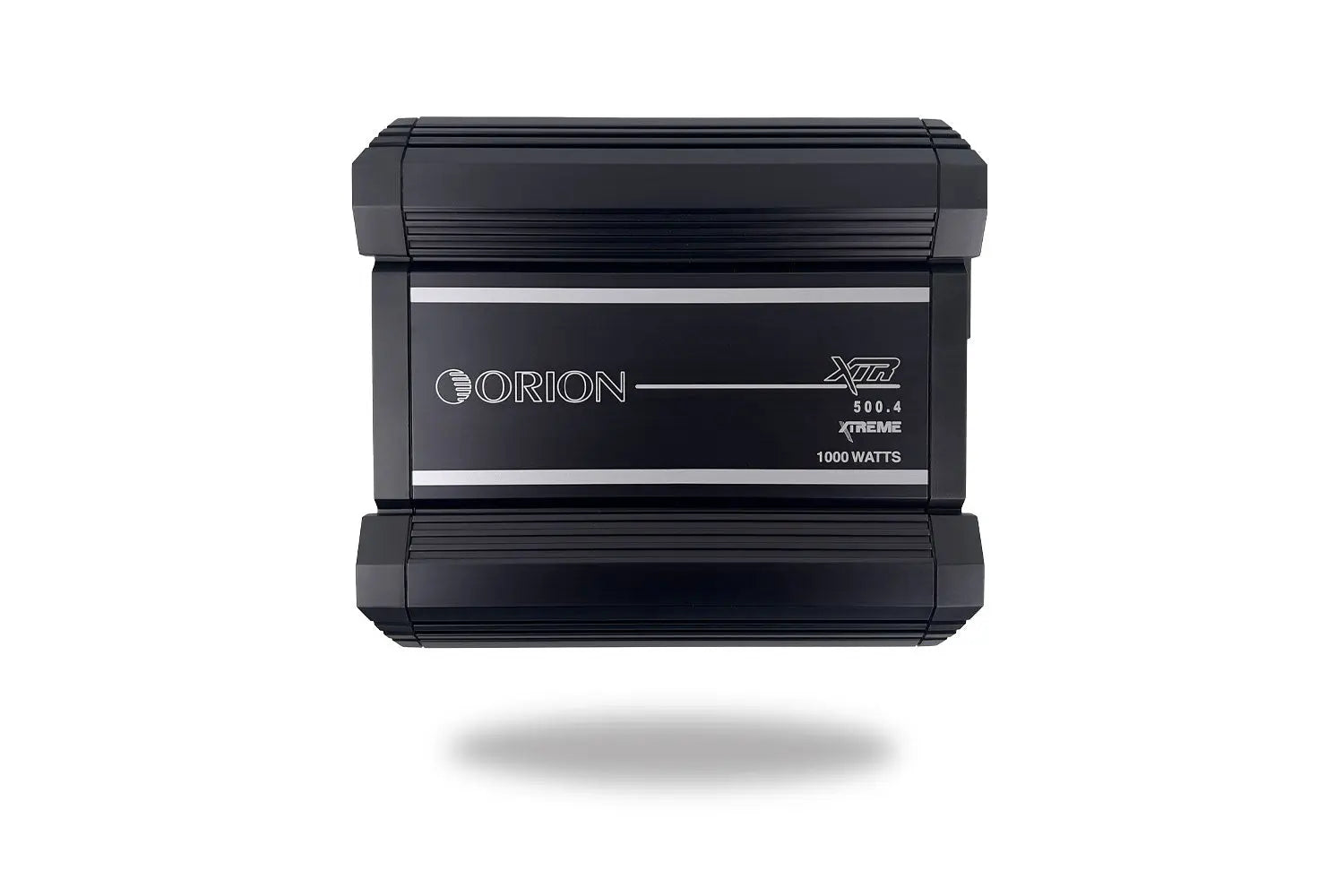

Orion XTR500.4 - 500 Watt RMS Class A/B Car Amplifier 4 Channel

ORION XTR500.4 XTR Series 500W RMS 4-Channel Class-AB Amplifier

Unleash Auditory Excellence:The ORION XTR500.4 XTR Series 500W RMS 4-Channel Class-AB Amplifier empowers your audio journey. With advanced features and precision engineering, this amplifier transcends traditional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.

Immersive Sound Reproduction:Rediscover your music in its truest form. Every note, beat, and melody from the gentlest to the most dynamic is meticulously reproduced for an immersive and authentic listening experience.

Versatile Power and Precision:Experience your music with versatile power and precision. The ORION XTR500.4 XTR Series Amplifier seamlessly blends adaptable power with exceptional audio quality, creating a harmonious audio landscape.

Elevate Your Drive:Step into a realm of sonic versatility with the ORION XTR500.4 XTR Series 500W RMS 4-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical satisfaction. It's time to embrace sound in its purest form.

• Class AB Amplification: Experience the dynamic blend of efficiency and precision with Class AB amplification for versatile and accurate sound reproduction.
• 500 Watts RMS: Immerse yourself in a world of balanced audio excellence with 500 Watts RMS, delivering adaptable and clear sound performance.
• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
• Compact and Efficient Design: The amplifier's compact design offers versatile installation options without compromising performance.
• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
• -All MOSFET Power Supply & Output Stage
• -Heavy Gauge / High Current Custom Power and Speaker Terminals
• -2-Ohm Stable
• -RCA Out Throughput
• -12dB Octave Low-Pass Filter
• -Electronic Crossover Network
• -Bass Boost Circuit
• -Intelligent Power and
• -Protection LED Indicator
• -Soft Turn-on/Turn-off
• -Turn-On Delay
• -Fault and Protection Monitoring
• -4-Way Protection- Thermal, DC offset, Short Protection, under & over voltage

• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 90W
• - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 125W
• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 250W

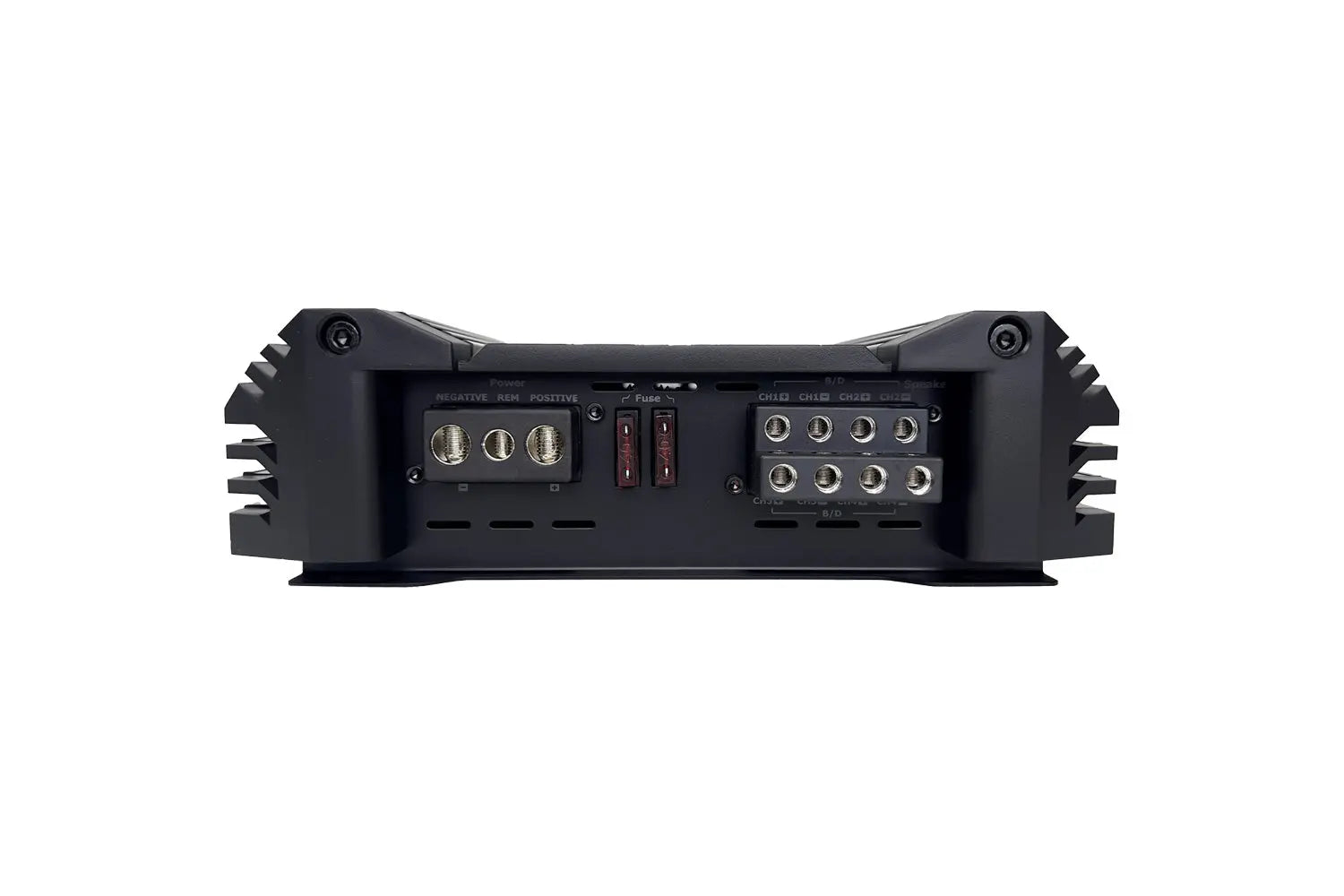

• POWER TERMINAL MANAGEMENT
• Positive Terminals: 1 x 4 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 10 AWG.

• Frequency Response: 20Hz - 35kHz
• Linear Bandwidth 20Hz to 65kHz +/- 3 dB
• High Pass Crossover Continuously variable (50-5kHz)
• Low Pass Crossover Continuously variable (50-400Hz)
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >60%
• Damping Factor: 100dB
• Signal to Noise Ratio: >95dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Bass Boost: 0-18dB Variable
• Variable Input Level Control: 0.2V - 6.0V
• Fuses: 80A recommended (2 x 40A ATC Fuses)
• Dimensions (L x W x H): 10.24" x 9.25" x 2.75" (260x235x70mm)
