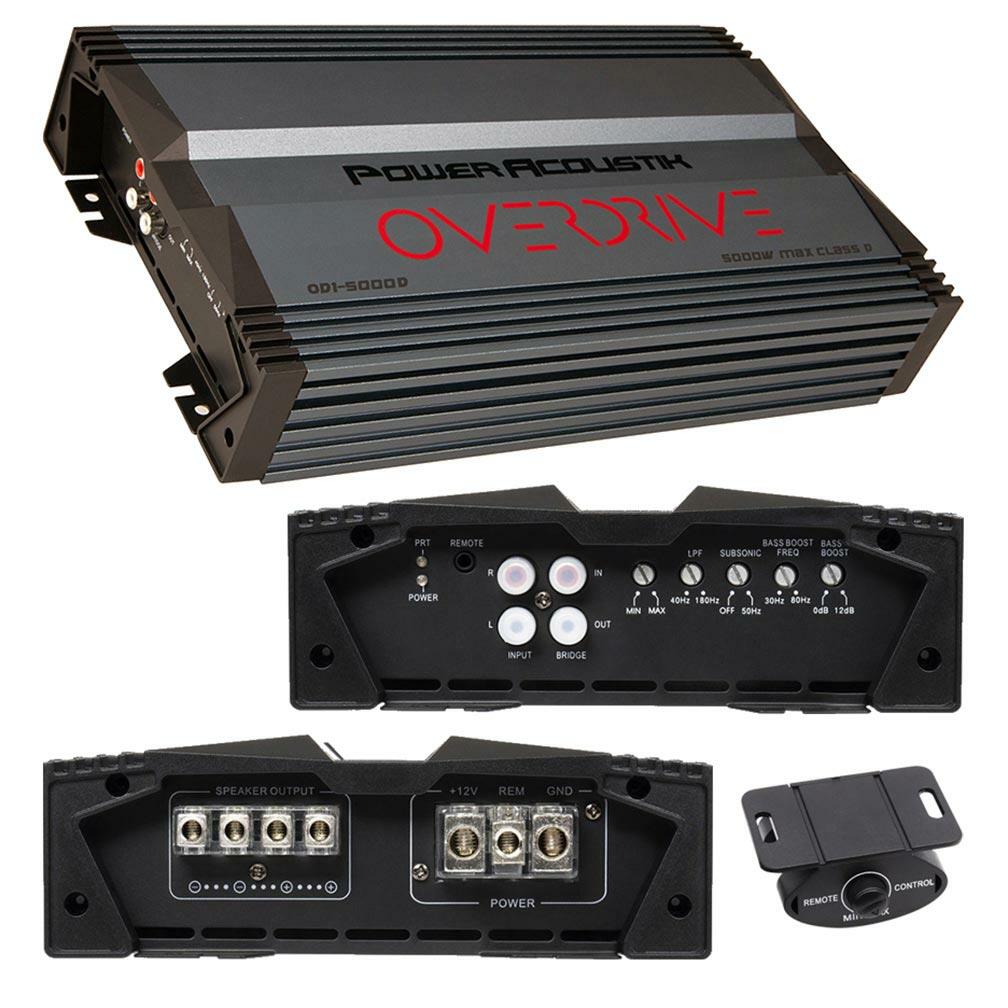

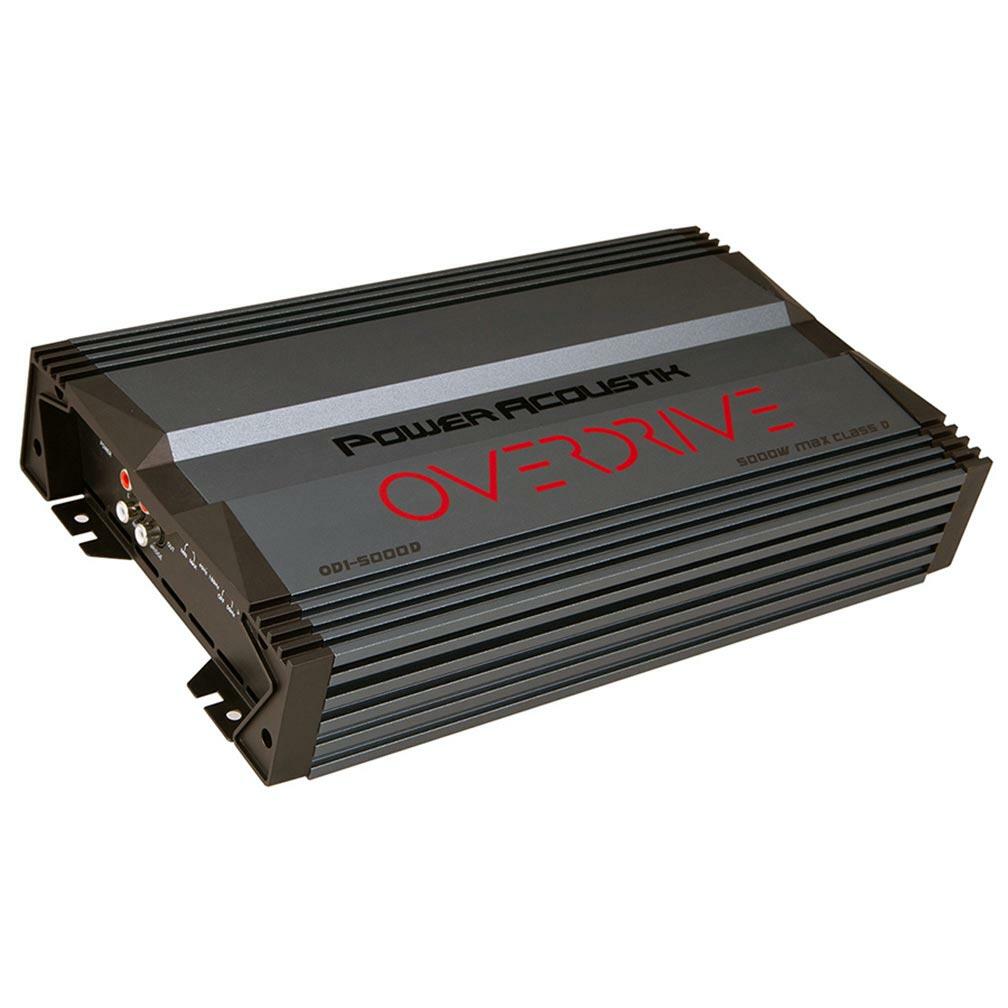

Power Acoustik OD1-5000D 5000 Max Watt D Class

Overdrive Series Class-D Monoblock Amplifier, 2000W RMS/5000W MAX

2000 Watts RMS/5000 Watts MAX

2000 Watts x 1 RMS @ 1 Ohm
1300 Watts x 1 RMS @ 2 Ohms
800 Watts x 1 RMS @ 4 Ohms
DIM (W X H X L) 7.25″ x 2.5″ x 12.5″

Fuses: Not supplied and suggested fuse size not in manual – Fuse Not Included!

1 Ohm Stable
Military Grade PCB
PWM MOSFET Power Supply
Direct Short, Thermal, & Overload Circuit Protection
Variable 12dB Crossover
Low Pass Crossover: 40 – 180 Hz
Subsonic Filter: 10 – 50 Hz
Bass Boost: 30 – 80 Hz
Phase Control
12dB Bass Boost

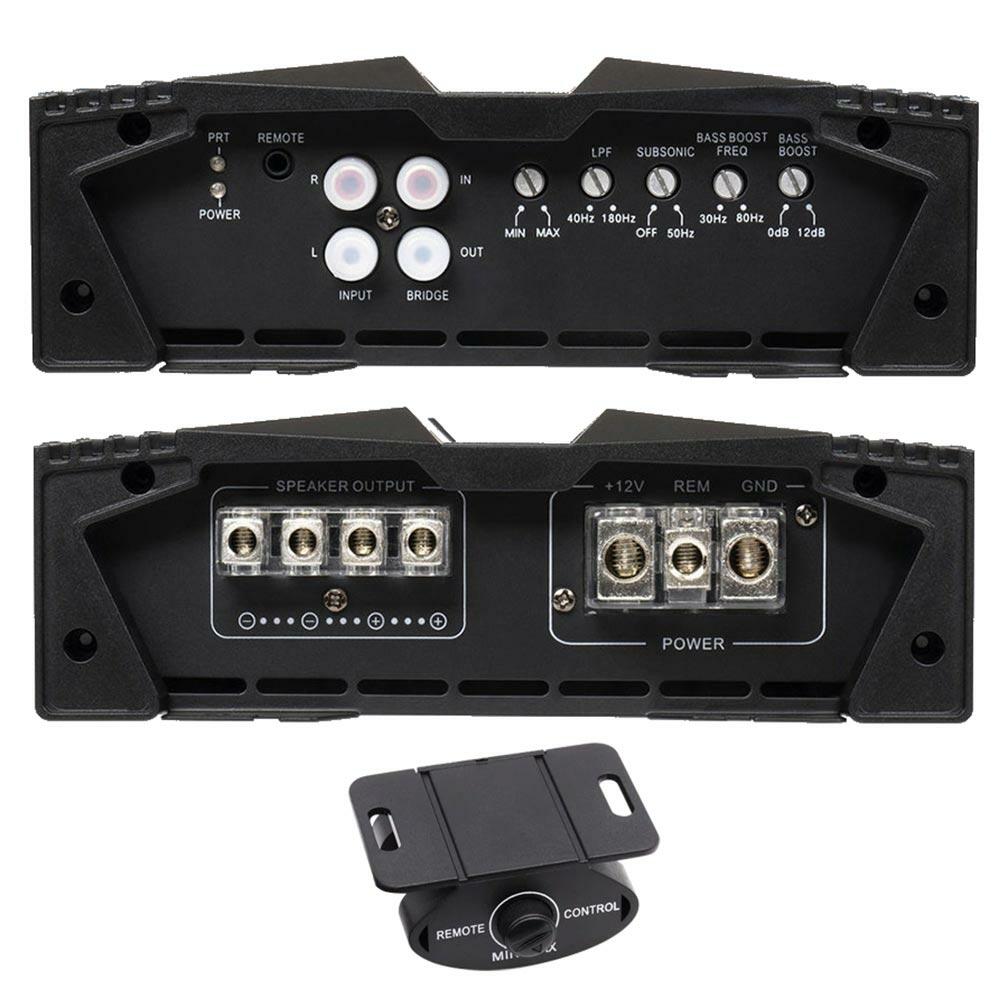

RCA In/Outputs

Remote bass knob

FEATURES

• Power: 1 Channel Monoblock amplifier delivers 5000 watts max power to a single channel. No need to bridge, this is done internally in this car amplifier. 2000 watts of RMS power to your subwoofers.
• Strapable Operation: You can double the load by strapping 2 of these monoblock amplifiers to double your power output. These amps are durable and built to deliver monster power to your speakers.
• Build Specs: The OD1-5000D is built with a Military Grade PCB and with a PWM mosfet power supply. This amp also comes with direct short, thermal, & overload circuit protection to make sure your amplifier delivers. High/Speaker Level & Low Level/RCA Input 4g Power Wire & 8g Speaker Wire Outputs Variable 12dB High & Low Pass Crossovers 12dB Bass Boost Increases Low Octave Harmonics Amplifier Dimensions (2.3″H x 7.25″W x 12.50″L)
• In the Box: In the mono amp packaging you will find mounting brackets, a manual, bass knob and cable and of course a monster of an amplifier. Power Acoustik recommends professional installation and solid wiring and power. To gain optimal performance this amp requires 14.4v of stable current.
• Warranty: The Overdrive Monoblock Amplifier is back by a 1 year manufacturer warranty. The amplifier is built with confidence to deliver solid power in any car stereo application. This amp was built with car audio enthusiasts in mind.
