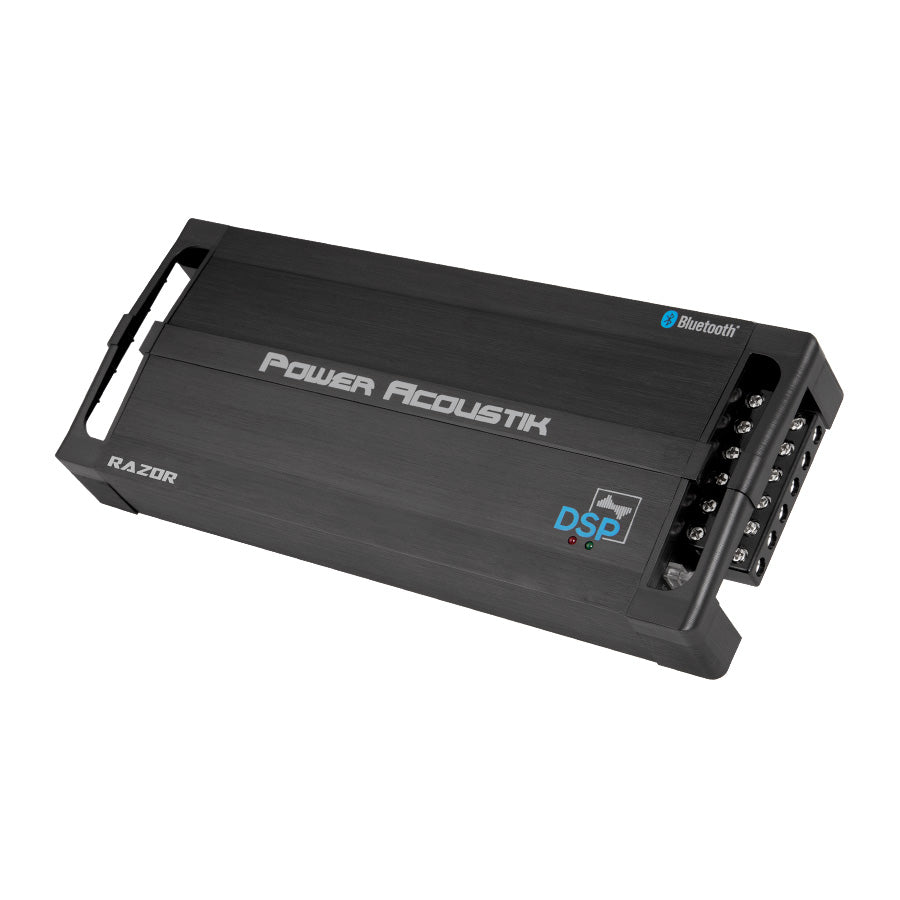

Power Acoustik RZ5-2500DSPB RAZOR Series 5 Channel Amplifier w/ Built-in DSP – Download Smartphone App to Tune in Real-Time

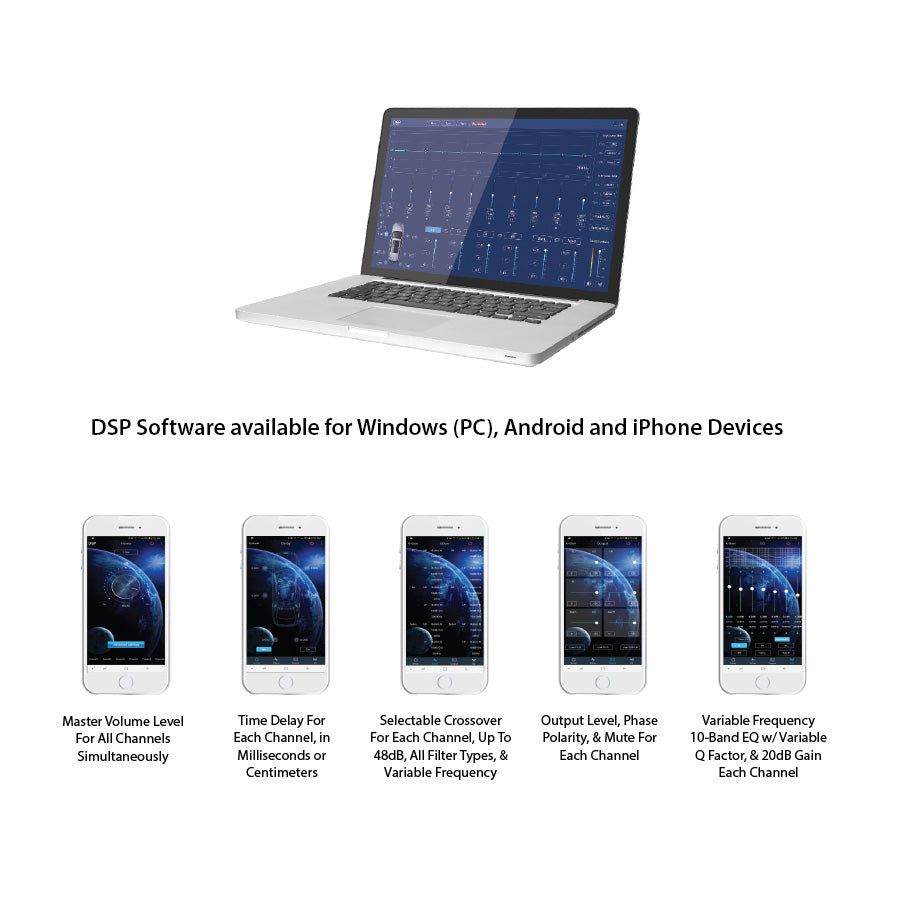

For those who want the most out of their car audio system, quality sound processing is necessary. Razor DSP amplifiers offer similar sound processing options by including the functions of a Digital Sound Processor. Adjusting the DSP is easy, using an intuitive user interface. After some slight adjustments, your system can sound like audio professionals have tuned it. Connection to the DSP module is possible via USB connection to personal computers or Bluetooth to an available Android & iOS device App. Unlock the best from any system with Razor DSP amplifiers.

Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)

DSP Software Download on Support Tab

Features

Razor DSP Features:

Integrated 100dB Dynamic Range, -80dB THD+N ADC

Integrated 104dB Dynamic Range, -90dB THD+N DAC

User Friendly SigmaStudioTM User Interface w/ Response Display

30V MAX 4-ch High Level & 4V MAX RCA Input Voltage

2ch. RCA output for Subwoofer Amplifier Integration

Optional High-Level Input from Hands-Free Bluetooth Module

Optional Independent Input or Channel Mixing/Summing

Up to +6dB / -60dB Master Input Level

Up to -60dB Independent Channel Level Cut

Up to 20ms Independent Channel Delay, 0.05ms Increments

Independent Channel 0/180 Phase Control

Independent Channel High, Low or Bandpass Crossover

Independent Channel 6dB-48dB/Octave Crossover Slope

Variable Frequency Crossover Setting, 20Hz-20kHz

10-Band Graphic Equalizer for Each Channel

20dB Boost/Cut for Each Band

Variable Independent Band Q Adjustment, 0.4-9.6

General Features:

High-Efficiency Class D Full Range

Compact 4.75” Chassis Design for Installation Versatility

Dimensions (1.625″H x 4.75″W x 12.25″L)

MOSFET Power Supply w/ Audiophile Grade IRTM Transistors

Military Grade SMT PCB Maintains Dynamic Performance

2-ohm Stereo & 4-ohm Bridged Full Range Operation

Die-Cast Aluminum Alloy Heatsink for Optimum Dissipation

Direct Short, Thermal, & Overload Circuits Protect Amplifier

Variable 12dB High Pass, Low Pass, & Subsonic Crossovers

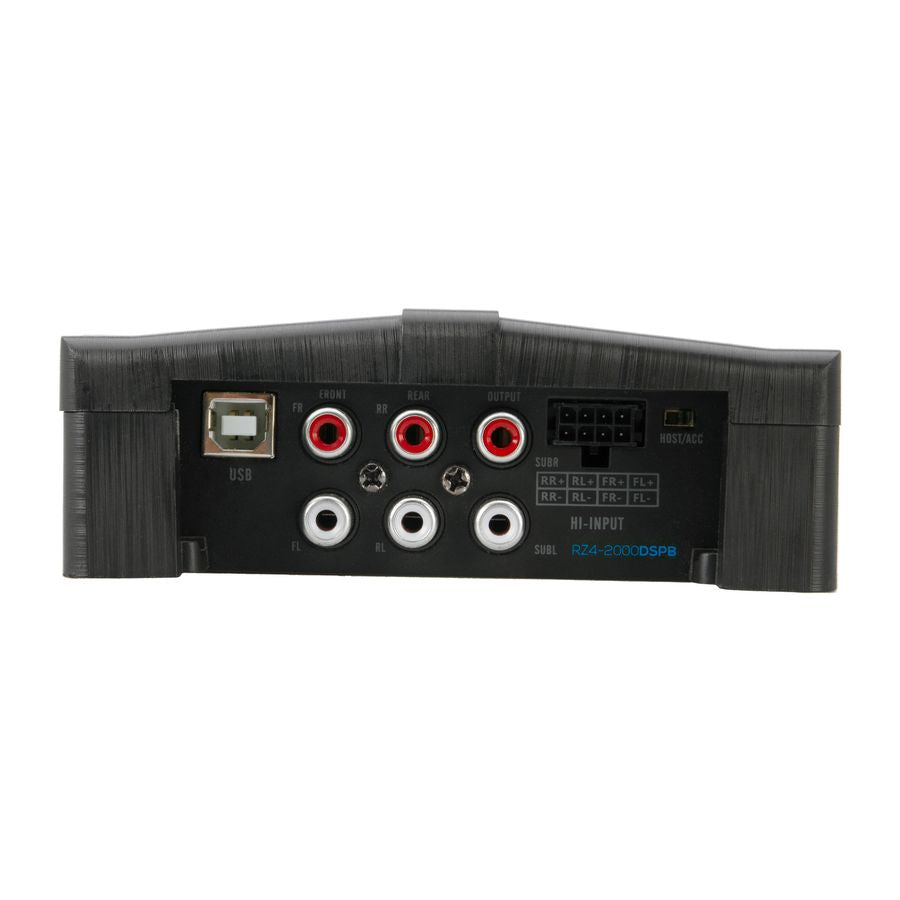

200mV-6V Low-Level RCA Inputs

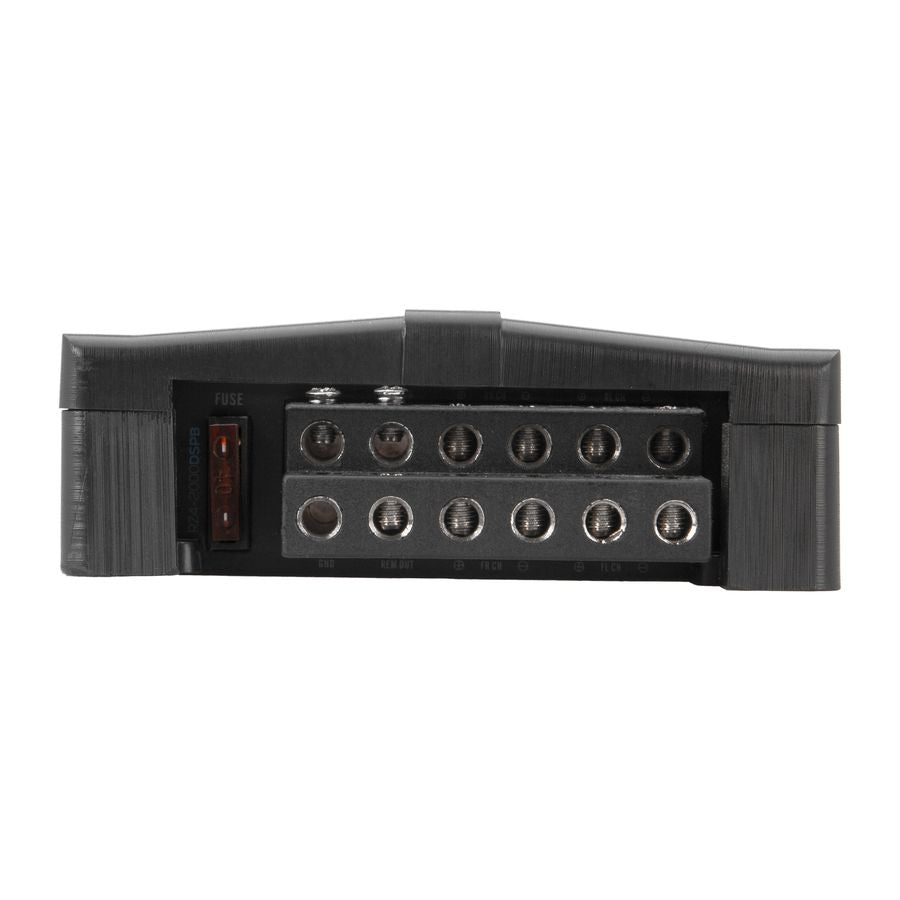

8ga Power Wire & 12ga Speaker Wire Outputs

High-Level Input w/ Signal Sense Auto Turn-on

12dB Bass Boost Increases Low Octave Harmonics
