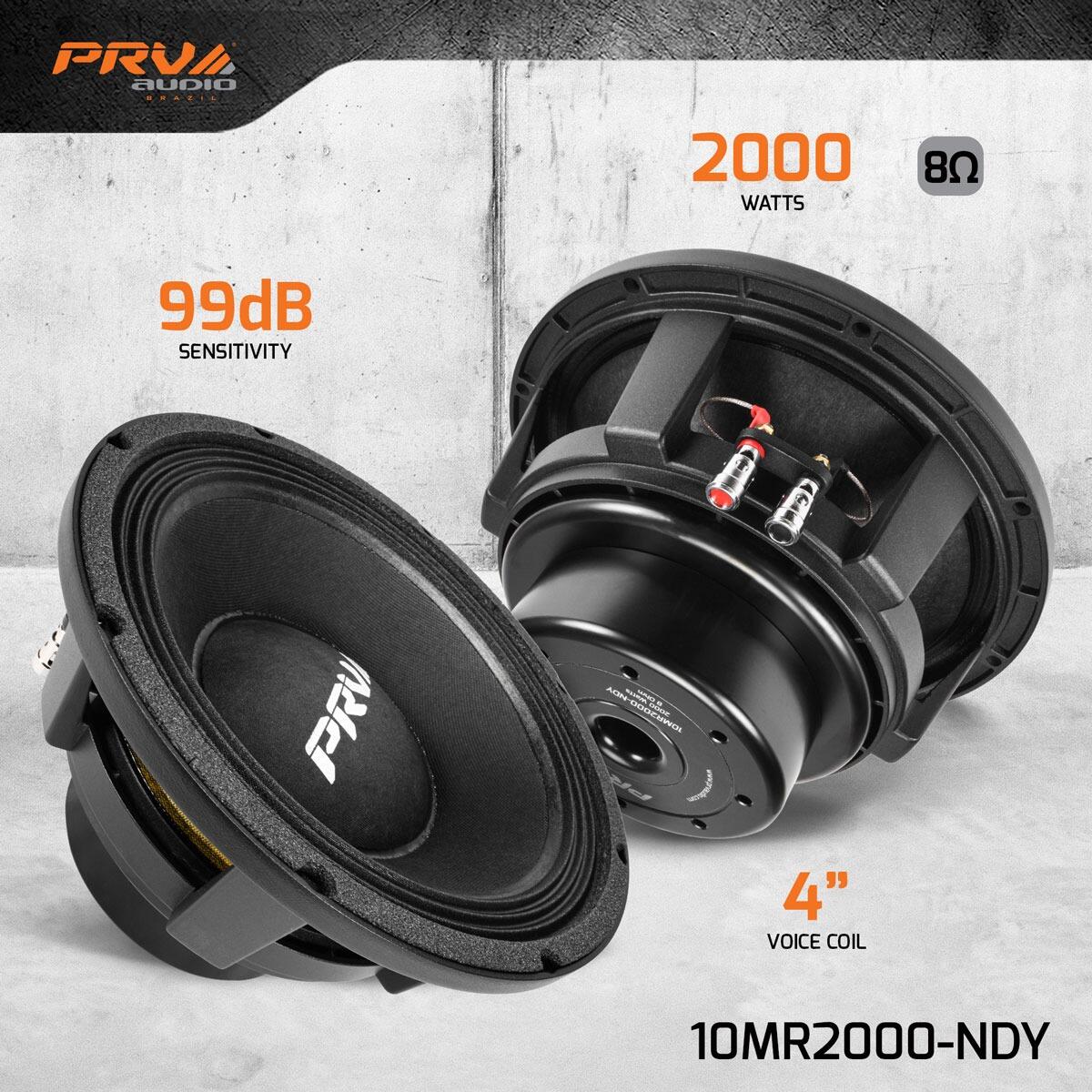

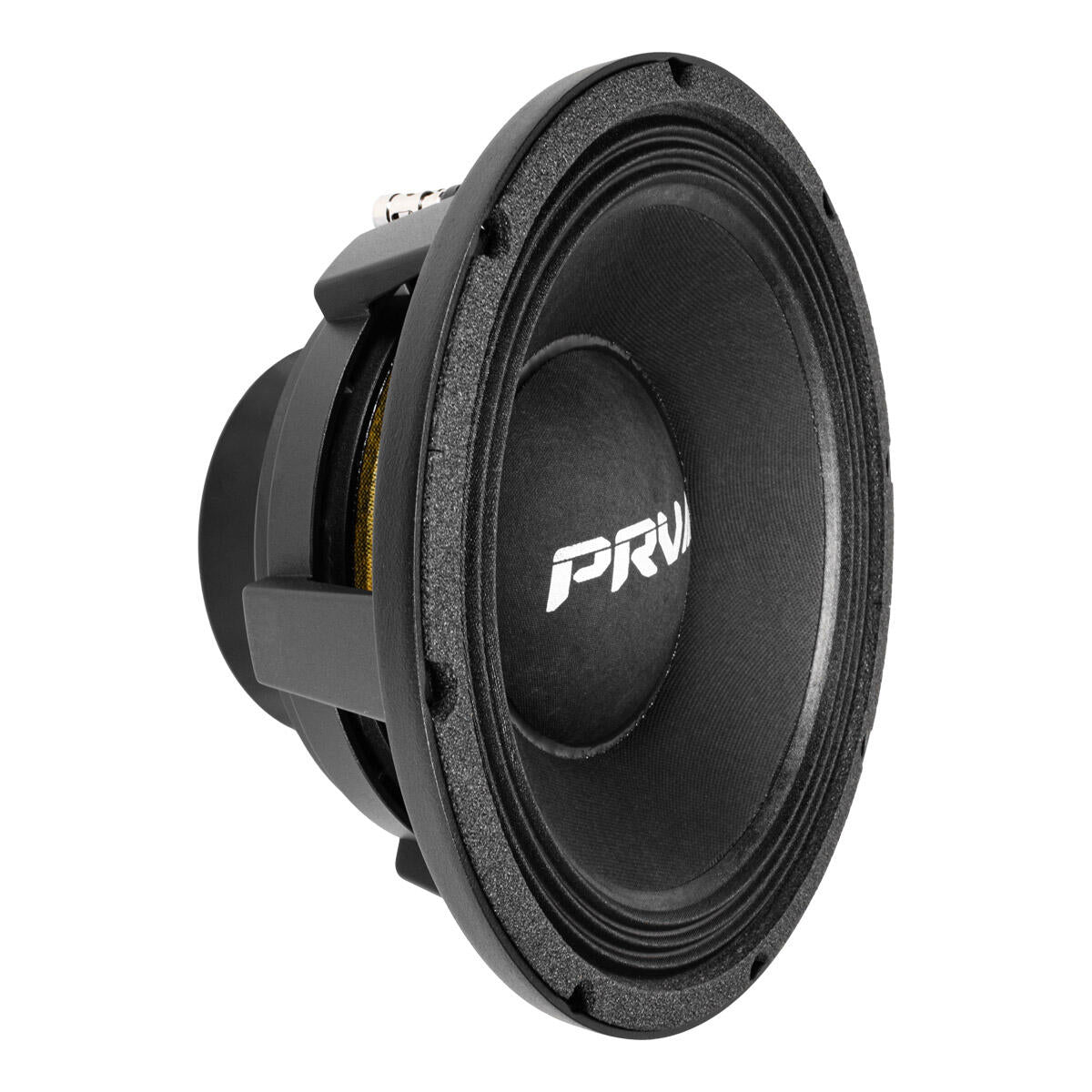

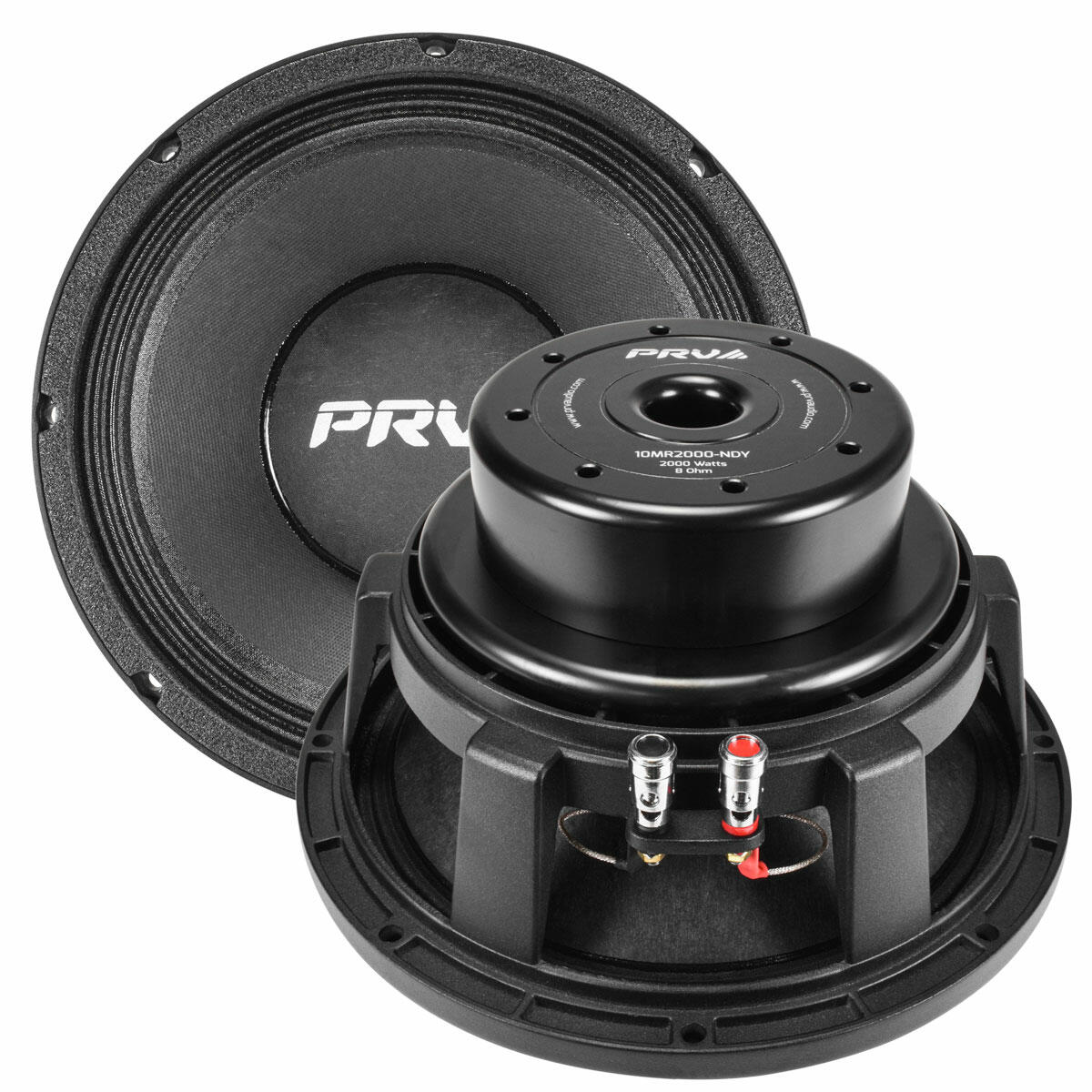

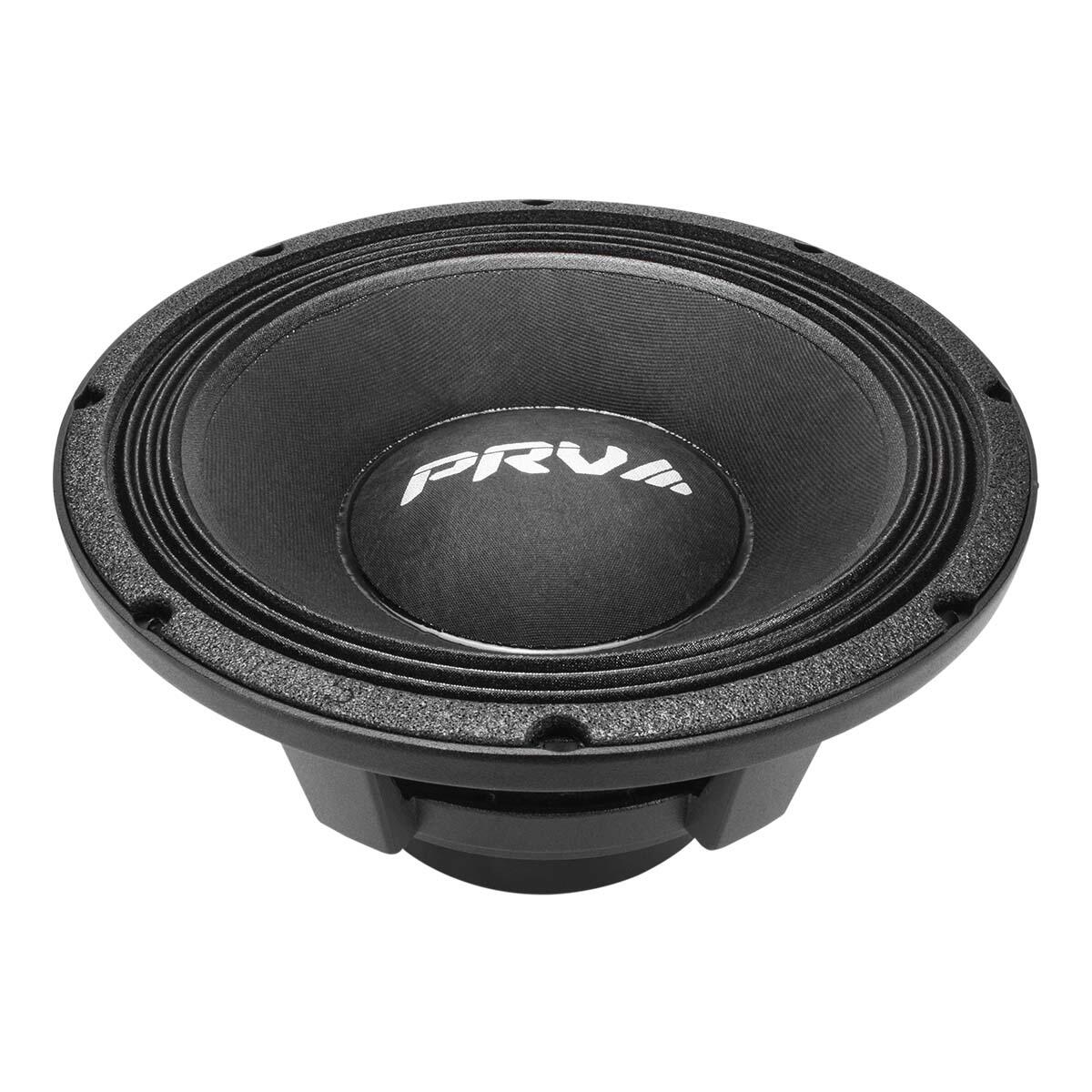

PRV Audio 10MR2000-NDY 10" MIDRANGE LOUDSPEAKER (Each)
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio 10MR2000-NDY 10" MIDRANGE LOUDSPEAKER (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
The PRV Audio 10MR2000-NDY midrange offers outstanding durability and is our most powerful midrange loudspeaker with a 4 inch voice coil. This mid is an ideal option for high power 2 or 3-way systems. It produces excellent vocal support for stage monitors, chuchero boxes, custom car doors and stuntwalls.
A powerful neodymium motor keeps size and weight to a minimum to make it easy to install this mid in any system, even when you are short of space.
- 4 Inside/Out copper clad voice coil wound on fiberglass former for high-temp performance 8 Ohm
- One of the most outstanding pro audio midrange for high SPL systems, this 2000 Watts 10 midrange is one beast of a speaker!
- Excellent performance in compact enclosures and custom car door panels.
- During hard play, the large 4 voice coil provides very high efficiency while providing smooth and accurate midbass response.
- With its high power handling this speaker can also be used as a midbass loudspeaker when it is kept at only 1000 Watts RMS, you can lower the HPF as low as 95 Hz.
With excellent damping characteristics, the lightweight paper cone and accordion surround gives this mid smooth response up to 6,500 Hz for that incredibly clear vocal response that PRV midranges are known for.
Developed to perform well in tight enclosures, its triple roll surround keeps its cone travel linear at high mibdass excursion.
Featuring a large 4 voice coil, it provides exceptional sound clarity and ensures durability and consistent performance over time.
Featuring high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio.
The extensive venting through the motor and cast aluminum frame helps to dissipate that heat to keep power compression low even after extended periods of high output.
When it comes to custom doors, this is the most versatile and loud speaker PRV audio offers. The PRV Audio 10MR2000-NDY mid is the best option for keeping your door panel compact and high-performing.
Its lightweight and compact profile makes it the perfect high power loud speaker for custom doors, whether you plan to use it as a Midrange speaker to boost vocals or as a Midbass speaker to hit strong punch tones.
PRV 10 Midrange Speaker 10MR2000-NDY 2000 Watts / 8 Ohm High Power Neodymium PRO Audio Loudspeaker
Recommended Amplifier configurations and crossoverHPFusingPRV Digital Signal Processor DSPwhen using the recommended power below:
Middle Power System MIDBASS Application
95 Hz at 18 dB per octave filter Crossover / BT18
when using 750 to 1000 Watts RMS power
4 Speakers 1xQS3000 at 2 Ohm, all wired in parallel
8 Speakers 1xQS7000 at 1 Ohm, all wired in parallel
or
High Power System MIDRANGE Application
145 Hz at 18 dB per octave filter Crossover / BT18
when using 1500 to 2000 Watts RMS power
4 Speakers 1xQS7000 at 2 Ohm, all wired in parallel
8 Speakers 1xQS16000 at 1 Ohm, all wired in parallel
If you have compression drivers on your system the recommendedLPFis 2,500 Hz at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 10" (254 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 1000 Watts |
| Continuous Program Power (RMS)** | 2000 Watts |
| Max Peak Power*** | 4000 Watts |
| Sensitivity 2.00V at 1m | 99 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 160 Hz 12db Per Octave Crossover |
| Frequency Response | 90 - 6,500 Hz |
| Voice Coil Diameter | 4" (101 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 14.5 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 9.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 27.98 l |
| Excursion | Xmax*** | 5.00 mm |
| Free Air Resonance | Fs | 54.48 Hz |
| Mechanical Factor | Qms | 1.54 |
| Electrical Factor | Qes | 0.21 |
| Total Factor | Qts | 0.21 |
| Cone Area | Sd | 373 cm |
| Mechanical Mass | Mms | 59.33 g |
| Bl Factor | Bl | 21.73 Tm |
| Dc Resistance | Re | 5.0 Ohm |
| Inductance | Le | 0.50 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 35.96 g |
| Mechanical Compliance | Cms | 0.143 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

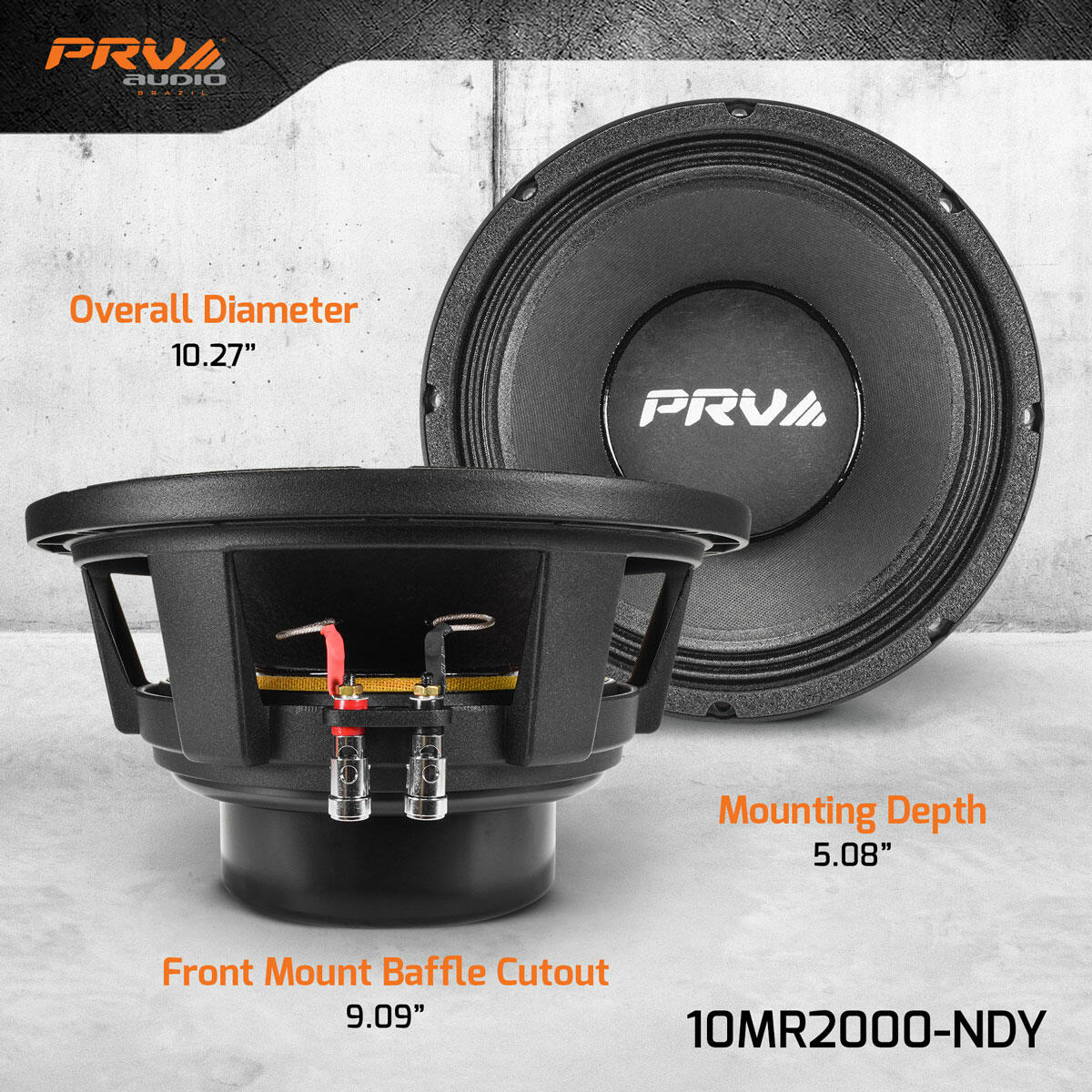

| Overall Diameter | 10.27" (261 mm) |
| Front Mount Baffle Cutout | 9.09" (231 mm) |
| Mounting Depth | 5.08" (129 mm) |
| Overall Depth (with grill) | 5.49" (139.5 mm) |
| Net Weight | 12.78 Lb (5.8 kg) |
| Shipping Weight | 14.55 Lb (6.6 kg) |
| Carton Dimensions W x L x H | 12.6" x 12.6" x 7.8" (320 x 320 x 195 mm) |
