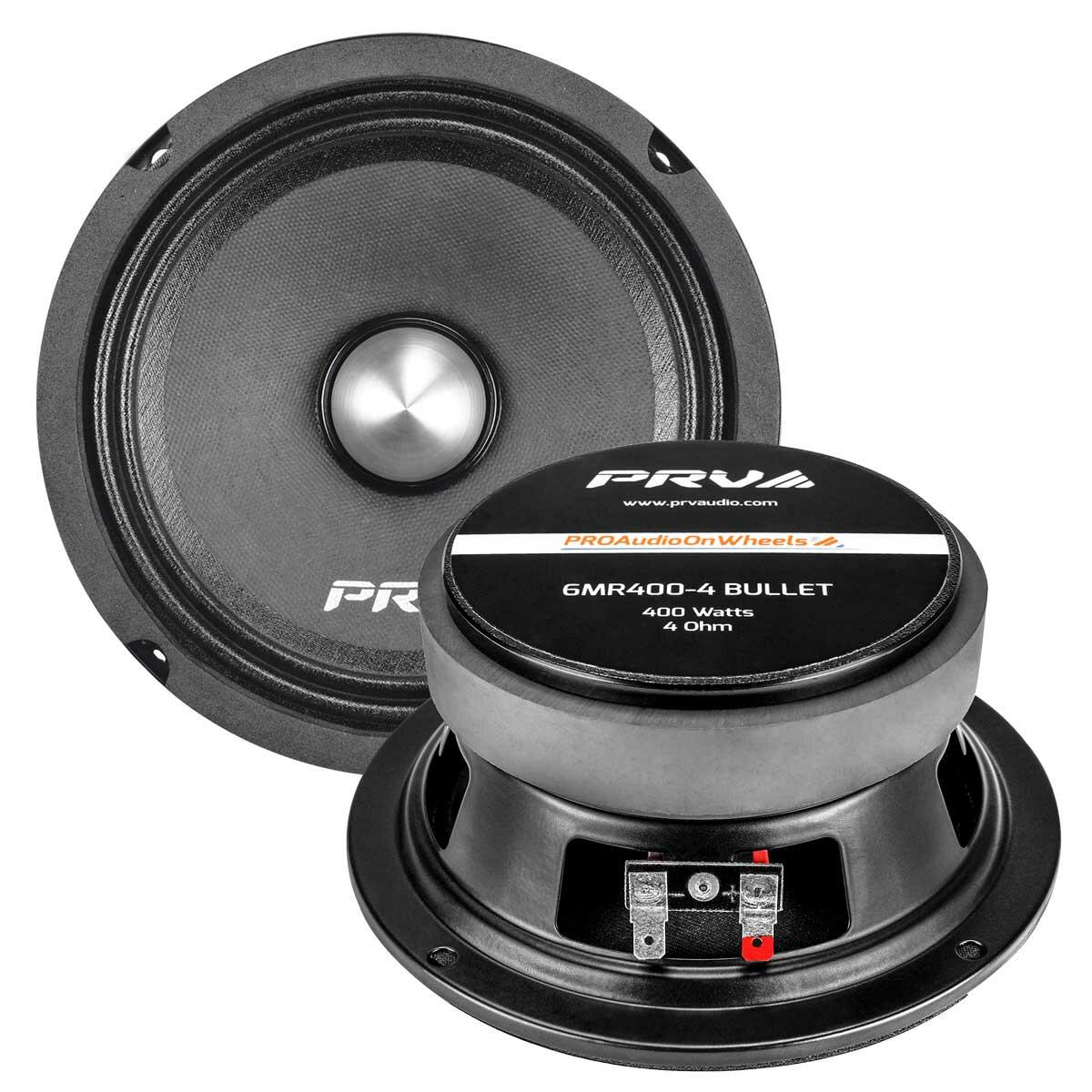

PRV Audio 6MR400-4 BULLET 6.5" MIDRANGE BULLET LOUDSPEAKER (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
The MR BULLET was conceived with one goal in mind: High-Performance!
Featuring an Aluminum Phase Plug (Bullet), this mid is built like a professional midrange loudspeaker, but it has been designed for use in the mobile audio market, as we called it Pro Audio On Wheels!! By combining elements from PRO Audio and Car Audio, we have developed a NEW type of high efficient midrange that is able to give high levels of output for your custom door.
- Built to Perform at Wide Frequency Range: 145 12,500 Hz
- High efficiency: 95 dB guarantees High Output Levels
- Handles 400 Watts Endurance at Loudest Volumes
- Vented Air pole piece for heat dissipation
- Center phase plug for even sound distribution
- 4 Ohm Impedance
- Also available in 8 8MR500-4 BULLET
and 69 69MR500-4 BULLET - Compact, Lightweight Neodymium Version Available 6MR400-NDY-4 BULLET

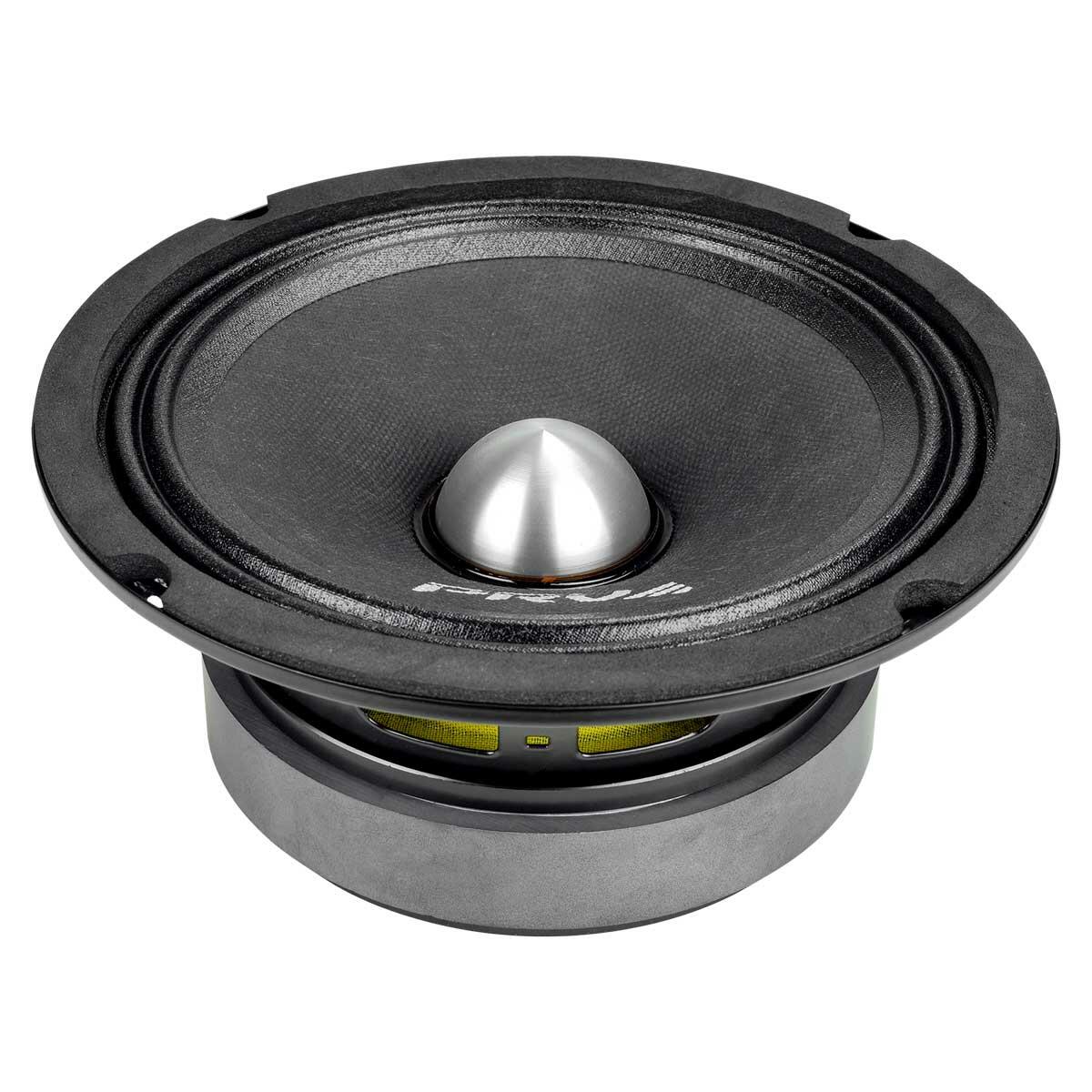

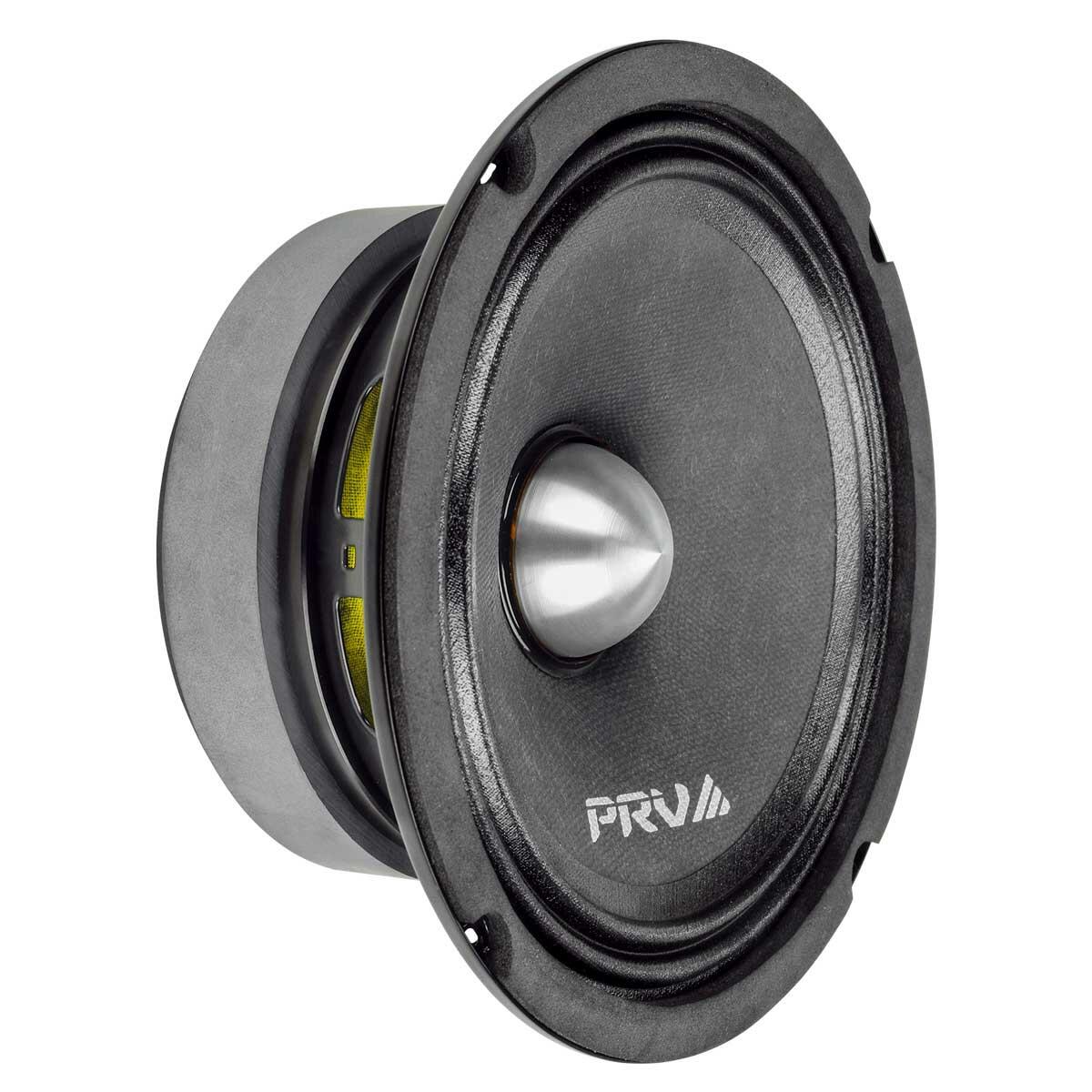

The bullet phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound.
A triple roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speakers frequency response is smooth and extends to high range making an easy transition to a super tweeter, but according to customers, the high-frequency response from this speaker does NOT need support from a tweeter!
The suspension design of this mid range features a single layer spider which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.
Its high-performance characteristics and high-quality components provide exceptional clarity, detail, and dynamics sound. You can expect outstanding sound stage quality and realistic sound reproduction for a great value. This is the new standard of value in high-performance bullet speakers.
Built to perform and able to handle 400 Watts of Continuous Program Power (RMS), this midrange is the perfect match on 3-way custom door system such as:
10W1000-NDY-4 + 6MR400-4 BULLET + TW450Ti-ND-4 making the ultimate sound reproduction machine, with unbeatable sound quality and output.
GENERAL SPECIFICATIONS
| Nominal Diameter | 6.5" (152 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 200 Watts |

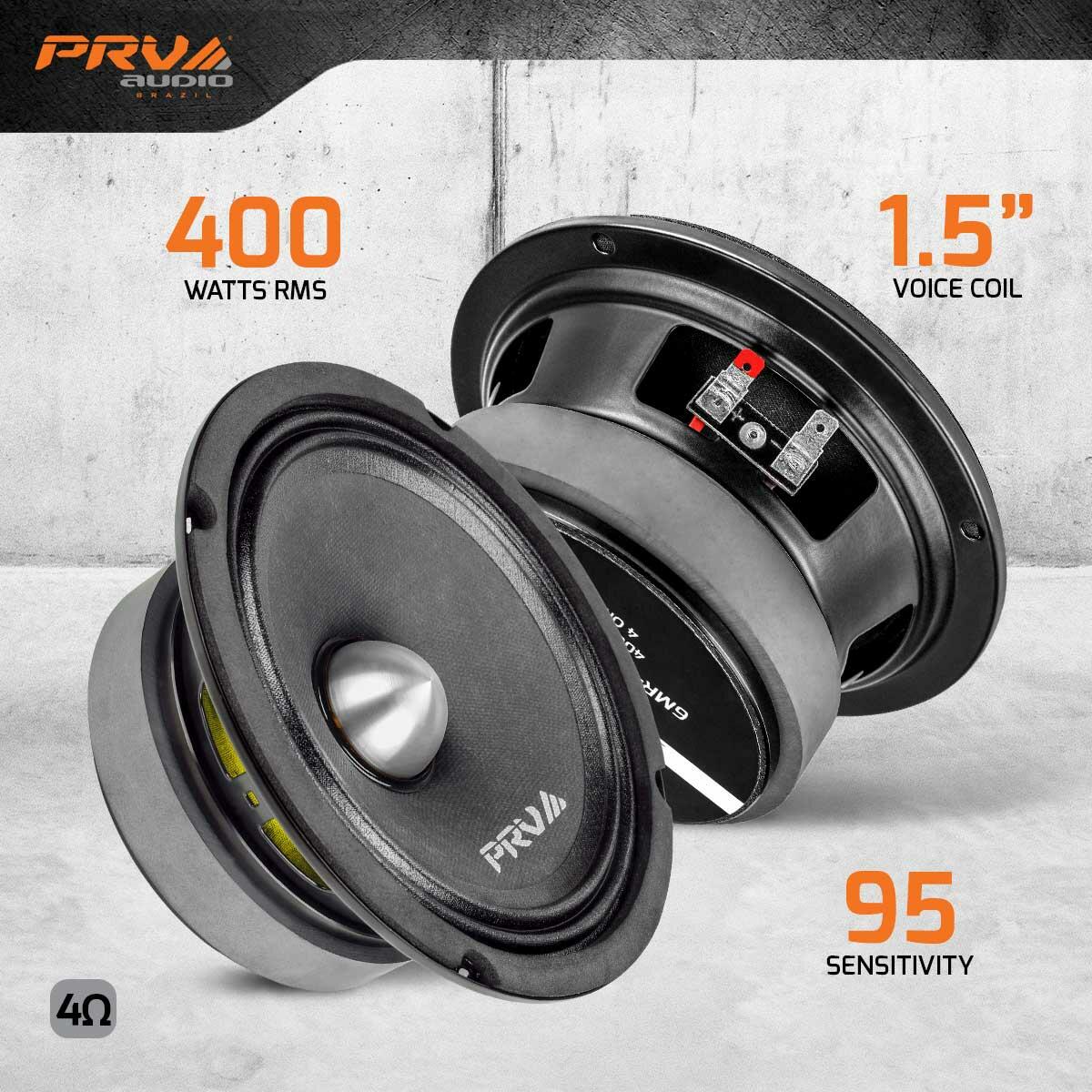

| Continuous Program Power (RMS)** | 400 Watts |
| Max Peak Power*** | 800 Watts |
| Sensitivity 2.83V at 1m | 95 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 145 Hz 12db Per Octave Crossover |
| Frequency Response | 145 - 12,500 Hz |
| Voice Coil Diameter | 1.5" (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 9.5 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 6.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 4.40 l |
| Excursion (mathematical)*** | Xmax | 3.25 mm |
| Free Air Resonance | Fs | 144.1 Hz |
| Mechanical Factor | Qms | 11.98 |
| Electrical Factor | Qes | 0.64 |
| Total Factor | Qts | 0.60 |
| Cone Area | Sd | 143 cm |
| Mechanical Mass | Mms | 7.94 g |
| Bl Factor | Bl | 6.37 Tm |
| Dc Resistance | Re | 3.6 Ohm |
| Inductance | Le | 0.136 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 6.97 g |
| Mechanical Compliance | Cms | 0.154 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4
EXTRA INFO

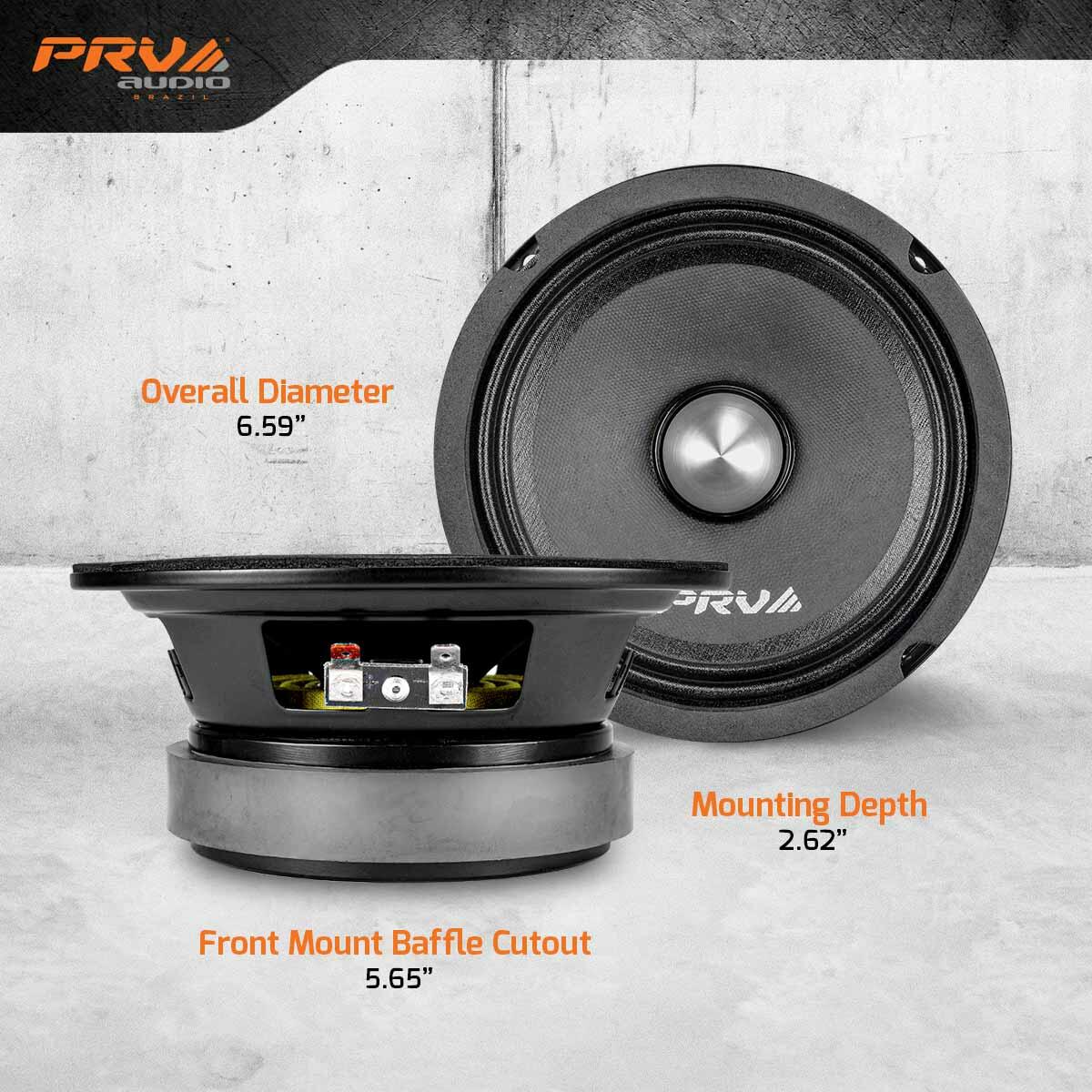

| Overall Diameter | 6.59 (167.5 mm) |
| Front Mount Baffle Cutout | 5.65 (143.5 mm) |
| Mounting Depth | 2.62(66.5 mm) |
| Overall Depth | 2.99(73.5 mm) |
| Net Weight | 4.81 Lbs (2.18 kg) |
| Shipping Weight | 5.18 Lbs (2.35 kg) |
| Carton Dimensions W x L x H | 8.50x 8.50 x 3.35 (175 x 175 x 85 mm) |
