PRV Audio D230Ti-B 1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER (Each)
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT

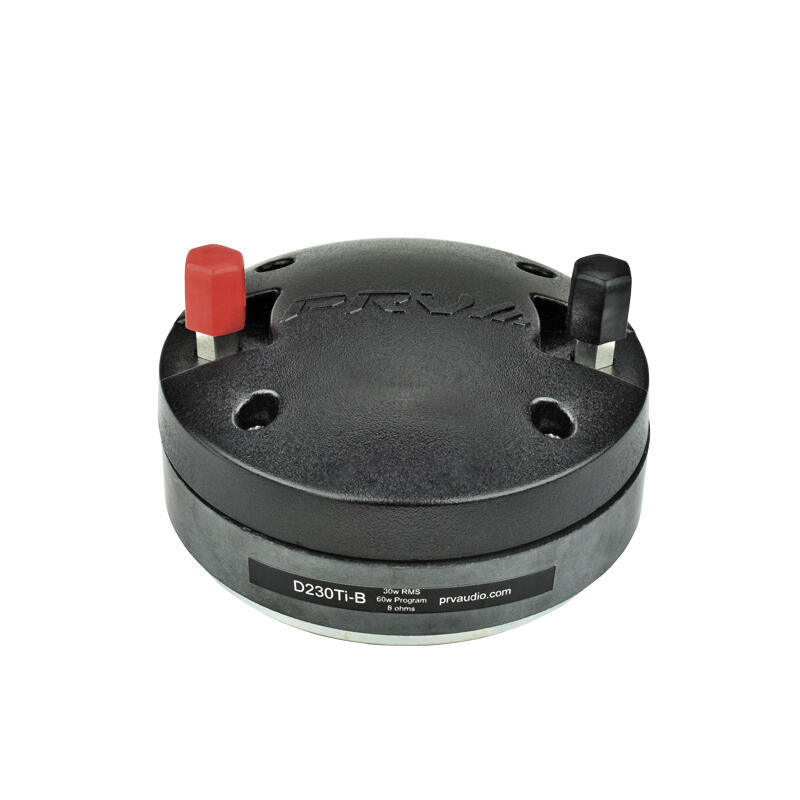

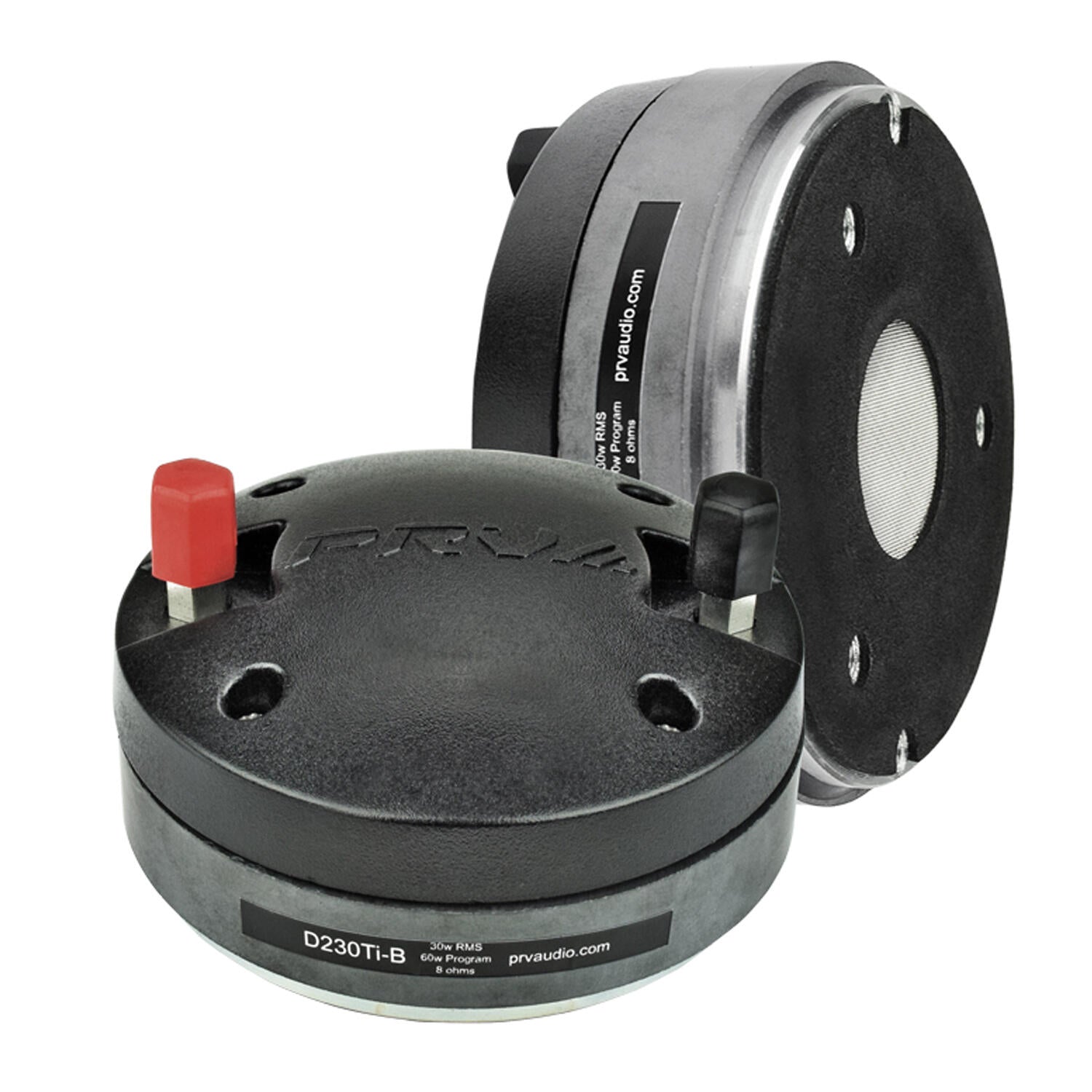

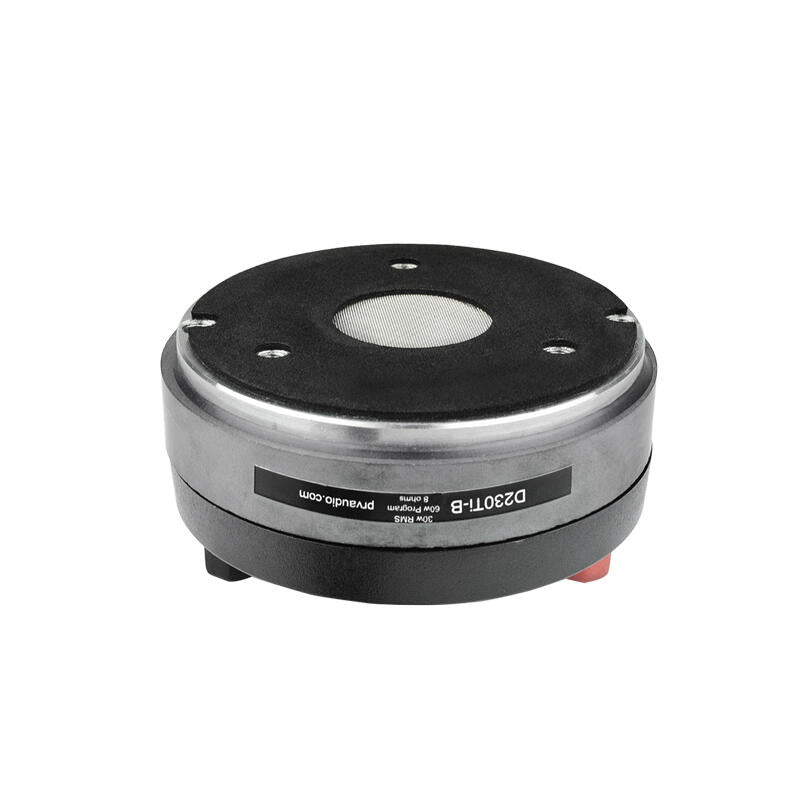

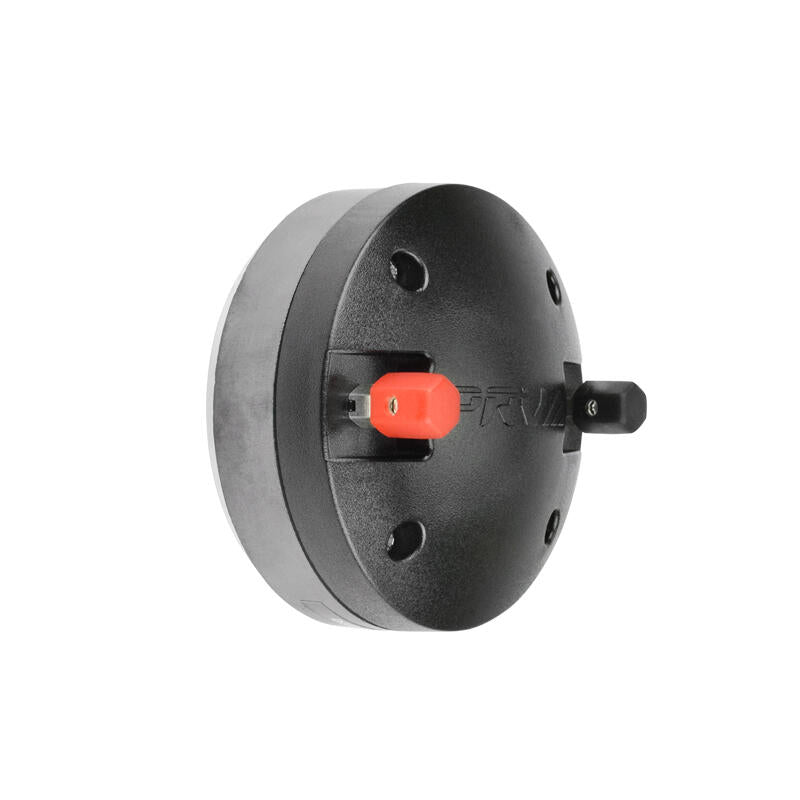

PRV Audio D230Ti-B 1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
The D230Ti-B compression driver is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 2 or 3 bolt pattern horn.
- Throat Diameter: 1
- Type: Bolt-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 30 Watts
- Program Power: 60 Watts

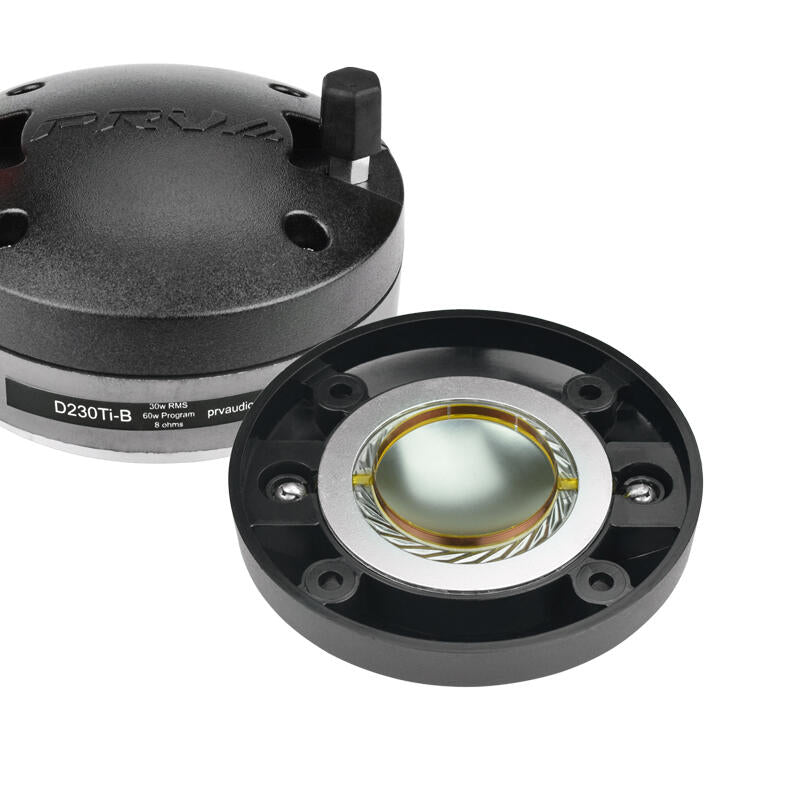

The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.
This is also available in both bolt-on and screw-on models (D230T-B / D230Ti-S). The D230Ti-B is a lightweight driver that weighs just 2lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.
The D230Ti-B is designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1 bolt-on design.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 30 Watts |
| Program Power | 60 Watts |
| Sensitivity 2.83V at 1m | 105 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 2000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,800 - 20,000 Hz |
| Voice Coil Diameter | 1.4" (35.5 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.65 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 3.54 (90 mm) |
| Overall Depth | 1.81 (46 mm) |
| Mounting Bolt Circle | M6 x 2 3 (76.2 mm) M6 x 3 2.4 (61.1 mm) |
| Net Weight | 1.9 lbs (0.86 kg) |
| Shipping Weight | 2.14 lbs (0.97 kg) |
| Carton Dimensions W x L x H | 3.74 x 3.74 x 3.15 (95 x 95 x 80 mm) |
