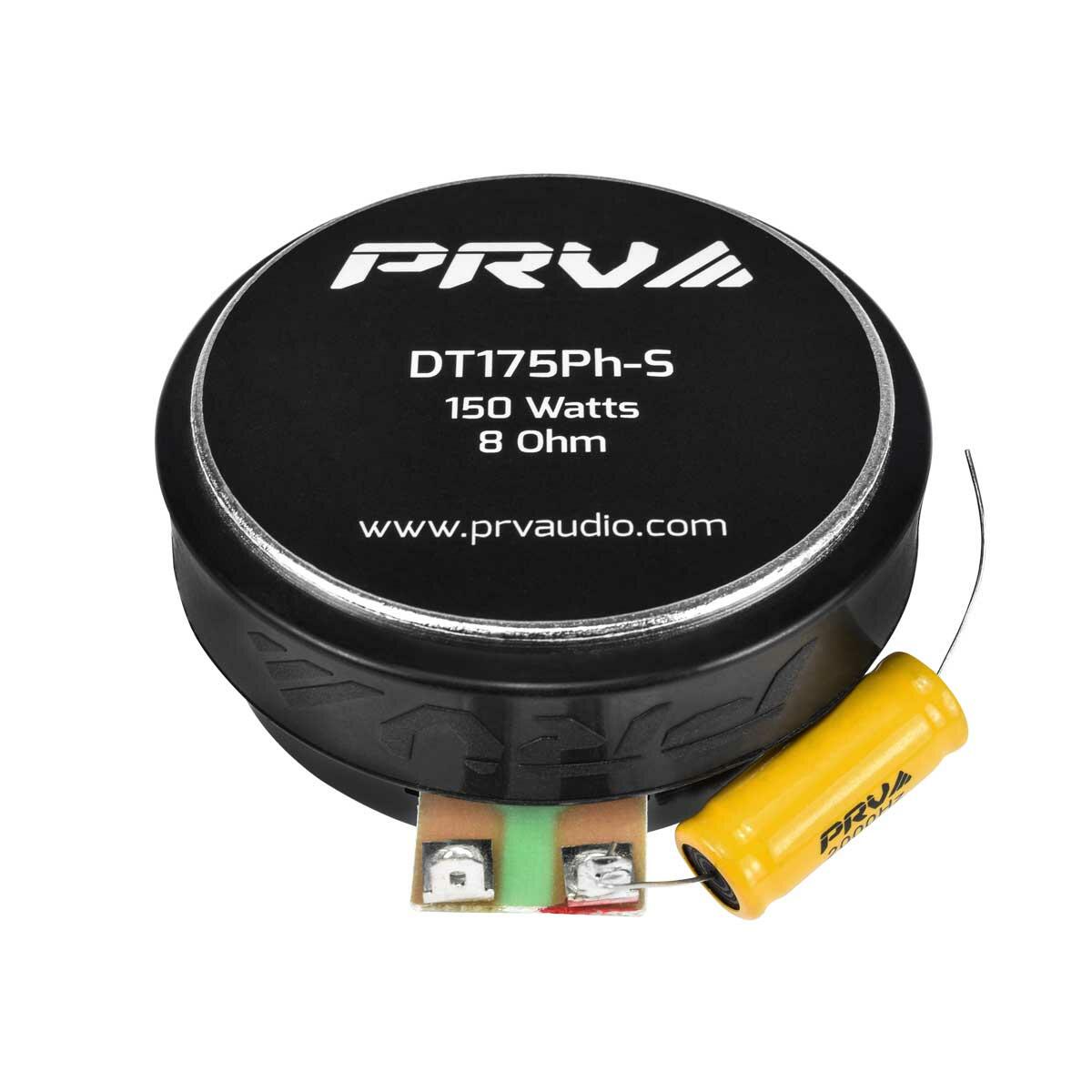

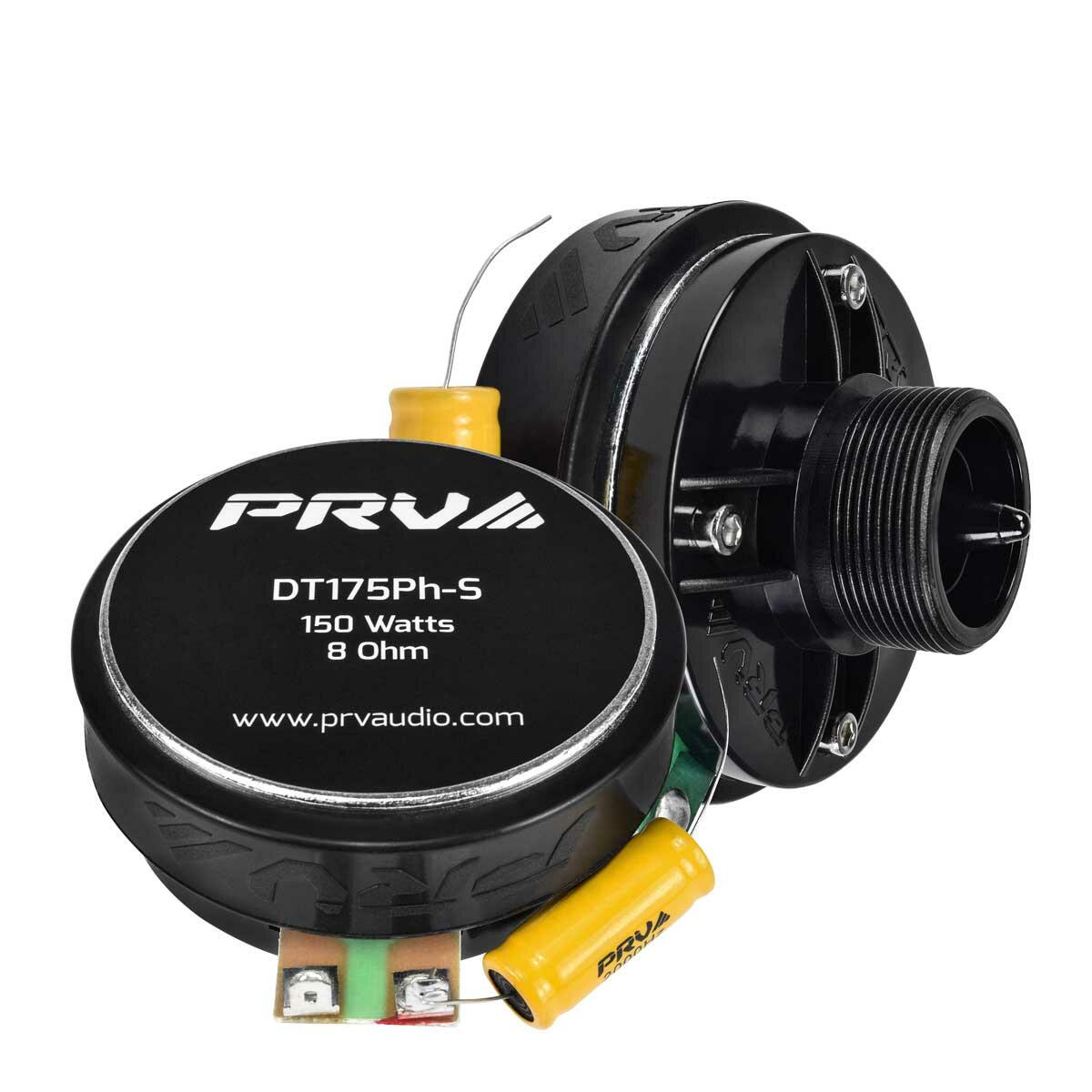

PRV Audio DT175Ph-S 1" EXIT PHENOLIC COMPRESSION DRIVER (Each)

Regular price $39.99
Sale price $39.99 Regular price
Unit price
You Save
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share

  • Estimated Delivery:Jun 27 - Jul 01

  • Free Shipping*: excludes oversized items

GUARANTEED SAFE & SECURE CHECKOUT

PRV Audio DT175Ph-S 1" EXIT PHENOLIC COMPRESSION DRIVER (Each)

PRV Audio DT175Ph-S 1" EXIT PHENOLIC COMPRESSION DRIVER (Each)

Regular price $39.99
Sale price $39.99 Regular price
Unit price
FREE SHIPPING ON SELECT ORDERS
FINANCING OPTIONS AVAILABLE
Product Description
Shipping
Returns
Questions?

PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)



Features

The DT175Ph-S is a lightweight compression driver that weighs just 1.5lbs, and offers you an economical yet responsive driver through 20kHz. The Phenolic diaphragm offers a more subtle, smooth tone producing a less harsh sound in smaller environments yet packs the punch to fill most any size room.

  • Throat Diameter: 1
  • Type: Screw-On
  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 75 Watts
  • Program Power: 150 Watts

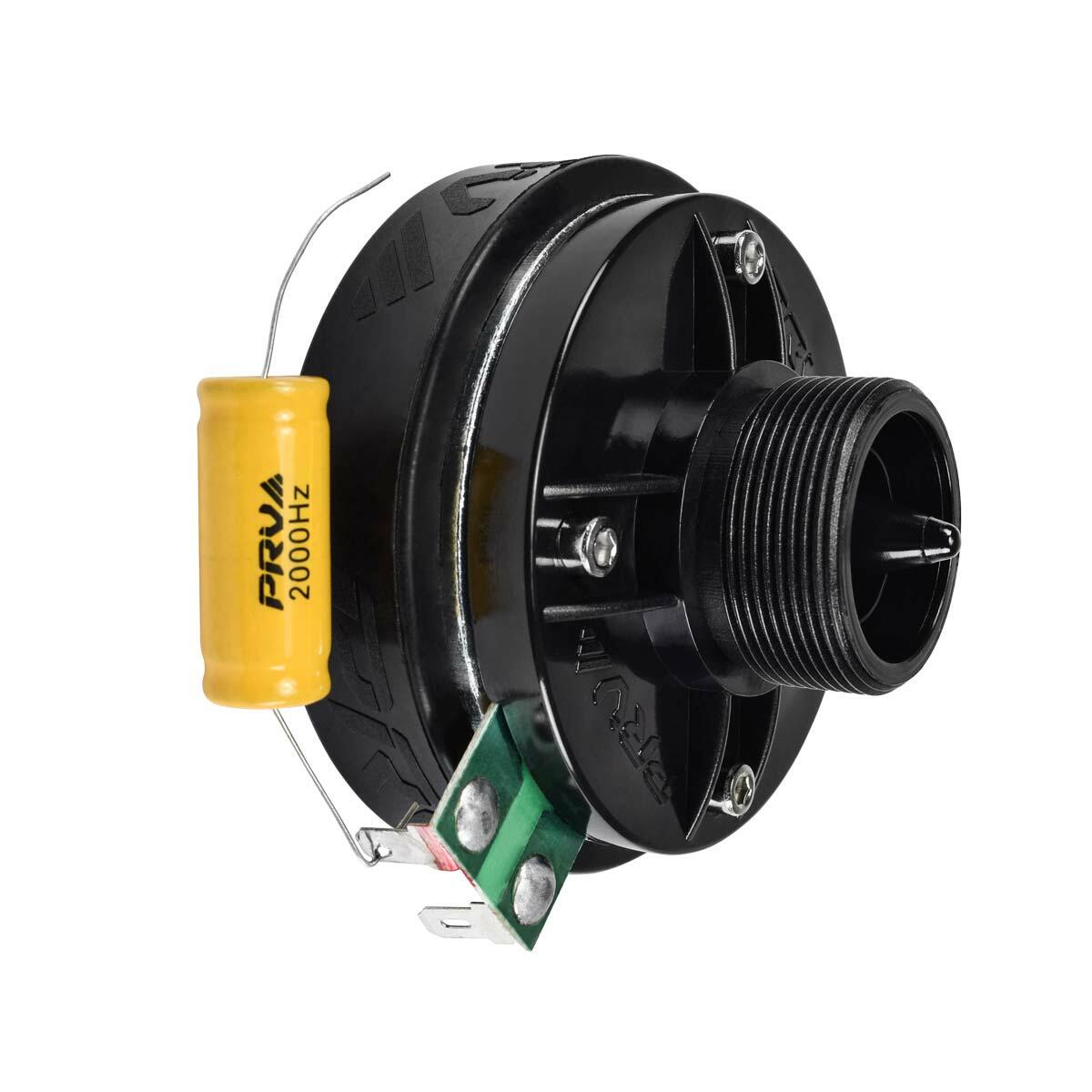

The DT175Ph-S has a standard 1 screw-on throat enabling you to quickly replace old worn out or damaged drivers. The most affordable and compact 1 compression driver from PRV Audio.



GENERAL SPECIFICATIONS

Exit Throat Diameter 1 (25.4mm)
Nominal impedance 8 Ohm
Nominal Power Handling 75 Watts
Continuous Program Power (RMS) 150 Watts
Peak Power 300 Watts
Sensitivity 2.83V at 1m 108 dB
Recommended Hi Pass Crossover** **For Full Power Handling 3000 Hz** **12db Per Octave Crossover

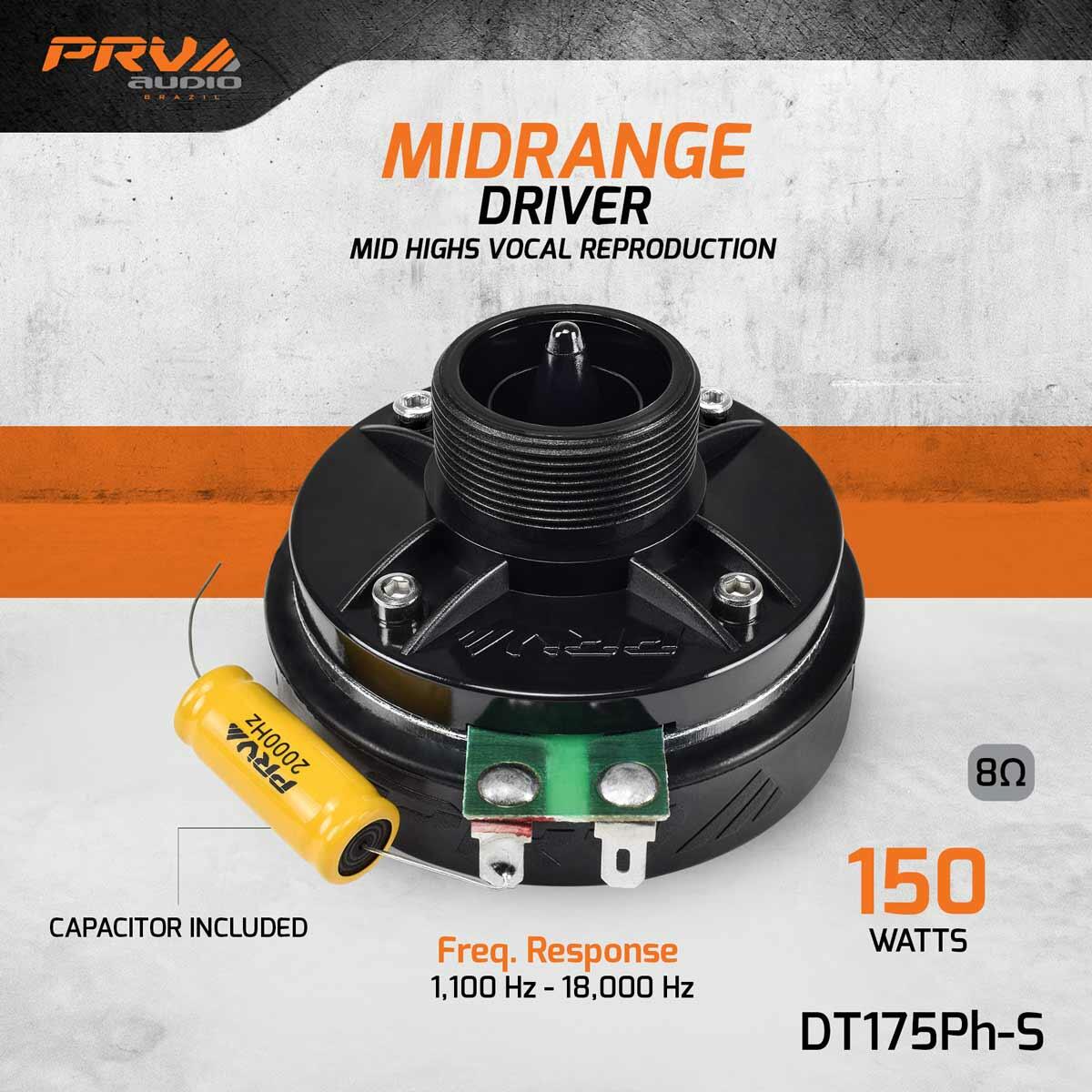

Frequency Response at -10dB 1,100 - 18,000 Hz
Voice Coil Diameter 1" (25.4 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Phenolic resin
Flux Density 1.02 T
Magnet Material Ferrite
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

EXTRA INFO

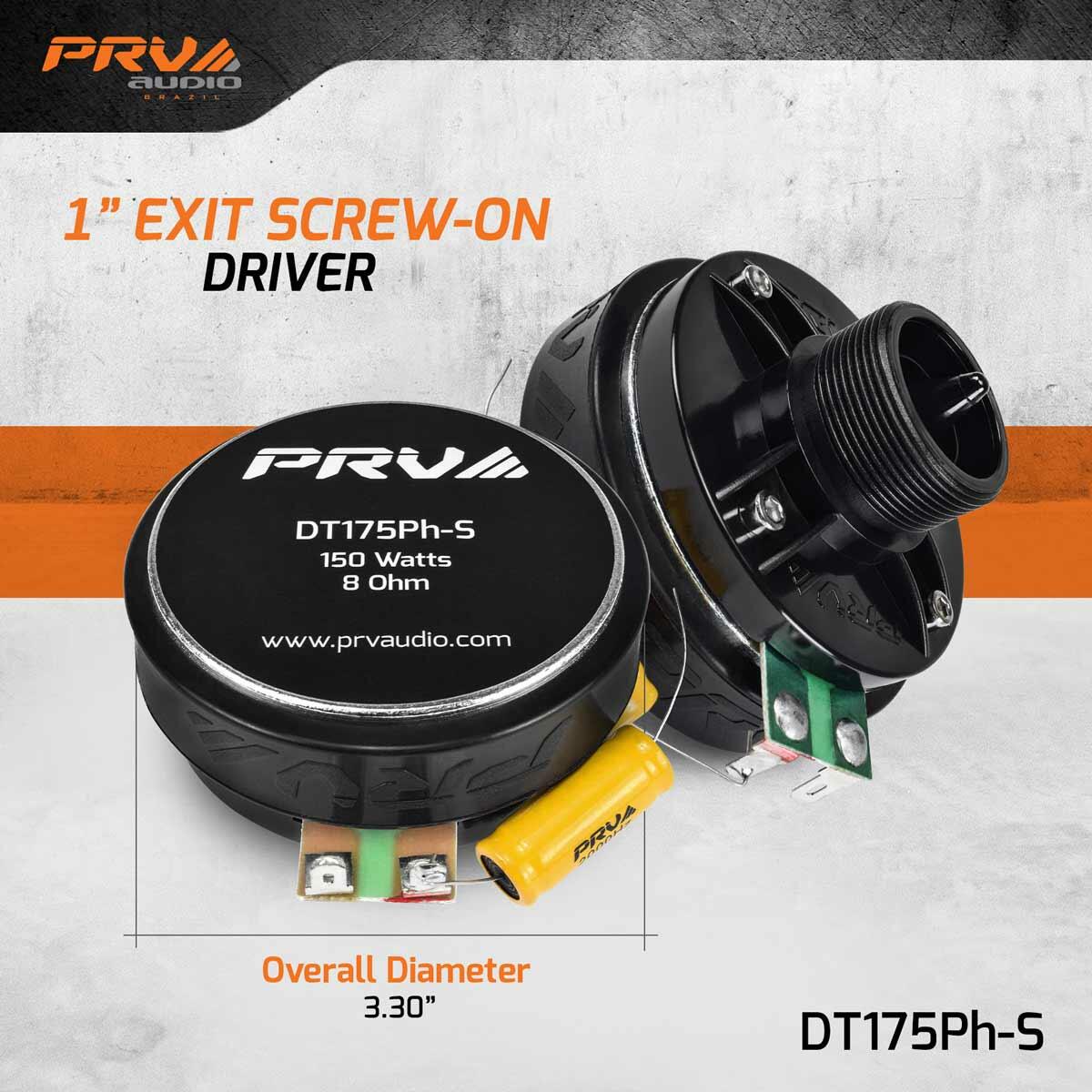

Overall Diameter 3.30 (83.8 mm)
Overall Depth 2.44 (62 mm)
Mounting Thread 1 3/8 18 TPI
Net Weight 1.67 lbs (0.76 kg)
Shipping Weight 1.80 lbs (0.82 kg)
Carton Dimensions W x L x H 4.21 x 3.50 x 2.83 (107 x 89 x 72 mm)
