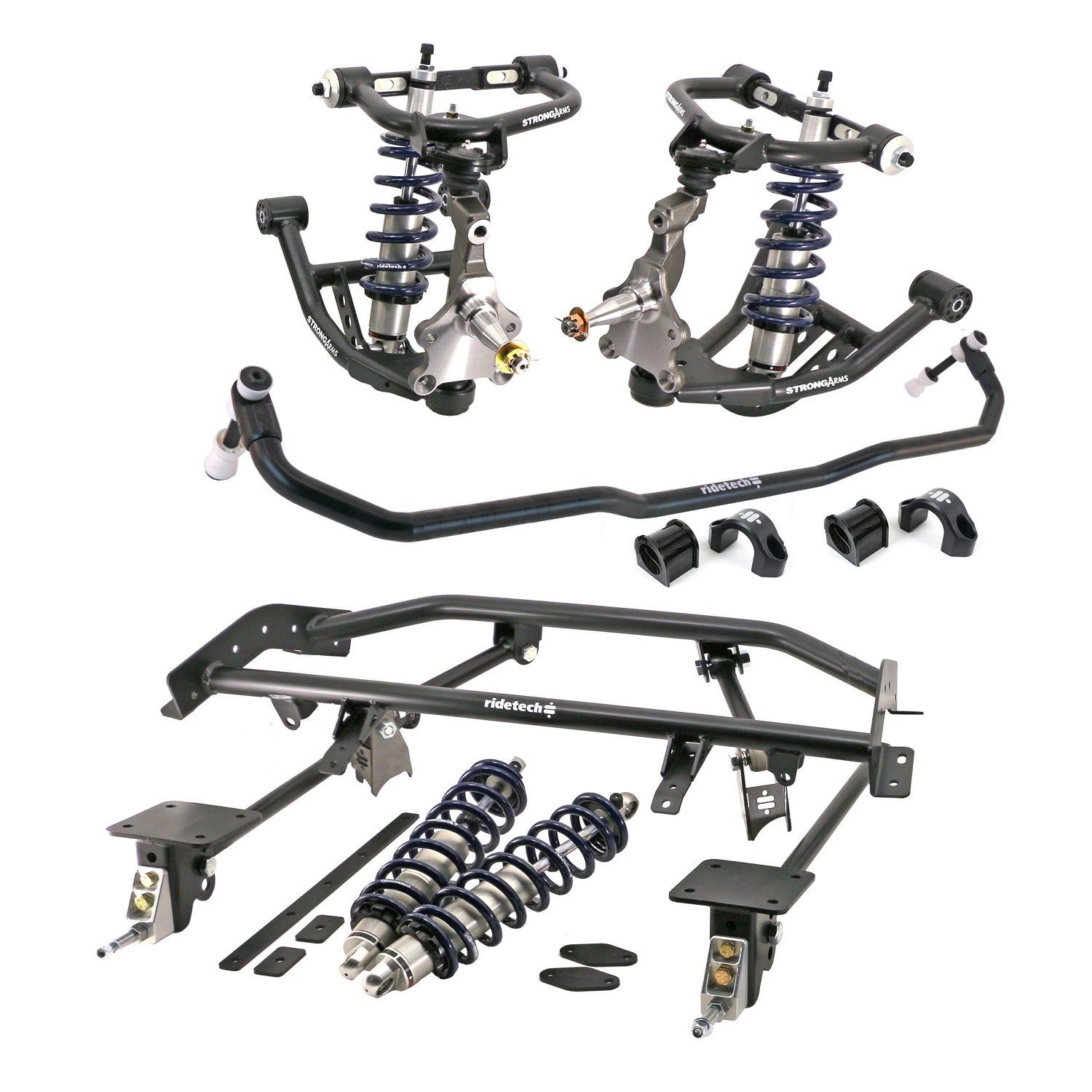

RideTech 11160202 1967-69 Camaro/Firebird Complete Coilover Suspension Systems

RideTech complete coilover systems include:

* RideTech tall spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2 in. pin drop which allows for the use of longer shocks creating more suspension travel.
* Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joints have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13 percent PTFE are used to reduce deflection and stiction.
* Lower StrongArms feature a double sheer lower mount for increased strength. The lower shock mount is dropped to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13 percent PTFE are used to reduce deflection and stiction.
* HQ Series coilover shocks utilize an impact forged aluminum body and monotube design to deliver excellent ride quality and handling. The rebound knob is located at the top of the shock for underhood access.
* Front MuscleBar helps to reduce body roll and creates room for wider front tires. It includes the PosiLink end links that provide immediate engagement between the chassis and control arms.
* Bolt-on 4-Link greatly improves traction, handling, and ride quality. Installation does not require the any major modifications to the floor pan and requires only minimal welding to the axle tube. Works with mini tubs. The R-joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack.
