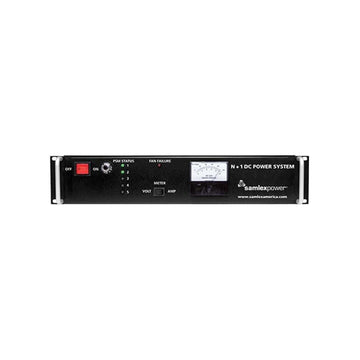

Samlex SEC100BRM 100 Amps Continuous Rack Mount Power Supply For Critical Applications
This modular 19” rack mount AC/DC power supply can provide up-to 100 Amps continuous power. The output DC voltage is highly regulated at 13.8 Volts (105-125 Volts, 50/60 Hz AC input). Designed for any critical power supply requirements, Telecommunication systems, Mobile sound/audio displays, GPS receivers, Security sytems, CCTV systems and more! An external battery can be connected for back-up and a section of the output current (up-to 8 amps) is diverted to charge the batteries when in state of discharge using the in-built battery back-up module. The battery supplies the DC load on loss of utility power. Features include N+1 redundancy, front panel analog Volt/Ampere Meter display, remote monitoring and indication by 25-pin D-sub connector, fan failure warning and alarm indicator, short circuit protection and overload current, Module status LEDs, fault indicator LEDs and fault alarm. 2 Year Limited Factory Warranty.
This modular 19” rack mount AC/DC power supply can provide up-to 100 Amps continuous power. The output DC voltage is highly regulated at 13.8 Volts (105-125 Volts, 50/60 Hz AC input). An external battery can be connected for back-up and a section of the output current (up-to 8 amps) is diverted to charge the batteries when in state of discharge using the in-built battery back-up module. The battery supplies the DC load on loss of utility power. Features include N+1 redundancy, front panel analog Volt/Ampere Meter display, remote monitoring and indication by 25-pin D-sub connector, fan failure warning and alarm indication. Ideal for critical power supply applications, telecommunication systems, mobile sound/audio displays, GPS receivers, security systems, CCTV systems.
- Provides N + 1 redundancy (2 or more running in parallel)
- Voltage/Amperes meter
- Module status LEDs, fault indicator LEDs and fault alarm are standard features on all models
- Highly regulated output voltage
- Short circuit protection and overload current
Input: 105-125 VAC 50/60 HZ
Output: 13.8 VDC
Amps: 100 Amps
Weight: 25 (lbs)
Weight: 11.33 (kgs)
Dimensions: 19 x 16.25 x 3.5 (in)
Dimensions: 482.6 x 403.86 x 91.44 (mm)
This modular 19” rack mount AC/DC power supply can provide up-to 100 Amps continuous power. The output DC voltage is highly regulated at 13.8 Volts (105-125 Volts, 50/60 Hz AC input). An external battery can be connected for back-up and a section of the output current (up-to 8 amps) is diverted to charge the batteries when in state of discharge using the in-built battery back-up module. The battery supplies the DC load on loss of utility power. Features include N+1 redundancy, front panel analog Volt/Ampere Meter display, remote monitoring and indication by 25-pin D-sub connector, fan failure warning and alarm indication. Ideal for critical power supply applications, telecommunication systems, mobile sound/audio displays, GPS receivers, security systems, CCTV systems.
- Provides N + 1 redundancy (2 or more running in parallel)
- Voltage/Amperes meter
- Module status LEDs, fault indicator LEDs and fault alarm are standard features on all models
- Highly regulated output voltage
- Short circuit protection and overload current
Input: 105-125 VAC 50/60 HZ
Output: 13.8 VDC
Amps: 100 Amps
Weight: 25 (lbs)
Weight: 11.33 (kgs)
Dimensions: 19 x 16.25 x 3.5 (in)
Dimensions: 482.6 x 403.86 x 91.44 (mm)
