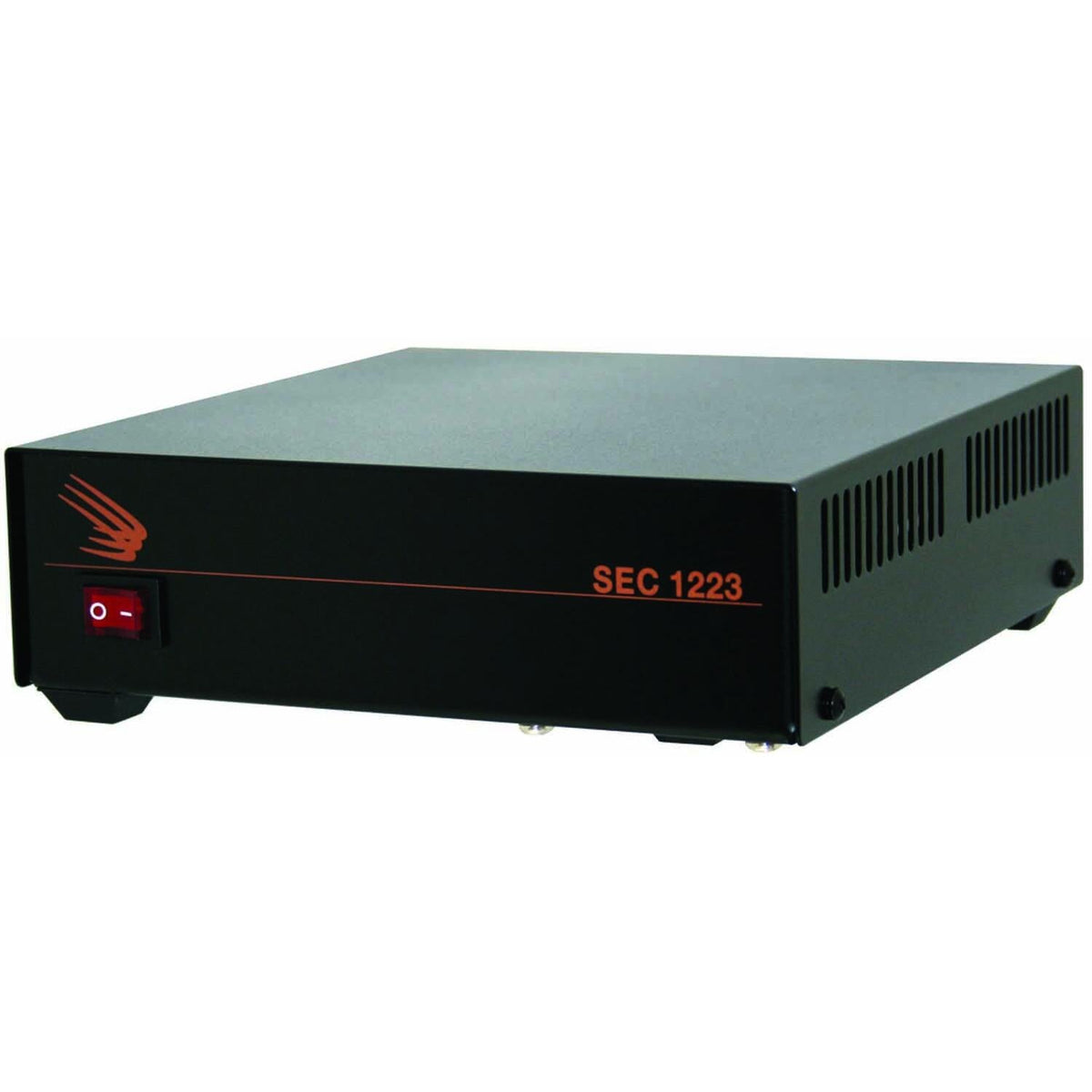

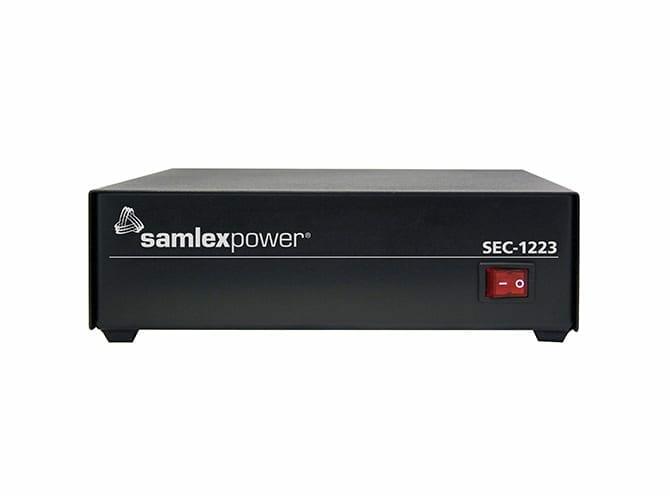

Samlex SEC1223 - 23 Amp Constant Ac-dc High Efficiency Desktop Switching Power Supply With Rear Binding Posts
-
Estimated Delivery:Oct 17 - Oct 21
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
Samlex SEC1223 - 23 Amp Constant Ac-dc High Efficiency Desktop Switching Power Supply With Rear Binding Posts
This 23 Amp constant base station high efficiency power supply is UL approved. Sec1223 AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz. This advanced switch-mode DC power supply was designed specifically for land mobile radio applications. The power supply produces clean reliable power and is highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.
This high efficiency UL-60950-1 approved AC-DC power supply provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz. These advanced switch-mode DC power supplies were designed specifically for land mobile radio (LMR) applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC switching power supply conforms to FCC Part 15(B), class B digital device.
Also available in 230 Volts, 50 Hz model – SEC-1223CE
- Advanced switch-mode technology
- Reliable power with minimum weight and size
- Circuit innovations minimize output voltage ripple and RFI
- Input voltage can be set at 120VAC or 240VAC (internal jumper)
- UL listed to both USA & Canadian safety standards.
Input: 100-130 VAC
Output: 13.8 VDC
Amps: 23 Amps
Fuse: 6.3 Amps
Weight: 3.5 (lbs)
Weight: 1.6 (kg)
Dimensions: 7.28 x 8.19 x 2.40 (in)
Dimensions: 185 x 208 x 59.5 (mm)
Safety: UL, FCC
This high efficiency UL-60950-1 approved AC-DC power supply provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz. These advanced switch-mode DC power supplies were designed specifically for land mobile radio (LMR) applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC switching power supply conforms to FCC Part 15(B), class B digital device.
Also available in 230 Volts, 50 Hz model – SEC-1223CE
- Advanced switch-mode technology
- Reliable power with minimum weight and size
- Circuit innovations minimize output voltage ripple and RFI
- Input voltage can be set at 120VAC or 240VAC (internal jumper)
- UL listed to both USA & Canadian safety standards.
Input: 100-130 VAC
Output: 13.8 VDC
Amps: 23 Amps
Fuse: 6.3 Amps
Weight: 3.5 (lbs)
Weight: 1.6 (kg)
Dimensions: 7.28 x 8.19 x 2.40 (in)
Dimensions: 185 x 208 x 59.5 (mm)
Safety: UL, FCC
