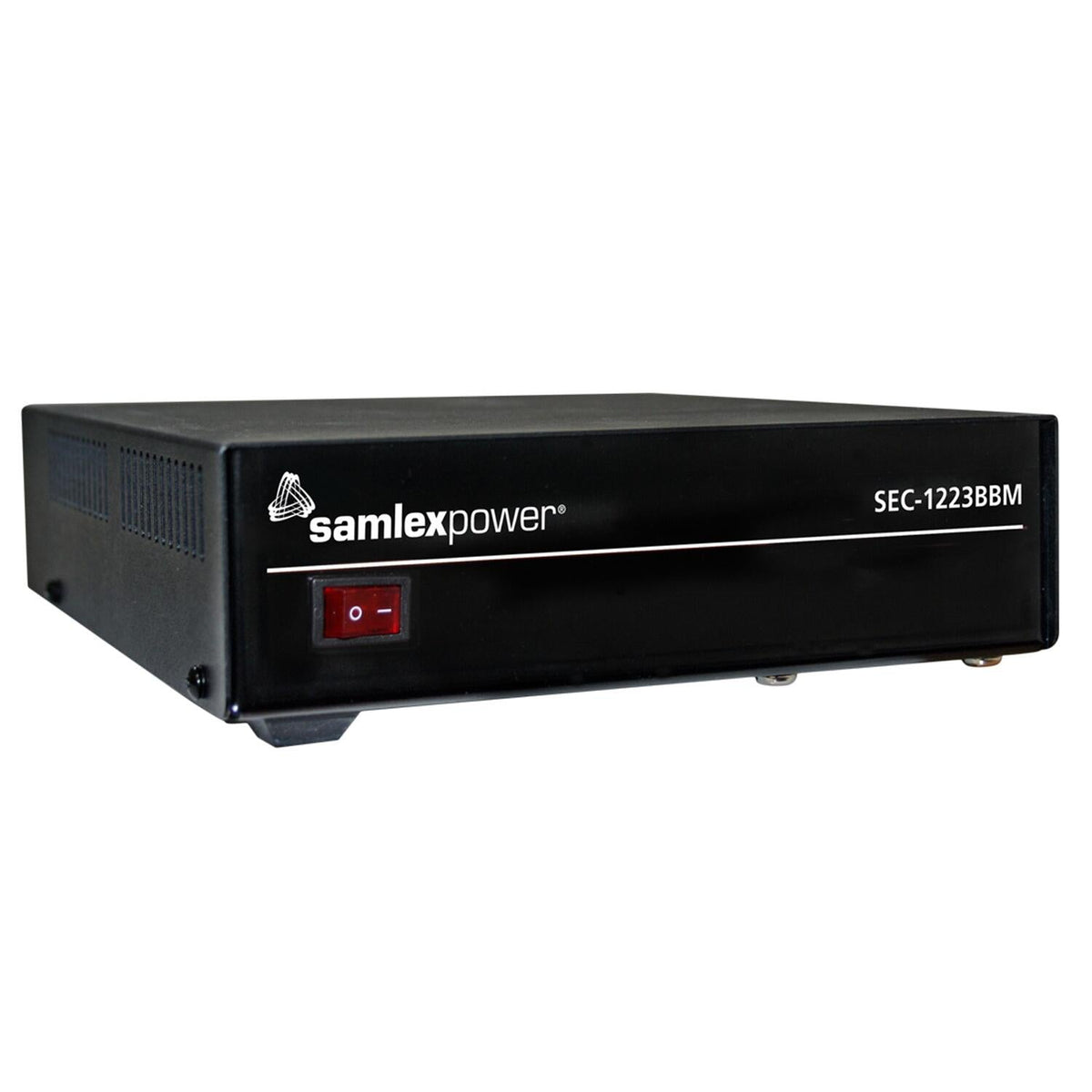

Samlex SEC1223BBM 23 Amp Power Supply With Battery Backup Module
-
Estimated Delivery:Oct 17 - Oct 21
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
Samlex SEC1223BBM 23 Amp Power Supply With Battery Backup Module
The SEC-1223BBM combines the reliability of our classic SEC-1223 power supply with the reassurance of the BBM-1225 battery backup module. This combined unit automatically provides uninterrupted DC power from an external backup battery (not included) to your critical load in the event of an AC power outage. Once AC power is restored, the SEC-1223BBM will continue to seamlessly supply DC power to the load while providing a current limited charge to the backup battery (not included).
The SEC-1223BBM combines the reliability of our classic SEC-1223 power supply with the reassurance of the BBM-1225 battery backup module. This combined unit automatically provides uninterrupted DC power from an external backup battery (not included) to your critical load in the event of an AC power outage. Once AC power is restored, the SEC-1223BBM will continue to seamlessly supply DC power to the load while providing a current limited charge to the backup battery (not included).
- Advanced Switch Mode Technology
- Reliable, 12V Nominal DC Uninterruptible Power Source (DC UPS) in conjunction with external 12V Lead Acid battery backup circuit
- High efficiency, compact and portable
- Protected against short circuit, overload, over voltage and over temperature
- Cooling by temperature controlled fan improves efficiency and prolongs life of the fan
- UL safety listed as “Information Technology Equipment Power Supply” for USA (UL Standard ANSI/UL-60950-1) and for Canada (CSA Standard CAN/CSA-C22.2 No. 60950-1)
- Complies with FCC Part 15(B), Class B for limits on conducted and radiated Electromagnetic Interference (EMI)
Input: 120 VAC
Output: 13.8 VDC
Amps: 23 Amps
Fuse: 6.3 Amps
Weight: 3.4 (lbs)
Weight: 1.6 (kg)
Dimensions: 7.28 x 9.47 x 2.4 (in)
Dimensions: 185 x 240.5 x 61 (mm)
Safety: UL, FCC
The SEC-1223BBM combines the reliability of our classic SEC-1223 power supply with the reassurance of the BBM-1225 battery backup module. This combined unit automatically provides uninterrupted DC power from an external backup battery (not included) to your critical load in the event of an AC power outage. Once AC power is restored, the SEC-1223BBM will continue to seamlessly supply DC power to the load while providing a current limited charge to the backup battery (not included).
- Advanced Switch Mode Technology
- Reliable, 12V Nominal DC Uninterruptible Power Source (DC UPS) in conjunction with external 12V Lead Acid battery backup circuit
- High efficiency, compact and portable
- Protected against short circuit, overload, over voltage and over temperature
- Cooling by temperature controlled fan improves efficiency and prolongs life of the fan
- UL safety listed as “Information Technology Equipment Power Supply” for USA (UL Standard ANSI/UL-60950-1) and for Canada (CSA Standard CAN/CSA-C22.2 No. 60950-1)
- Complies with FCC Part 15(B), Class B for limits on conducted and radiated Electromagnetic Interference (EMI)
Input: 120 VAC
Output: 13.8 VDC
Amps: 23 Amps
Fuse: 6.3 Amps
Weight: 3.4 (lbs)
Weight: 1.6 (kg)
Dimensions: 7.28 x 9.47 x 2.4 (in)
Dimensions: 185 x 240.5 x 61 (mm)
Safety: UL, FCC
