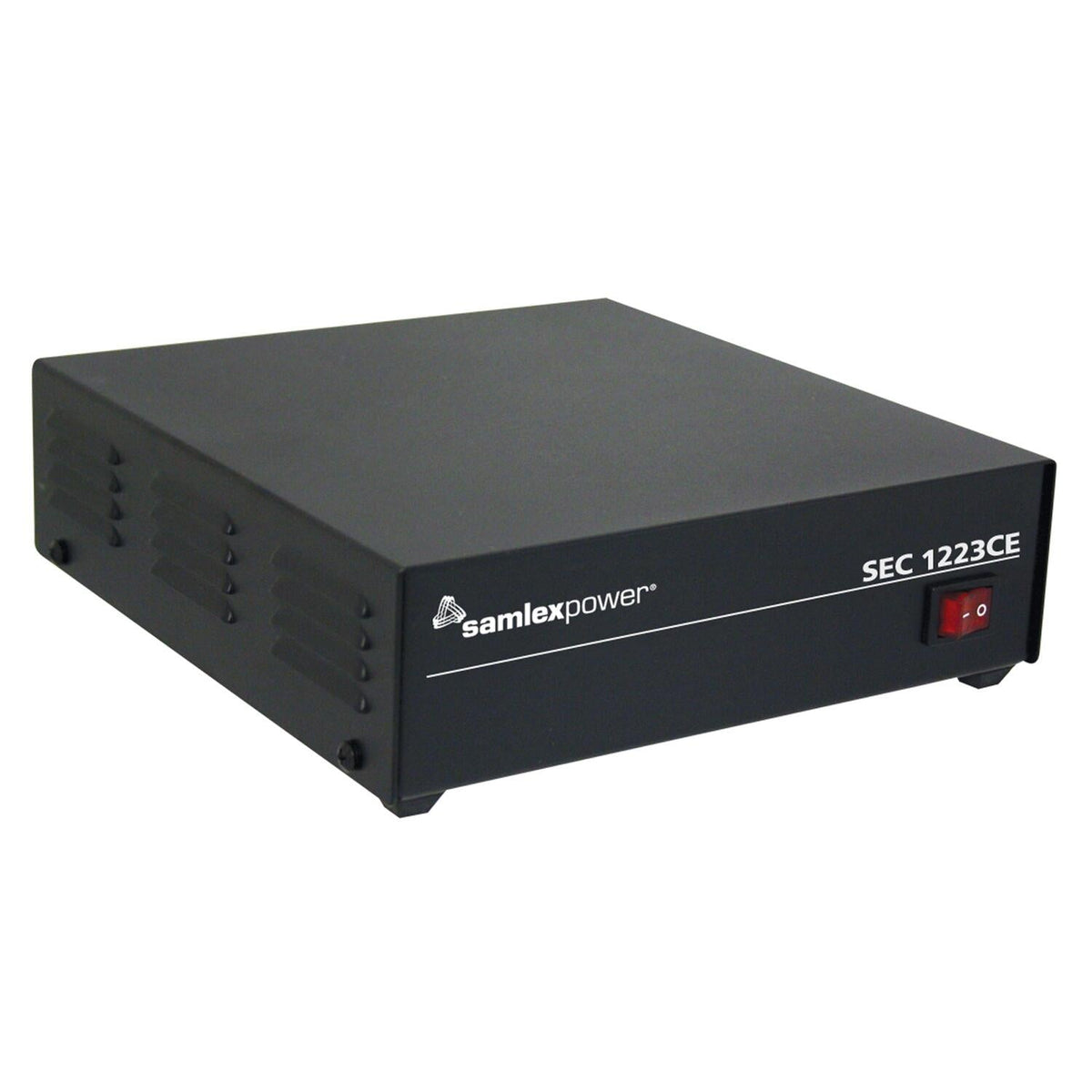

Samlex SEC1223CE Switching Power Supply 230vac In/13.8vdc Out 23amp
-
Estimated Delivery:Oct 17 - Oct 21
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
Samlex SEC1223CE Switching Power Supply 230vac In/13.8vdc Out 23amp
This high efficiency AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 230 Volts, 50 Hz. These advanced switch-mode DC power supplies were designed specifically for use with land mobile radio. The power supply provides clean reliable power and incorporates filters to suppress RFI. The unit comes with a detachable power supply cord with “SCHUKO” plug. Features include over-current, short-circuit, over-voltage and over-temperature protection. The AC-DC power supply conforms to EN60950 safety standards and EN55022 class B, EN6100-3-2,3 and EN61000-4-2,3,4,5,6,8,11 EMI/EMC standards.
This high efficiency AC-DC power supply provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 230 Volts, 50 Hz. These advanced switch-mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with “SCHUKO” plug. Features include over-current, short-circuit, over-voltage and over-temperature protection. The AC-DC power supply conforms to EN60950 safety standards and EN55022 class B, EN6100-3-2,3 and EN61000-4-2,3,4,5,6,8,11 EMI/EMC standards.
- Advanced switch-mode technology
- Reliable power with minimum weight and size
- Circuit innovations minimize output voltage ripple and RFI
- Input voltage 230 VAC
Input: 230 VAC, 50Hz
Output: 13.8 VDC
Amps: 23 Amps
Fuse: 6.3 Amps
Weight: 4.8 (lbs)
Weight: 2.17 (kg)
Dimensions: 8.19 x 7.28 x 2.4 (in)
Dimensions: 185 x 208 x 59.5 (mm)
Safety: RoHS Compliant
This high efficiency AC-DC power supply provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 230 Volts, 50 Hz. These advanced switch-mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with “SCHUKO” plug. Features include over-current, short-circuit, over-voltage and over-temperature protection. The AC-DC power supply conforms to EN60950 safety standards and EN55022 class B, EN6100-3-2,3 and EN61000-4-2,3,4,5,6,8,11 EMI/EMC standards.
- Advanced switch-mode technology
- Reliable power with minimum weight and size
- Circuit innovations minimize output voltage ripple and RFI
- Input voltage 230 VAC
Input: 230 VAC, 50Hz
Output: 13.8 VDC
Amps: 23 Amps
Fuse: 6.3 Amps
Weight: 4.8 (lbs)
Weight: 2.17 (kg)
Dimensions: 8.19 x 7.28 x 2.4 (in)
Dimensions: 185 x 208 x 59.5 (mm)
Safety: RoHS Compliant
