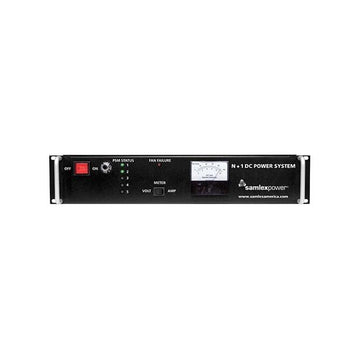

Samlex SEC40BRM 19" 40amp Ac/dc Rack Mount Power Supply

SEC-40BRM + SEC-2012 MPSB modules are expandable to: 60 amp, 80 amp, or 100 amp power supply

This modular 19” rack mount AC/DC power supply can provide up-to 40 Amps continuous power. The output DC voltage is highly regulated at 13.8 Volts (105-125 Volts, 50 Hz AC input). Output power can be expanded in steps of 20 amps (60A, 80A or 100A max.) by adding SEC-2012MPSB power modules.

An external battery can be connected for back-up and a section of the output current (up-to 8 amps) is diverted to charge the batteries when in state of discharge using the in-built battery back-up module. The battery supplies the DC load on loss of utility power. Features include N+1 redundancy, front panel analog Volt/Ampere Meter display, remote monitoring and indication by 25-pin D-sub connector, fan failure warning and alarm indication. Ideal for critical power supply applications, telecommunication systems, mobile sound/audio displays, GPS receivers, security systems, CCTV systems.

• Provides N + 1 redundancy (2 or more running in parallel)
• Voltage/Amperes meter
• Operation status LEDs, fault indicator LEDs and fault alarm features
• Highly regulated output voltage
• Short circuit protection and overload current
• 25 pin D-sub connector for remote monitoring system
• Expand output power to 60 amps, 80 amps or 100 amps with the SEC-2012MPSB power modules
