Soundstream RN5.2000D Rubicon Nano Class D 5Ch Amplifier
-
Estimated Delivery:May 27 - May 31
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
Soundstream RN5.2000D Rubicon Nano Class D 5Ch Amplifier
Rubicon Nano Class D 5Ch Amplifier
| Max Power | 2,000 Watts |
| RMS Power 4Ω | 75W x 4 + 300W |
| RMS Power 2Ω | 100W x 4 + 500W |
| RMS Bridged 4Ω | 200W x 2 + 500W (2Ω) |
Description

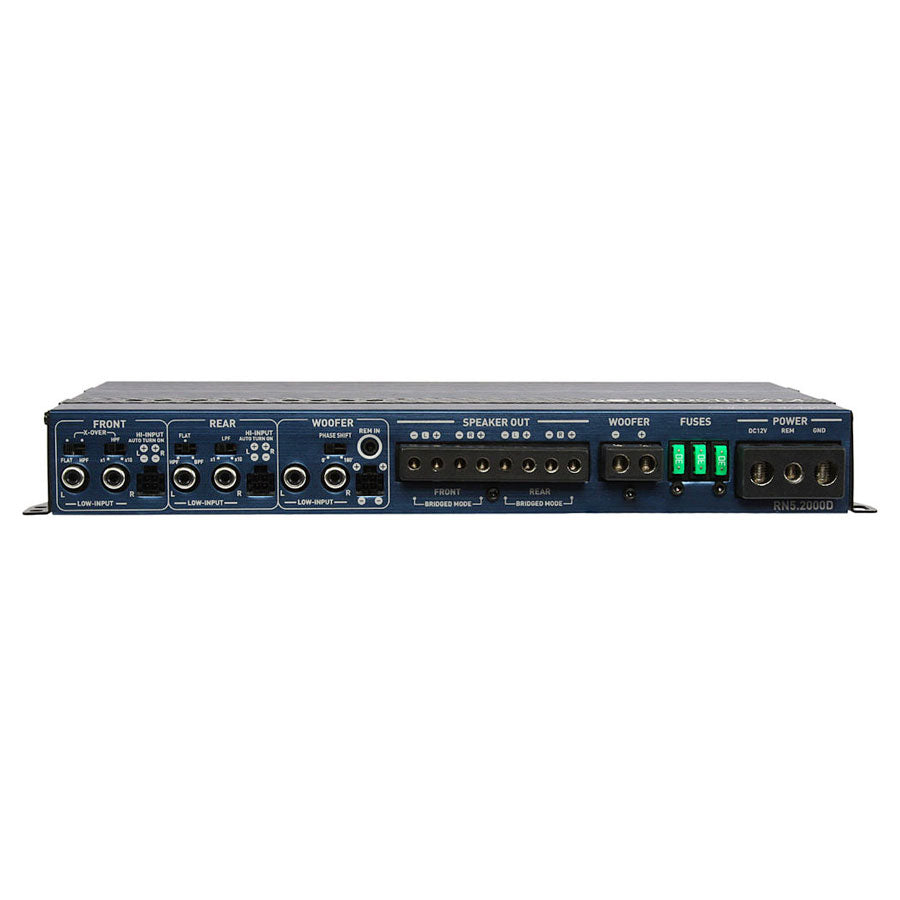

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you’ll notice several key improvements; Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability.
Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)
Specifications
| SPECIFICATIONS | RN5.2000D |
|---|---|
| Max Power | 2,000 Watts |
| RMS Power @ 4Ω | 75W x 4 + 300W |
| RMS Power @ 2Ω | 100W x 4 + 500W |
| RMS Bridged @ 4Ω | 200W x 2 + 500W (2Ω) |
| Remote Gain Control | Included |
| Low Pass Filter | 50Hz-500Hz / (x10) 500Hz-5KHz |
| High Pass Filter | 50Hz-500Hz / (x10) 500Hz-5KHz |
| Bass Boost | 0-18dB (Ch 5) |
| Bass Boost Frequency | 45Hz (Ch 5) |
| Subsonic Filter | 20Hz-50Hz (Ch 5) |
| Frequency Response | 10Hz-50KHz (Ch 1-4) / 10Hz-150Hz. (Ch 5) |
| S/N | 104dB |
| Input Sensitivity | 200Mv-6V |
| THD | <0.05% |
| Operation Voltage | 9V-16V DC |
| Fuse Rating | 30A x 3 |
| Dimensions (8.25″W x 2.75″H) |
12″ L |
| Max Power | 2,000 Watts |
| RMS Power 4Ω | 75W x 4 + 300W |
| RMS Power 2Ω | 100W x 4 + 500W |
| RMS Bridged 4Ω | 200W x 2 + 500W (2Ω) |
FEATURES
-
- High Efficiency Class D Full Range Amplifiers
- Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
- 2-ohm Stereo & 4-ohm Bridged Class D Full Range
- Monoblock Bridging Capability for Double Amplifier Application
- MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
