Wagan EL3808 Pure Line Inverter 2000 Watt (PSW)

3 AC outlets with TrueRated Pure Sine Wave Power™. 2000 continuous watts for 24hrs, no exceptions!

Pure Line 2000W Pure Sine Inverter
”From the ground up” is the way that our new Pure Line Inverters have been built. Born from an idea to make compact and efficient Pure Sine Wave Inverters that not only look good, but perform great; the new Pure Line Inverter will change the way that you look at PSW Power Inverters! All Pure Line models are RoHS compliant, CE approved, and ETL certified to conform to UL and CSA Standards*!

Features
Inspired from the best parts of our popular Elite™ & SlimLine™ series of inverters, the Pure Line offers the clean pure sine wave from the Elite Series while retaining the good looks and compact size of the SlimLine Series! This is the pinnacle of inverter technology; the best of the best combined into a single unit!

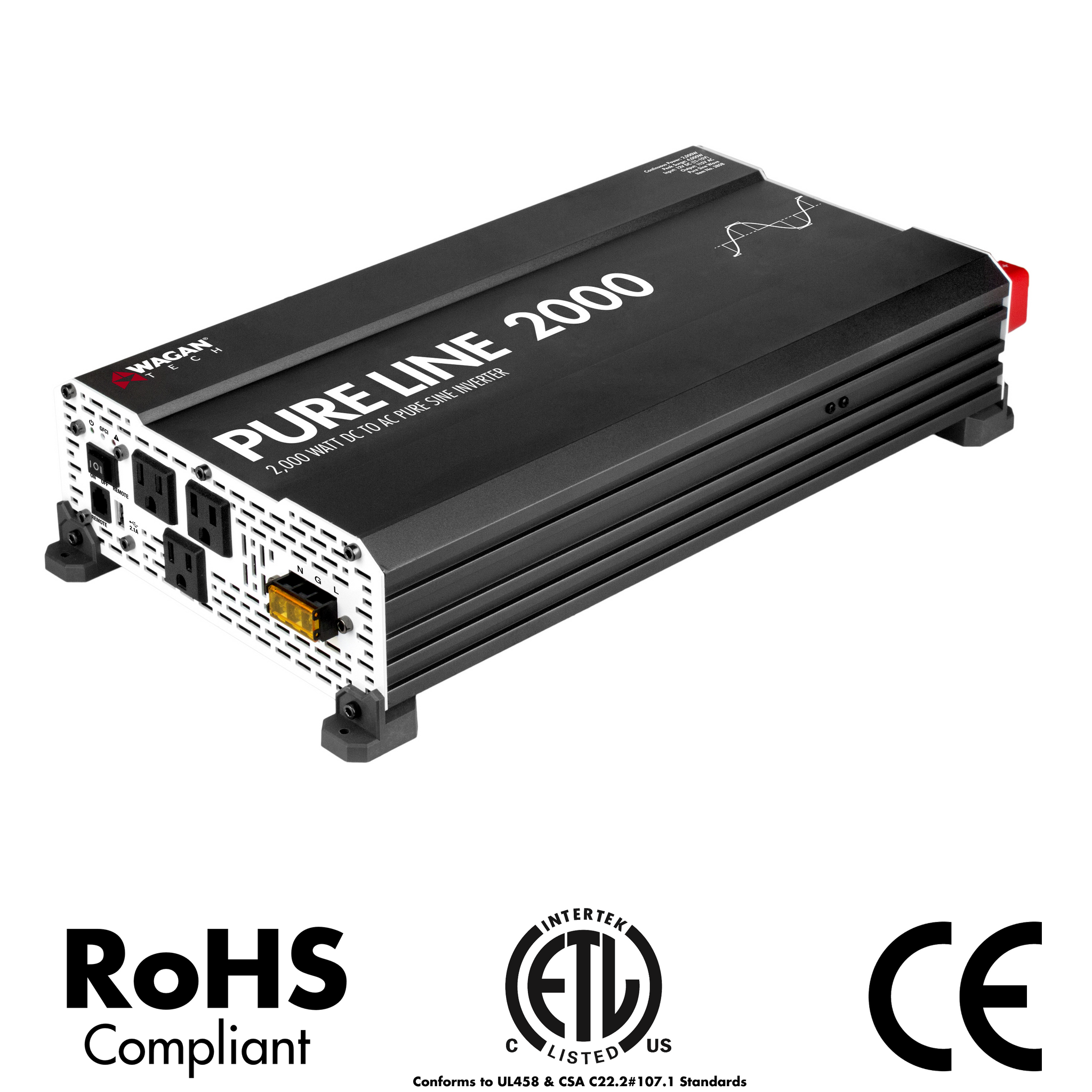

Front Component Details
On the front of the Pure Line 2000W you’ll find:

• 3-prong ground fault protected AC outlets (NEMA 5-15) x3
• 3 position power switch (On > Off > Remote)
• High Output Terminal Block
• 2.1A USB Power Port
• Power & Fault Lights
• Solid Mounting Feet
• Remote switch input port***

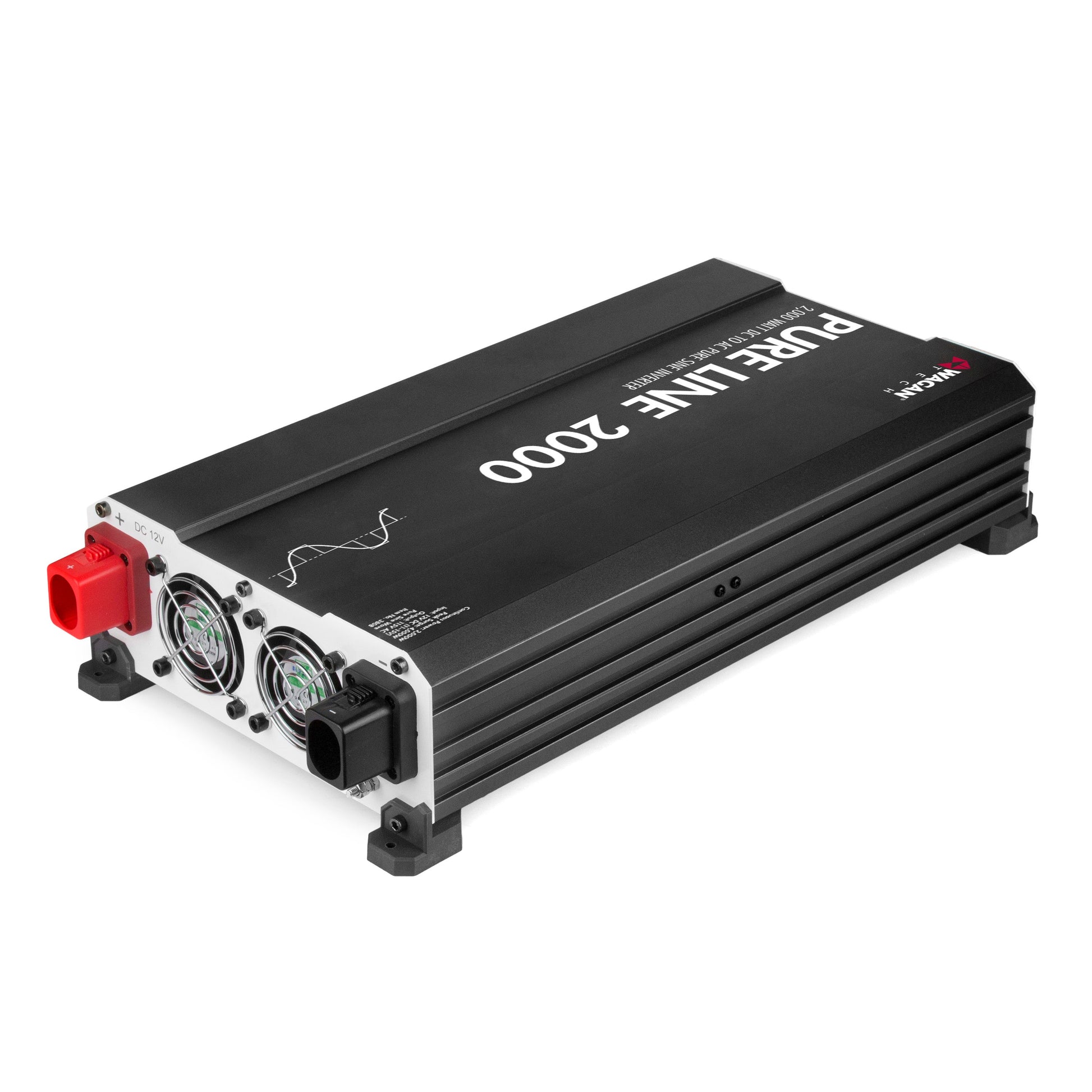

Rear Component Details
On the rear of the Pure Line 2000W, you’ll find:

• Negative (Black) Solid Mount Terminal
• Positive (Red) Solid Mount Terminal
• Twin Cooling Fans
• Solid Mounting Feet
• Grounding Terminal

Applications
In your vehicle, boat, motorcycle, RV, truck, Camper, tail-gating, camping, kid’s soccer games, or anywhere you need to turn DC (battery) power into AC (household) power is where the Pure Line 2000W will shine! 2000 continuous watts means that you can run your appliance without worry of the Pure Line 2000W letting you down like lesser inverters.

TrueRated Power™
TrueRated Power is Wagan Tech’s coined term for truth in advertising and performance. Simply put, our TrueRated inverters are tested at full load (the number printed on the inverter) and will sustain that load continuously for 24 hours.

For example, our SlimLine 500 Watt Inverter will run for 24 hours straight with a 500 Watt load. Our competitors claim "continuous wattage" when in fact most are only rated at 20 minutes of continuous wattage. After 20 minutes, the competitors output wattage will drop down by as much as 25% of their claimed wattage (in a 500 watt inverter, that can be a 125 watt loss!).

Quick List of Features

• 2000W TrueRated Power
• 4000W Peak Surge
• 3 AC Outlets
• 2.1A USB Power Port
• ETL Certified
• NTG Bonded, True Ground
• Remote Ready***
• Conformal Coating

Don't forget the fuse!

Is This the Right Inverter for You?
If you are having trouble deciding which inverter is right for your needs or are having trouble understanding the confusing inverter nomenclature, check out our inverter blog to help get a better grasp on what it is that you are looking for! Click Here!

WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Certifications:

• ETL Certified - Conforms to UL 458 & CSA C22.2#107.1 Standards
• RoHS Compliant
• CE Approved

Specifications:

• TrueRated Power™: 2000W
• Surge power: 4000W
• AC output: 110-120V
• Frequency: 60Hz
• Socket type (NEMA5-15): U.S. standard 3-prong (3x)
• Ground Fault Protected Outlets
• USB Power Port: 5V, 2.1A
• Maximum efficiency: 90%
• Output waveform: Pure Sine Wave (PSW)
• Overload protection: Automatic shutdown
• Overvoltage shutdown: 16.5V
• Overheating protection: Cooling fan with automatic shutdown
• Cooling Fan: Load/Temperature Controlled
• DC Input range: 11.0V - 15.0V
• DC Cable: 3 feet, 6AWG (Included)
• Short circuit and reverse polarity protection: Internal fuses
• Low battery alarm: 10.5V
• Low battery automatic shutdown: 10V
• No load current draw: 0.6A
• Harmonic Distortion (THD): 3%
• NTG Bond: Yes
• True Ground: Yes
• Remote Control Capable*
• Conformal Coating PCB
• DC Terminal Safety Covered (removable covers)
• Net weight: 11.7 lbs.
• Dimensions L x W x H (in.): 17.5 x 8.7 x 3.7
• Operating Temperature Range: -4°–104° F ± (-20°–40° C ±)
• Power Cables: Included

Warranty: 2 years

24V & 48V input models are available, please call 1.800.231.5806

*Remote not included
